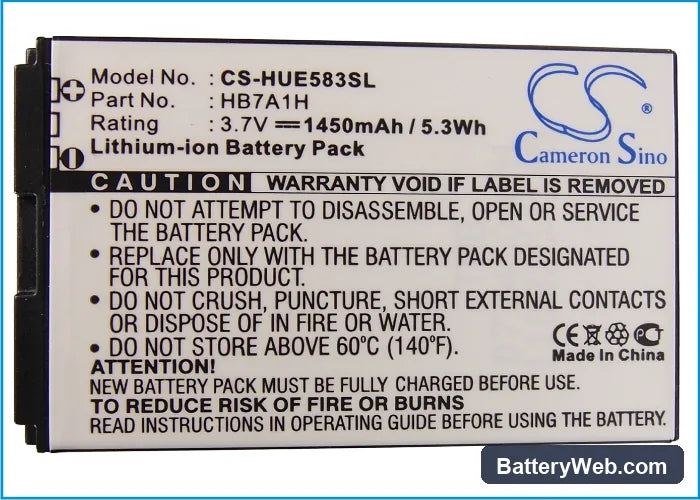

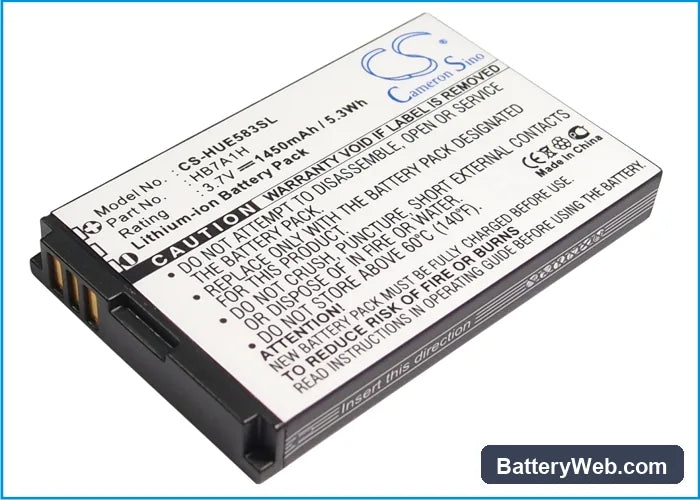

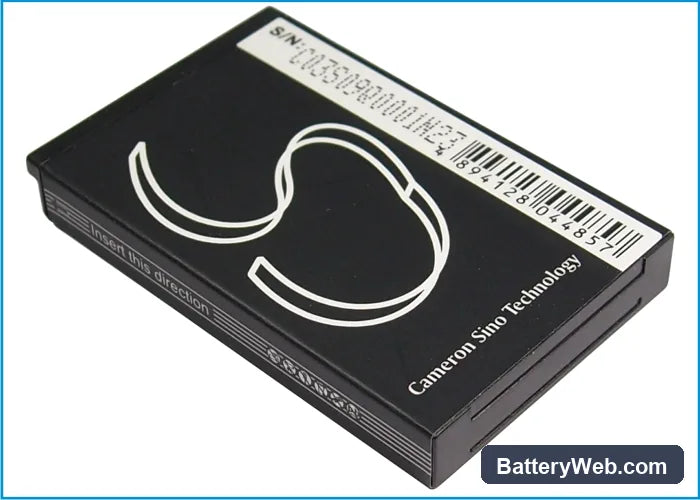

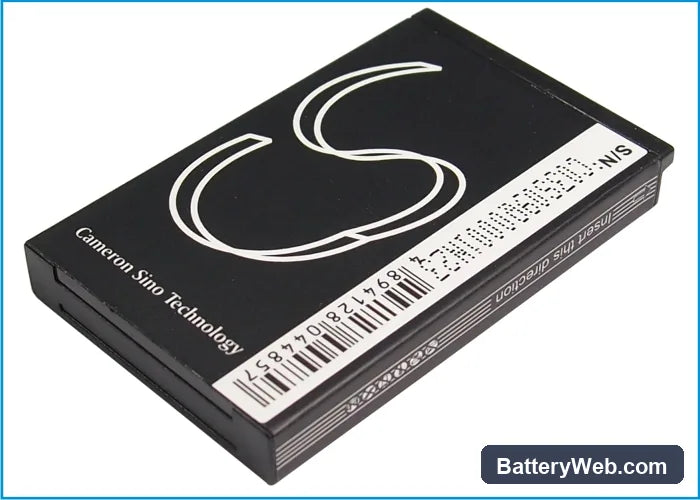

Huawei E583C Replacement Battery HB7A1H 3.7V 1450mAh

Huawei E583C / R201 — 3.7V Li-ion Replacement Battery (HB7A1H)

This is a 3.7V, 1450mAh Li-ion replacement for the OEM part HB7A1H. It fits the Huawei E583C portable Wi-Fi hotspot, the MiFi E583C Wireless Pointer, and the R201. All three share the same battery bay dimensions (53.50 × 33.50 × 7.00mm), connector pinout, and BMS handshake protocol.

• E583C, MiFi Wireless Pointer, and R201 compatibility: These models run the same 3.7V power rail with an identical protection circuit handshake. The hotspot firmware reads cell voltage and temperature data through the same three-pin interface on all three variants, so one cell fits the entire group without modification.
• Bench tested on actual hardware: We ran this cell in an E583C with five clients connected simultaneously. The BMS held voltage above 3.5V under combined modem and Wi-Fi transmit load, and the protection circuit tripped correctly at the low-voltage cutoff threshold without locking out the device.
• Cellular signal and battery stress: When the hotspot operates in a weak signal area, the cellular radio ramps to maximum transmit power. Keep the device in an open, ventilated spot — placing it inside a bag or against a wall forces the modem to work harder, accelerating cell temperature rise during long sessions.

Why the E583C drops all connected clients mid-session

The E583C runs two power-hungry subsystems at once: a cellular modem and a Wi-Fi radio. At maximum client load, combined current draw causes a brief voltage sag. If the cell is aged or partially discharged, that sag crosses the BMS undervoltage threshold and the device shuts down — even though the battery indicator showed charge remaining. A fresh cell with lower internal resistance handles the surge without the voltage dropping far enough to trigger cutoff.

E583C not powering on after sitting unused for weeks

Li-ion cells self-discharge during storage. If the E583C sits long enough, the cell drops below the minimum boot voltage — typically around 3.0V — and the device will not respond to the power button at all. This is not a fault with the unit itself. Connect the hotspot to a charger and leave it for 20–30 minutes before attempting to power on; the BMS needs to detect sufficient voltage before it permits a start sequence. If the battery is the original cell and still will not recover past 3.2V after a full charge cycle, replace the cell.
