Lenovo ThinkPad P70 Compatible Battery 14.8V 6400mAh 00HW030

Lenovo ThinkPad P70 / P71 — 14.8V Li-ion Replacement Battery (00HW030)

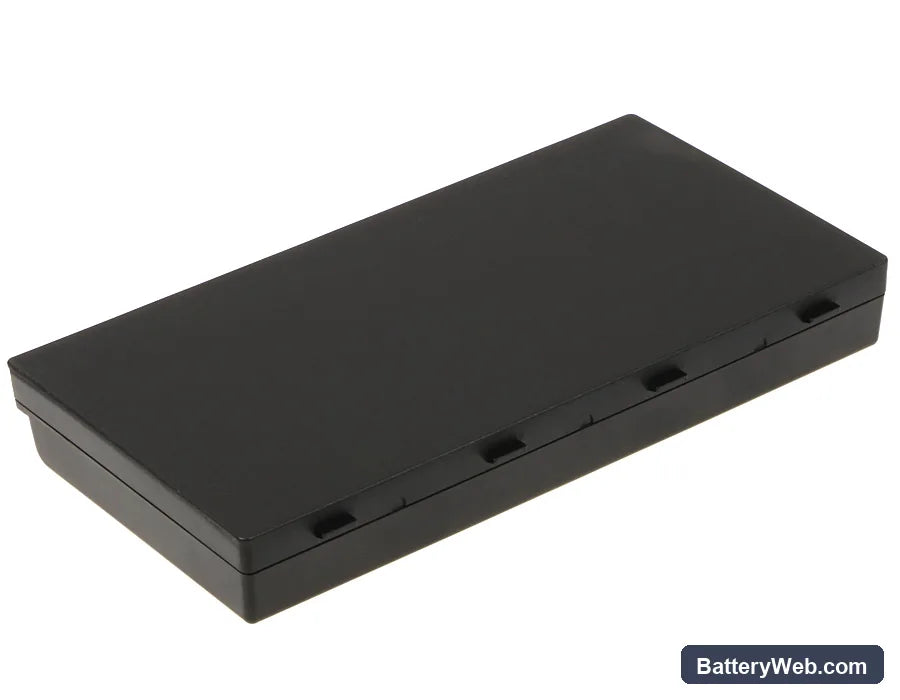

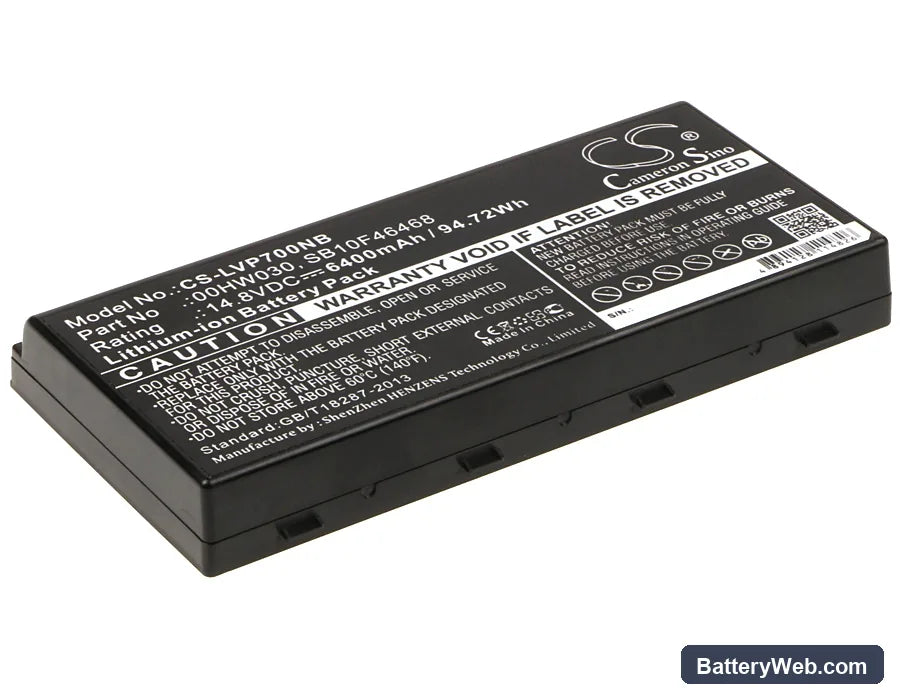

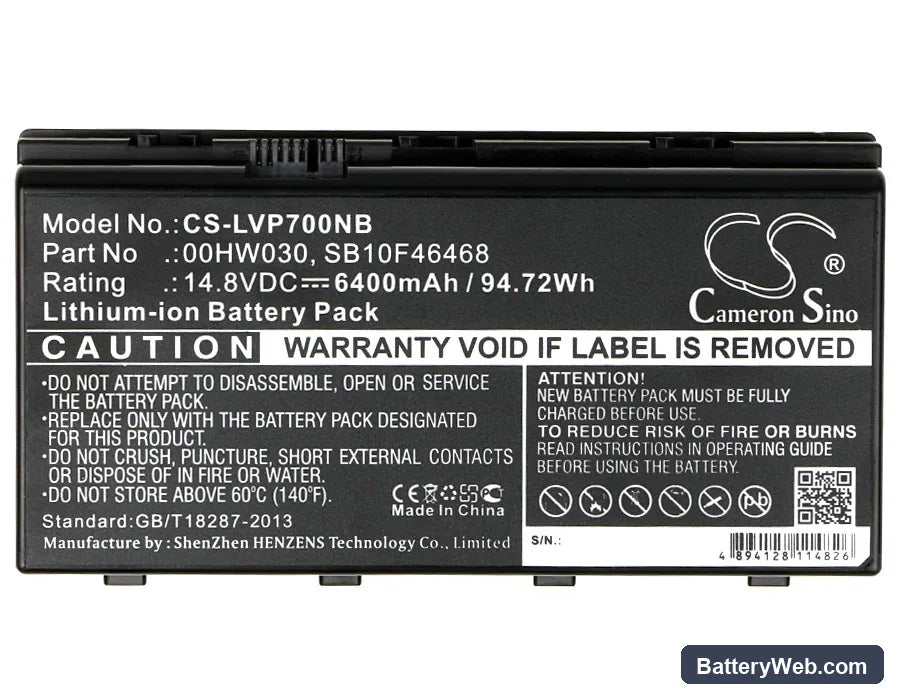

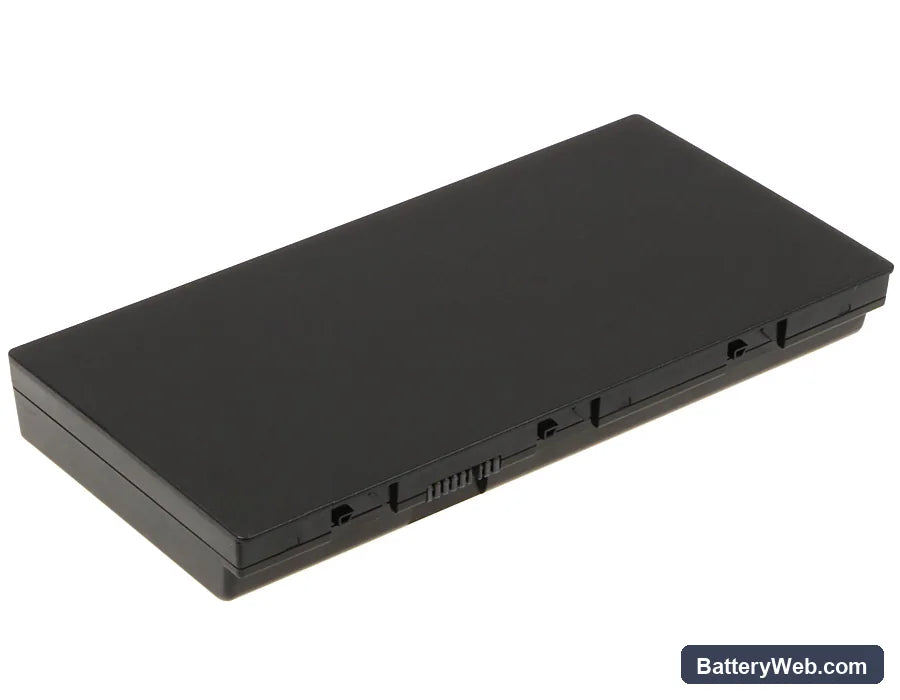

This 14.8V 6400mAh (94.72Wh) lithium-ion battery replaces the original power cell in the Lenovo ThinkPad P70 and P71 Mobile Workstation series. It fits the standard 4-cell bay used across the P70 and P71 chassis variants, including the Mobile Xeon Workstation configuration. OEM part numbers covered include 00HW030, SB10F46468, 4X50K14092, and 01AV451.

• P70 and P71 platform fit: Both models share the same 14.8V four-cell architecture, battery connector pinout, and BMS communication protocol over the SMBus rail. The fuel gauge IC and EEPROM data format are identical across the P70 and P71 chassis, so one cell covers both lines without firmware conflicts.
• Bench tested on actual hardware: We ran this cell on a ThinkPad P70 under sustained CPU and GPU load. The BMS held charge termination correctly at 16.8V, discharged cleanly to the low-voltage cutoff at 11.0V, and communicated accurate state-of-charge data back to the system throughout the cycle.
• Post-install calibration on ThinkPad workstations: After fitting this cell, run one full discharge until the laptop hibernates on low battery, then charge uninterrupted to 100% without interruption. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on the P70 and P71.

BIOS reporting battery health as poor immediately after replacement

The ThinkPad BIOS reads health status from EEPROM data embedded in the battery's BMS chip. A new cell ships with factory EEPROM values that don't match the charge history the BIOS expects to see. This mismatch triggers a false "poor health" or "replace soon" warning in Lenovo Vantage and the BIOS power screen. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% allows the BIOS learn cycle to rewrite its internal reference against the new cell's actual capacity curve.

Laptop shuts down at 20–30% charge shown on screen

Under full CPU plus discrete GPU load, the P70 and P71 draw significantly more current than the fuel gauge IC accounts for at rest. If the cell's voltage drops faster than the gauge can track — a voltage cliff — the system hits the hardware undervoltage threshold and shuts down even though the OS still displays 20–30% remaining. This is a gauge calibration gap, not a dead cell. Run two to three full discharge-and-charge cycles so the fuel gauge IC maps its readings to the new cell's actual discharge curve. After calibration, the reported percentage and the actual cutoff voltage should align to within 5%.
