MicroRAE PGM-6208 Replacement Battery 3.7V 5400mAh Li-ion

MicroRAE PGM-6208 / PGM-6228 — 3.7V Li-ion Replacement Battery (M01-3055-000)

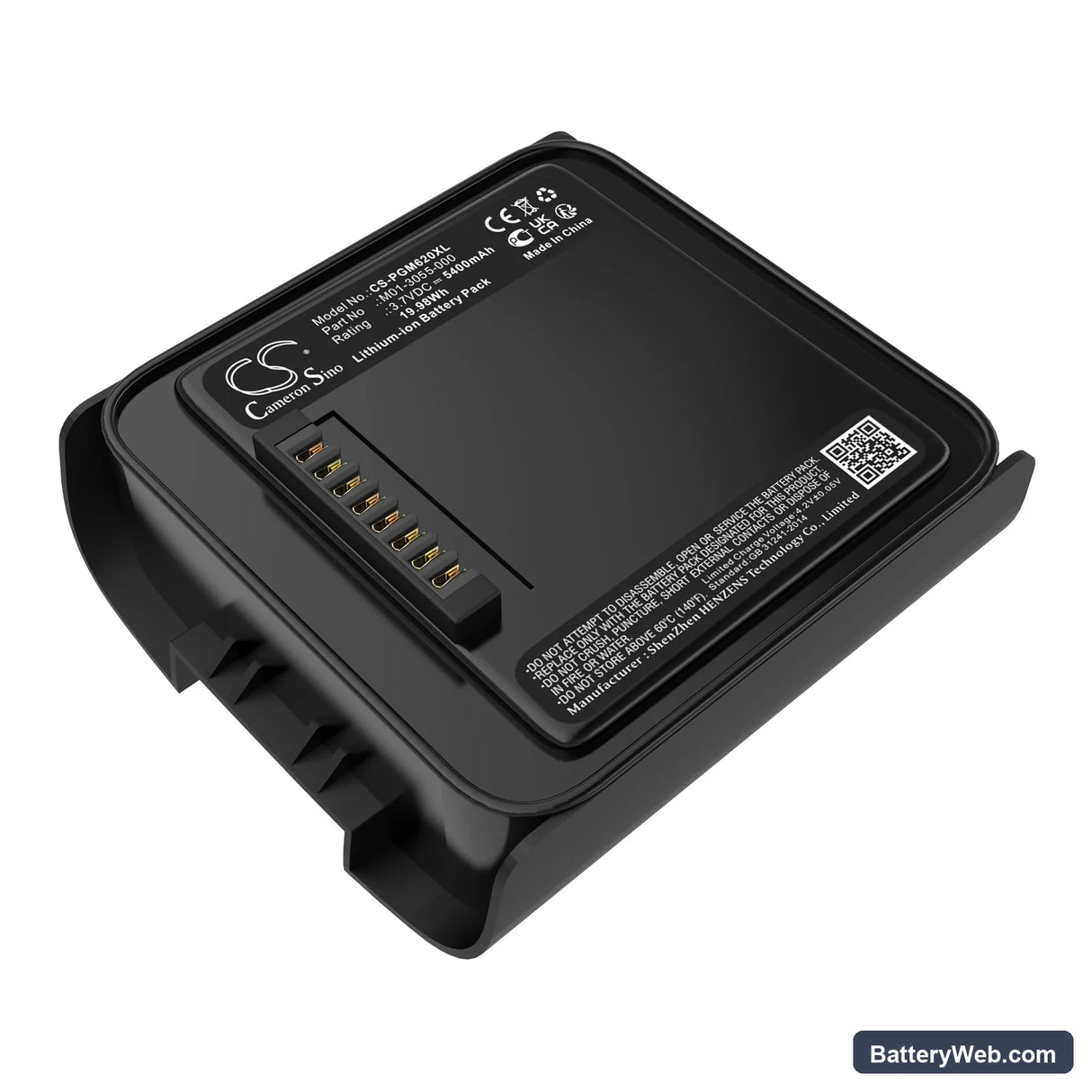

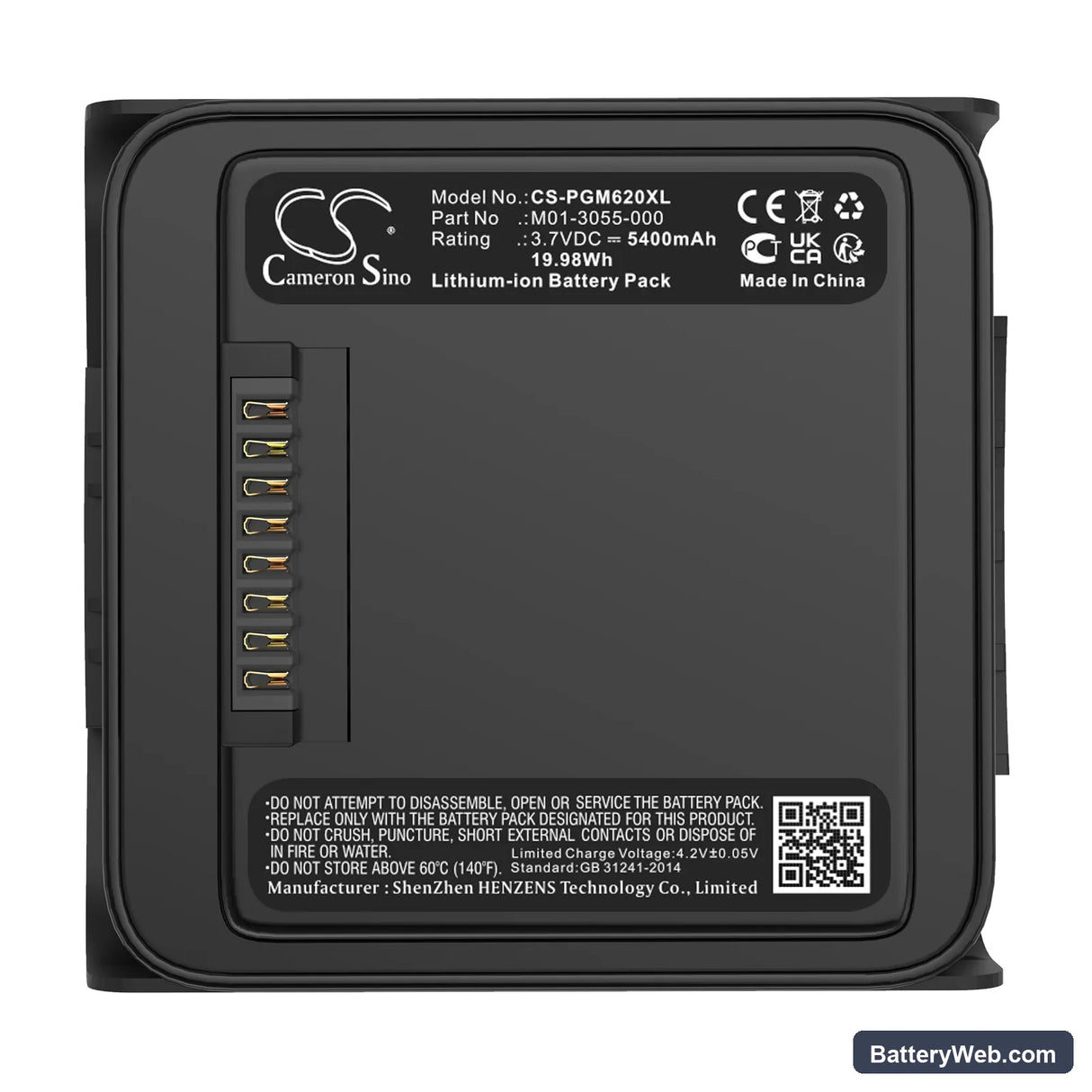

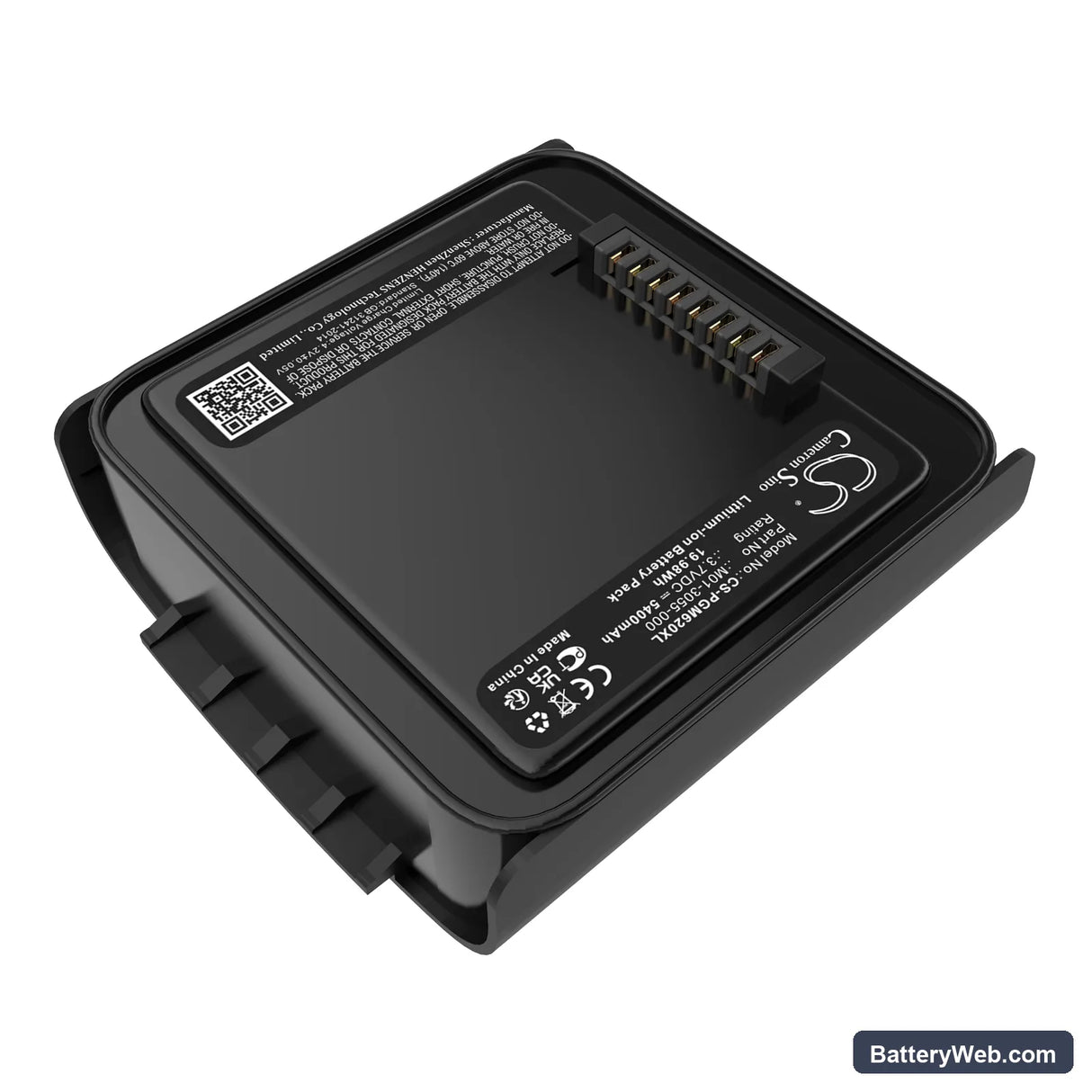

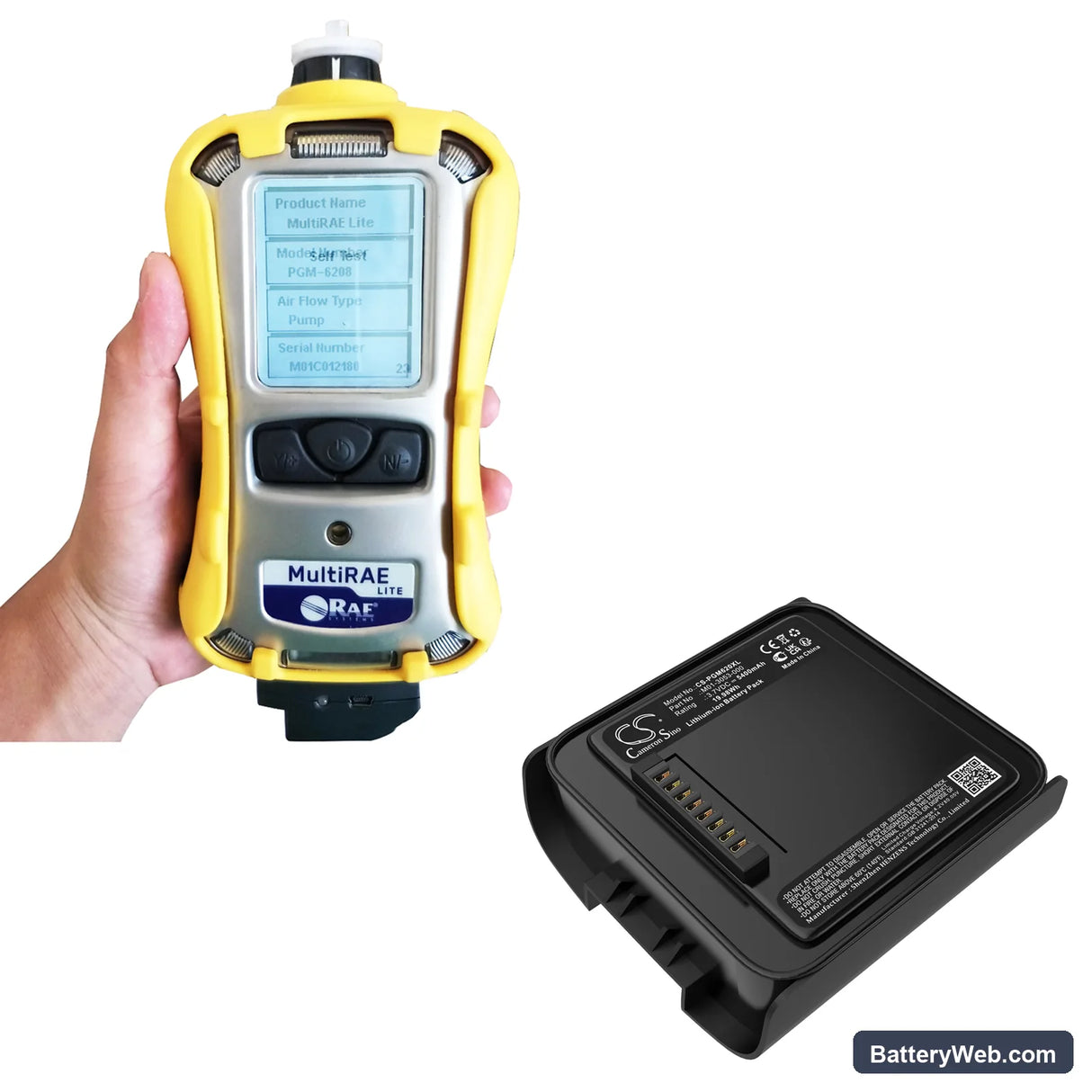

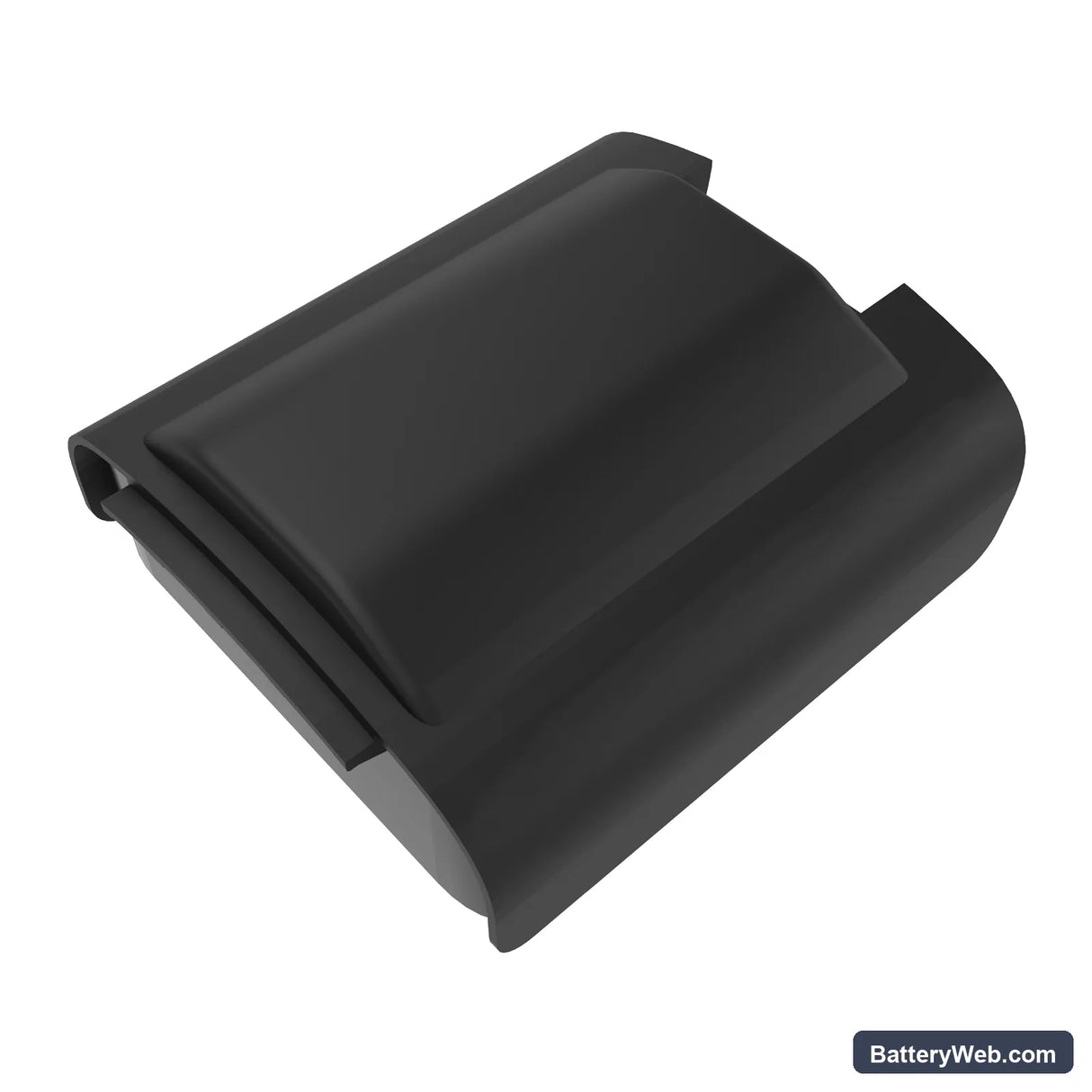

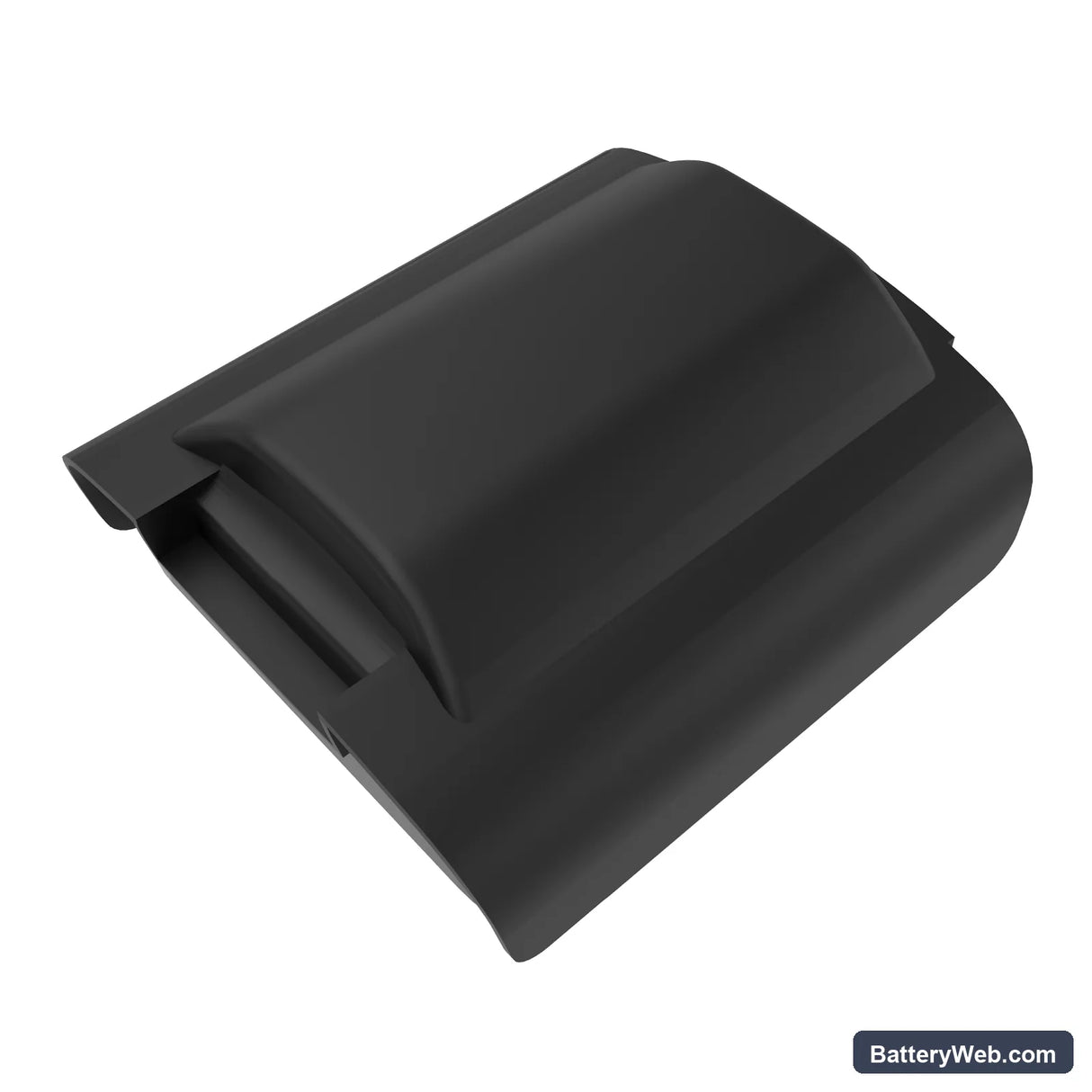

This 3.7V, 5400mAh Li-ion battery replaces the OEM pack in the MicroRAE PGM-6208 and PGM-6228 portable multi-gas detectors. It uses the same M01-3055-000 form factor and connector, so it seats directly in the battery compartment without modification. Capacity figure is 5400mAh — same as the original MicroRAE specification.

• PGM-6208 and PGM-6228 compatibility: Both models run the same 3.7V battery rail, share the same physical housing dimensions, and use the same BMS handshake protocol — that is why one pack covers both. Swapping between them requires no firmware change or battery menu reset.
• Bench tested on actual hardware: We ran the pack through a full sensor-initialisation sequence on a PGM-6208 test unit. The BMS held stable through the current spike at multi-sensor power-up and maintained clean voltage delivery across sustained continuous monitoring loads without tripping cutoff.
• Pre-deployment calibration cycle: After fitting this battery, run a full calibration cycle through the instrument menu before taking the unit into the field. The PGM-6208 maps battery state during calibration — skipping this step causes the instrument to throw premature low-battery warnings during the first monitoring session, even when charge is near full.

BMS cutoff at sensor initialisation on the PGM-6208

When the PGM-6208 powers on, it initialises all active sensor modules simultaneously. That brief draw spike — typically lasting under two seconds — can trip the BMS on a depleted or cold pack before the sensors reach operating state. This is not a fault with the instrument. It is a protection threshold response in the battery itself. Charge the pack fully to 4.2V before the first power-on in cold environments, and allow the unit to warm to above 5°C before startup if it has been stored outdoors.

Pack will not charge after the unit sat unused for several months

A MicroRAE pack stored below approximately 2.5V enters a deep-discharge state where the BMS disables the charge circuit as a cell-protection measure. The charger sees no response and stops — it looks like a dead battery, but the cells may still be recoverable. Place the pack on the OEM charger and leave it connected for a minimum of four hours without interrupting the charge cycle; some BMS units require a trickle pre-charge phase before the main charge current engages. If the charge indicator does not show any activity after four hours, measure cell voltage directly — a reading below 2.0V indicates the cells will not recover.
