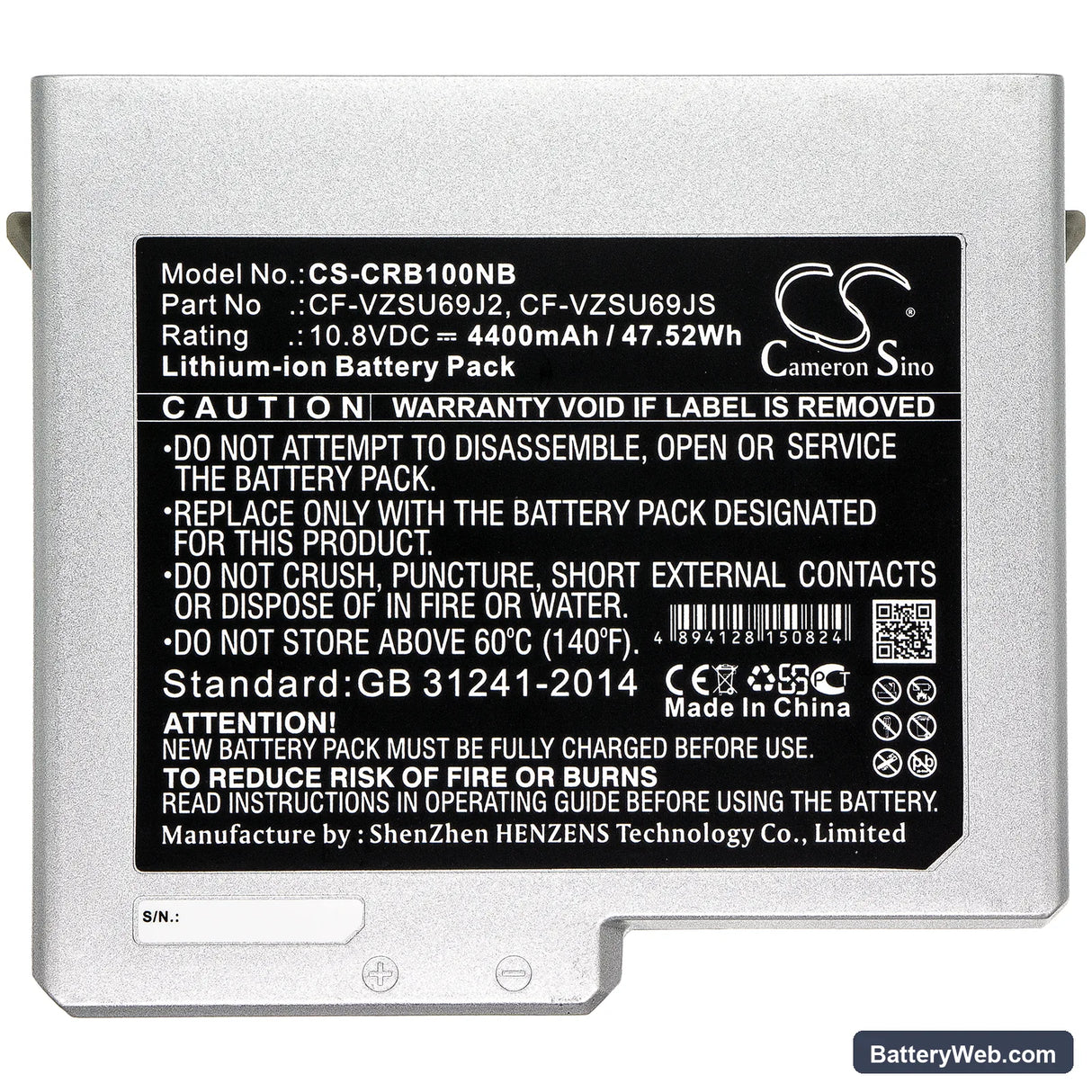

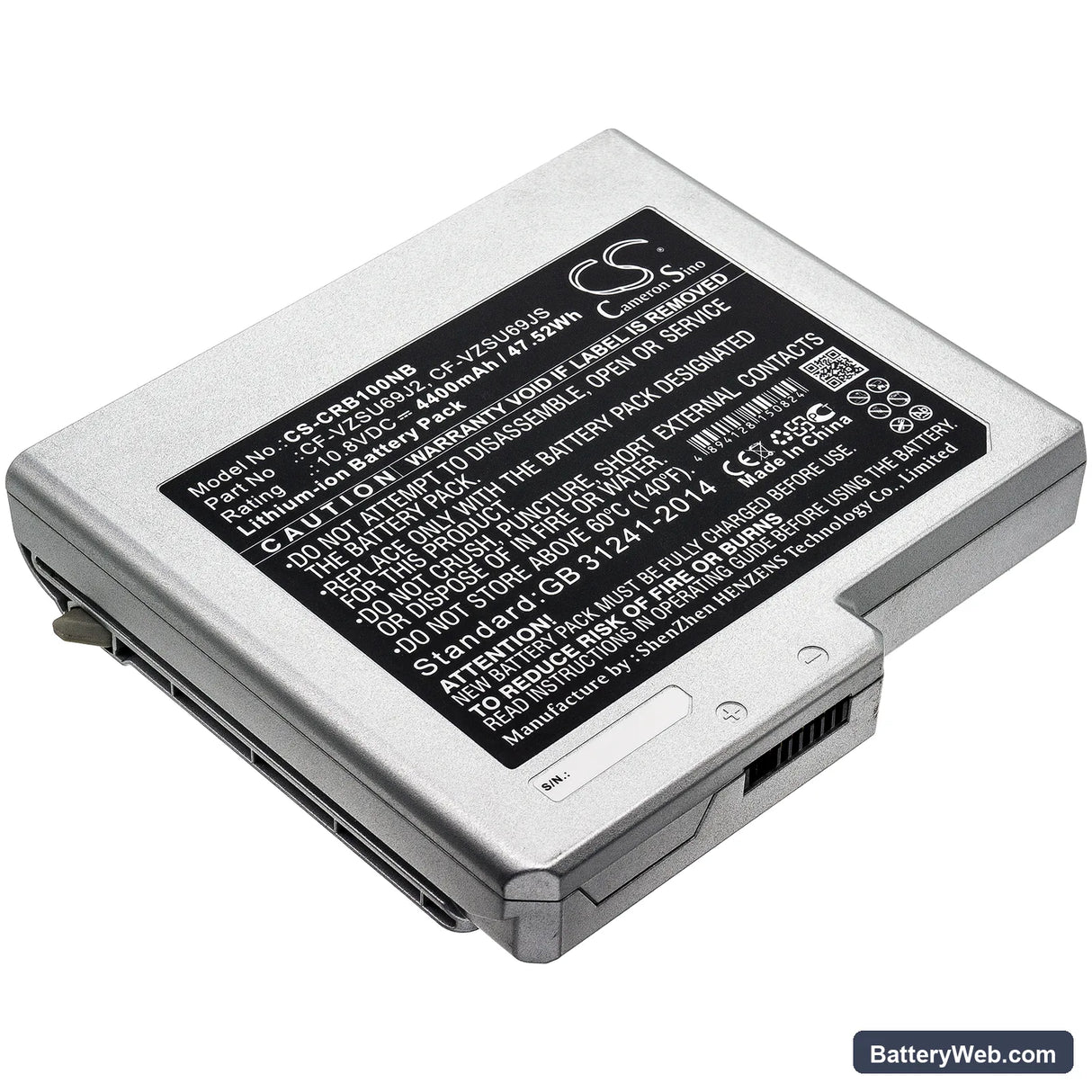

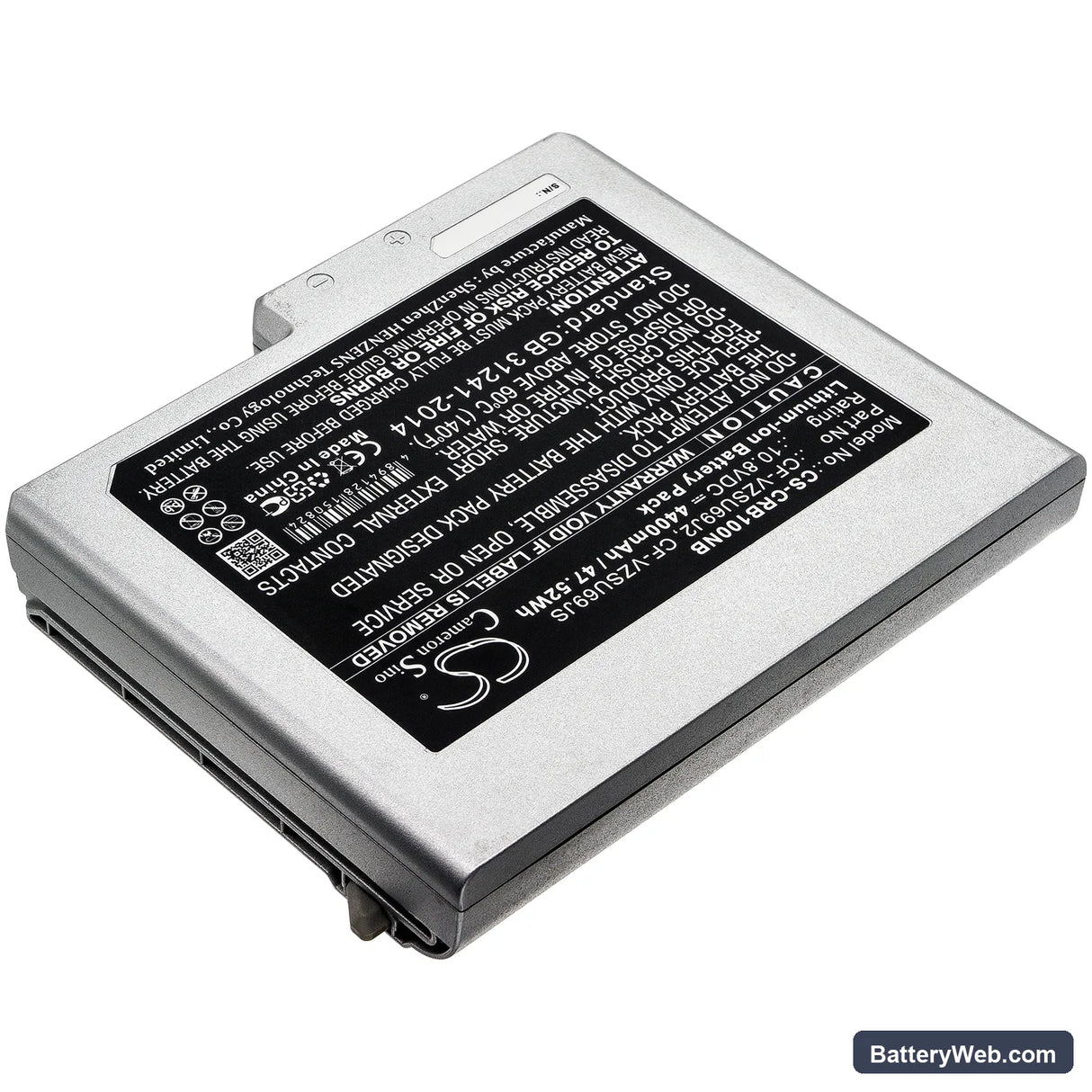

Panasonic Toughbook CF-B10 / CF-B11 — 10.8V Li-ion Replacement Battery (CF-VZSU69J2)

This is a 10.8V, 4400mAh (47.52Wh) Li-ion replacement battery for the Panasonic Toughbook CF-B10 and CF-B11 laptops. Both models share the same battery bay format, connector pinout, and BMS handshake protocol, making a single cell compatible across the pair. The OEM part numbers covered are CF-VZSU69J2 and CF-VZSU69JS.

• CF-B10 and CF-B11 compatibility: Panasonic kept the same 10.8V power rail, physical bay dimensions, and SMBus communication lines across both Toughbook generations. The BMS on this cell responds to the same handshake sequence the laptop firmware expects, so no adapter or firmware patch is needed.
• Bench tested on actual hardware: We ran this cell on a CF-B10 unit under combined CPU load and full display brightness. The BMS held stable communication throughout charge and discharge cycles, and the protection circuit tripped correctly at the low-voltage threshold without dropping the system unexpectedly.
• Post-install calibration on the CF-B10: After fitting this battery, run the laptop down to hibernate cutoff under normal workload, then charge uninterrupted to 100% without interruption. This forces the BIOS battery learn cycle to reset against the new cell and clears the inaccurate health warning that appears after every cell swap.

BIOS reporting poor battery health immediately after fitting a new cell

The Toughbook CF-B10 stores cycle count, charge history, and health status in EEPROM data carried over from the old cell — not from the new one sitting in the bay. When the BIOS reads this stale data on boot, it flags the battery as degraded even though the cell is brand new. Running a full discharge-to-hibernate followed by an uninterrupted charge to 100% forces the firmware to overwrite the old EEPROM values with a fresh baseline. After one complete learn cycle, the health indicator returns to normal. If the warning persists after two full cycles, check BIOS version — some early CF-B10 firmware revisions require a manual battery reset from the BIOS power menu.

Laptop shutting down with 20–30% charge still shown on screen

This is a fuel gauge calibration problem, not a faulty cell. The fuel gauge IC built into the battery's BMS calculates remaining charge based on learned discharge curves from the old cell. With a new cell installed, those curves no longer match actual cell chemistry, so the gauge reads optimistic until the voltage drops sharply under load — and the laptop cuts power before the OS can act on the real state. Two to three full discharge-and-charge cycles recalibrate the fuel gauge IC against the new cell's actual voltage profile. After calibration, the shutdown threshold should align within 3–5% of the displayed charge level. Target a resting open-circuit voltage of around 11.1V at what the OS reports as 30% to verify calibration is tracking correctly.
