Pantech Laser P9050 Replacement Battery PBR-40A 3.7V 1000mAh

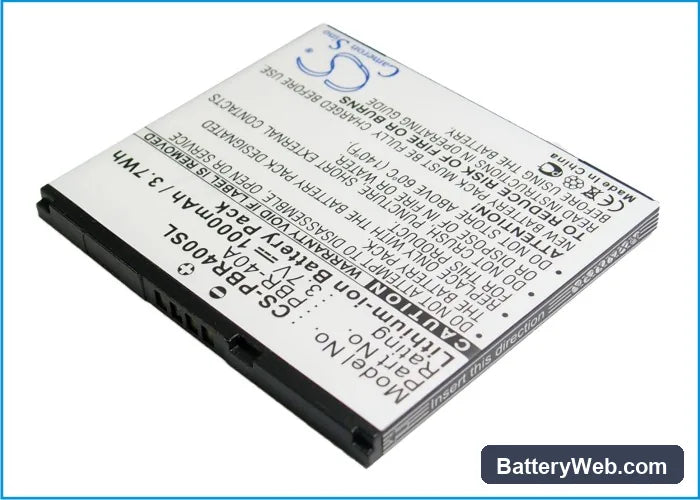

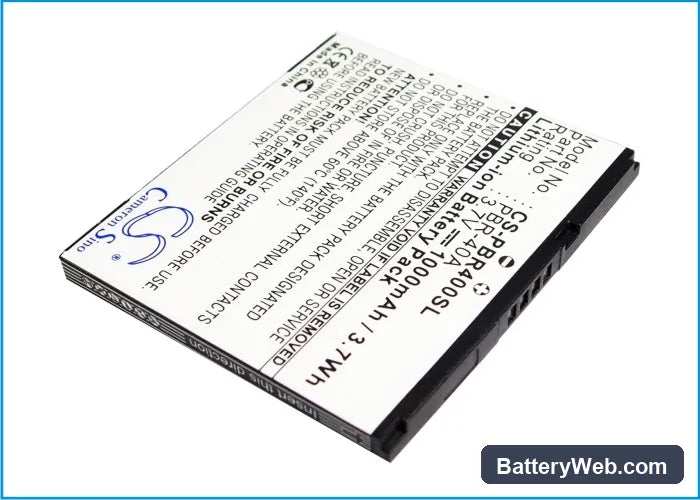

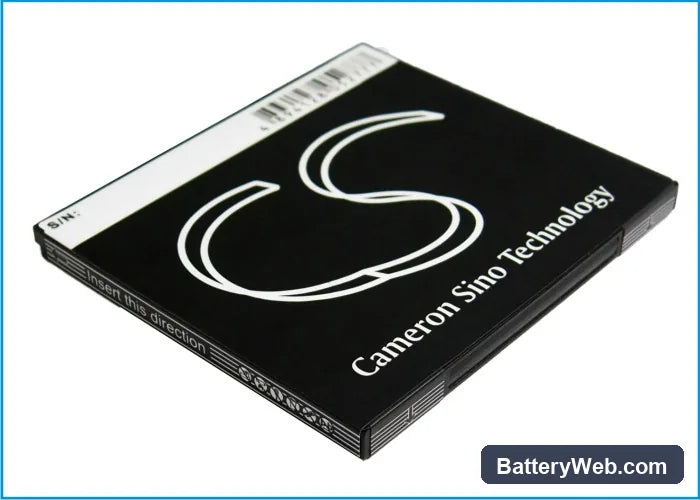

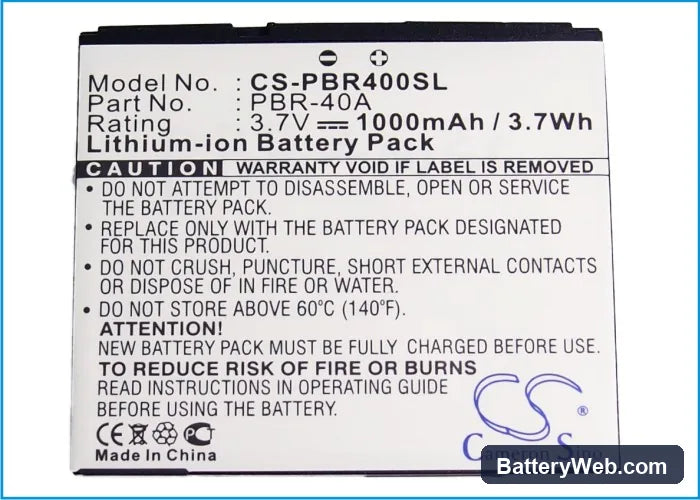

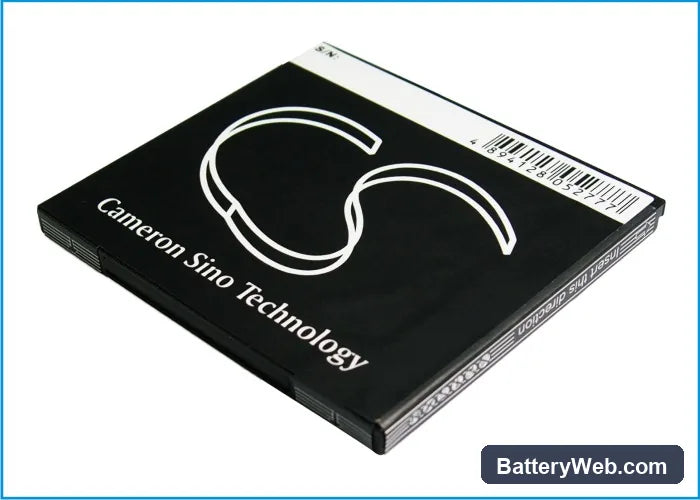

Pantech Laser P9050 — 3.7V Li-ion Replacement Battery (PBR-40A)

This is a 3.7V, 1000mAh Li-ion cell that replaces the original PBR-40A battery in the Pantech Laser P9050 smartphone. It slots into the same battery bay and connects to the same three-contact terminal. Capacity matches the OEM spec at 3.7Wh.

• Laser P9050 fit: The P9050 uses a compact 51.50 x 46.00 x 4.00mm cell with a three-pin connector carrying voltage, ground, and a data line for the fuel gauge IC. This cell matches those dimensions and pin layout exactly — the BMS handshake completes normally on boot.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on the bench. The protection circuit engaged correctly at low-voltage cutoff, and charge termination triggered at the expected 4.2V ceiling with no thermal event.
• Fuel gauge recalibration on first install: After fitting this cell, disable fast charging and run one complete discharge-to-charge cycle before normal use. The Laser P9050's fuel gauge IC is calibrated to the discharge curve of your old cell — one full cycle lets it remap against the new cell and report accurate percentages.

Sudden shutdown at 20–30% on the Pantech Laser P9050

This happens because the fuel gauge IC still holds the discharge curve from the old, degraded cell. When the modem transmits or the screen peaks in brightness, current draw spikes sharply. A fresh cell with an uncalibrated gauge hits a voltage point the IC misreads as safe — then the protection circuit sees the real voltage sag and cuts power. Run one full discharge below 5% and charge back to 100% without interruption. After that single cycle, the coulomb counter resets its reference and the shutdowns stop.

Phone not powering on after the replacement cell sat in storage

Li-ion cells self-discharge during storage. If this battery sat long enough, the cell voltage may have dropped below 2.5V — the threshold where the BMS locks out to prevent damage. The phone will not respond to a short press of the power button at this voltage. Connect the phone to a wall charger, not a PC port, and leave it for 20–30 minutes before attempting to power on. Once the BMS sees voltage recover above 2.8V, it releases the lockout and the charge IC takes over.
