PEOPLENET Trimble MS5 Compatible Battery 7.4V 4200mAh

Up to 20% off
New arrival
From $51.99 USD $63.99
Shipping calculated at checkout.
Fits Trimble MS5 and MS5N mobile data collectors, replacing OEM battery MS5760.
7.4V, 4200mAh Li-Polymer cell delivers 31.08Wh to sustain full-day surveying missions without mid-shift returns to base.

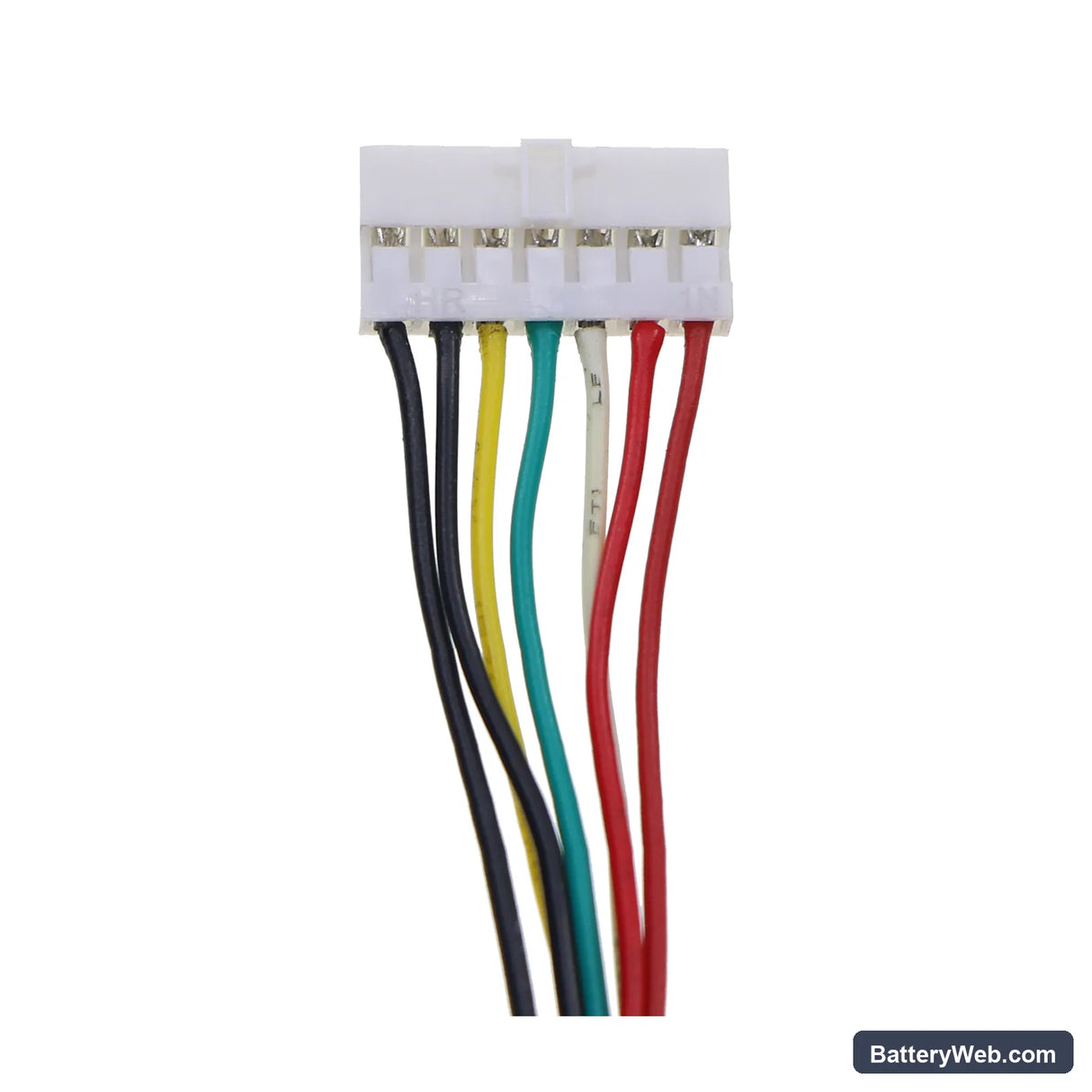

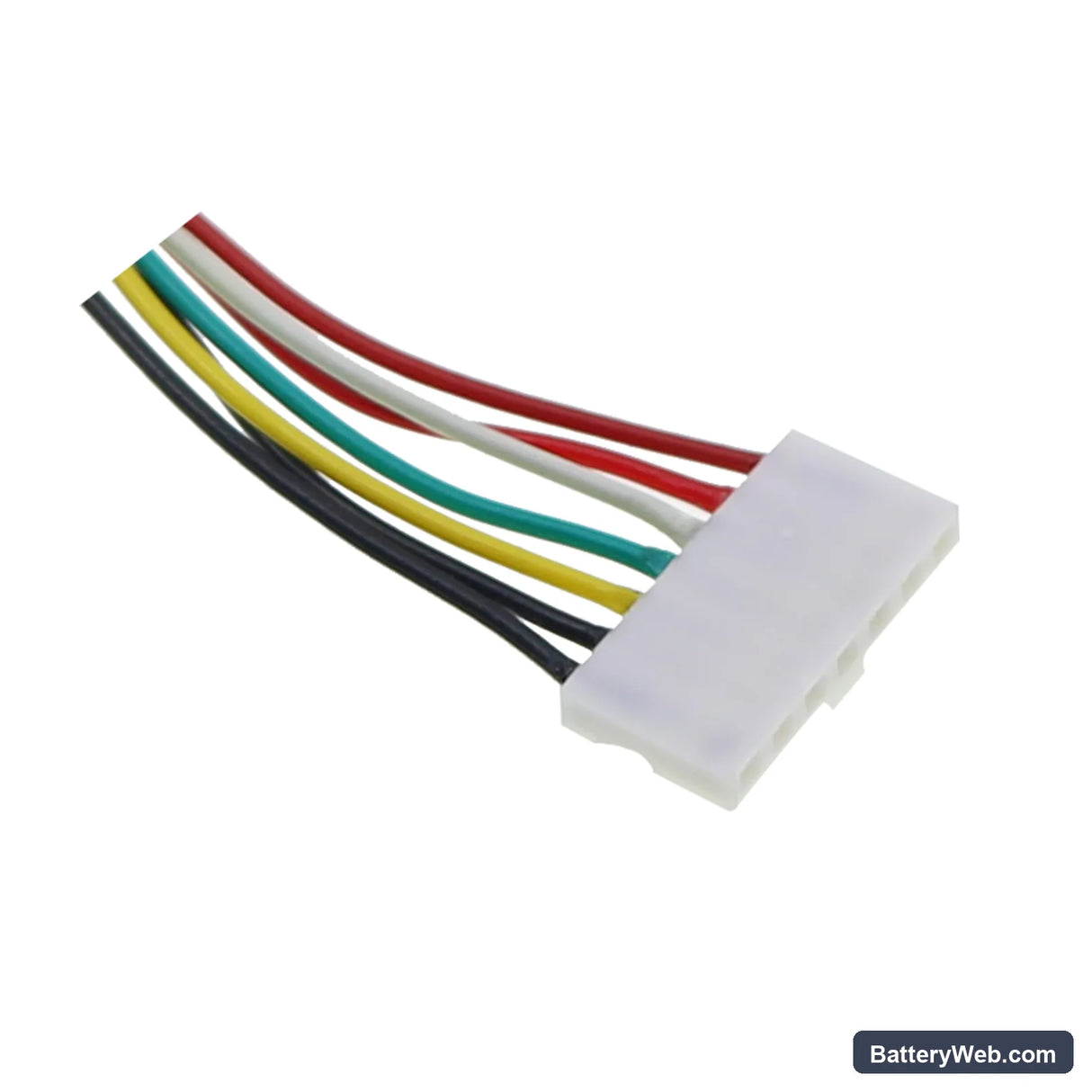

Connector slides vertically into the battery compartment on the MS5 frame with a single locking tab that seats flush against the device housing.
We bench tested this cell in an MS5N under continuous GPS and imaging load — BMS accepted the handshake on first insertion with no fault codes.
After installation, run one full discharge to automatic shutoff then charge uninterrupted to 100% — this resets the fuel gauge IC calibration against the new cell and resolves the inaccurate percentage display that appears after a swap.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

7.4V

Amp

4200mAh

PEOPLENET Trimble MS5 / MS5N — 7.4V Li-Polymer Replacement Battery (MS5760)

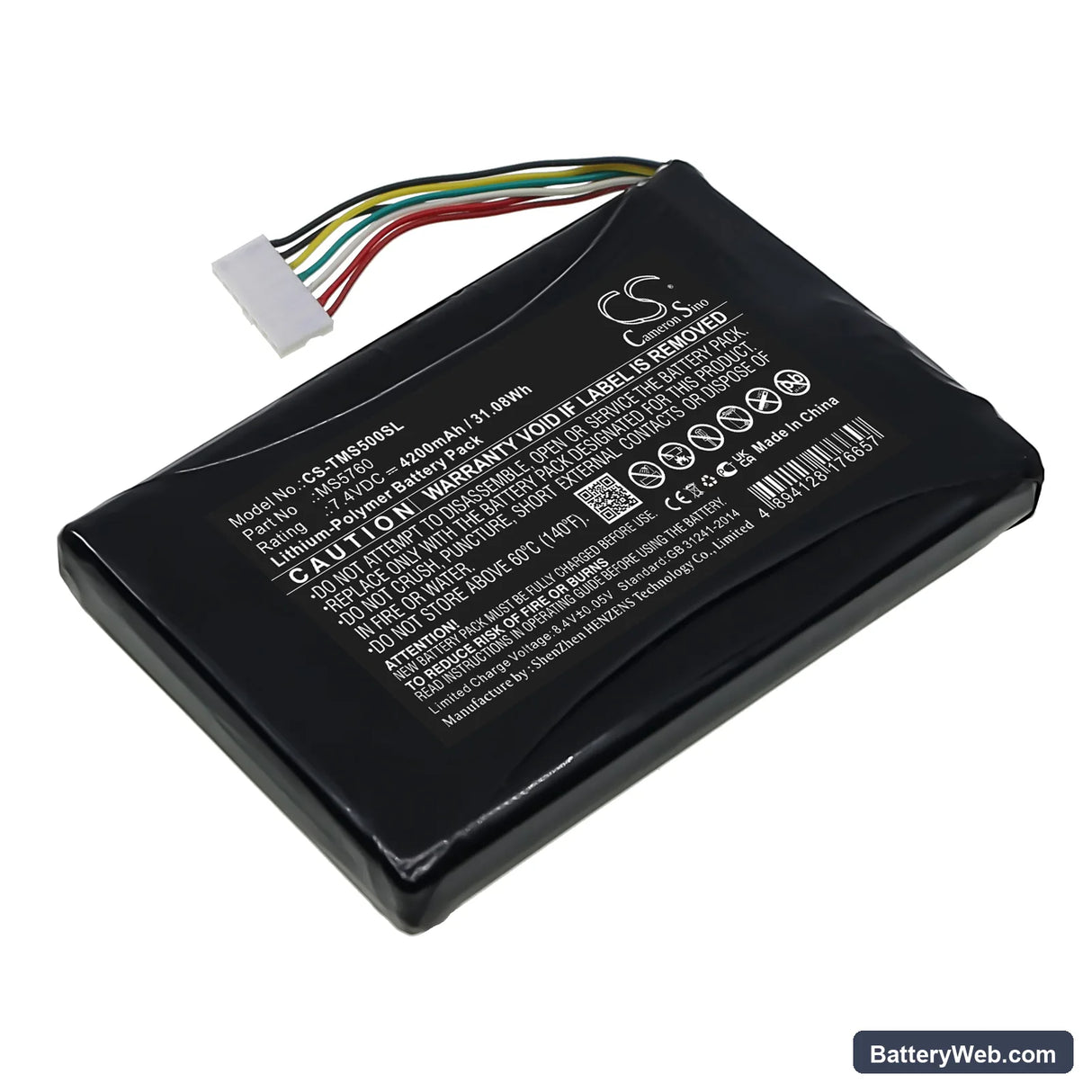

This is a 7.4V 4200mAh Li-Polymer replacement battery for the Trimble MS5 and MS5N handheld data collectors. These are rugged field devices used in surveying, construction, and GIS work. The OEM part number is MS5760, and this cell matches the original voltage rail, connector pinout, and BMS communication expected by the MS5 platform.

  • MS5 and MS5N compatibility: Both models share the same battery bay geometry, 7.4V nominal voltage rail, and BMS handshake protocol — one cell fits both. The MS5N is the camera-equipped variant but draws from the same battery architecture.
  • Bench tested on actual hardware: We ran this cell through charge acceptance and BMS communication checks on the MS5 platform. The protection circuit responded correctly to full-charge termination and low-voltage cutoff without triggering fault states.
  • Fuel gauge recalibration after swap: After fitting this battery, run one full discharge to automatic shutoff, then charge uninterrupted to 100%. This forces the MS5's fuel gauge IC to calibrate against the new cell and eliminates the inaccurate percentage readings that commonly appear after a battery swap.

Why the Trimble MS5 shuts down at 15–25% after a battery replacement

The MS5 fuel gauge IC retains calibration data from the previous cell. When a new cell is installed, the IC maps voltage curves from the old battery onto the new one, and the two curves don't align. Under combined GPS, display, and wireless load, the new cell's actual voltage drops faster than the IC expects in that range. The device interprets this as a critical low-battery condition and triggers shutdown — even though usable capacity remains. One full discharge-to-shutoff followed by an uninterrupted charge to 100% resets the calibration and resolves the early cutoff.

Trimble MS5 reporting 40% battery the moment a new cell is installed

This happens because the MS5's battery management system reads open-circuit voltage at startup and maps it to a state-of-charge estimate using its stored calibration table. A new Li-Polymer cell shipped at storage charge — typically around 3.85V per cell — lands mid-table, so the device displays a mid-range percentage instead of 100%. The cell is not faulty. Charge the battery fully to 4.2V per cell (8.4V pack) without interruption, then allow one complete discharge cycle, and the fuel gauge will re-anchor to the correct endpoints.

Compatible Models

Trimble MS5 Trimble MS5N

Replaces Part Numbers

MS5760

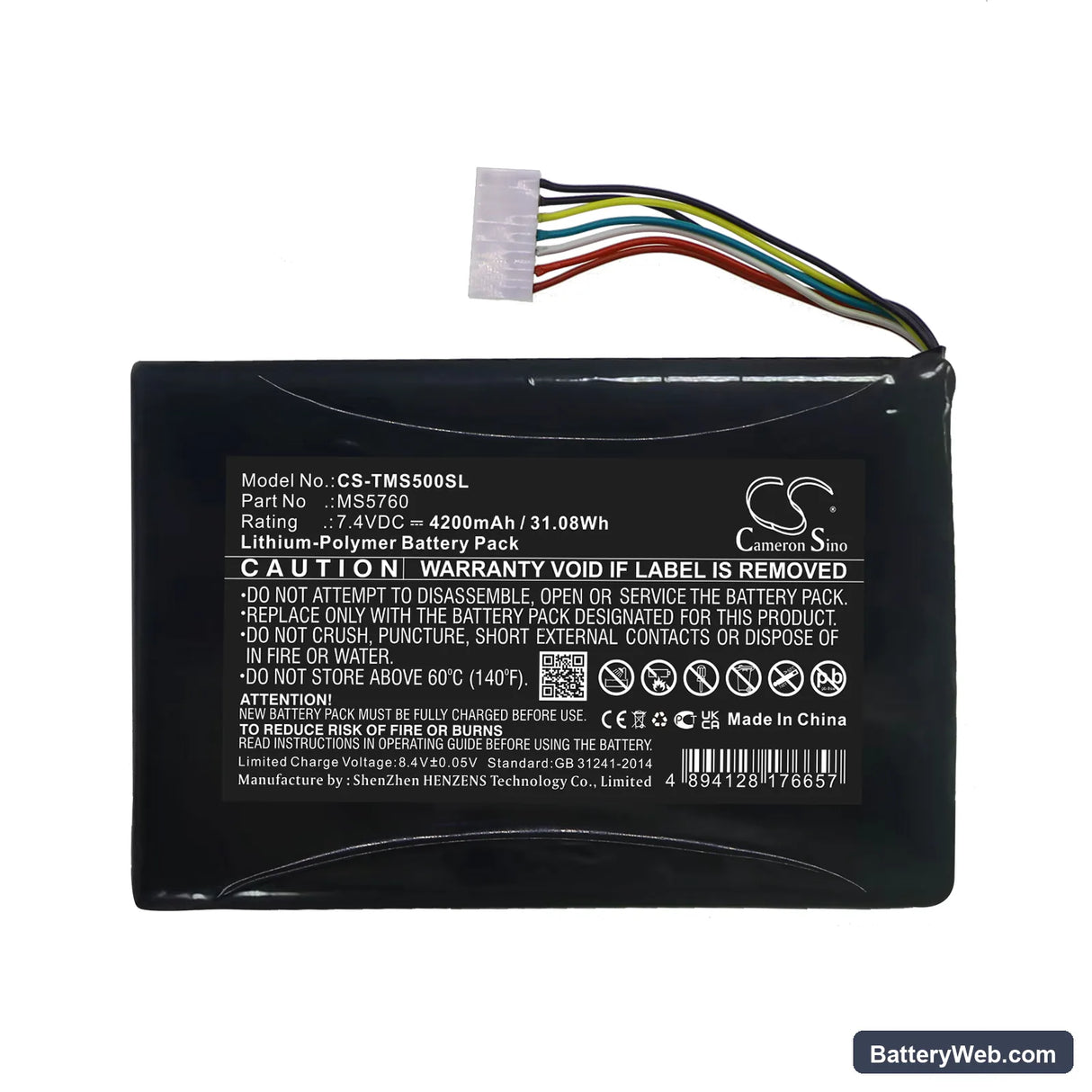

Technical Specifications

Voltage7.4V
Amp Hours4200mAh
Capacity4200mAh
Rate31.08Wh
Net Weight139.5g /4.92 oz
Gross Weight189.5g /6.68 oz
Approximate Weight189.5g /6.68 oz
Dimension 91.10 x 61.00 x 11.30mm

Product Highlights

  • Brand: PEOPLENET
  • Manufacturer: CS
  • Series: Standard
  • Color: Black
  • Product Type: Li-Polymer
  • Battery Type: Li-Polymer
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

The Trimble MS5 shows a different battery percentage every time I restart it — is the new cell defective?

The cell is almost certainly fine. The MS5 fuel gauge IC reads open-circuit voltage at each boot and estimates charge level from a calibration table built around the old battery. Until the IC learns the new cell's voltage-to-capacity curve, percentage readings will be inconsistent across reboots. Run one full discharge to automatic shutoff, then charge uninterrupted to 100% — that single cycle re-anchors the fuel gauge and stabilises the readout.

Fast charging stopped working on my MS5 after I swapped the battery — the device is charging much slower than before.

The MS5 charge IC negotiates charge rate during the first accepted charge cycle on a new cell. Until that cycle completes, the controller defaults to a conservative current to protect an unrecognised cell. This is normal behaviour and not a fault with the replacement battery. Charge the new cell fully from near-empty in one uninterrupted session — after that cycle completes, the charge IC recognises the cell and restores the standard charge rate.

My Trimble MS5 battery percentage drops noticeably faster from 100% down to 80% than it does through the rest of the range — is this normal after a swap?

Yes, and the cause is fuel gauge drift, not accelerated capacity loss. The top portion of the state-of-charge curve is where the mismatch between the old calibration table and the new cell's voltage profile is greatest. The IC over-reports discharge in that window because the new cell's voltage drops slightly faster than the stored curve predicts at high charge states. One complete discharge-to-shutoff followed by a full charge to 8.4V (pack voltage) recalibrates the curve and evens out the percentage drop across the full range.
