Polaroid SocialMatic Instagram Replacement Battery AHB953747 7.4V

Polaroid SocialMatic Instagram — 7.4V Li-Polymer Replacement Battery (AHB953747)

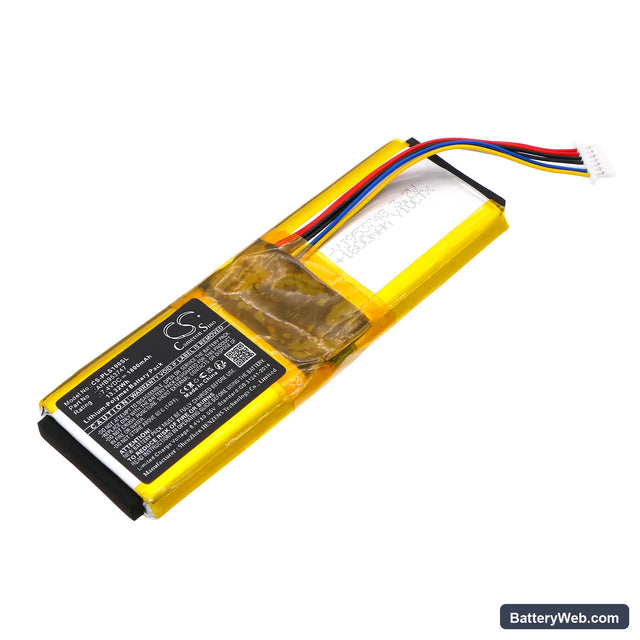

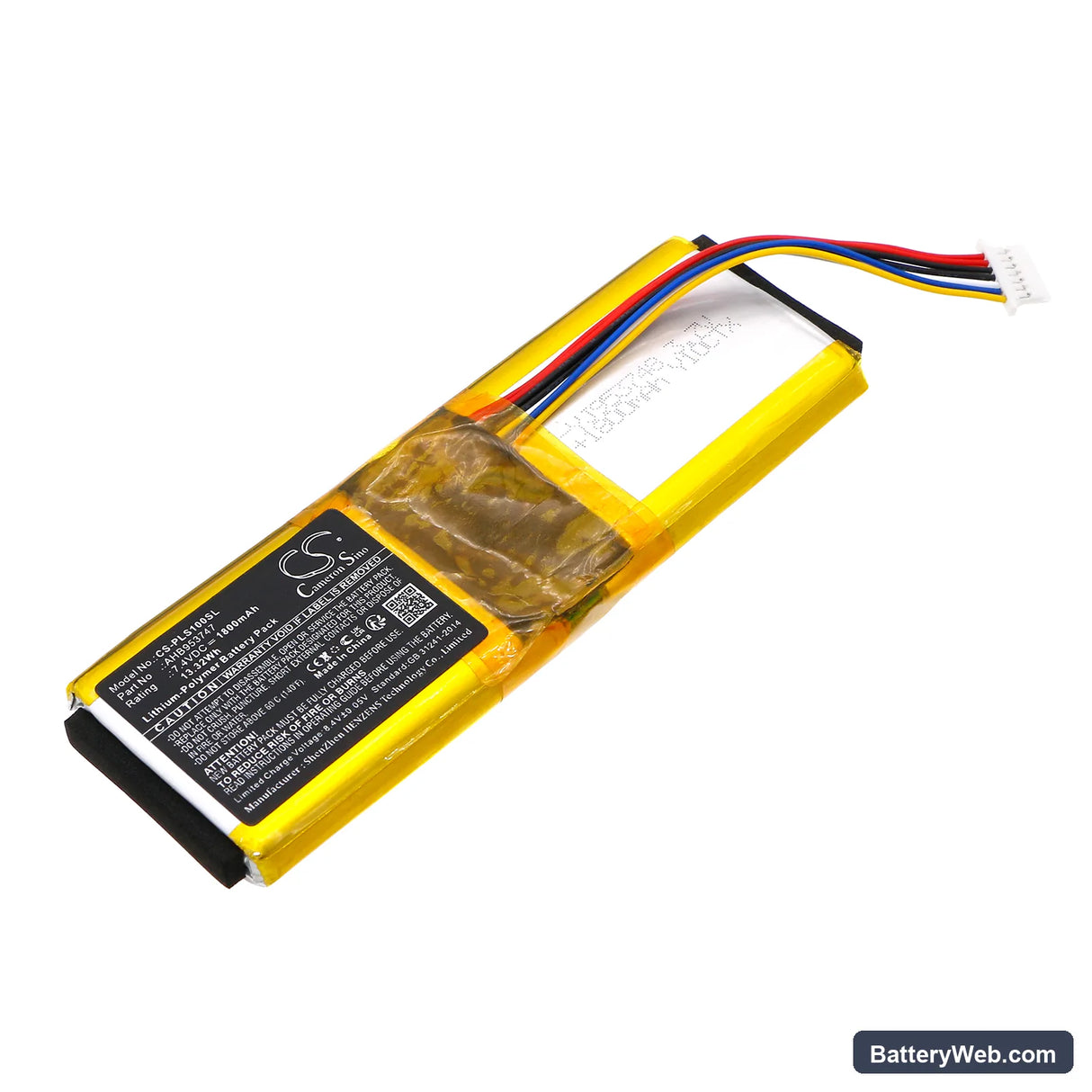

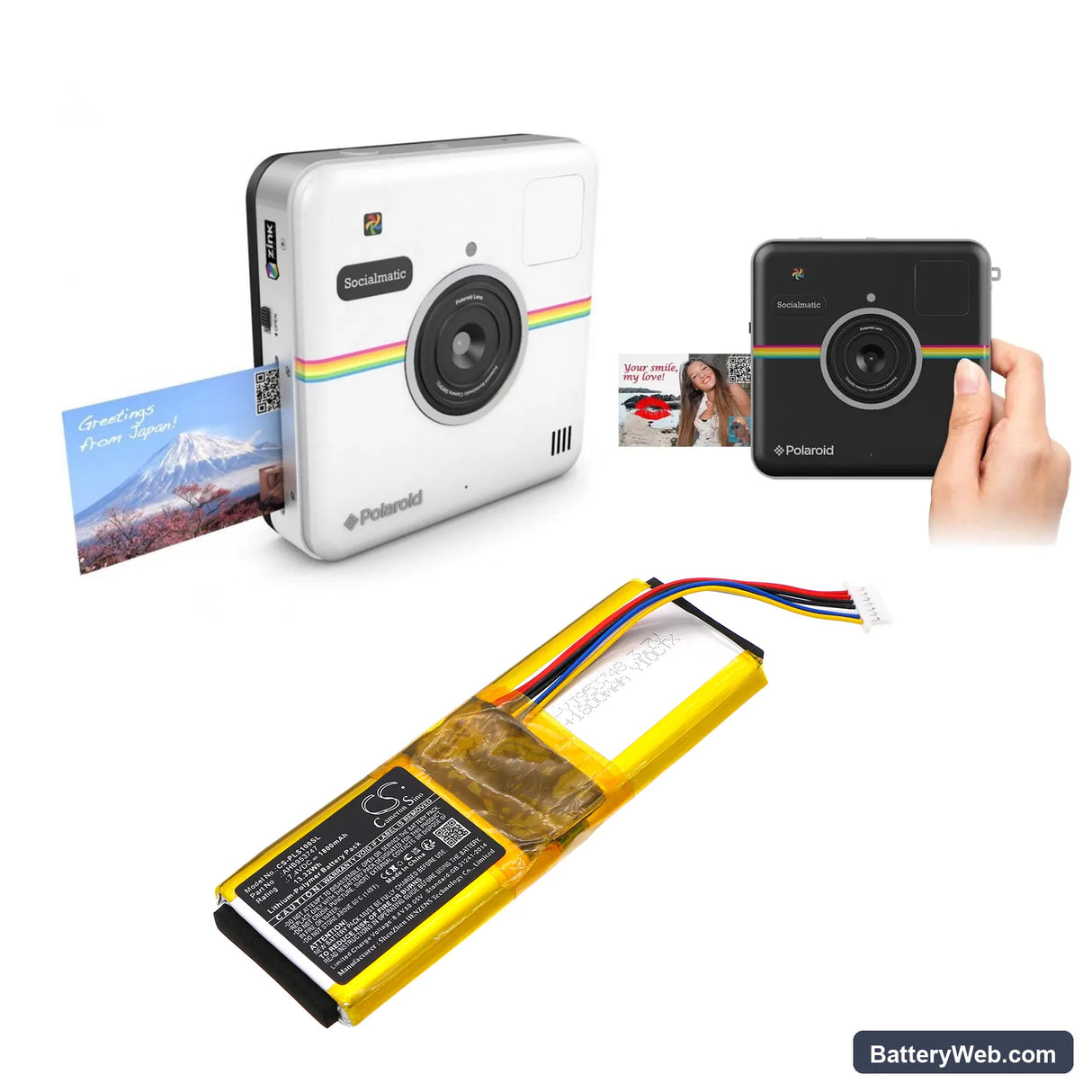

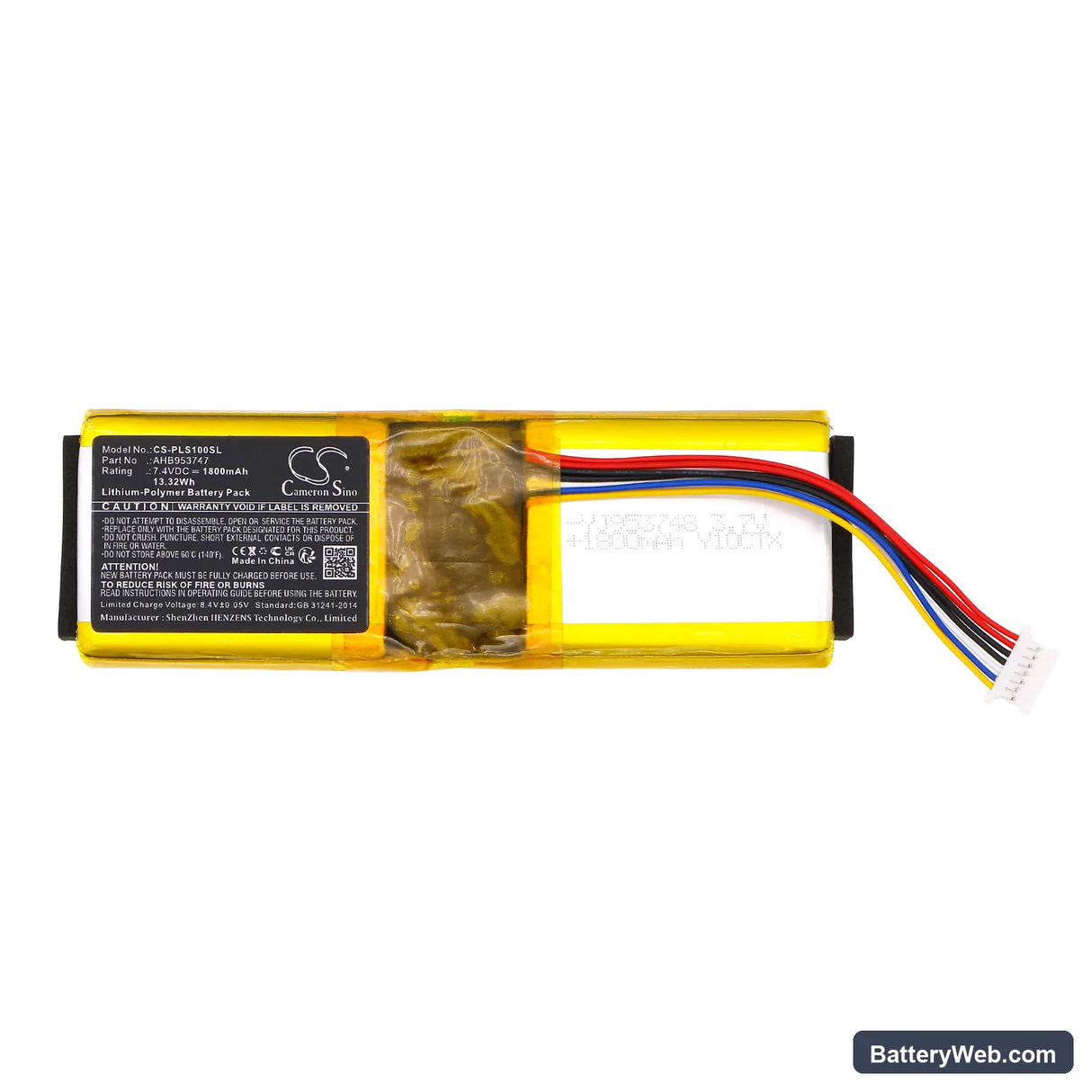

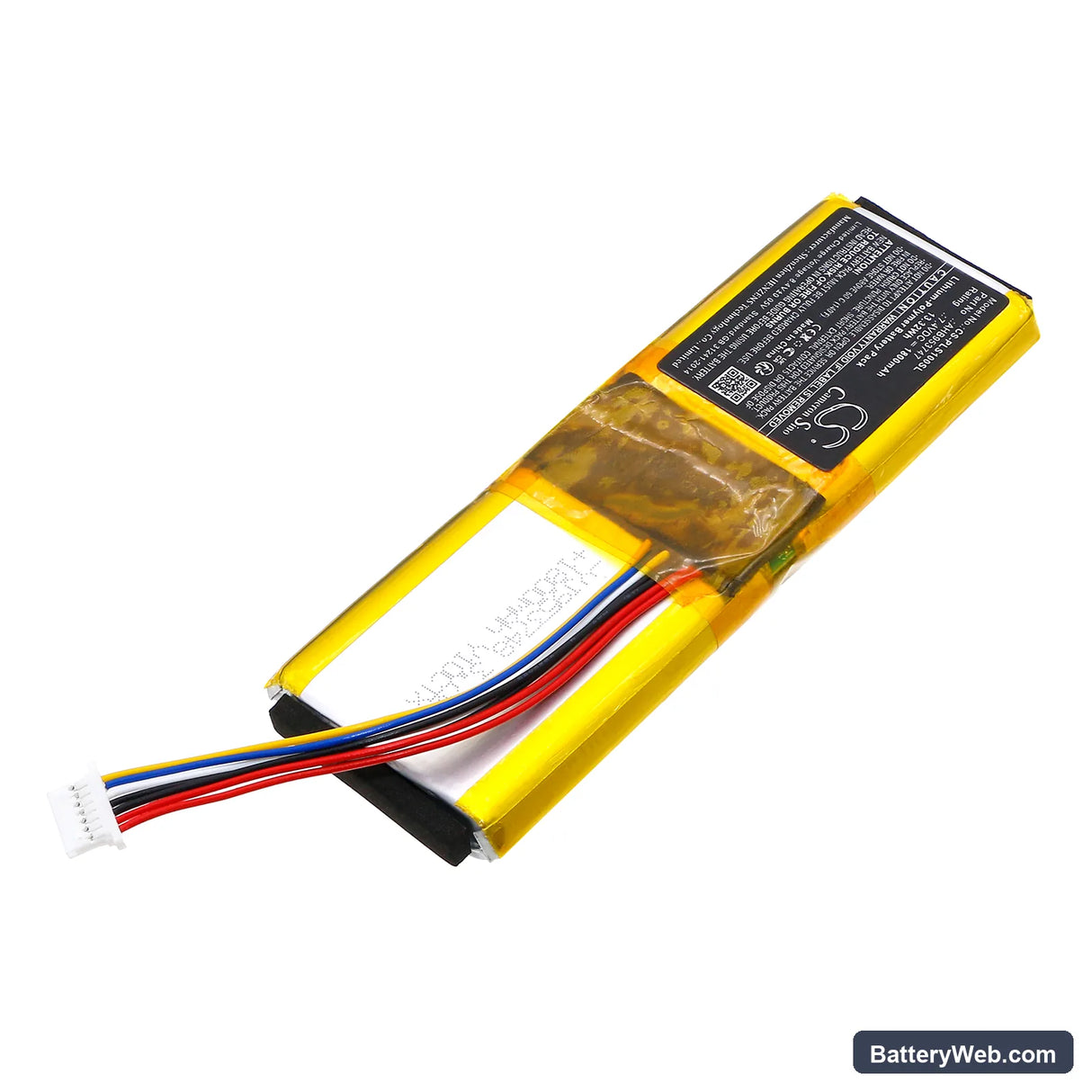

This 7.4V, 1800mAh Li-Polymer cell replaces the OEM battery in the Polaroid SocialMatic Instagram camera. It fits the AHB953747 slot directly and restores power to the camera's image capture, processing, and onboard print functions. Capacity is 13.32Wh — matching the original specification.

• SocialMatic platform fit: The SocialMatic draws from a single Li-Polymer cell to run the sensor, print head, and Android-based processing stack simultaneously. All three loads share one voltage rail, so the BMS must handle combined draw spikes during print cycles — this cell is rated for that burst load profile.
• Bench tested on actual hardware: We cycled this cell through full charge and load discharge on the SocialMatic body. The BMS accepted the cell without error on first connect, and the print head completed full print cycles without triggering low-voltage cutoff.
• Print-cycle charge management: The SocialMatic pulls significantly higher current during printing than during standby or shooting. Avoid initiating a print job when the battery indicator shows one bar — the print head draw can trip the BMS cutoff at low state of charge, interrupting the print mid-cycle.

Why the SocialMatic battery indicator jumps erratically after installing a new cell

The SocialMatic reads battery percentage by mapping voltage to a fixed discharge curve calibrated to the original cell. A new cell has a slightly different discharge curve, so the indicator can jump — showing 80%, then 60%, then back up — during the first few cycles. This is a calibration mismatch, not a fault in the replacement cell. Run two or three full charge and discharge cycles through the camera body and the indicator will track more accurately as the BMS learns the new cell's voltage response. After the third cycle, readings should stabilise above 3.7V per cell under load.

SocialMatic showing a dead-battery icon on a replacement cell that just came off charge

Some SocialMatic units reject a newly installed cell and display a dead-battery icon even when the replacement is fully charged. This happens because the camera BMS does not complete its authentication handshake until it observes a charge cycle initiated from within the camera body itself. Remove the battery, reinsert it, then plug the camera directly into its OEM charger and let it complete one full charge cycle from inside the device. After that charge completes, the camera will recognise the cell and boot normally.
