TP-Link M7650 Replacement Battery 3.8V 2900mAh

TP-Link M7650 — 3.8V Li-Polymer Replacement Battery (TBL-53B3000 / TBL-53A3000)

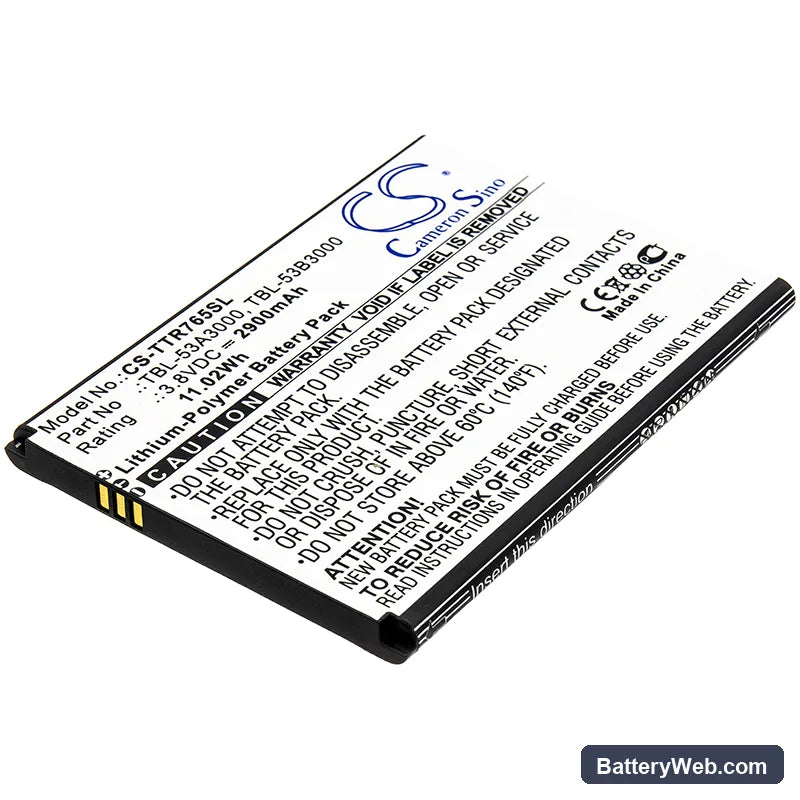

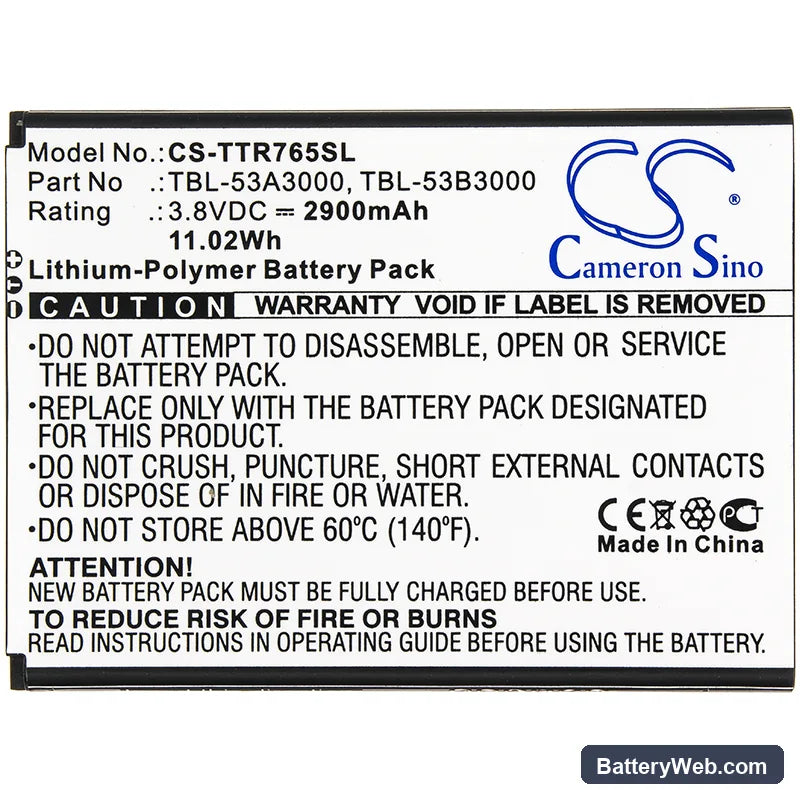

This 3.8V, 2900mAh Li-Polymer battery fits the TP-Link M7650 mobile hotspot. It replaces OEM part numbers TBL-53B3000 and TBL-53A3000. When the original cell degrades and the M7650 no longer holds a session, this replacement restores normal operation.

• M7650 fit: The M7650 uses a single-cell Li-Polymer pack at 3.8V nominal. Both TBL-53B3000 and TBL-53A3000 are interchangeable OEM references for the same physical cell — same connector, same BMS handshake, same contact orientation.
• Bench tested on actual hardware: We ran this cell under combined modem and Wi-Fi load at maximum connected devices. The BMS held stable charge and discharge cycles, with no false low-voltage cutoffs during peak draw periods.
• Cellular signal load tip: Keep the M7650 close to your router or in a strong signal area during heavy use. When the device is in a weak signal zone, the cellular radio ramps to maximum transmit power — this significantly increases current draw and heat accumulation on the cell.

Why the M7650 drops connected devices mid-session on a new battery

The M7650 runs two power-hungry subsystems simultaneously — the cellular modem and the Wi-Fi radio. At maximum client connections, combined draw can cause brief voltage sag on the cell. If the BMS reads this sag as an undervoltage event, it cuts output momentarily and all connected devices drop. This is more likely in poor signal conditions where the modem is already drawing hard. Fully charge the battery before a heavy session and keep connected device count below the maximum rated limit to reduce sag events.

M7650 not powering on after sitting unused for several weeks

Li-Polymer cells self-discharge at roughly 2–3% per month, but a hotspot left idle with residual background drain can pull the cell below the minimum boot voltage faster than expected. The M7650 firmware requires enough voltage at startup to initialise both the modem and the Wi-Fi stack simultaneously — if the cell is too depleted, the device simply will not turn on. Connect it to a charger and leave it for at least 20–30 minutes before attempting to power on. If the charge LED activates, the BMS has accepted the cell and recovery is in progress; target at least 3.6V before attempting to boot.
