Trimble BC-65 M3 GPS Replacement Battery 7.2V 3500mAh

Trimble M3 / S8 — 7.2V Ni-MH Replacement Battery (BC-65)

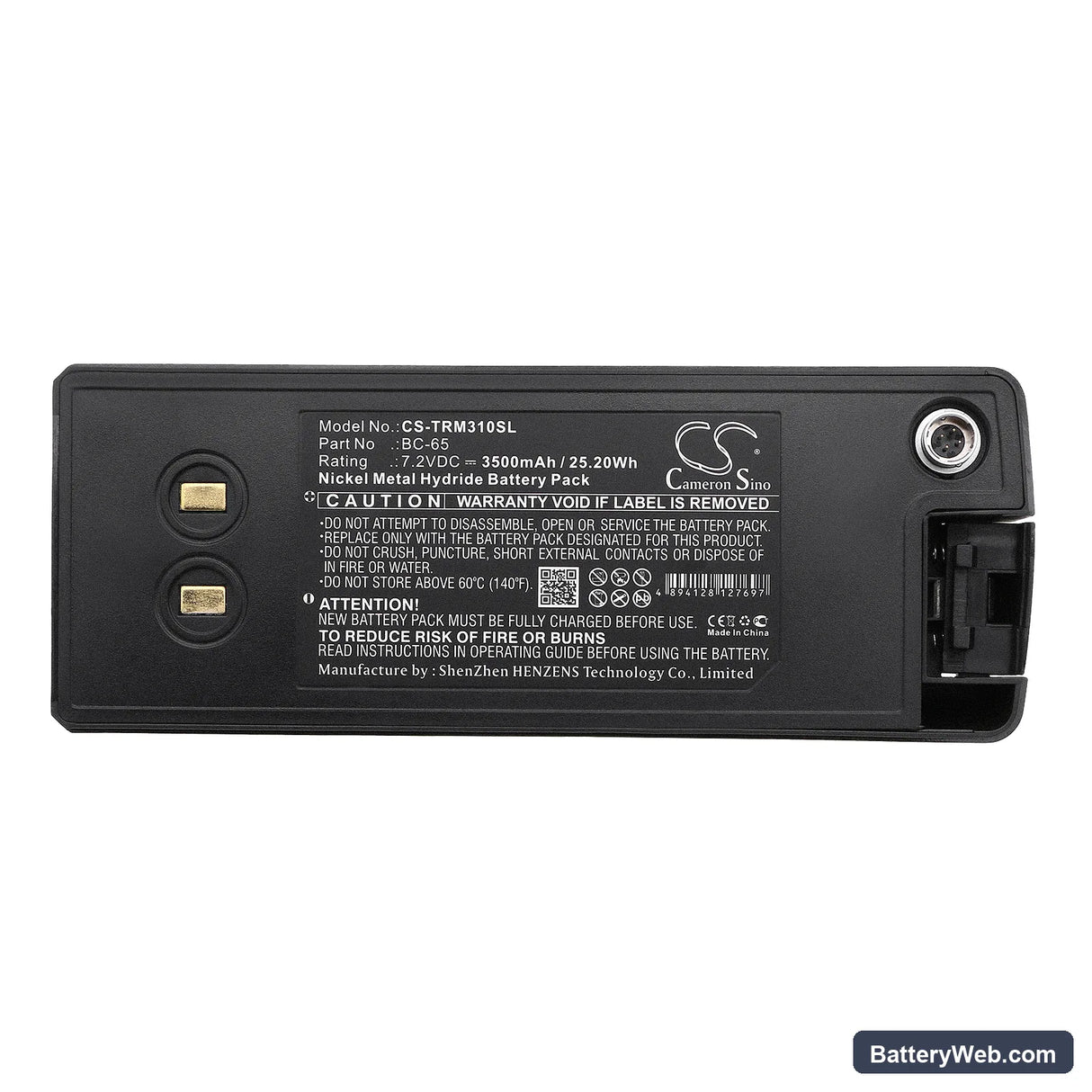

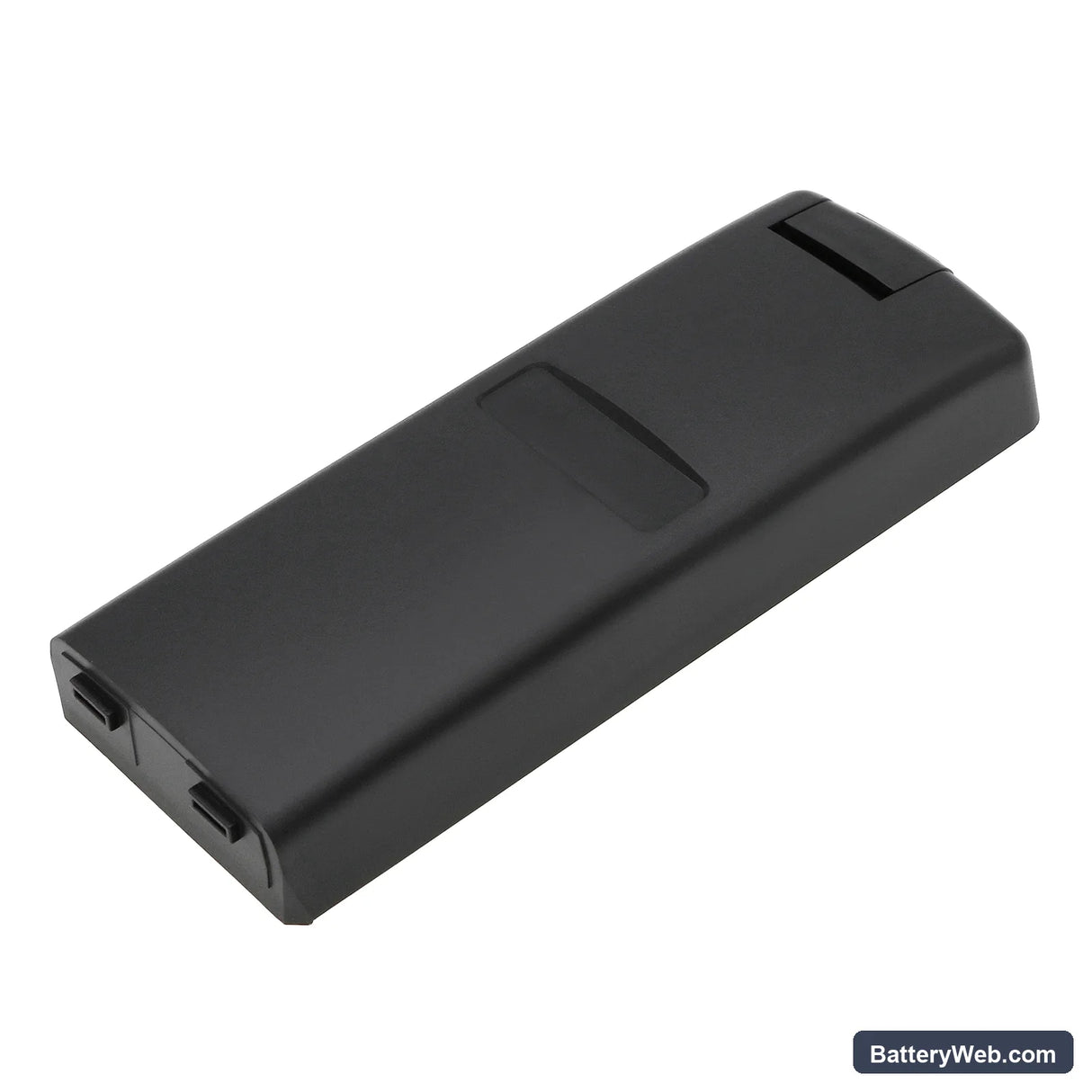

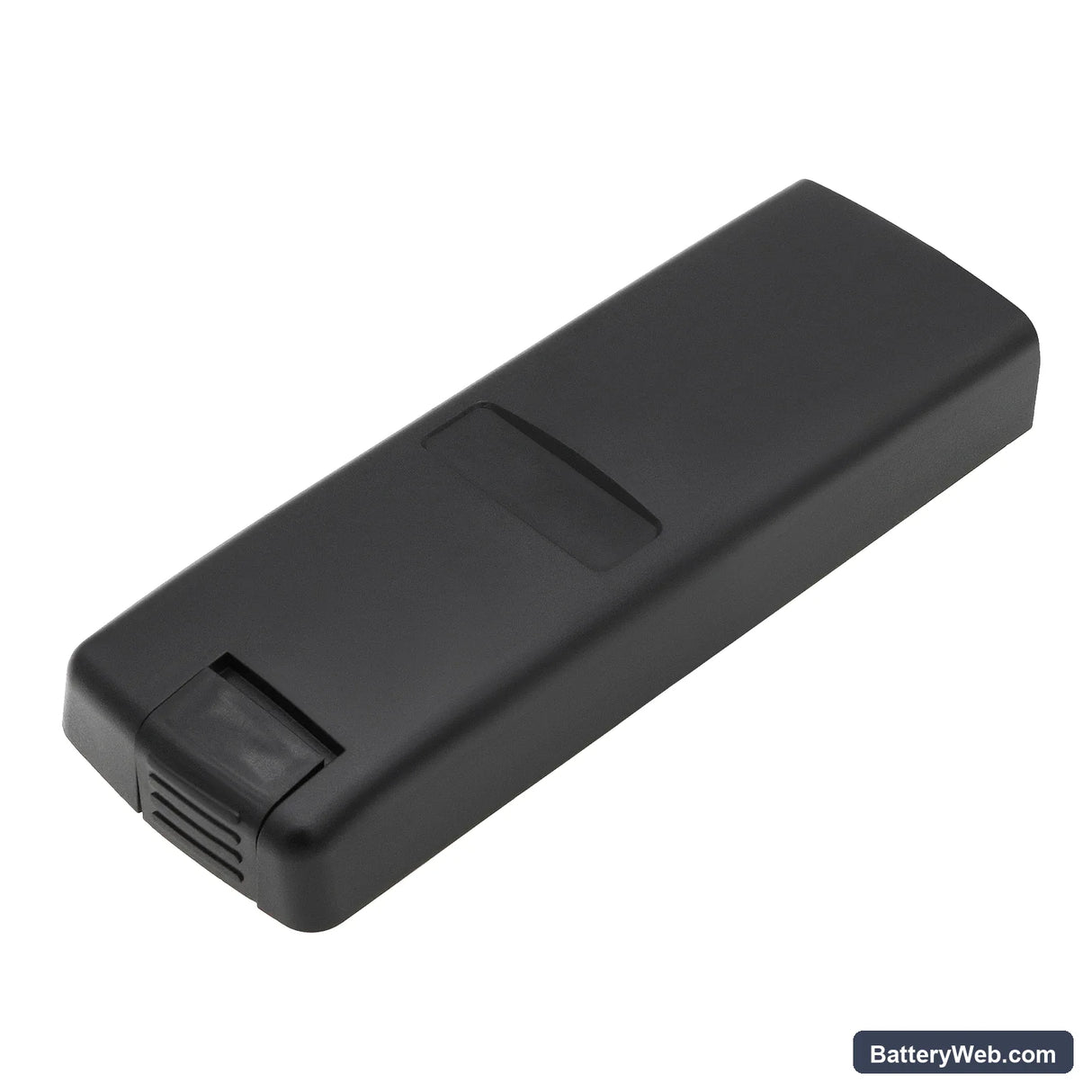

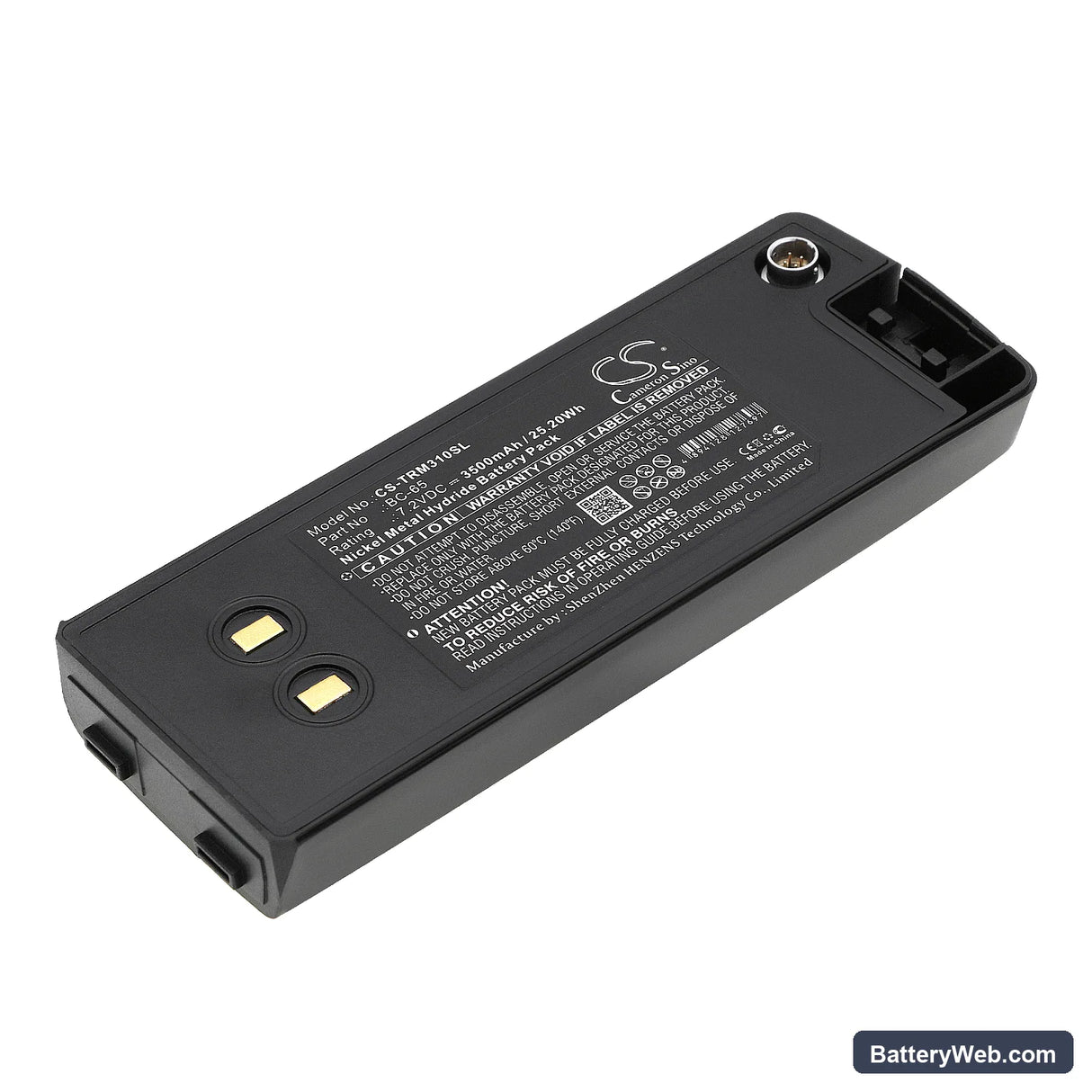

This is a 7.2V, 3500mAh Ni-MH replacement for the Trimble BC-65 battery pack. It fits the Trimble M3 and S8 GNSS survey instruments. At 25.2Wh, it matches the original energy rating these instruments draw from during active field data collection.

• M3 and S8 shared battery platform: Both instruments use the same 7.2V battery rail, BC-65 connector format, and BMS handshake protocol — that is why one pack covers both models. The BMS in each instrument reads cell voltage on startup and gates power to the GPS engine accordingly.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the M3 platform. The BMS accepted the pack without error flags, initialised the GPS engine cleanly, and held voltage above the 6.8V cutoff threshold through sustained satellite acquisition load.
• Field deployment preparation: After fitting this pack, run a full system calibration cycle through the M3 instrument menu before heading into the field. The instrument maps battery state during that calibration pass — skipping it causes premature low-battery warnings on the first active survey session even when the pack is fully charged.

BMS lockout after the M3 sat unused in a carry case for months

Ni-MH cells self-discharge at roughly 1–3% per day at room temperature. A pack left unused for three to four months can drop below the BMS recovery threshold — typically around 5.0V on a 7.2V pack — and the instrument will not recognise it at all. The BMS enters a protective lockout state below that floor. To recover the pack, place it in a standalone Ni-MH charger that supports a low-current conditioning charge (100–200mA trickle); do not attempt recovery through the M3 instrument charger port, as it will simply reject the pack.

M3 powers on but shuts off during USB data transfer to PC

USB data transfer pulls current from both the GPS processor and the USB controller simultaneously — this combined draw can push total consumption 30–40% higher than normal survey mode. On a partially depleted pack, that spike trips the BMS under-voltage cutoff even when the display showed adequate charge before the transfer. Charge the pack fully before initiating any large data offload session. If shutdowns persist on a fully charged pack, check that the USB cable is data-rated and not a charge-only cable, which can cause the controller to retry connections repeatedly and amplify current draw.
