Turtle Beach Elite Atlas Aero 3.7V 500mAh Compatible Battery

Turtle Beach Elite Atlas Aero / Aero RX — 3.7V Li-Polymer Replacement Battery (TBS-6296-01)

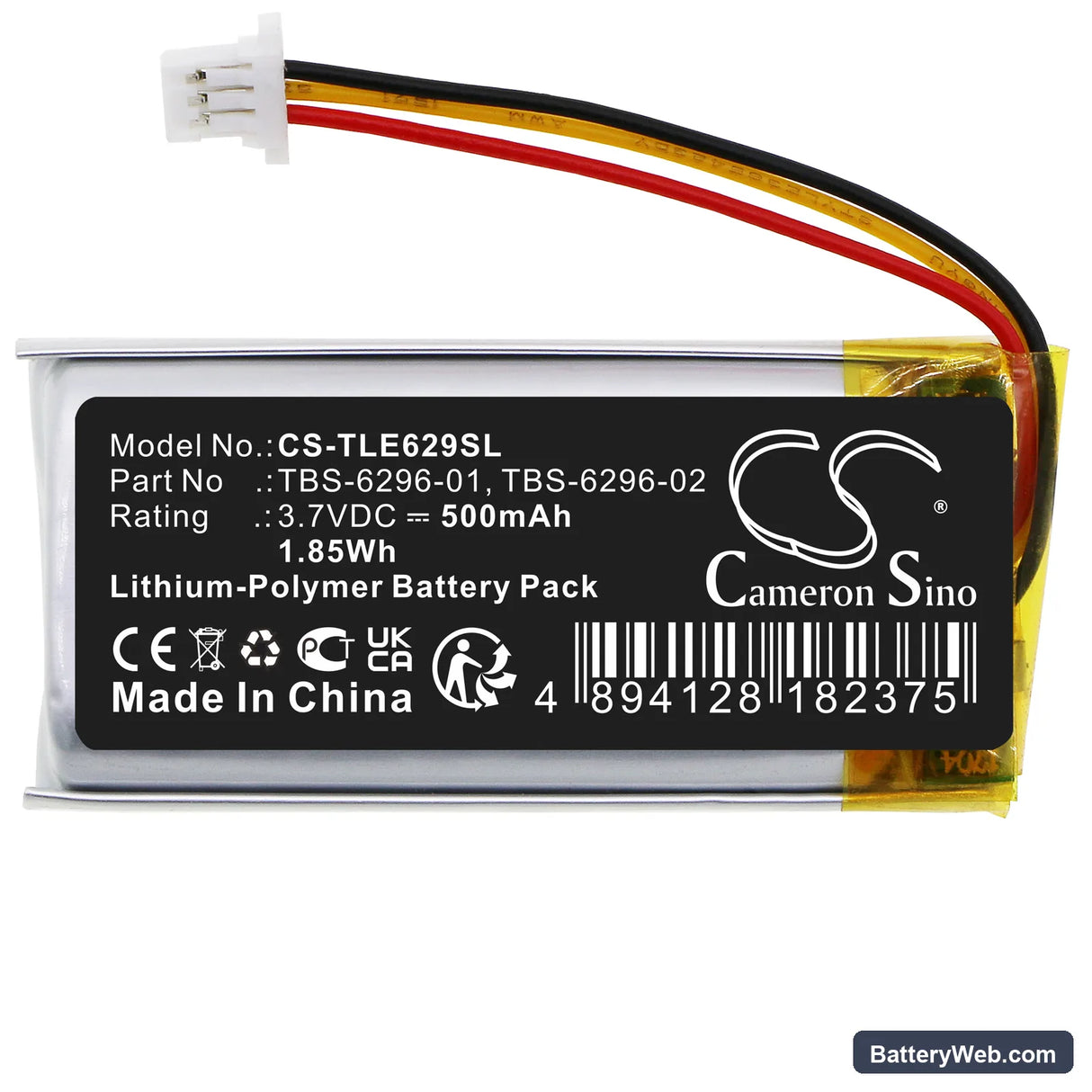

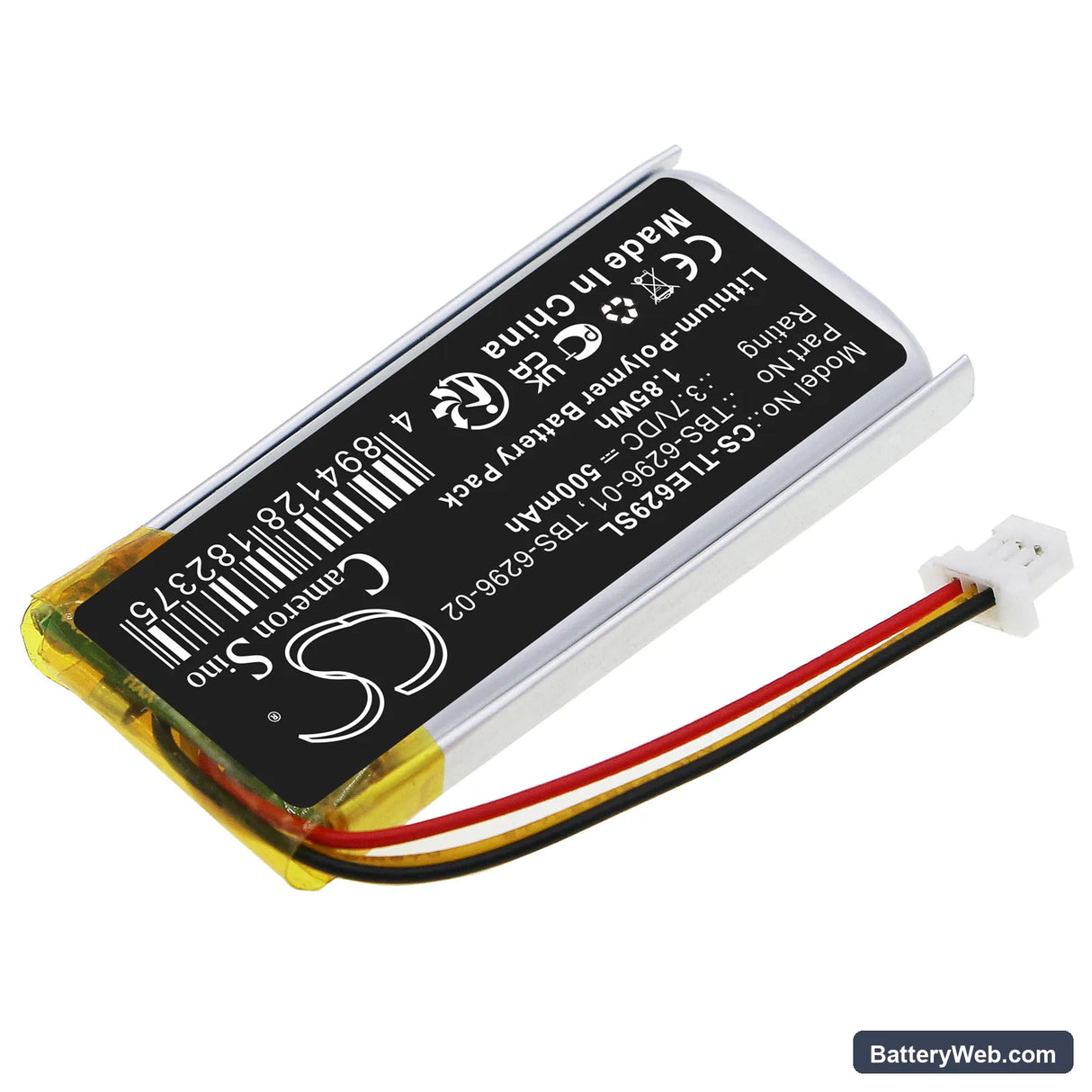

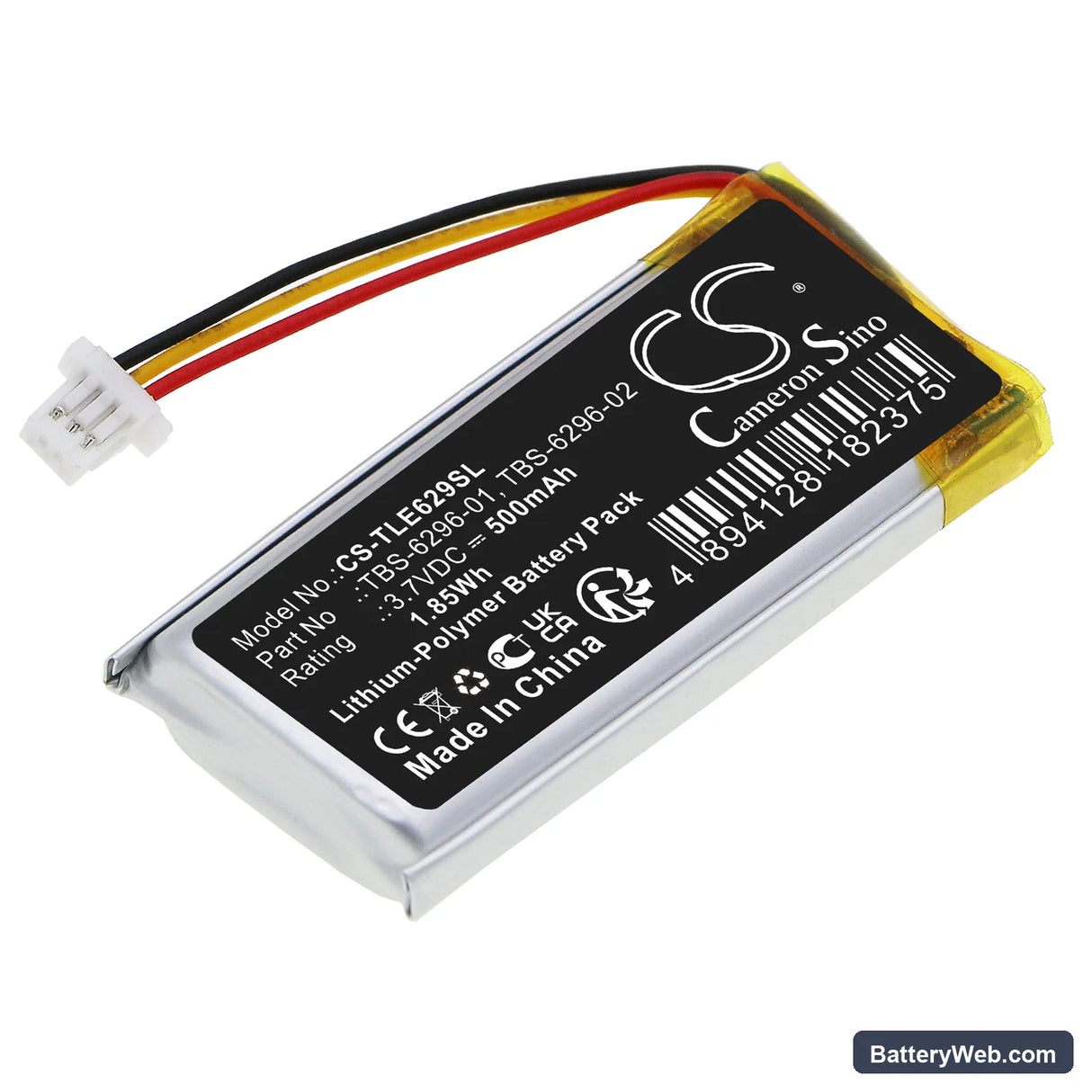

This 3.7V, 500mAh Li-Polymer cell replaces the factory battery in the Turtle Beach Elite Atlas Aero and Elite Atlas Aero RX wireless gaming headsets. It restores wireless audio and DECT connectivity when the original cell no longer holds a charge. Voltage and capacity match OEM spec exactly — TBS-6296-01 and TBS-6296-02 are both covered.

• Elite Atlas Aero and Aero RX fit: Both headset variants share the same battery bay, connector pinout, and BMS handshake protocol. A single cell covers either unit without modification.
• Bench tested on actual hardware: We cycled the cell through the Elite Atlas Aero's charge circuit and confirmed the BMS accepted the pack, completed the charge termination sequence, and reported status correctly to the base station.
• First-cycle base station protocol: Place the headset in the base station immediately after fitting the new cell and leave it for a full uninterrupted charge cycle before use. The base station needs to log the new cell before its talk-time estimate becomes accurate — skipping this step causes the indicator to misread remaining capacity.

Why the Elite Atlas Aero cuts out mid-session on a new battery

The Elite Atlas Aero draws current from two loads simultaneously — the audio DSP and the 2.4GHz wireless transmitter. On a cell sitting at storage voltage (typically around 3.6–3.7V), that combined draw can spike briefly past the BMS current threshold. The BMS interprets this as an overload and trips the output. This is not a fault with the cell — it resolves after the first full charge cycle brings the cell to its rated 3.7V nominal state. Run one complete charge-to-discharge cycle before assuming the pack is defective.

Base station shows full charge but headset powers off after a few minutes

This happens when the replacement cell arrives at storage voltage and the base station misreads its state-of-charge. The base terminates charge early because the cell voltage looks healthy to the charger IC, but the cell hasn't been conditioned yet. The fix is a forced full cycle: power the headset on until it shuts itself off from low voltage, then charge uninterrupted in the base until the indicator confirms 100%. After that cycle, the charge curve recalibrates and the base reads capacity correctly. Target resting voltage after a full charge should sit at approximately 4.2V.
