Zebra BAT-SCN07 8690i Compatible Battery 3.7V 3400mAh

Zebra 8690i Wearable RFID Mini — 3.7V Li-ion Replacement Battery (BAT-SCN07)

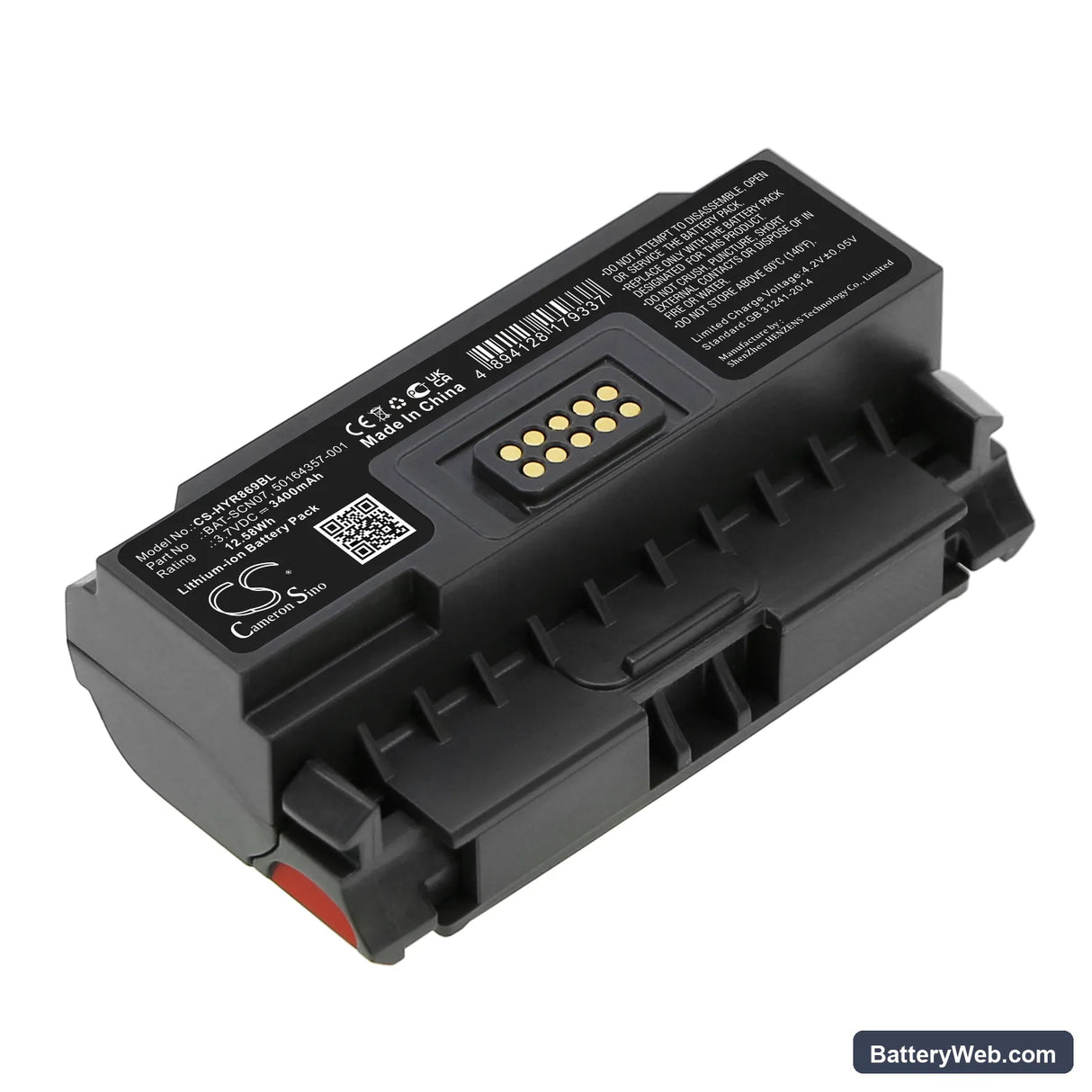

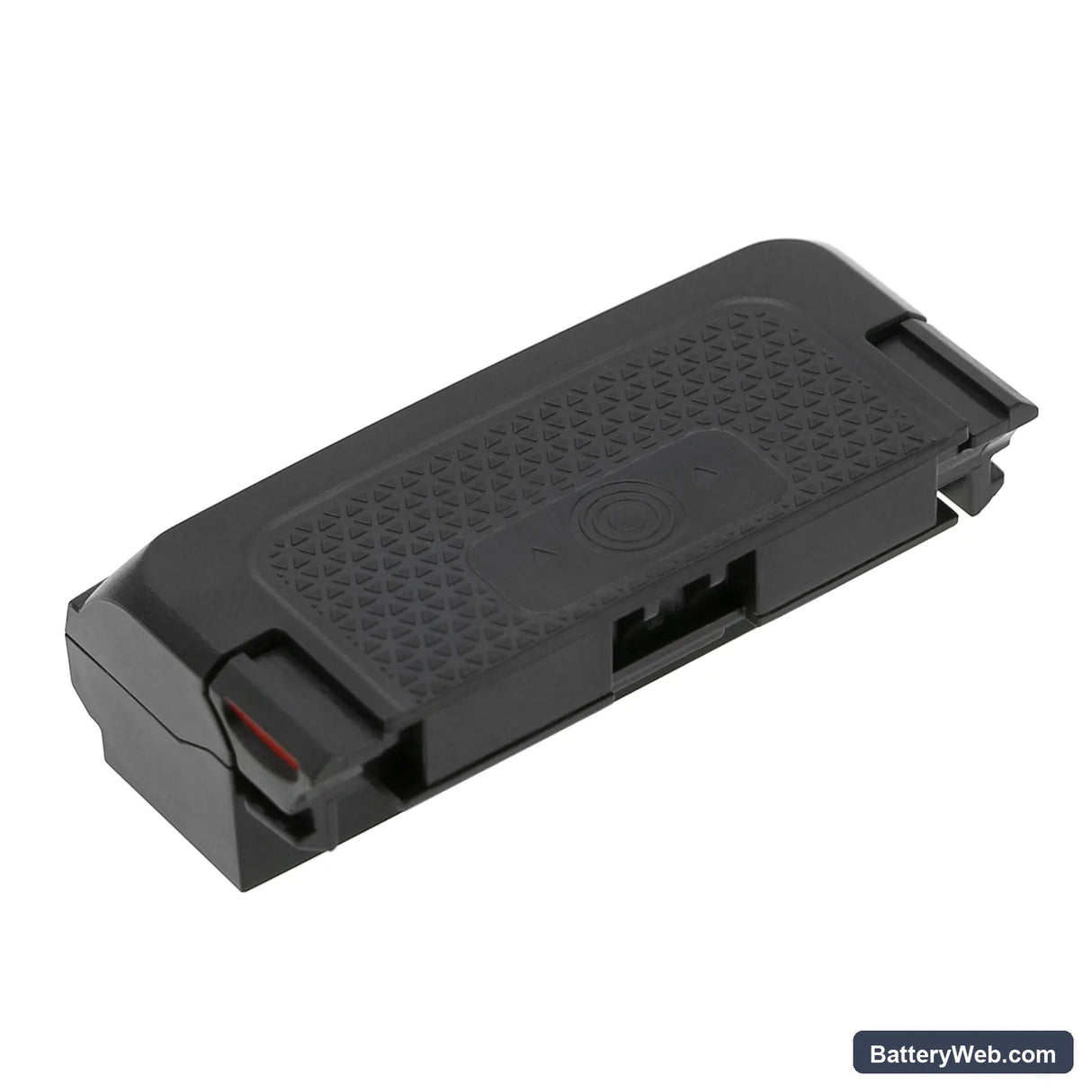

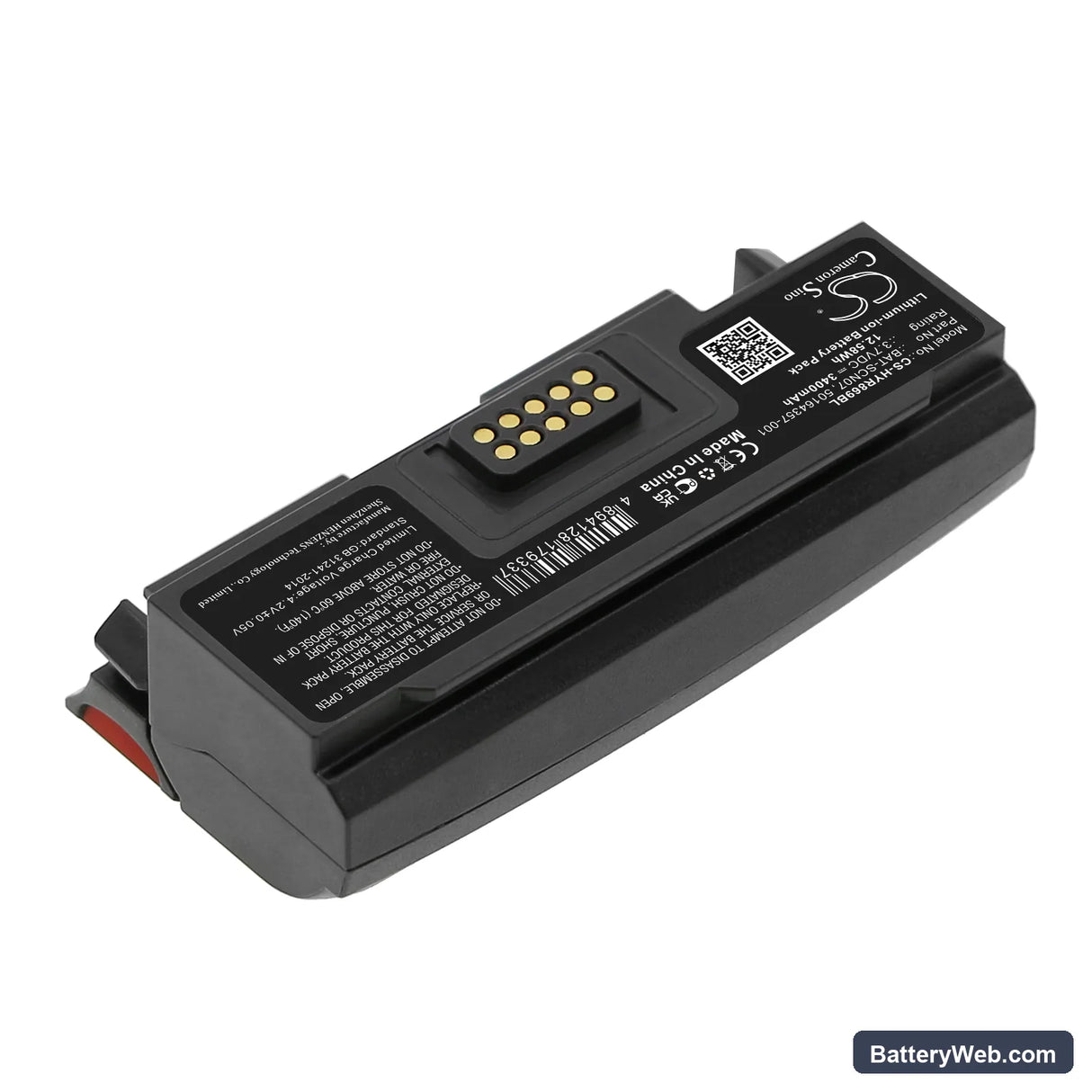

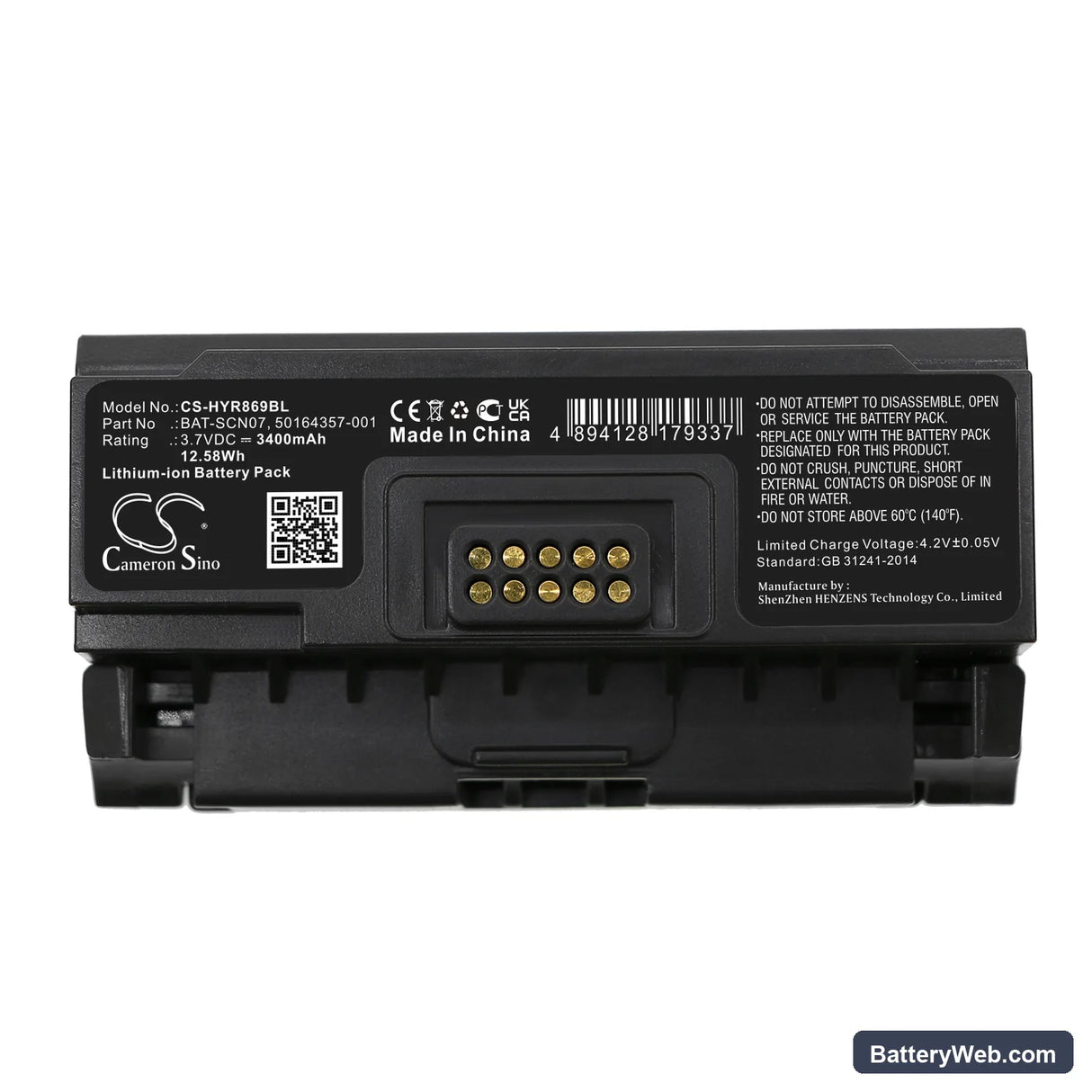

This is a 3.7V 3400mAh Li-ion battery for the Zebra 8690i wearable RFID mini scanner. It replaces OEM part numbers BAT-SCN07 and 50164357-001. The 8690i is a ring-style wearable terminal used in warehouse pick-and-pack, inventory counting, and asset tracking workflows.

• 8690i wearable platform fit: The 8690i uses a compact ring-form housing with a specific connector orientation and BMS handshake tied to Zebra's power management firmware. This pack matches that physical footprint and communicates correctly with the device's fuel gauge circuit.
• Bench tested on actual hardware: We cycled this pack through rapid scan bursts combined with simultaneous Bluetooth polling loads — the conditions that stress 8690i batteries hardest. The BMS held stable voltage delivery through sustained trigger events without tripping into protection mode.
• First-shift charging protocol: After installing, seat the scanner in its cradle and let it complete a full charge cycle before the first shift. The scan trigger inrush current peaks when the cell is near minimum charge, and starting a shift on a partially charged new pack raises the risk of a false BMS protection trip during the first burst sequence.

Cradle showing charging error on a new 8690i pack

The 8690i cradle communicates with the battery through spring-loaded dock contacts on the underside of the ring unit. Oxidation or debris on either the pack contacts or the cradle pins raises contact resistance enough to trigger a charging fault on the dock's LED indicator. Clean the gold contacts on the battery and the cradle pins with a dry lint-free cloth before reseating. If the error clears and charging begins, the pack itself was never the problem — contact resistance was.

Scanner dropping wireless connection during rapid scan bursts

The 8690i draws simultaneously from the Bluetooth radio and the scan trigger during burst scanning — two inrush loads hitting the cell at once. When a degraded or low battery can't sustain voltage under that combined draw, the radio subsystem drops first because the scanner firmware prioritises the imager. The result looks like a wireless dropout but the root cause is voltage sag at the cell. Charge the pack to full before a high-frequency scanning shift, and check that the cell voltage at rest is above 3.6V before clocking on.
