Meilan Note 5 Replacement Battery 3.85V 4000mAh Li-Polymer

Meilan Note 5 — 3.85V Li-Polymer Replacement Battery

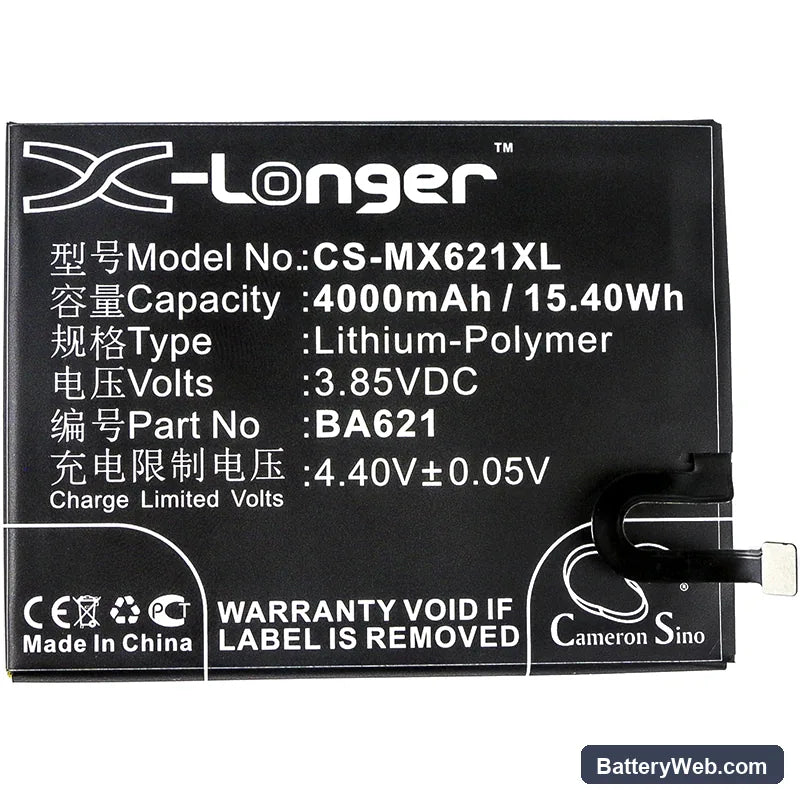

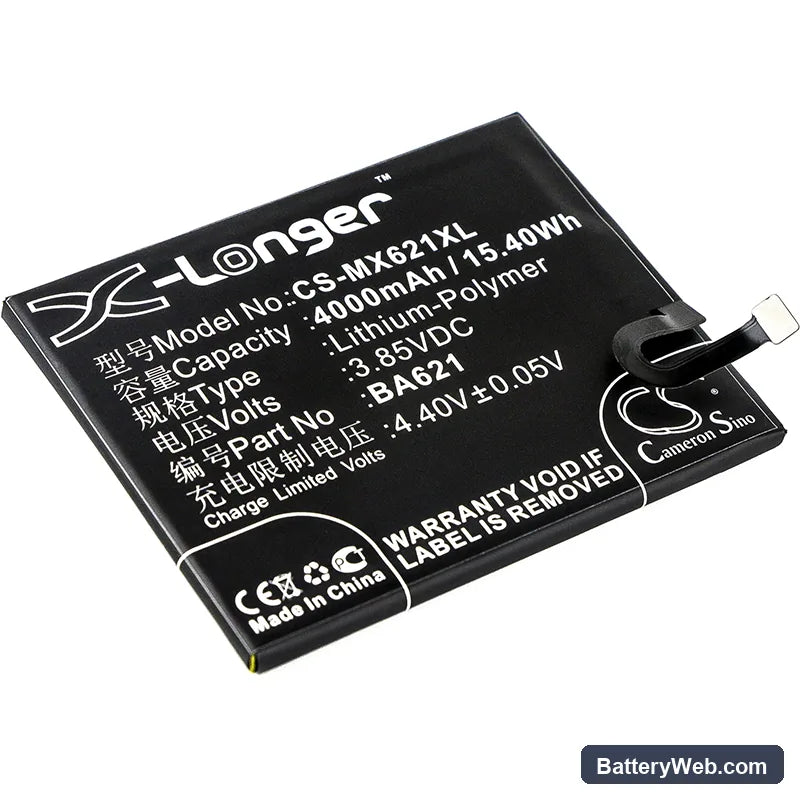

This is a 3.85V, 4000mAh Li-Polymer replacement battery for the Meilan Note 5 smartphone. It slots into the Note 5 to restore power capacity when the original cell has degraded. Capacity is 15.4Wh, matching the factory specification.

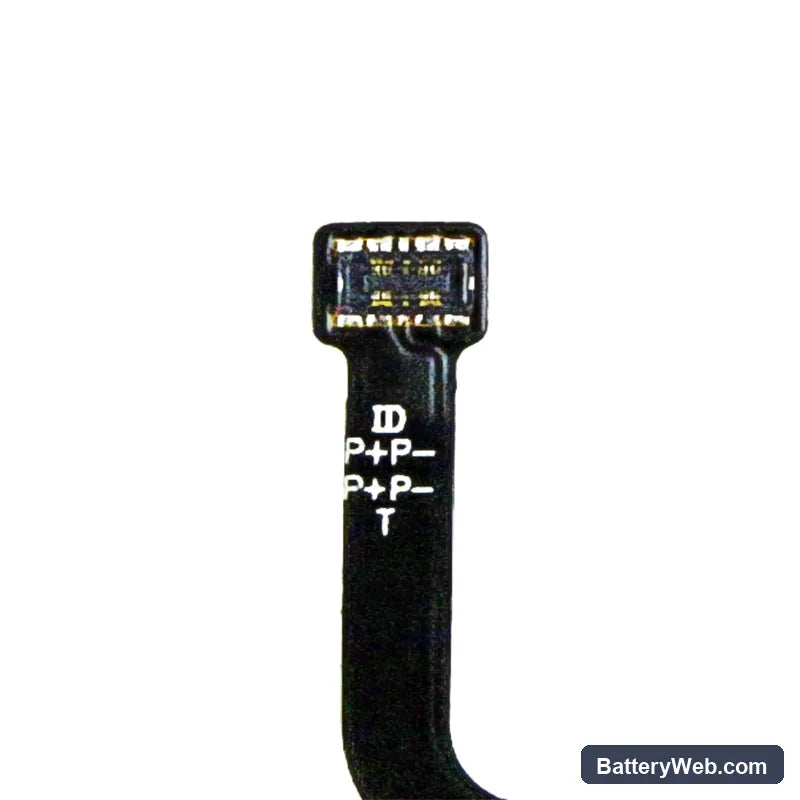

• Note 5 cell compatibility: The Note 5 uses a fixed 3.85V Li-Polymer cell with a specific footprint — 82.10 x 62.60 x 4.45mm. That physical profile determines connector placement and BMS pin alignment. Any cell outside those tolerances will not seat correctly against the charge IC board.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the Note 5 platform. The BMS accepted the handshake without fault codes, and the charge IC stepped through its CC-CV profile without thermal events at full 4000mAh load.
• First-cycle calibration tip: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC recalibrate against the new cell's discharge curve before high-current charging pushes load into an uncalibrated cell.

Sudden shutdown at 20–30% on the Note 5 after a cell swap

This happens because the fuel gauge IC was calibrated to the old cell's voltage-to-capacity curve. A fresh 4000mAh cell has a steeper voltage cliff under modem and display load than a worn cell. When the phone demands current during LTE activity or screen-on, the new cell's terminal voltage drops below the shutdown threshold faster than the IC expects — so the phone cuts out even though the reported percentage looks safe. Running one full discharge to 3.40V and a full charge cycle resets the coulomb counter and corrects the curve. After that cycle, the shutdown behaviour normalises.

Device not powering on after the replacement cell sat in storage

Li-Polymer cells self-discharge in storage, and below roughly 2.5V per cell the BMS enters lockout to prevent damage. A cell in lockout will not respond to a normal charger — the phone shows nothing on screen. To recover it, connect the phone to a 5V charger and leave it for 15–20 minutes without pressing the power button. The charge IC trickle-charges the cell from lockout back above the 2.9V recovery threshold. Once the BMS exits lockout, a normal boot becomes possible.
