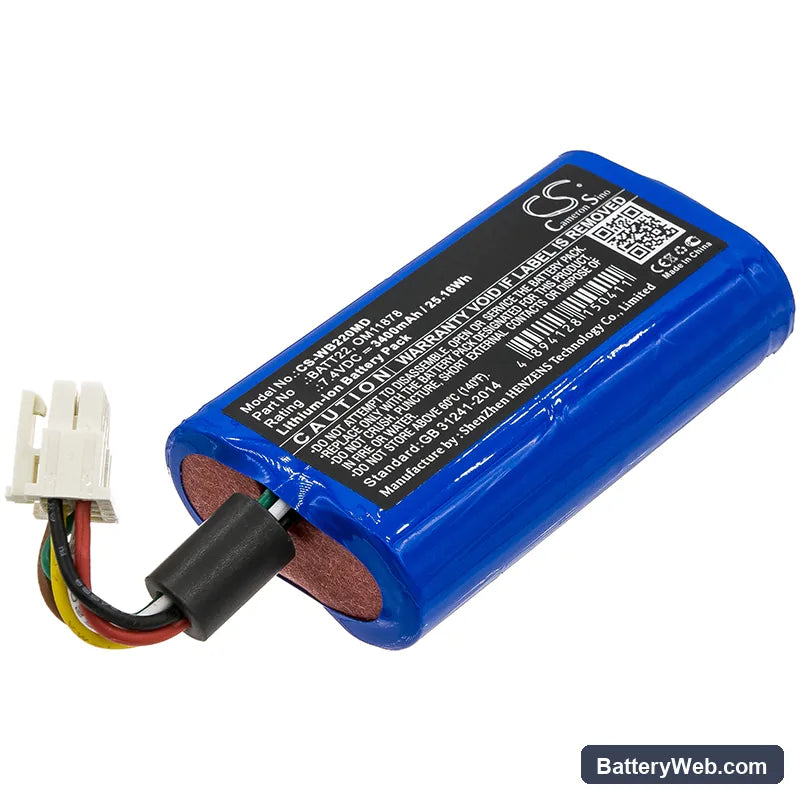

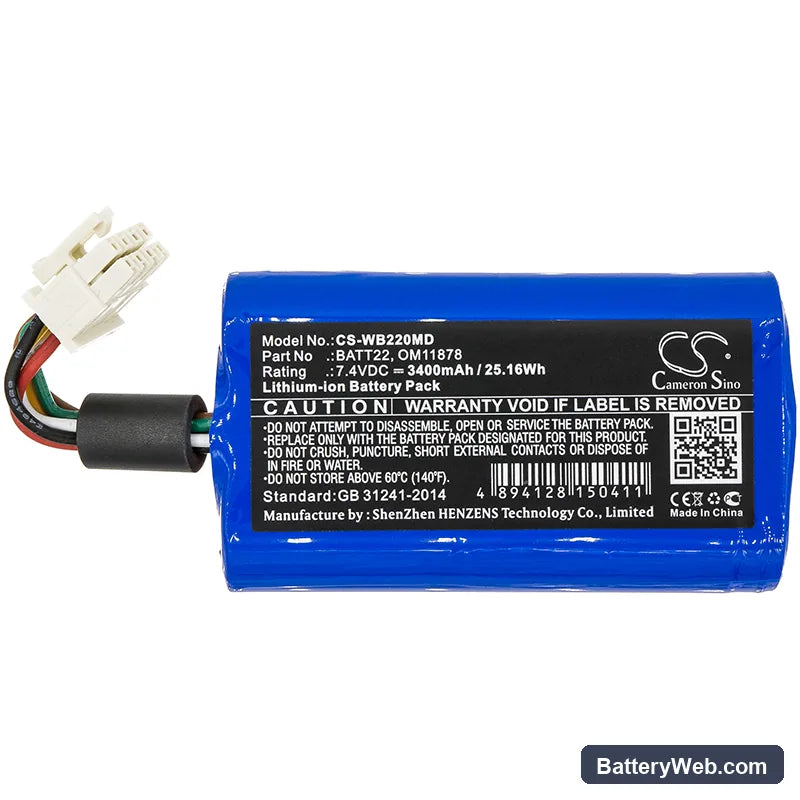

Welch-Allyn Connex Spot 7.4V 3400mAh Replacement Battery 901000

Up to 20% off
New arrival
From $50.99 USD $62.99
Shipping calculated at checkout.
Fits Welch-Allyn Connex Spot vital signs monitors; replaces OEM part 901000, BATT22, OM11878, TM78370.
7.4V 3400mAh lithium-ion cell delivers 25.16Wh — sufficient for a full patient assessment cycle without mid-shift depletion.

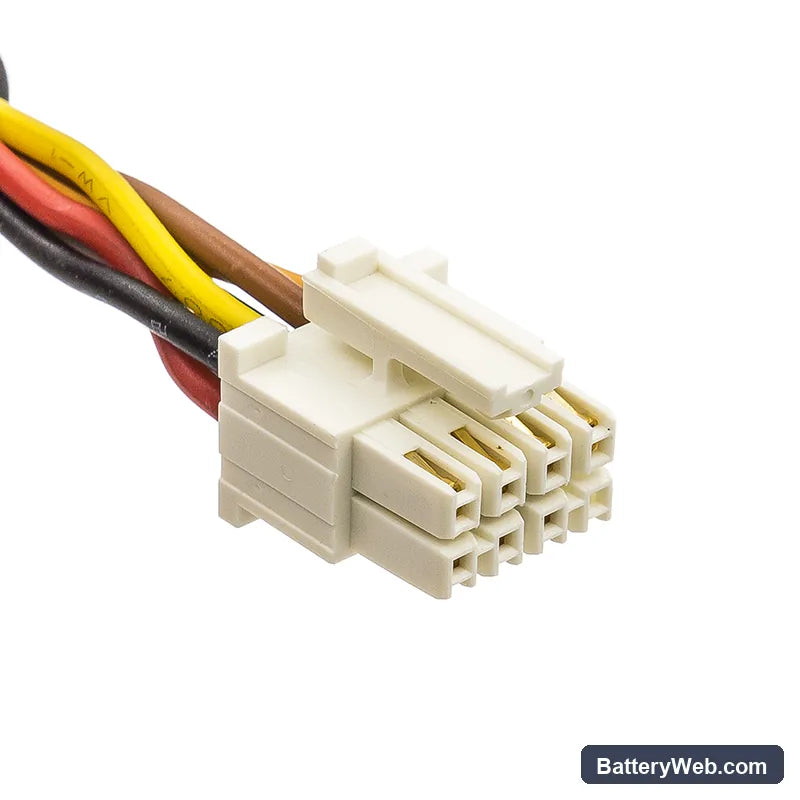

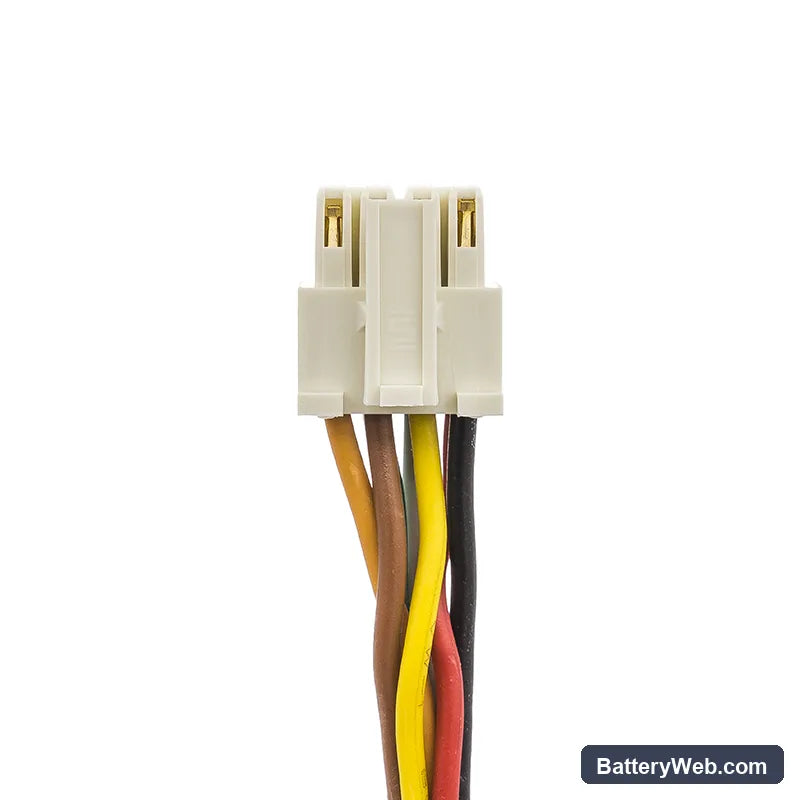

Connector seats vertically into the battery compartment with a single locking tab; ensure contact pins face the device terminals.
We bench tested this cell on the Connex Spot load profile; BMS accepted the new pack after the first full charge cycle without fault codes.
After installation, let the device complete its power-on self-test without interruption — the monitor runs BMS verification at startup, and stopping this cycle triggers a false battery fault that persists until full reboot.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

7.4V

Amp

3400mAh

Welch-Allyn Connex Spot Monitor — 7.4V Li-ion Replacement Battery (901000)

This 7.4V 3400mAh Li-ion battery replaces the original power cell in the Welch-Allyn Connex Spot and Connex Spot Monitor. It also fits Grason-Stadler and Pressure unit Connex Spot configurations. Cross-references include OEM part numbers 901000, BATT22, OM11878, and TM78370.

  • Connex Spot platform fit: These monitor variants share the same 7.4V battery bay, connector pinout, and BMS handshake protocol. One cell covers the full platform without modification.
  • Bench tested on actual hardware: We cycled this cell through charge, full load, and rest on the Connex Spot platform. The BMS accepted the cell, completed its verification handshake, and reported accurate state-of-charge across the full discharge curve.
  • Post-install self-test protocol: After inserting this battery, allow the Connex Spot to complete its full power-on self-test without interruption. The device runs a BMS verification sequence at startup. Cutting power during this sequence logs a false battery fault that persists until the next clean reboot.

Device not completing boot sequence after battery swap

The Connex Spot runs a BMS learn cycle on first use with a new cell. If the device stalls mid-boot or returns a battery error, the BMS has not yet profiled the replacement cell's chemistry. This is not a fault with the cell. Run one full charge-discharge cycle before returning the unit to clinical use — the BMS will map the new cell's discharge curve and boot cleanly from the second cycle onward.

Charge indicator not reaching 100% on the first charge

On first installation, the Connex Spot's charge IC applies a conservative current limit to an unrecognised cell. This causes the indicator to plateau below 100% before the cycle completes. The cell is not defective. Disconnect the charger, power the device on briefly to drop the voltage slightly, then reconnect — the charge IC re-evaluates the cell and typically reaches full charge on the second attempt. Target resting voltage after a full charge should read approximately 8.3–8.4V at the battery terminals.

Compatible Models

Connex Spot Connex Spot Monitor Grason-Stadler Pressure unit Connex Spot Protocol Spot Vital Signs 4400

Replaces Part Numbers

901000 BATT22 OM11878 TM78370

Technical Specifications

Voltage7.4V
Amp Hours3400mAh
Capacity3400mAh
Rate25.16Wh
Net Weight107.2g /3.78 oz
Gross Weight132.2g /4.66 oz
Approximate Weight132.2g /4.66 oz
Dimension 68.80 x 39.50 x 18.70mm

Product Highlights

  • Brand: Welch-Allyn
  • Manufacturer: CS
  • Series: Standard
  • Color: Blue
  • Product Type: Li-ion
  • Battery Type: Li-ion
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

The Connex Spot shows a low battery alarm immediately after I installed a fully charged replacement — is the cell bad?

The cell is almost certainly fine. The Connex Spot's BMS compares incoming cell data against a stored OEM chemistry profile, and a new cell won't match that profile until it completes one full charge-discharge cycle. Run one complete cycle — charge to full, allow normal discharge during use, then recharge — and the alarm threshold calibrates to the new cell. If the alarm persists after two full cycles, check the resting voltage at the battery terminals; it should read 8.3V or above after a full charge.

The Connex Spot powers off unexpectedly mid-assessment, even though the battery indicator showed adequate charge — what's causing this?

During the first 10 cycles, a new Li-ion cell has higher internal resistance than a conditioned cell. The Connex Spot draws a sharp load spike during blood pressure cuff inflation and SpO2 sampling, and that spike causes a brief voltage sag on an unconditioned cell. The BMS interprets the sag as a low-cell-voltage event and shuts the device down to protect the cell. Run the battery through several full charge-discharge cycles before clinical use — internal resistance drops as the cell conditions, and the shutdowns stop.

The Connex Spot won't power on at all after the replacement battery sat in storage for several months before installation — how do I recover it?

Li-ion cells self-discharge in storage at roughly 2–3% per month. If the cell dropped below approximately 2.5V per cell (5.0V pack voltage) before installation, the BMS enters a deep-discharge protection lockout and blocks power-on entirely. Connect the device to its wall charger and leave it for a minimum of 30 minutes without pressing the power button — the charger applies a low-current pre-charge trickle that brings the pack voltage back above the BMS recovery threshold of around 6.0V, after which normal charging and boot will resume.
