Intermec SF51 Compatible Battery 3.7V 2200mAh 318-025-001

Intermec SF51 — 3.7V Li-ion Replacement Battery (318-025-001)

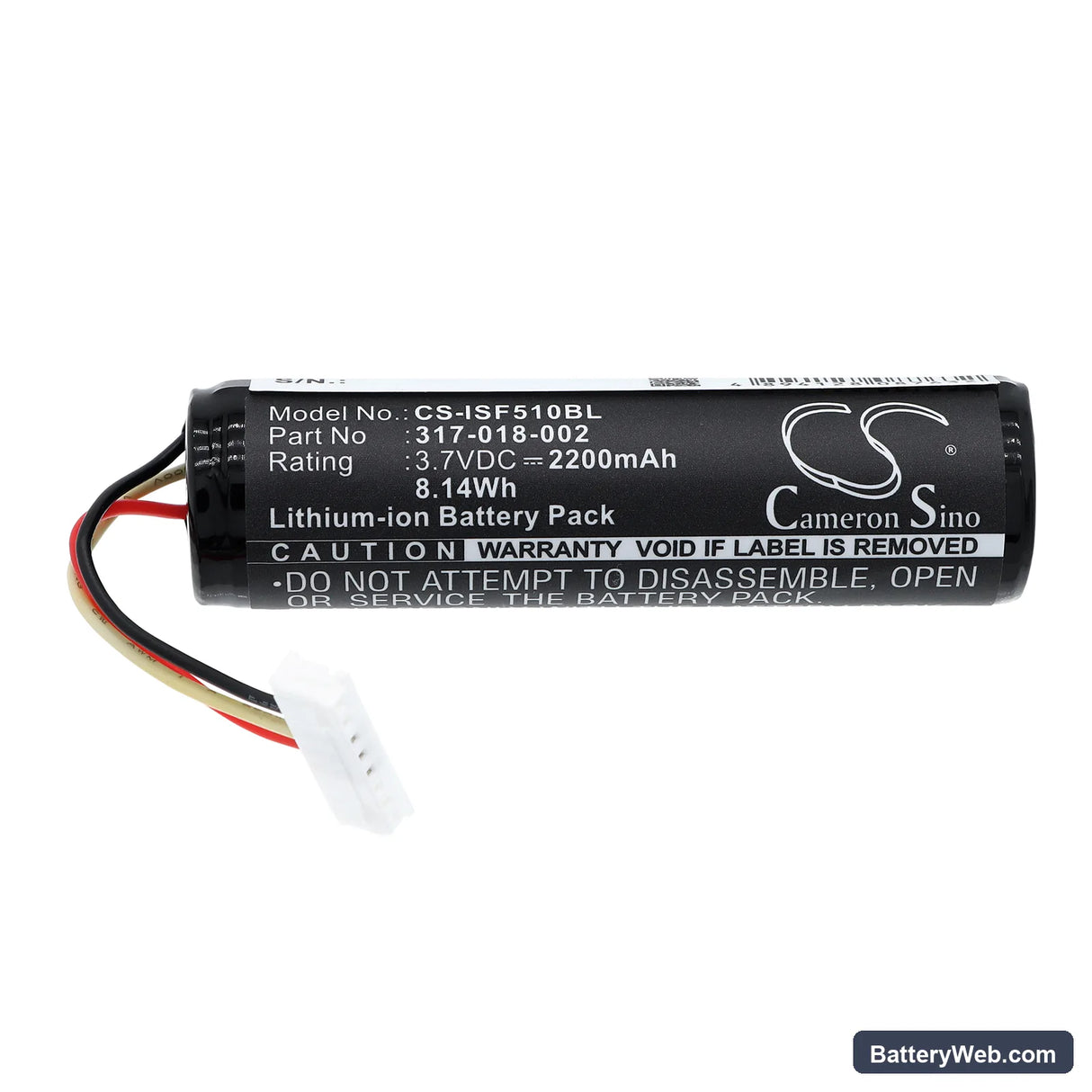

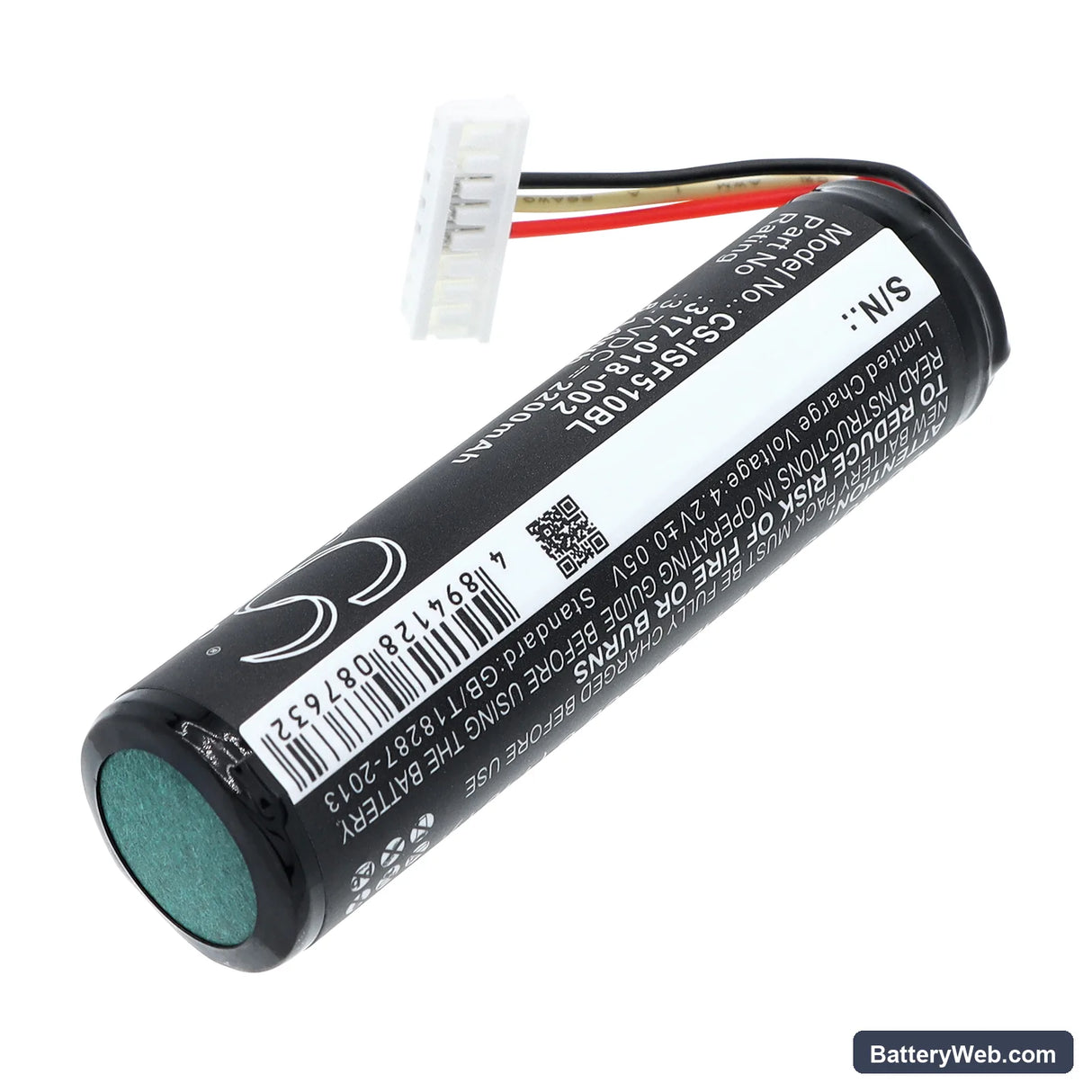

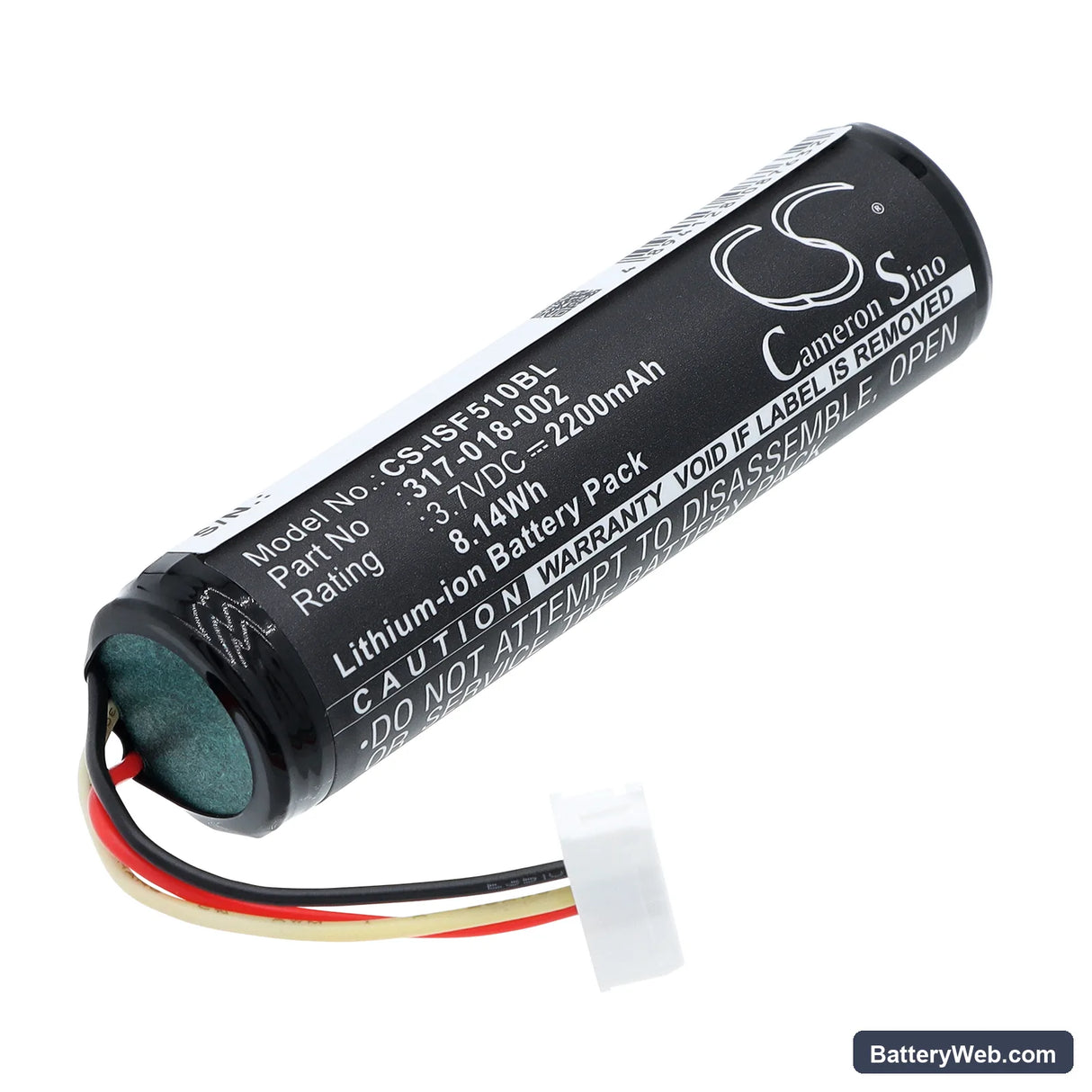

This 3.7V, 2200mAh Li-ion cell is a direct replacement for the Intermec SF51 handheld barcode scanner. It fits the SF51 series used in warehouse picking, asset tracking, and point-of-sale environments. OEM part numbers covered include 318-025-001, 317-018-002, 317-018002A, 1016AB01, and 318-024-002.

• SF51 platform fit: The SF51 runs a single-cell 3.7V Li-ion architecture with a BMS that monitors cell voltage and communicates state-of-charge to the host device. Replacement cells must match the voltage rail and BMS handshake protocol — this pack does both.
• Bench tested on actual hardware: We cycled this battery through scan-burst sequences and monitored BMS cutoff thresholds. The protection circuit responded correctly to over-discharge and over-current events, and the charge IC accepted the pack without fault codes.
• First-shift preparation for the SF51: After installing, seat the scanner in its charging cradle and run a full charge cycle before putting it on the floor. The scan trigger draws the highest inrush current when the cell is near minimum voltage — a pre-charged pack prevents false BMS trips on the opening scans of a shift.

Cradle showing a charging error on a new pack

The SF51 cradle reads contact resistance before initiating a charge cycle. If dock contacts on the scanner base or cradle are oxidised or dirty, the charger sees an open circuit and throws a fault rather than charging. Wipe the gold contacts on both the battery end and the cradle dock with a dry lint-free cloth, then reseat the scanner firmly. If the error clears, the issue was contact resistance — not the battery or charger.

Scanner dropping wireless connection during rapid scan bursts

The SF51 pulls simultaneous current for both the scan engine and the wireless radio during a rapid burst sequence. At low state-of-charge, combined draw can cause a brief voltage sag that trips the BMS or starves the radio, dropping the connection mid-session. This is not a radio fault — it is a battery voltage floor issue. Keep the pack above 3.5V during active shifts by swapping at the first low-battery alert rather than working to cutoff.
