Cub Cadet XR1 500 — 10.8V Li-ion Replacement Battery (BAT9101A)

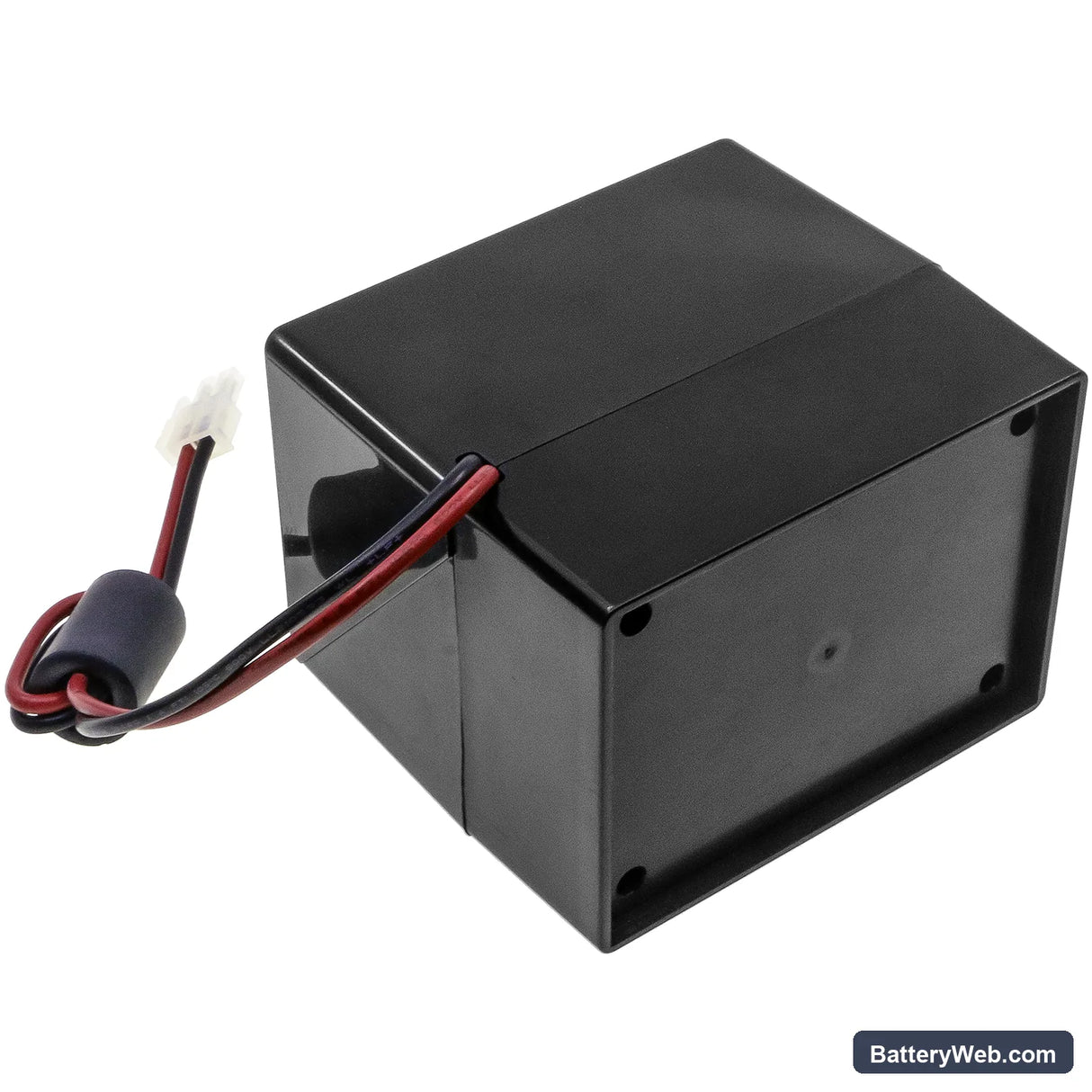

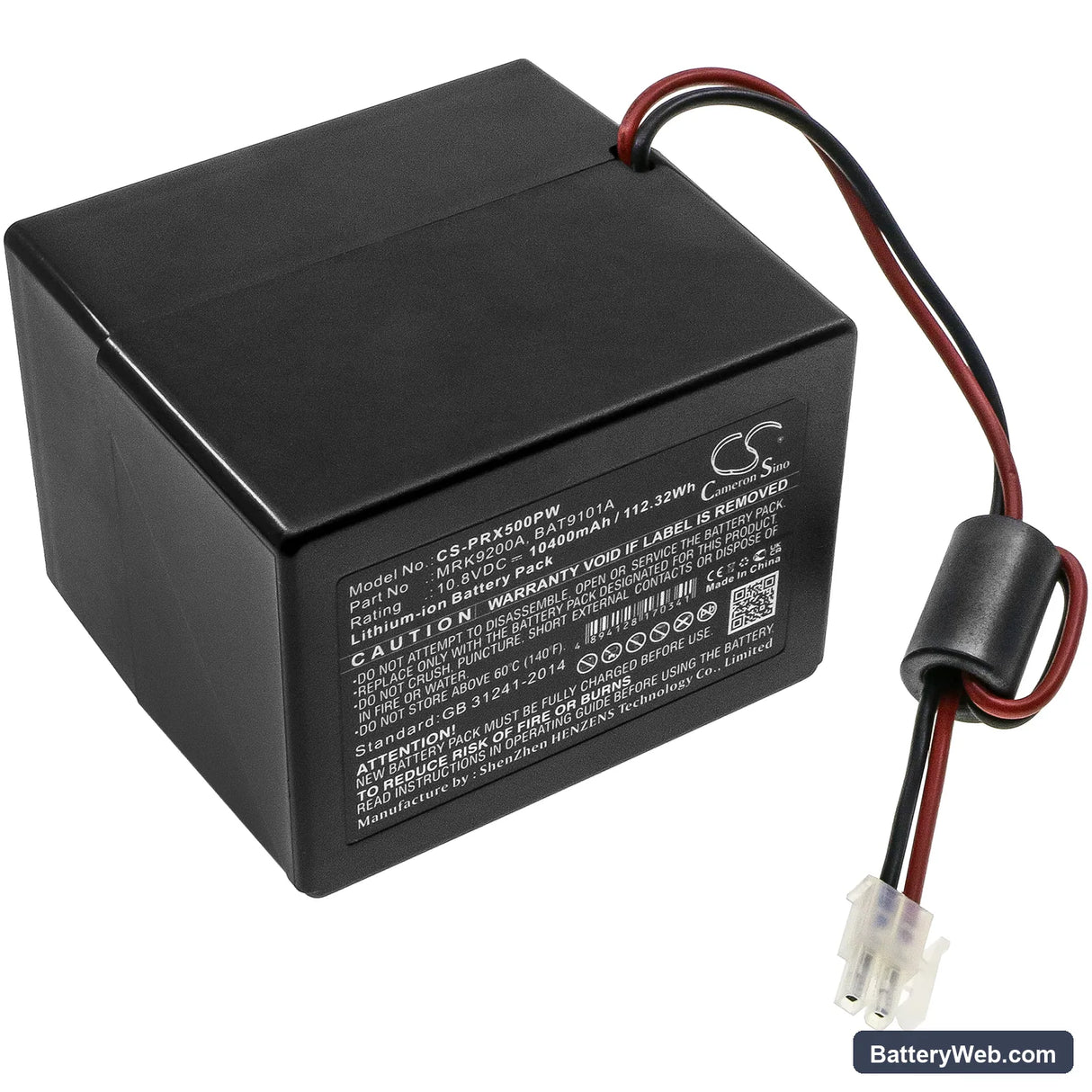

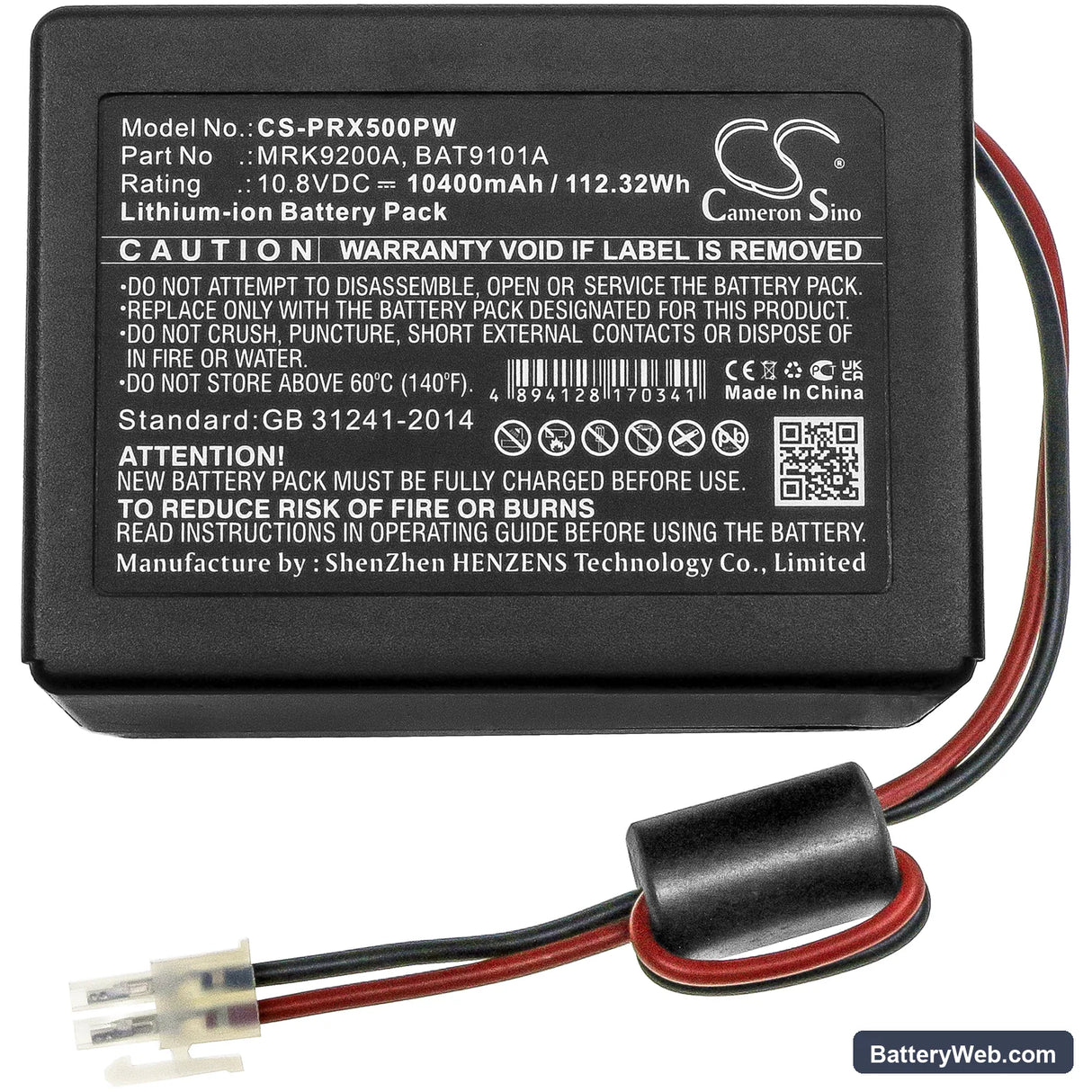

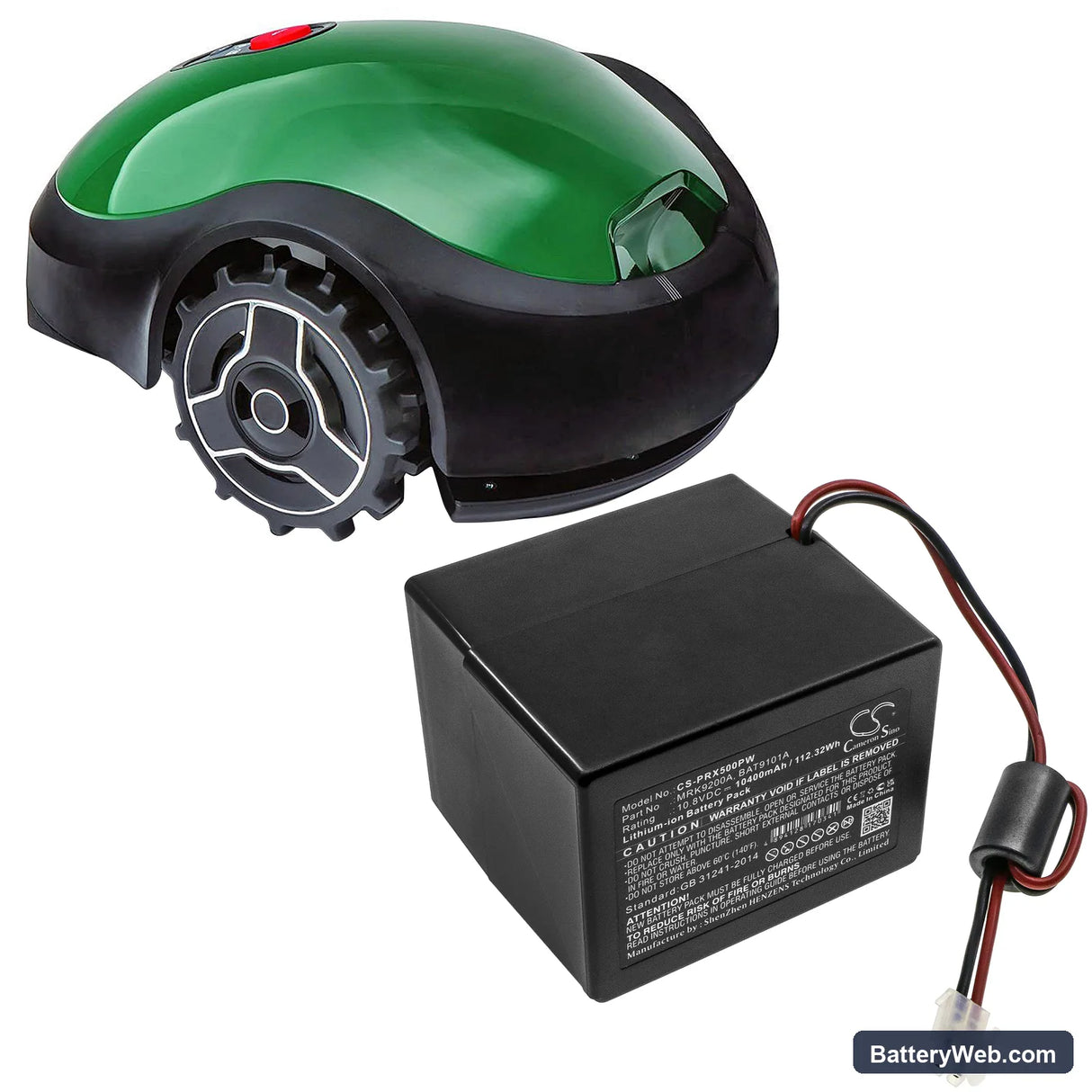

This is a 10.8V, 10400mAh Li-ion replacement battery for the Cub Cadet XR1 500 cordless walk-behind mower. It slots into the same bay as the original BAT9101A and MRK9200A packs. If your original battery no longer holds charge or the mower shuts down mid-cut, this is the direct swap.

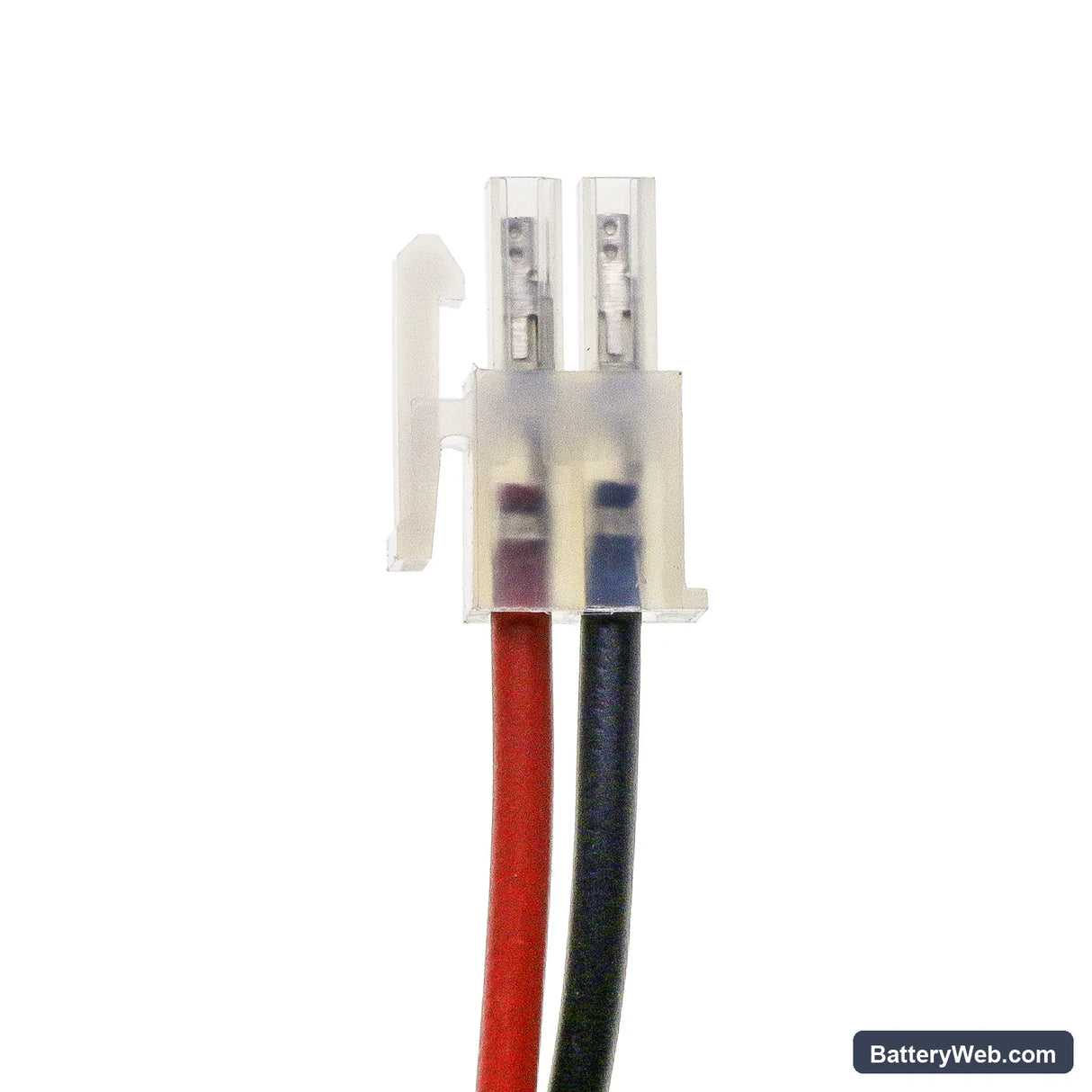

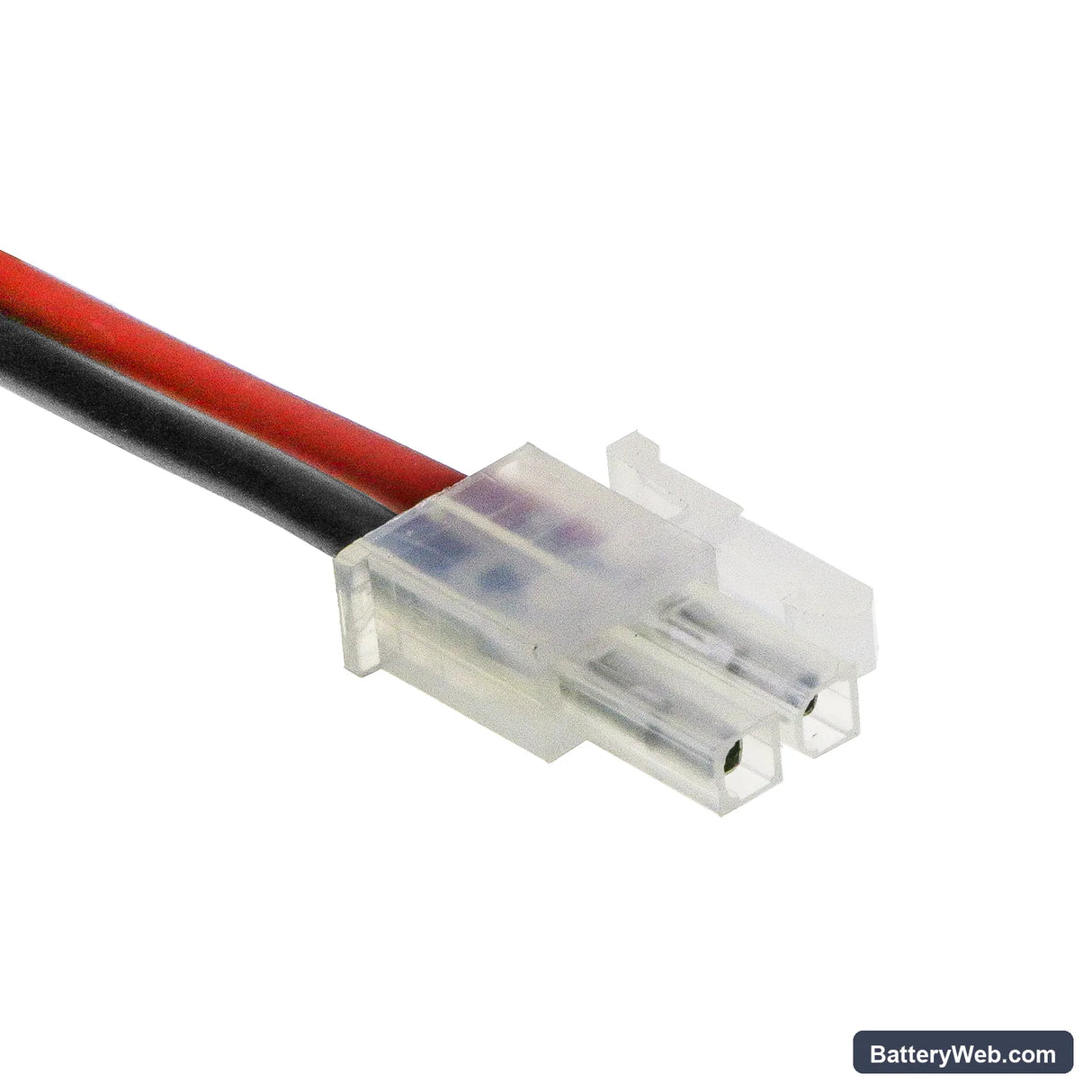

• XR1 500 platform fit: The XR1 500 uses a 10.8V nominal rail with a BMS handshake that reads pack state before allowing blade motor startup. Both OEM part numbers — BAT9101A and MRK9200A — share this connector and handshake protocol, so this replacement communicates correctly with the mower's control board.
• Bench tested on actual hardware: We ran this pack through simulated blade-start inrush cycles and sustained mid-load draws. The BMS held protection thresholds consistent with OEM spec — no nuisance trips under normal cutting conditions on a full, room-temperature charge.
• Cold-weather pre-use tip: Before your first mow of the season, bring the battery indoors overnight if temperatures are below 10°C. Cold Li-ion cells carry higher internal resistance, and the blade motor's inrush current on startup can trip the BMS in a cold pack before the cells have warmed up.

BMS cutoff on thick-grass and wet-grass blade load

The XR1 500 blade motor draws significantly more current through dense or wet grass than on a dry, short lawn. When that draw spikes above the BMS protection threshold — typically from a sudden slug of thick grass — the pack cuts power to protect the cells. This is not a battery fault; it is the BMS doing its job. Let the mower sit for 30 seconds to allow the BMS to reset, then resume at a slower walking pace through the heavy section. If cutoffs repeat, check that blade height is set one notch higher than the grass requires.

Charger showing a fault light after the mower sat all winter

Li-ion cells self-discharge slowly over months. A pack stored in an unheated garage from October through spring can drop below the charger's minimum acceptance voltage — typically around 9V for a 10.8V pack. When the charger sees a pack below that threshold, it flags a fault and refuses to charge. Some OEM chargers include a recovery or "wake" mode; if yours does, hold the recovery button for five seconds with the battery connected. If no wake mode exists and cell voltage reads above 8.5V on a multimeter across the terminals, a compatible third-party charger with a Li-ion recovery function can bring the pack back up to acceptance voltage.
