Riester Ri-scope 3.7V 2200mAh Compatible Battery 10691

Riester Ri-scope Otoscope & Ophthalmoscope — 3.7V Li-ion Replacement Battery (10691 / Ri-accu)

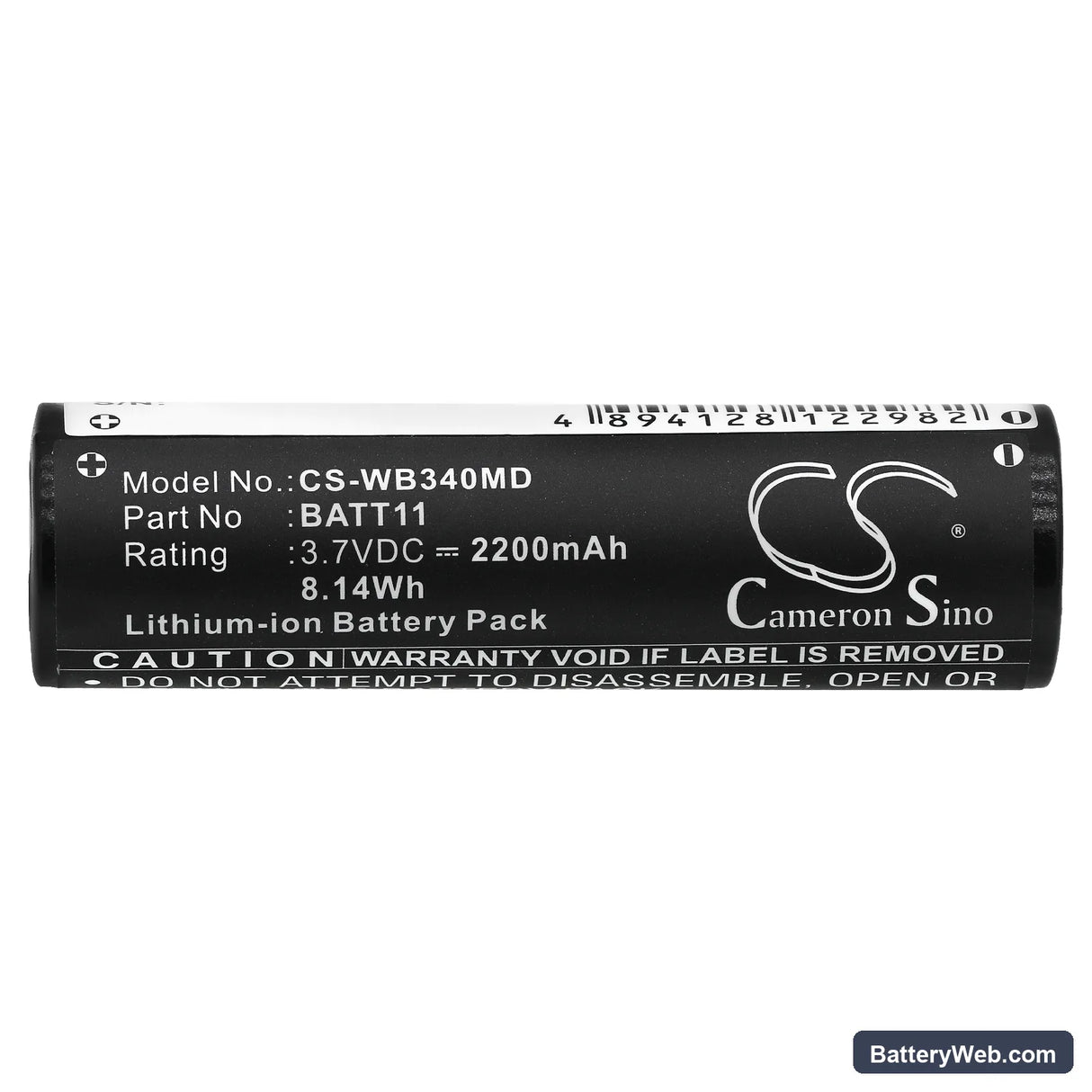

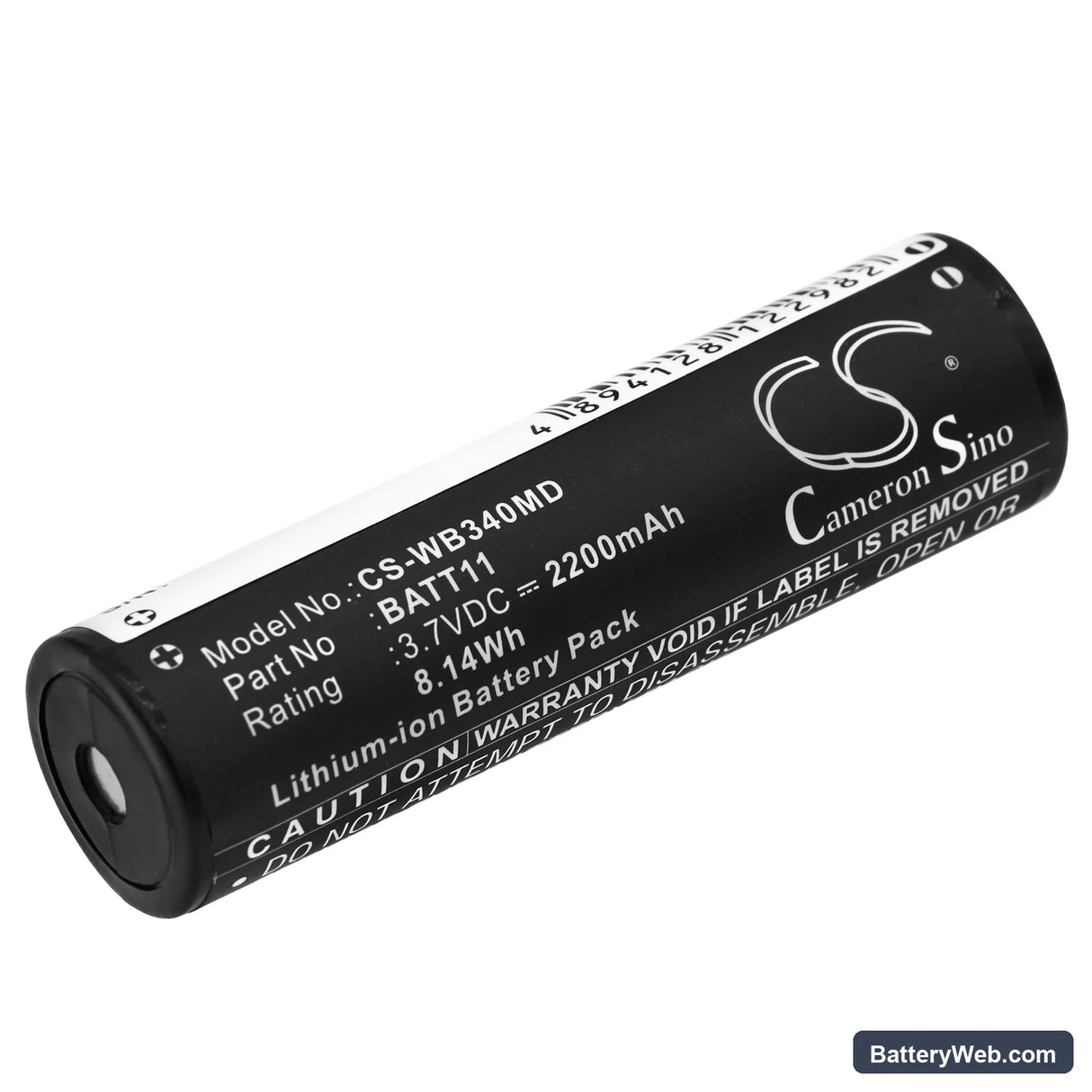

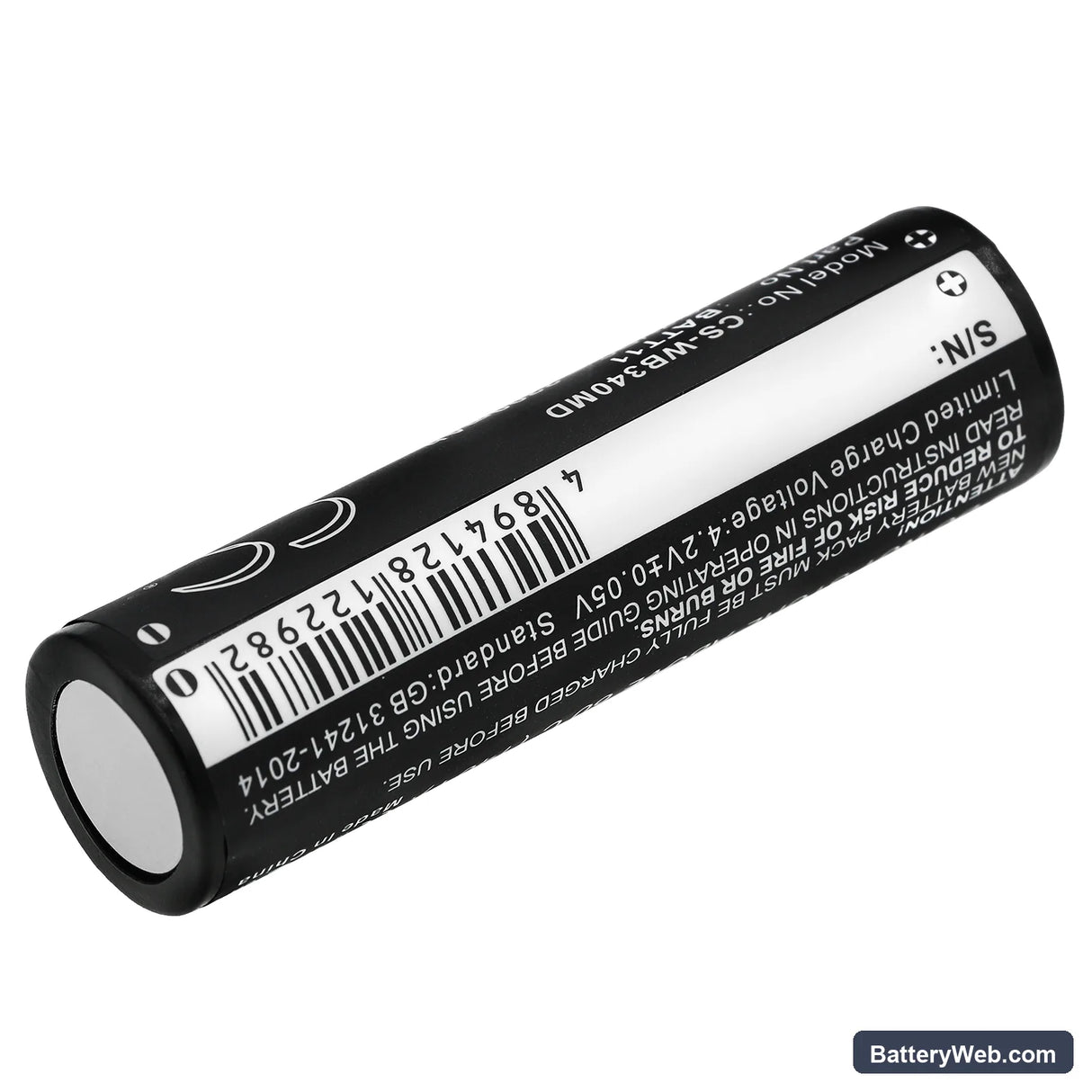

This 3.7V, 2200mAh Li-ion cell replaces the Riester 10691 / Ri-accu battery in the Ri-scope L Otoscope, Ophthalmoscope, and Ri-integral diagnostic instruments. It matches OEM voltage and form factor exactly — 71.00 × 19.60 × 19.60mm — so the handle seats without modification. Capacity is rated at 2200mAh (8.14Wh), matching the original power budget for clinical use.

• Ri-scope handle platform compatibility: The Ri-scope L, Ri-integral, and related Riester handles share the same 3.7V single-cell architecture and physical connector. One cell format covers the otoscope and ophthalmoscope heads because they draw from the same handle battery bay — the BMS negotiation is handle-side, not head-side.
• Bench tested on actual hardware: We cycled this cell through the Ri-scope handle and confirmed the BMS accepted the new cell without a false low-battery fault. Charge acceptance was clean from first insertion, and the device completed its power-on self-test without interruption across three consecutive cold starts.
• Post-swap self-test protocol: After fitting this cell, let the Ri-scope complete its full power-on self-test without switching it off mid-sequence. The handle BMS runs a brief verification at startup — interrupting it before completion locks in a battery fault flag that persists until the next full reboot cycle.

Why the Ri-scope alarms low battery immediately after a confirmed full charge

The Ri-scope handle BMS compares the incoming cell voltage against a stored OEM chemistry threshold. A new cell sitting in a warehouse may have self-discharged to a resting voltage that sits just at or below that threshold, triggering the alarm even after a full charge completes. The charge IC also applies a conservative current limit on the first cycle, which can mean the cell doesn't reach its true resting voltage until the charger releases it. Run one complete charge-discharge cycle before clinical use — after that, the BMS recalibrates its floor and the alarm clears.

Ri-scope will not power on after the replacement cell sat unused in storage

Li-ion cells self-discharge slowly during storage. If the voltage drops below approximately 2.5V, the Ri-scope BMS enters a protective sleep state and refuses to start the device — a standard deep-discharge lockout. Placing the cell on the charger and leaving it for a full uninterrupted charge cycle allows the charge IC to apply a low-current recovery pulse before ramping to full current. If the charger LED cycles or the device still won't power on after 90 minutes, confirm the charger output is reading at least 4.2V before suspecting a dead cell.
