Honor X20 SE 5G HB446588EFW Replacement Battery 3.87V 4000mAh

Honor X20 SE 5G (CHL-AN00) — 3.87V Li-Polymer Replacement Battery (HB446588EFW)

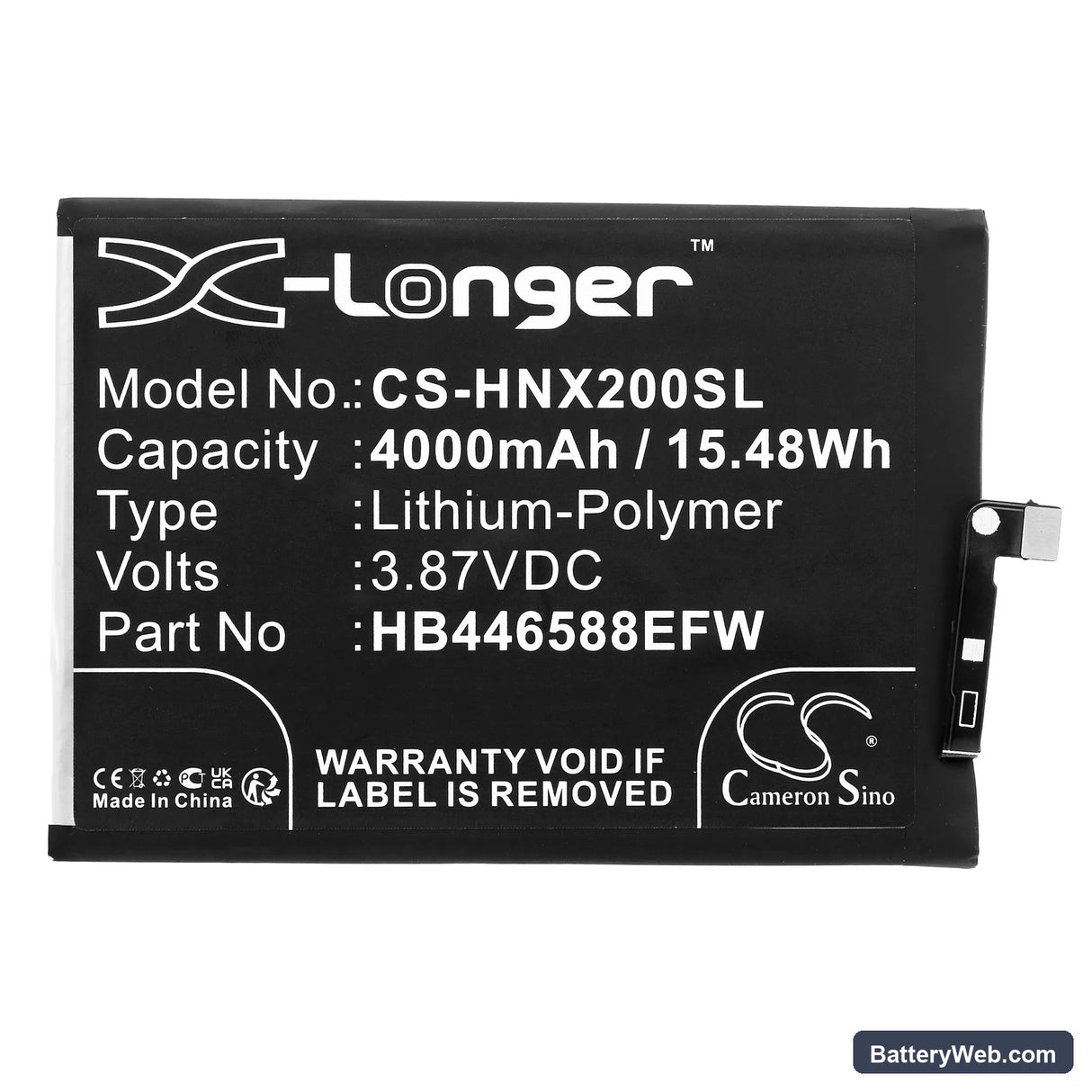

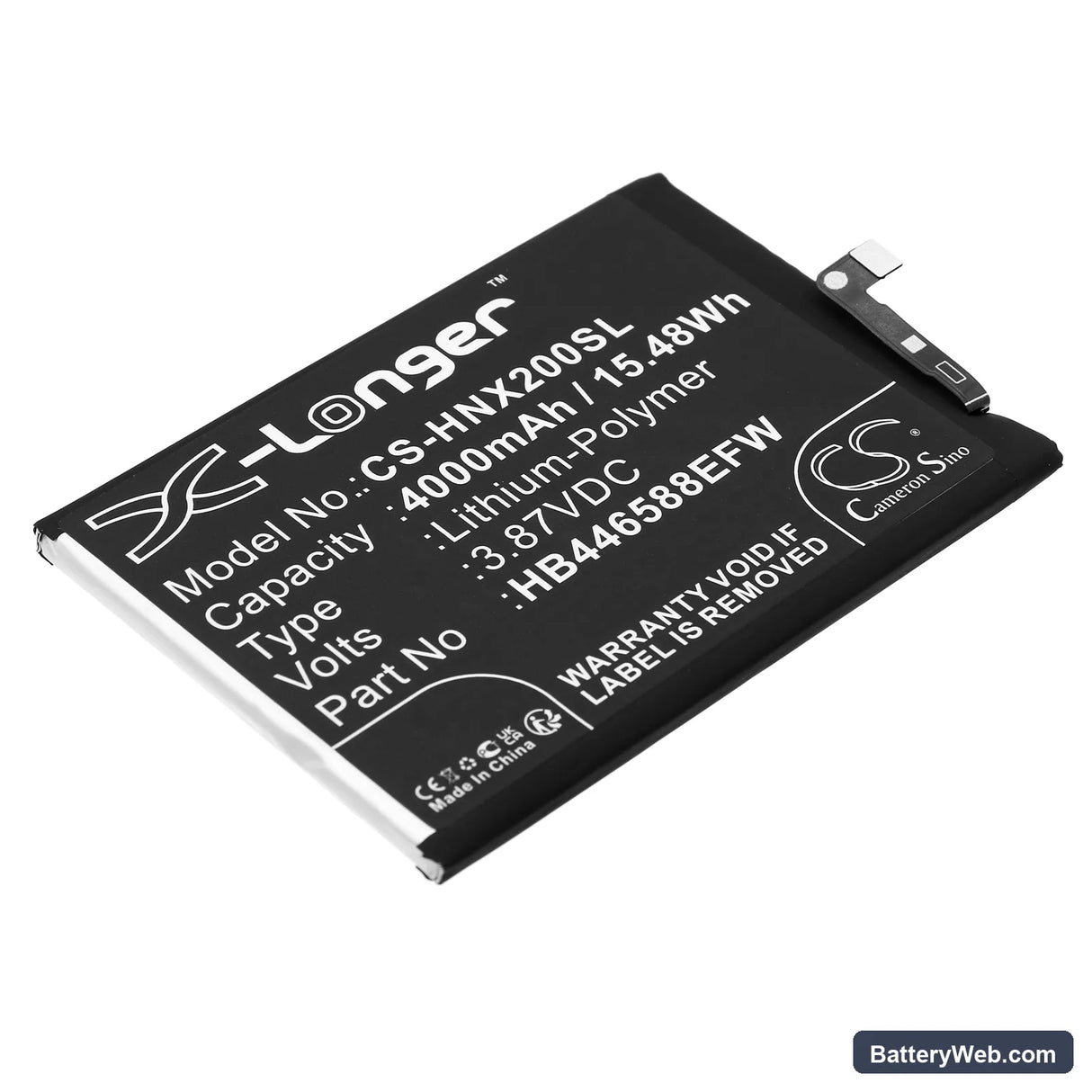

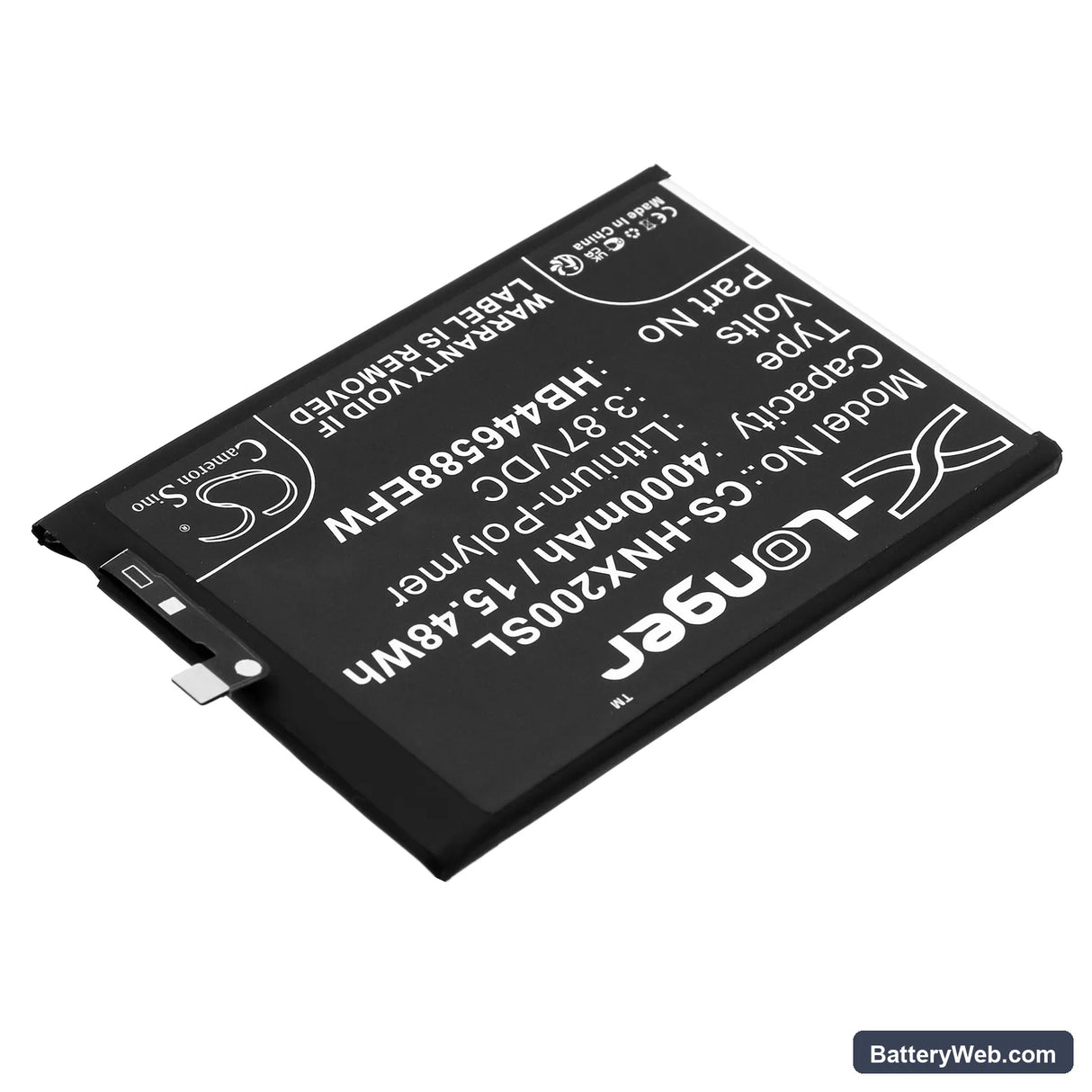

This is a 3.87V, 4000mAh Li-Polymer replacement battery for the Honor X20 SE 5G (model CHL-AN00). It replaces OEM part HB446588EFW and restores power to the phone's processor, display, and 5G modem hardware. Capacity is 15.48Wh — matching the original cell specification.

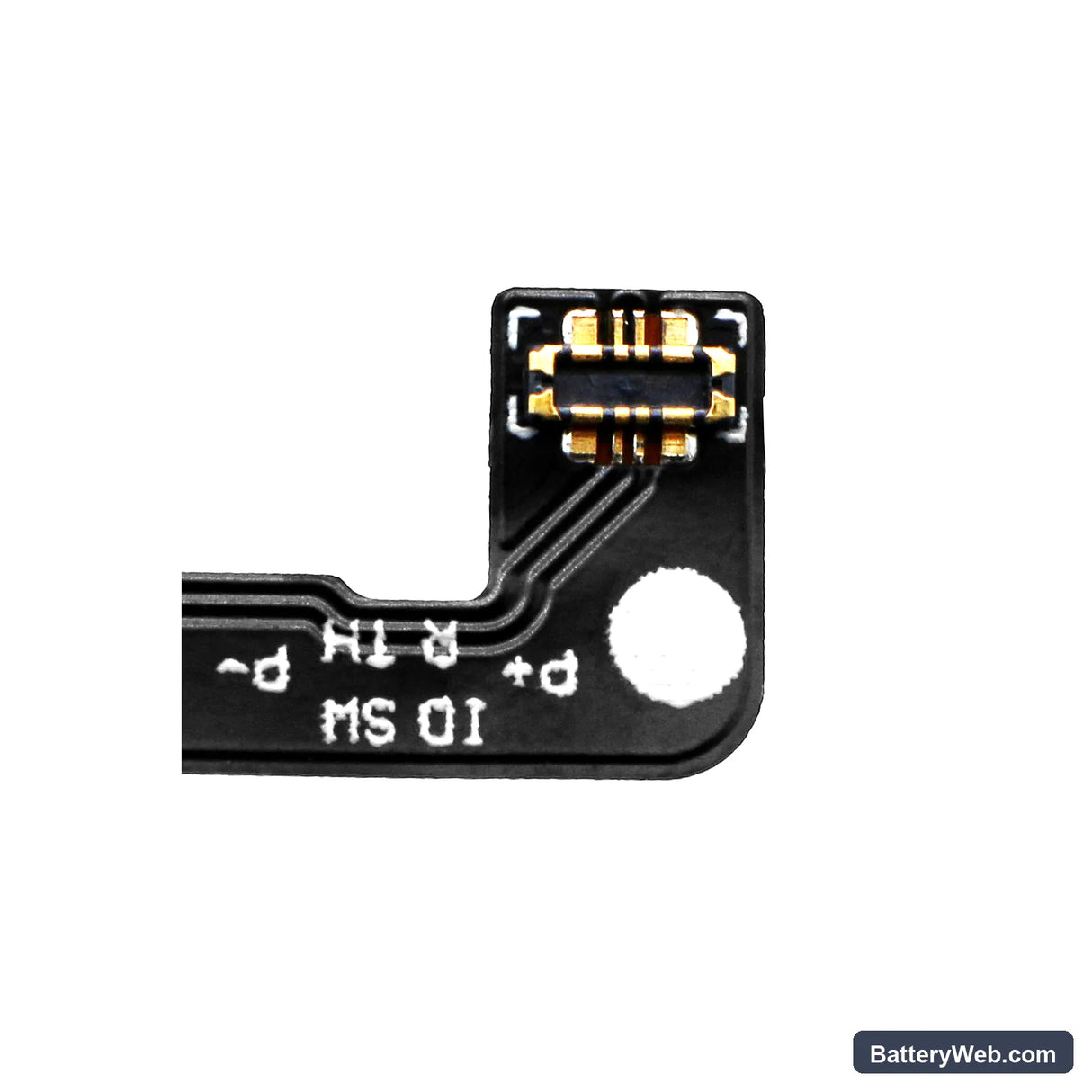

• X20 SE 5G / CHL-AN00 fitment: Both model variants share the same battery bay dimensions, connector pinout, and BMS communication protocol. The HB446588EFW cell measures 86.80 × 62.20 × 4.20mm — the replacement matches these exactly to maintain proper flex connector seating and back cover clearance.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the CHL-AN00 platform. The BMS accepted charge on the first connection and the protection circuit triggered correctly at the high-voltage cutoff. No BMS handshake errors were logged during the test cycle.
• First-cycle fuel gauge recalibration: On first use after installation, disable fast charging and run one full discharge-to-charge cycle at standard current. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging pushes current into an uncalibrated state — preventing erratic percentage readings from the first charge onward.

Sudden shutdown at 20–30% on the X20 SE 5G after a cell swap

The X20 SE 5G's modem draws a sharp current spike during 5G band switching and heavy data transfer. If the fuel gauge IC is still calibrated to the old cell's discharge curve, it will report 25% remaining while the actual cell voltage has already dropped below the load threshold the phone requires. The processor detects an undervoltage condition and cuts power immediately — even though the percentage display says capacity remains. One full discharge-charge cycle at standard current resets the coulomb counter and maps the new cell curve, eliminating these shutdowns.

USB-PD or Honor fast charge not activating on first cycle after replacement

After a cell swap, the charge IC on the CHL-AN00 starts the first charge session in trickle mode while it reads the new cell's impedance profile. Fast charge protocols — including Honor's proprietary handshake — will not engage until the IC confirms the cell is above the minimum threshold voltage, typically around 3.0V per cell. If fast charging is still inactive after the cell reaches half capacity on the first cycle, power the phone off completely, then reconnect the charger. The charge IC re-initiates the protocol negotiation from a clean state and fast charge should activate within 30 seconds.
