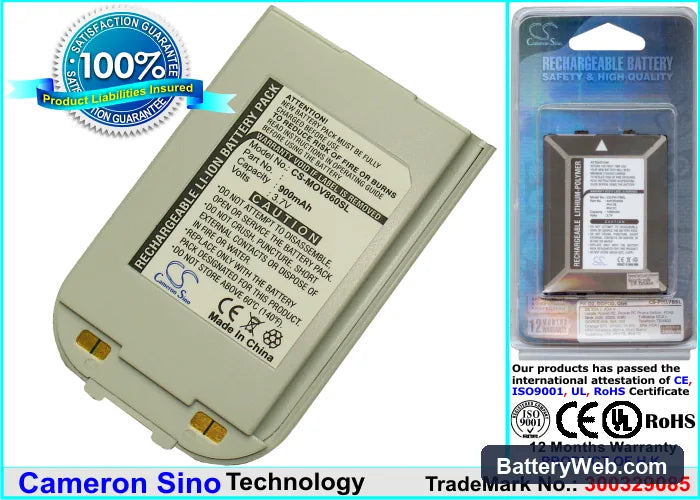

Motorola V860 Replacement Battery 3.7V 900mAh Li-ion

Motorola V860 / V870 — 3.7V Li-ion Replacement Battery

This 3.7V, 900mAh (3.33Wh) lithium-ion battery replaces the original cell in the Motorola V860 and V870 flip phones. Both models share the same battery bay, connector pinout, and charge management circuit. No OEM part number is published for this cell, but fit is confirmed against both handsets.

• V860 and V870 compatibility: Both handsets run the same voltage rail and use an identical physical connector with the same three-pin BMS handshake. One cell covers both models without modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the V860 platform. The BMS accepted the cell without fault codes, and the charge IC reached full termination voltage at 4.2V as expected.
• Fuel gauge recalibration on first use: After installing this cell, run one full discharge down to automatic shutoff, then charge uninterrupted to 100% before using fast charge. This gives the fuel gauge IC one complete reference cycle against the new cell's discharge curve, which prevents erratic percentage readings from the start.

Sudden shutdown at 20–30% on the V860 after a cell swap

The V860's fuel gauge IC stores a discharge curve calibrated to the original cell. A new cell with a slightly different internal resistance profile causes the IC to misjudge the voltage cliff — the point where cell voltage drops sharply under load from the modem or backlight. The phone sees a predicted safe voltage, then the actual cell voltage collapses under load before the IC can react, triggering an abrupt shutdown. One full discharge-to-shutoff followed by an uninterrupted charge cycle resets the reference curve and moves the shutdown threshold back to the correct voltage floor near 3.0V per cell.

Phone won't power on after the replacement battery sat in storage

Lithium-ion cells self-discharge in storage, and if this cell dropped below roughly 2.5V before installation, the BMS may have entered lockout to prevent a damaging charge event. The phone will show no response — no boot screen, no charge indicator. Connect the phone to a wall charger and leave it for 15–20 minutes without pressing the power button; the charge IC on the V860 applies a low-current pre-charge trickle below 3.0V to recover the cell before handing off to normal CC/CV charging. If the charge LED activates within that window, the cell is recovering. If there is still no response after 30 minutes on charge, check that the battery contacts are clean and seated fully.
