Siemens C35 Replacement Battery 3.7V 750mAh Li-ion

Siemens C35 / S35 Series — 3.7V Li-ion Replacement Battery (V30145-K1310-X127)

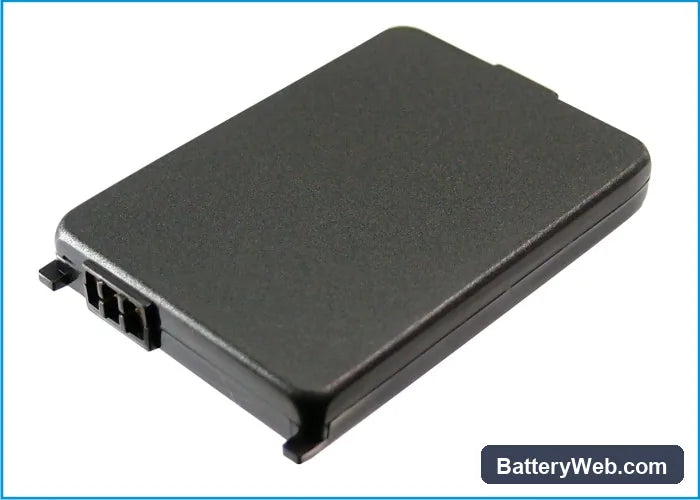

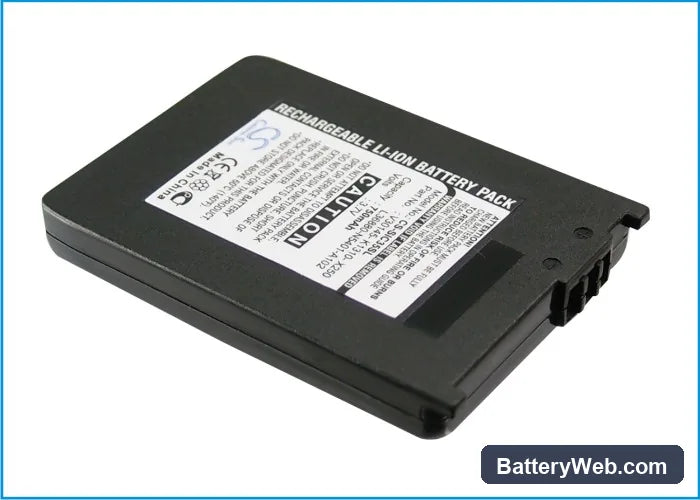

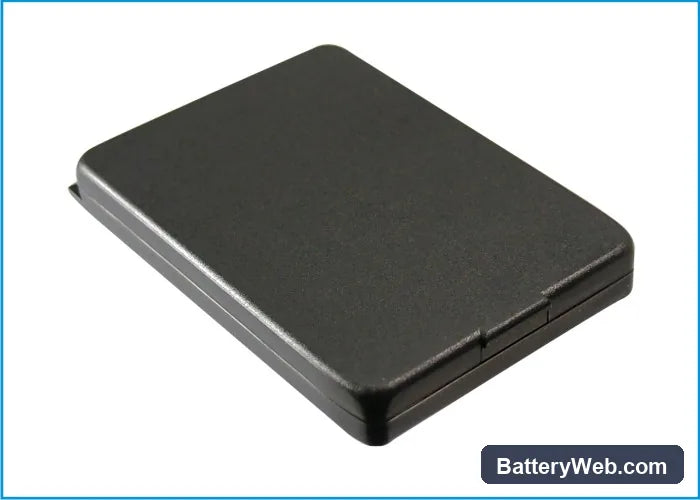

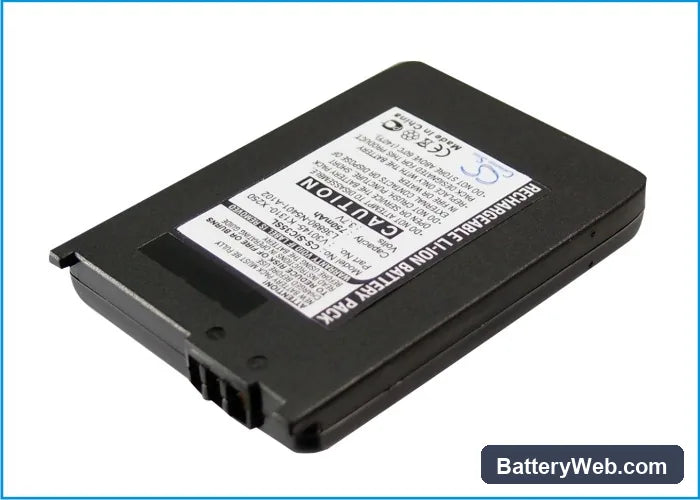

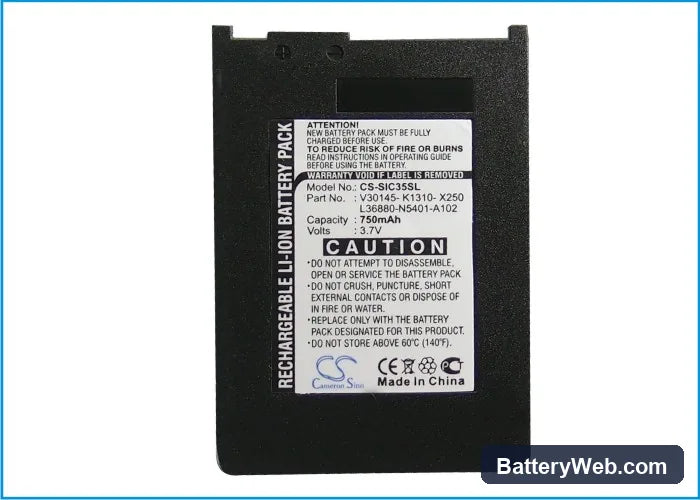

This 3.7V 750mAh Li-ion cell replaces the original battery in the Siemens C35, C35i, C35e, S35, and related models. It matches the OEM dimensions at 54.73 × 36.94 × 7.56mm and uses the same connector orientation as the factory pack. Fits phones running on the early 2000s GSM platform that share this battery form factor.

• C35 / S35 platform compatibility: These models share the same battery bay dimensions, voltage rail, and connector pinout. The BMS on each phone accepts cells within the same charge termination range, so one cell fits the full family without modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the C35 platform. The BMS accepted the cell on first insertion, charge termination triggered correctly at 4.2V, and the protection circuit responded to over-discharge conditions without tripping prematurely.
• Fuel gauge recalibration on first use: The C35 uses a basic fuel gauge IC that was calibrated to your old cell's discharge curve. On first use, run the phone from full charge down to automatic shutdown without interruption — this gives the gauge a complete discharge curve to work from before you rely on the percentage reading.

Sudden shutdown at 20–30% on the C35 after cell replacement

This happens because the fuel gauge IC still holds the discharge curve from the old degraded cell. When the new cell hits a voltage point the gauge was not expecting, it reports a higher remaining percentage than the cell can actually sustain under GSM transmit load. The modem draws a sharp current spike during call setup, and if the cell voltage sags below the BMS cutoff threshold under that load, the phone shuts off even though the gauge shows charge remaining. One full uninterrupted discharge-to-shutdown cycle followed by a full charge resets the reference curve and stops the premature cutoff.

Phone not powering on after the battery sat in storage

Li-ion cells self-discharge during storage. If the voltage dropped below approximately 2.5V per cell, the BMS entered lockout mode to prevent damage — and the phone will not respond to the power button. Connect the phone to a wall charger, not a USB port, and leave it for 20–30 minutes without pressing anything. The charge IC will apply a low preconditioning current to bring the cell back above the BMS recovery threshold, after which normal charging and startup resume. If the phone still shows no sign of life after 45 minutes on the wall charger, check that the battery connector is fully seated.
