Lenovo ThinkPad X1 Carbon Gen 9 5B10W13973 Replacement Battery 15.44V 55.58Wh
This product ships directly from our Manufacturer’s Warehouse and is usually delivered within 5 – 8 business days to your doorstep.
WECARE5
Check that your old battery model number and device model to match our description. This makes sure they work together.
We ship your order same day if you buy it before 4 PM EST.
Lenovo ThinkPad X1 Carbon Gen 9 5B10W13973 Replacement Battery 15.44V 55.58Wh - is backordered and will ship as soon as it is back in stock.
Let customers speak for us
Send Your Battery Photo
Expert Technician Help
Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.
POST YOUR BATTERY IMAGE
Product & Solutions Expert
✉ sales@batteryweb.com
Battery Care Tips
Battery Care Tips
🔹 Getting Started
Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.
🔹 Keep It Healthy
Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.
Delivery and Shipping
Delivery and Shipping
🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.
Disclaimer
Disclaimer
⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.
🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.
Lenovo ThinkPad X1 Carbon Gen 9 5B10W13973 Replacement Battery 15.44V 55.58Wh - is backordered and will ship as soon as it is back in stock.
Voltage
15.44V
Amp
3600mAh
Lenovo ThinkPad X1 Carbon Gen 9 / X1 Yoga Gen 6 — 15.44V Li-Polymer Replacement Battery (L20C4P71)

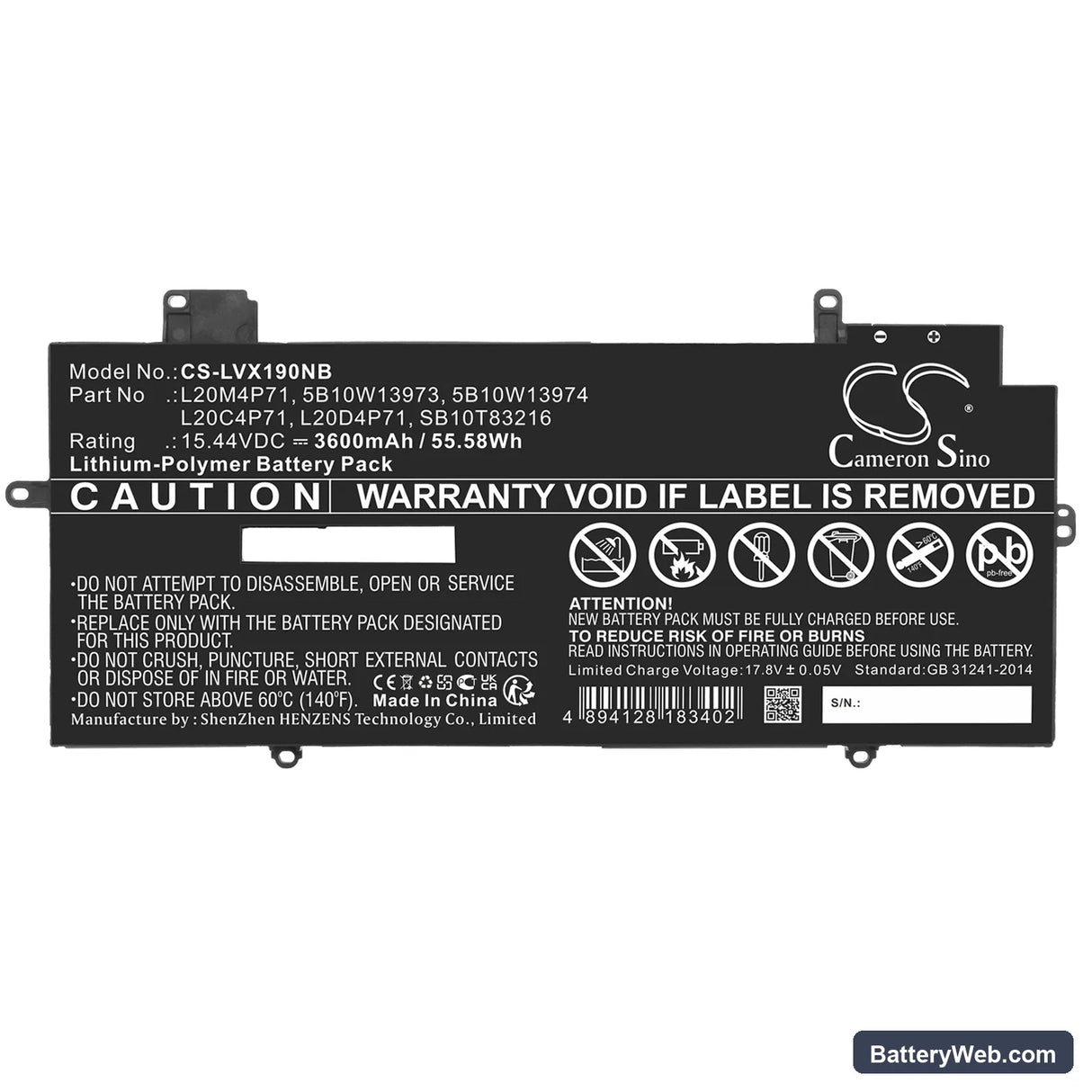

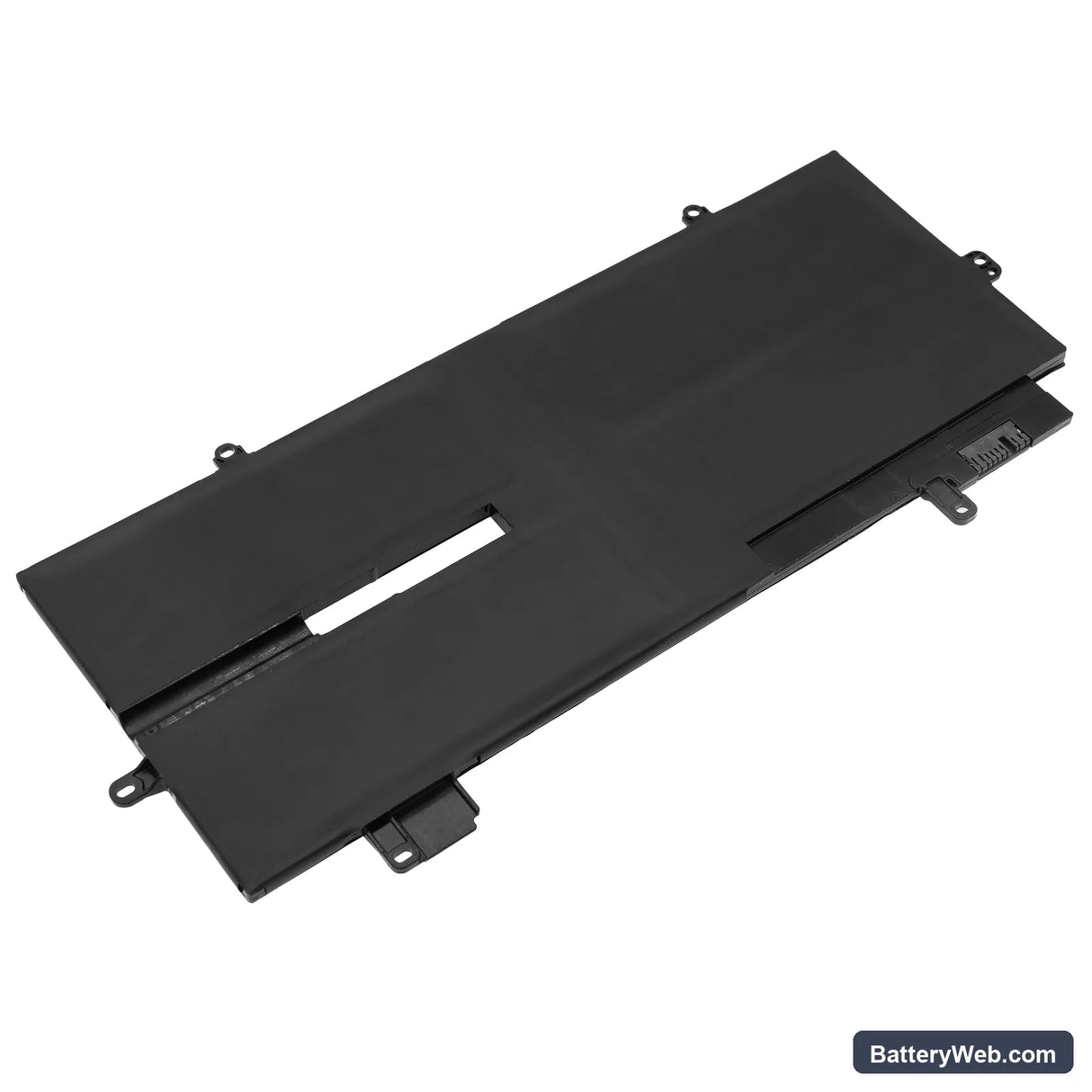

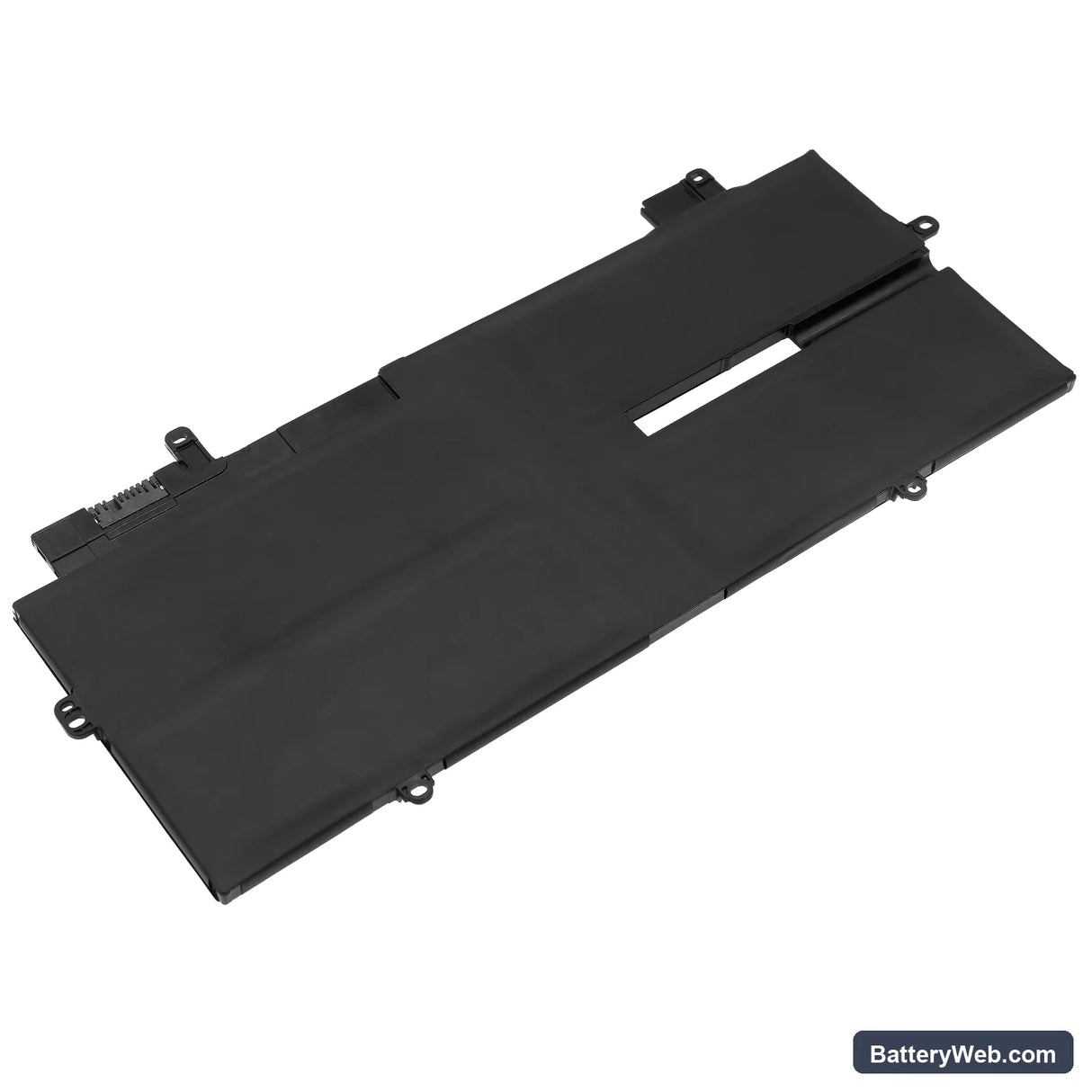

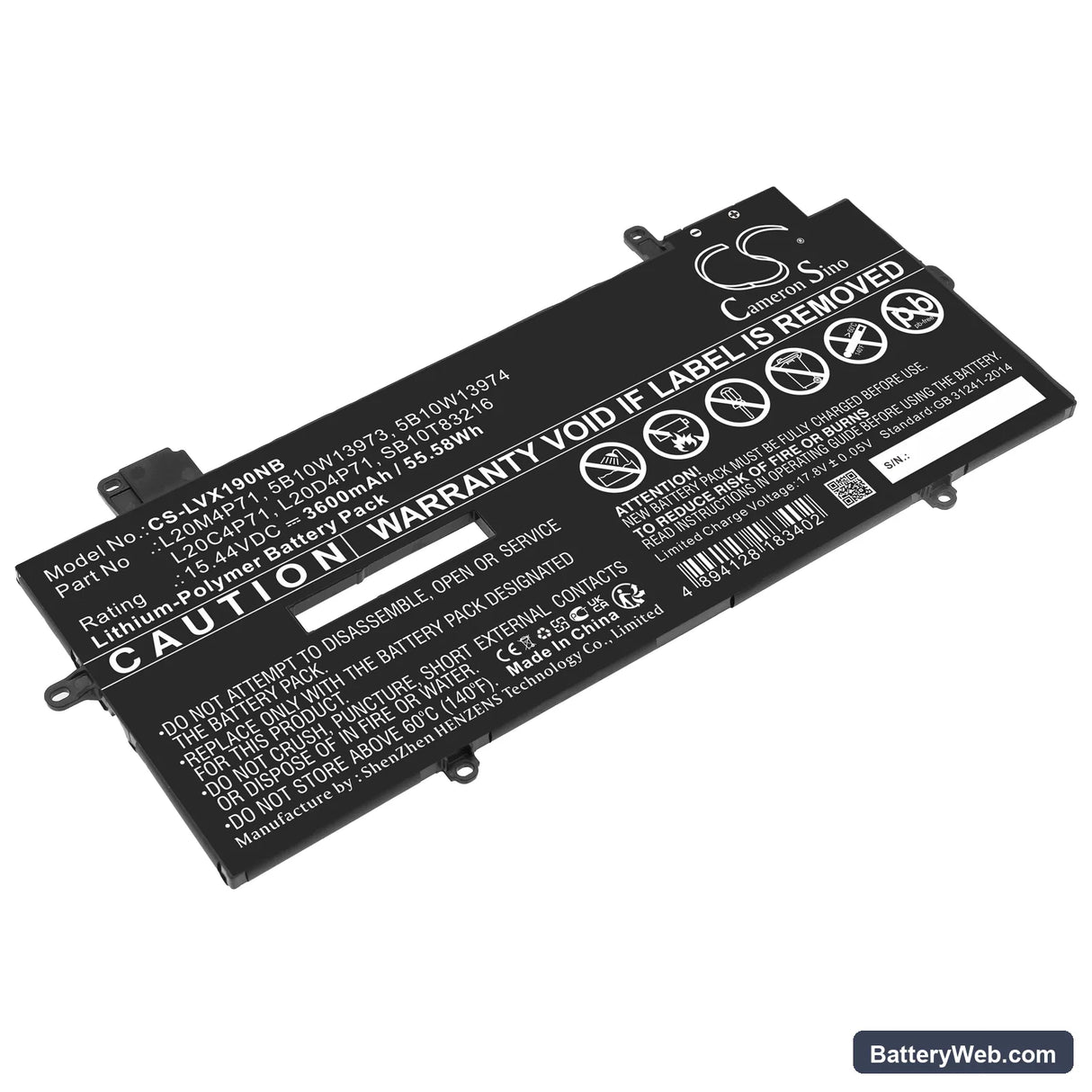

This is a 15.44V, 3600mAh (55.58Wh) Li-Polymer replacement battery for the Lenovo ThinkPad X1 Carbon Gen 9 and X1 Yoga Gen 6 series ultraportable laptops. It replaces OEM part numbers including 5B10W13973, L20C4P71, L20D4P71, L20L4P71, L20M4P71, and SB10T83216, among others. Physical dimensions are 251.90 x 114.70 x 5.30mm — measure your original before fitting.
- X1 Carbon Gen 9 and X1 Yoga Gen 6 fitment: Both platforms share a 15.44V four-cell Li-Polymer architecture with the same connector pinout and BMS handshake protocol. The EEPROM on this cell carries data the ThinkPad EC reads on first boot to register the new battery.
- Bench tested on actual hardware: We ran charge and discharge cycles on a ThinkPad X1 Carbon Gen 9. The BMS communicated correctly with the EC, charge initiation triggered normally, and cell balancing engaged across all four cells without fault codes.
- Post-install learn cycle on ThinkPad: After fitting, discharge the laptop fully until it hibernates at cutoff, then charge uninterrupted to 100% without using the machine. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting poor battery health immediately after replacement
ThinkPad firmware reads cycle count, designed capacity, and health status directly from the battery's EEPROM on every boot. When a new cell is installed, the EC compares stored EEPROM values against the previous battery's data and flags a mismatch as degraded health — even though the cell is new. This is not a fault with the replacement battery. Run one full discharge-to-hibernate followed by an uninterrupted charge to 100% and the BIOS health indicator will update correctly.
Laptop shuts down at 20–30% charge shown after battery swap
The fuel gauge IC in the ThinkPad calibrates its state-of-charge model against the original cell's discharge curve. After a cell swap, that model is stale and the IC underestimates how much voltage the new cell drops under combined CPU and display load. When the load spike hits a voltage the IC interprets as empty, the system cuts off — even though the displayed percentage suggests charge remains. Two to three full discharge-recharge cycles recalibrate the fuel gauge against the new cell's actual curve. After calibration, the shutdown-at-30% symptom resolves without any firmware or BIOS update.
Compatible Models
Replaces Part Numbers
Technical Specifications
Product Highlights
- Brand: Lenovo
- Manufacturer: CS
- Series: Standard
- Color: Black
- Product Type: Li-Polymer
- Battery Type: Li-Polymer
- Warranty: 12 Months
- Bulk Orders: sales@batteryweb.com
Frequently Asked Questions
My ThinkPad X1 Carbon shows the new battery as "0% — plugged in, not charging" right after installation. What's wrong?
The ThinkPad EC briefly suspends charging when it detects a new battery EEPROM signature it hasn't seen before — this is a firmware protection routine, not a hardware fault. Shut the laptop down completely, leave it off for 60 seconds, then power it on and reconnect the charger. In most cases the EC re-initialises the charge circuit and charging begins normally within two minutes of the next boot.
System information is showing this battery as 45Wh when it should be 55.58Wh — is the cell underspec?
The Wh figure in Windows or Lenovo Vantage is pulled from the battery EEPROM's rated capacity register, which may reflect the manufacturer's conservative spec rather than the measured chemistry capacity of the new cell. This is an EEPROM data difference, not a sign the cell is short on capacity. Run one full discharge-to-hibernate cycle followed by a full uninterrupted charge — the system will update the learned full-charge capacity value and the reported Wh figure will align closer to 55.58Wh.
The ThinkPad is charging but stops at 80% and won't go higher — is this a faulty replacement cell?
This is almost always the BIOS charge threshold feature, not a cell fault. Lenovo's firmware includes a conservation mode that caps charging at 80% to reduce long-term cell wear — it ships enabled on many units and carries over after a battery swap. Open Lenovo Vantage, go to Power → Battery Settings, and confirm the charge threshold is set to 100%. Once that setting is saved, the battery will charge fully to 15.44V.
