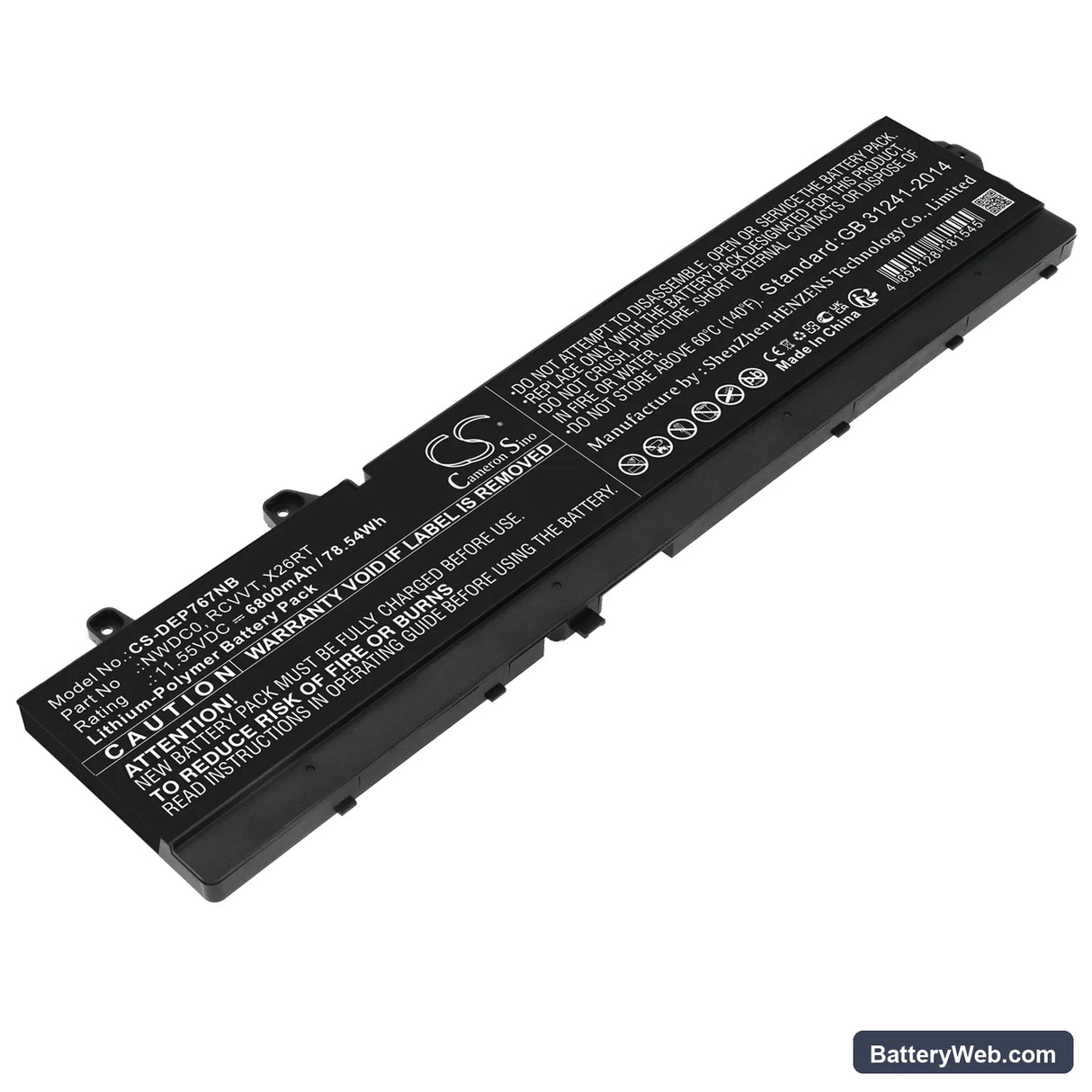

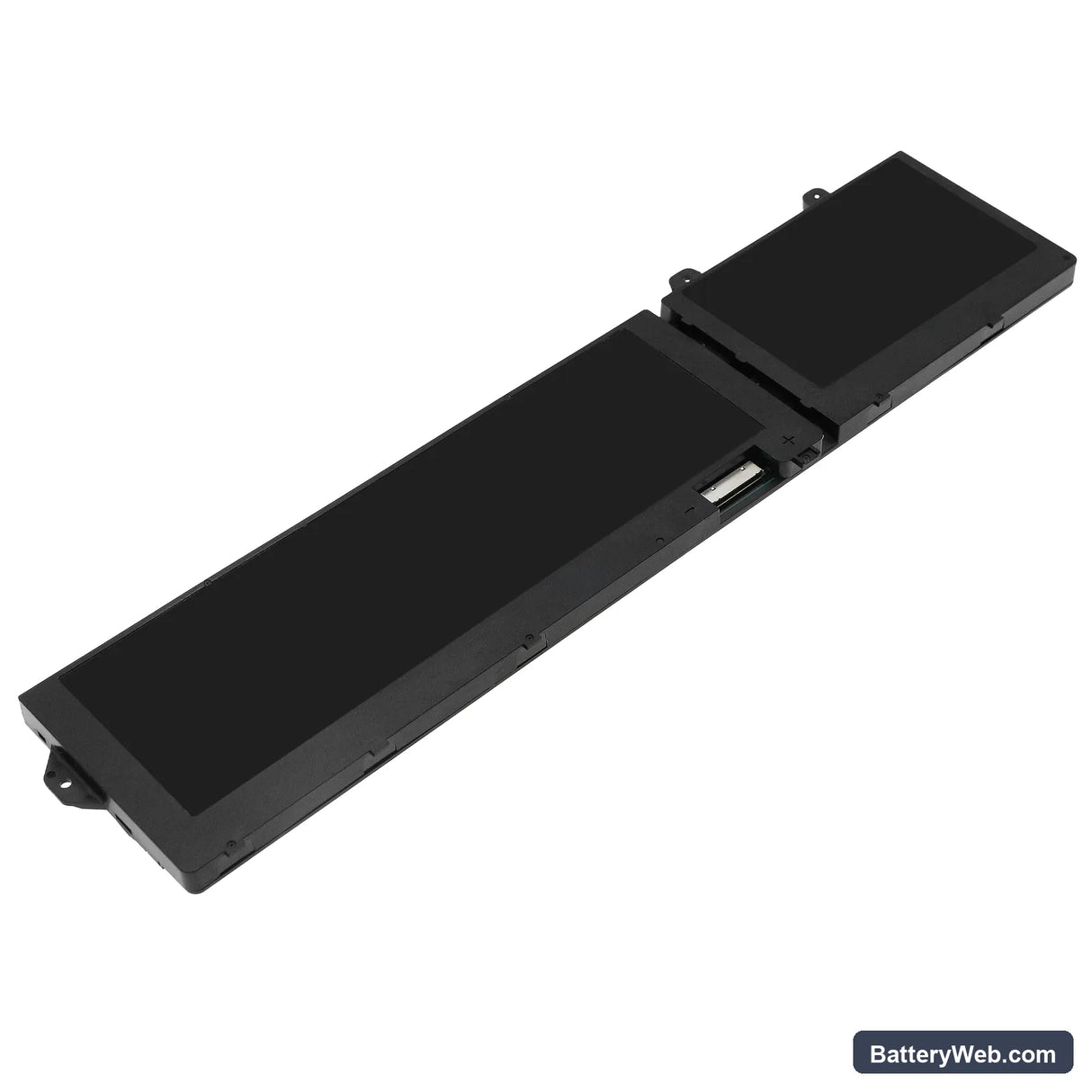

Dell Precision 7670 Replacement Battery 11.55V 6800mAh NWDC0

Dell Precision 7670 — 11.55V Li-Polymer Replacement Battery (NWDC0)

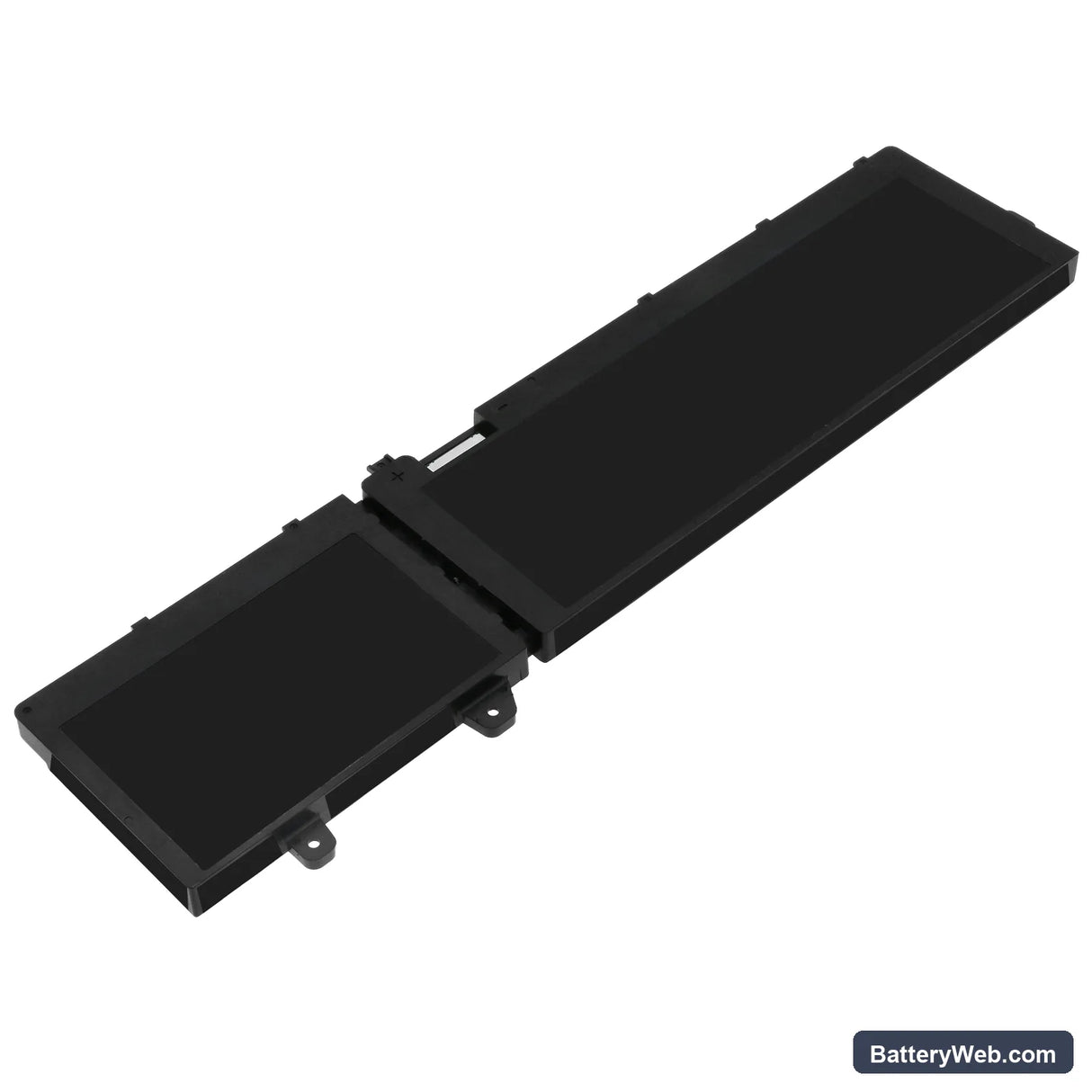

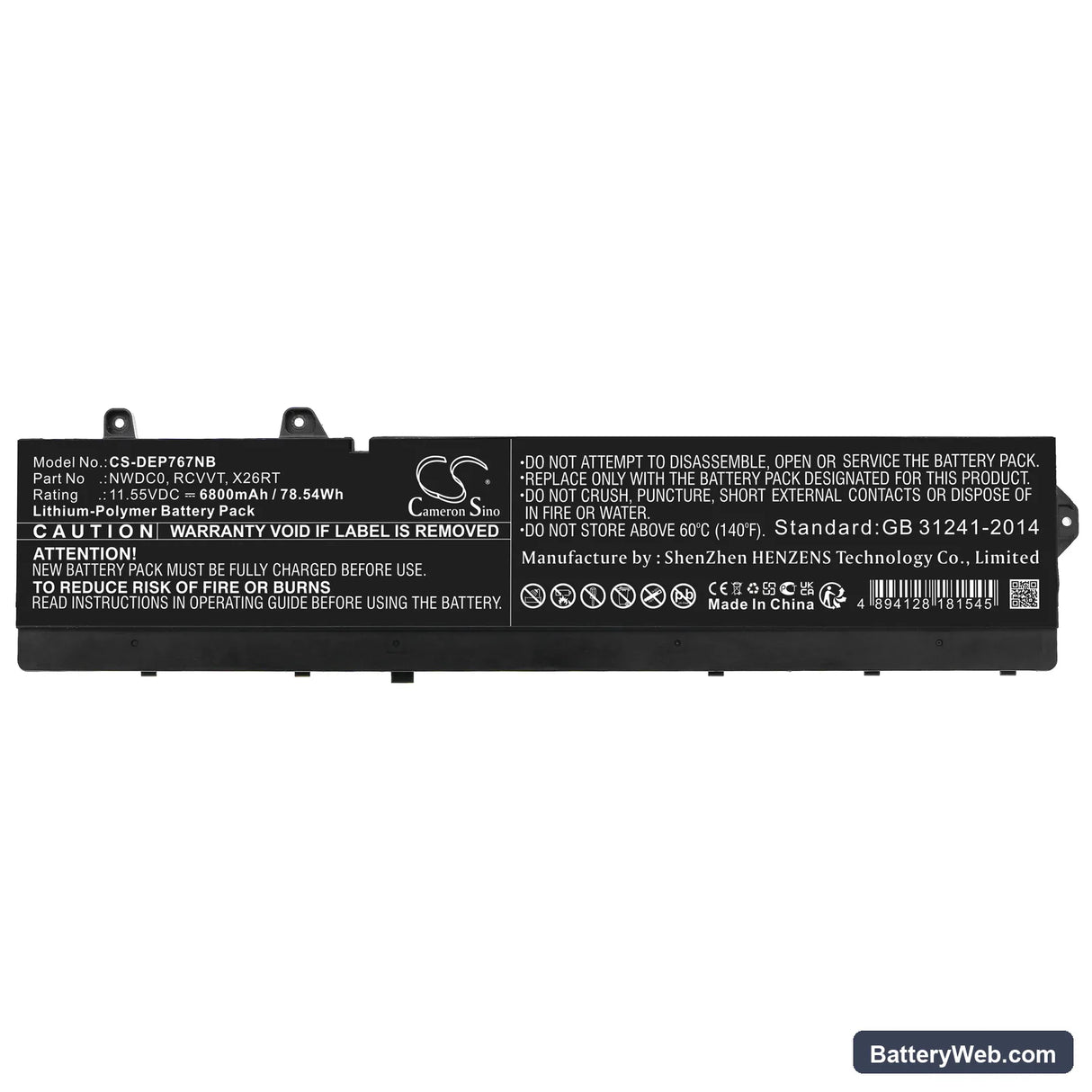

This 11.55V, 6800mAh (78.54Wh) Li-Polymer battery replaces the original NWDC0, RCVVT, and X26RT cells in the Dell Precision 7670 mobile workstation. It fits the 7670's battery bay directly and connects to the same BMS interface the original cell used. Voltage and capacity match the factory specification from the product data.

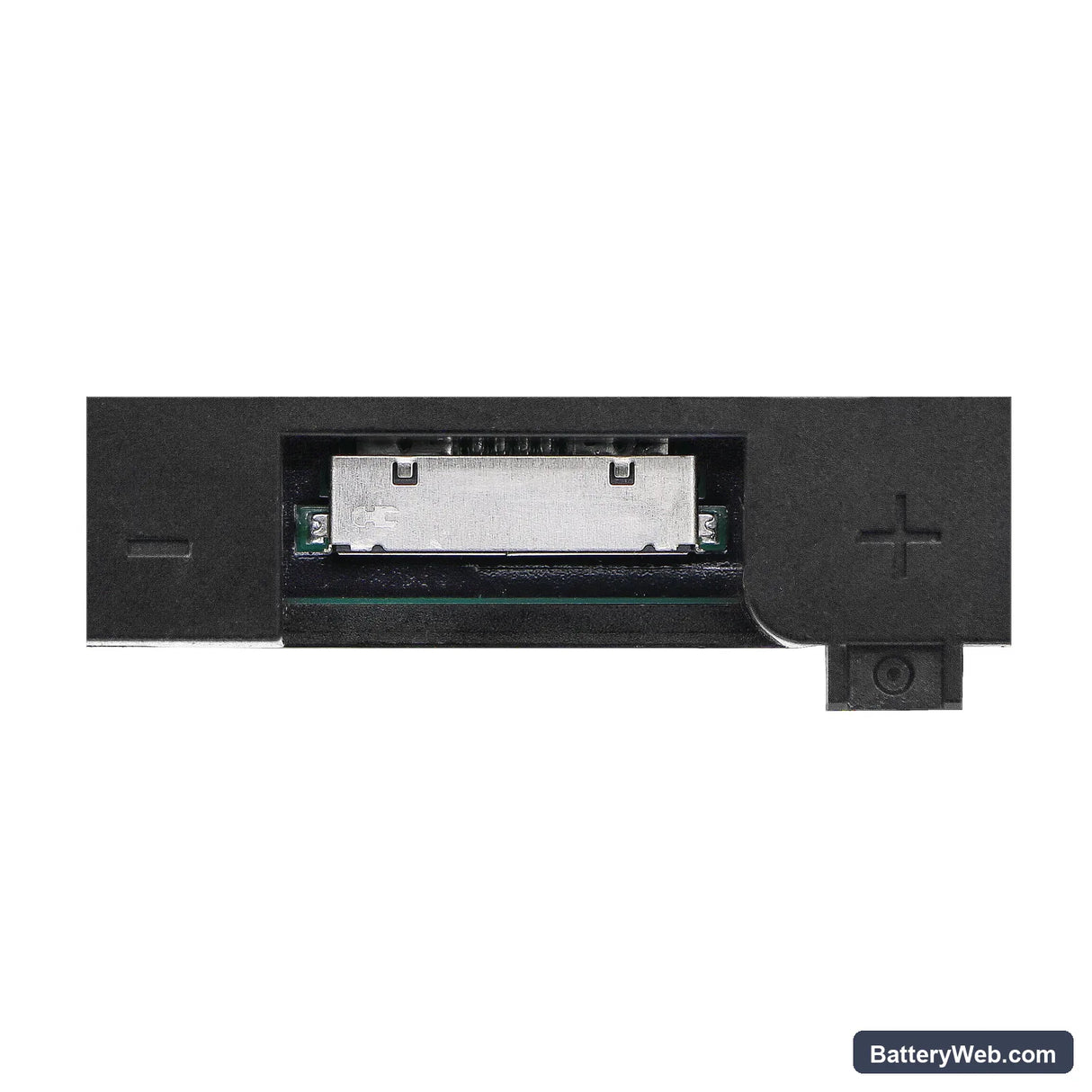

• Precision 7670 fitment: The 7670 uses a 78.54Wh three-cell Li-Polymer pack with a specific connector pinout and BMS handshake. OEM part numbers NWDC0, RCVVT, and X26RT all share this same voltage rail and communication protocol, so one replacement cell covers all three OEM references on this platform.
• Bench tested on actual hardware: We cycled this cell through charge, discharge, and a simulated CPU-plus-display load spike. The BMS held stable communication throughout and did not trigger a premature cutoff at the high-draw peaks the Precision 7670 produces under rendering workloads.
• BIOS learn cycle after installation: After fitting this battery, run the laptop down to hibernate cutoff on battery power, then charge uninterrupted to 100% without interruption. This forces the BIOS to reset its fuel gauge calibration against the new cell and clears the false "battery health poor" flag that appears after every cell swap on this platform.

Why the Precision 7670 shuts down at 20–30% shown after a battery swap

The 7670's BIOS tracks battery wear data from the previous cell's EEPROM. After a swap, the fuel gauge IC still applies the old cell's discharge curve to the new chemistry. Under a combined CPU rendering and full-brightness display load, the new cell hits a voltage cliff earlier than the BIOS predicts — triggering an abrupt shutdown at what the OS is still displaying as 20–30%. Running two full discharge-to-hibernate then uninterrupted charge cycles recalibrates the fuel gauge IC against the actual cell and eliminates the premature cutoff.

BIOS reporting wrong Wh rating after fitting a replacement cell

The Wh value the BIOS displays comes from EEPROM data written into the battery's circuit board, not from measuring the cell directly. If the replacement cell's EEPROM was programmed with a rated rather than measured Wh figure, the system information panel will show a number that does not match the 78.54Wh spec. This is an EEPROM reporting difference, not a capacity fault. Check actual charge acceptance by running a full discharge cycle and watching the mWh counter in Dell Power Manager — if it reads close to 78,540mWh at full charge, the cell is performing correctly regardless of what the Wh label shows in system info.
