MSI Creator Z16 Replacement Battery BTY-M54 15.2V 5850mAh
This product ships directly from our Manufacturer’s Warehouse and is usually delivered within 5 – 8 business days to your doorstep.
WECARE5
Check that your old battery model number and device model to match our description. This makes sure they work together.
We ship your order same day if you buy it before 4 PM EST.
MSI Creator Z16 Replacement Battery BTY-M54 15.2V 5850mAh - is backordered and will ship as soon as it is back in stock.
Let customers speak for us
Send Your Battery Photo
Expert Technician Help
Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.
POST YOUR BATTERY IMAGE
Product & Solutions Expert
✉ sales@batteryweb.com
Battery Care Tips
Battery Care Tips
🔹 Getting Started
Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.
🔹 Keep It Healthy
Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.
Delivery and Shipping
Delivery and Shipping
🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.
Disclaimer
Disclaimer
⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.
🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.
MSI Creator Z16 Replacement Battery BTY-M54 15.2V 5850mAh - is backordered and will ship as soon as it is back in stock.
Voltage
15.2V
Amp
5850mAh
MSI Creator Z16 Series — 15.2V Li-Polymer Replacement Battery (BTY-M54)

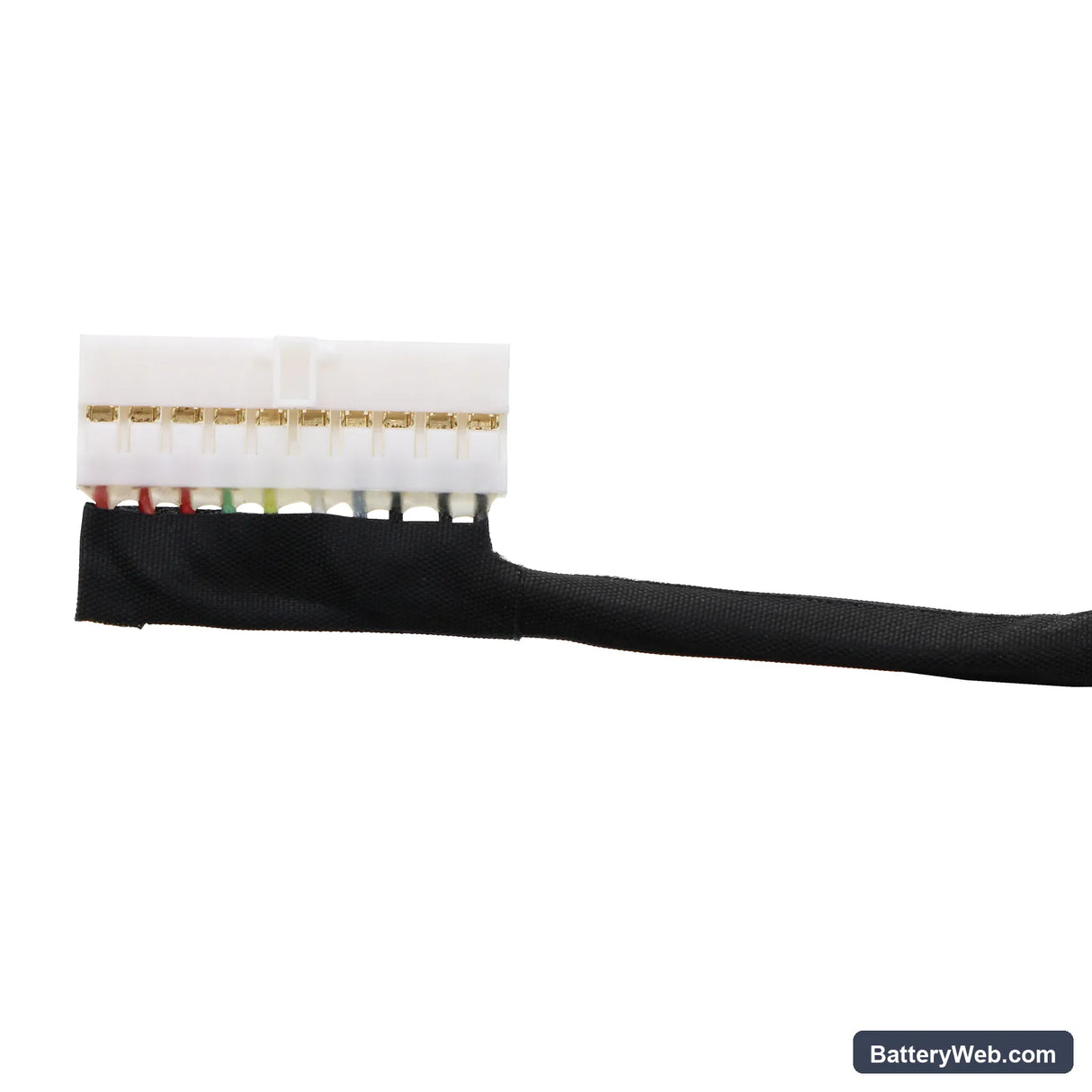

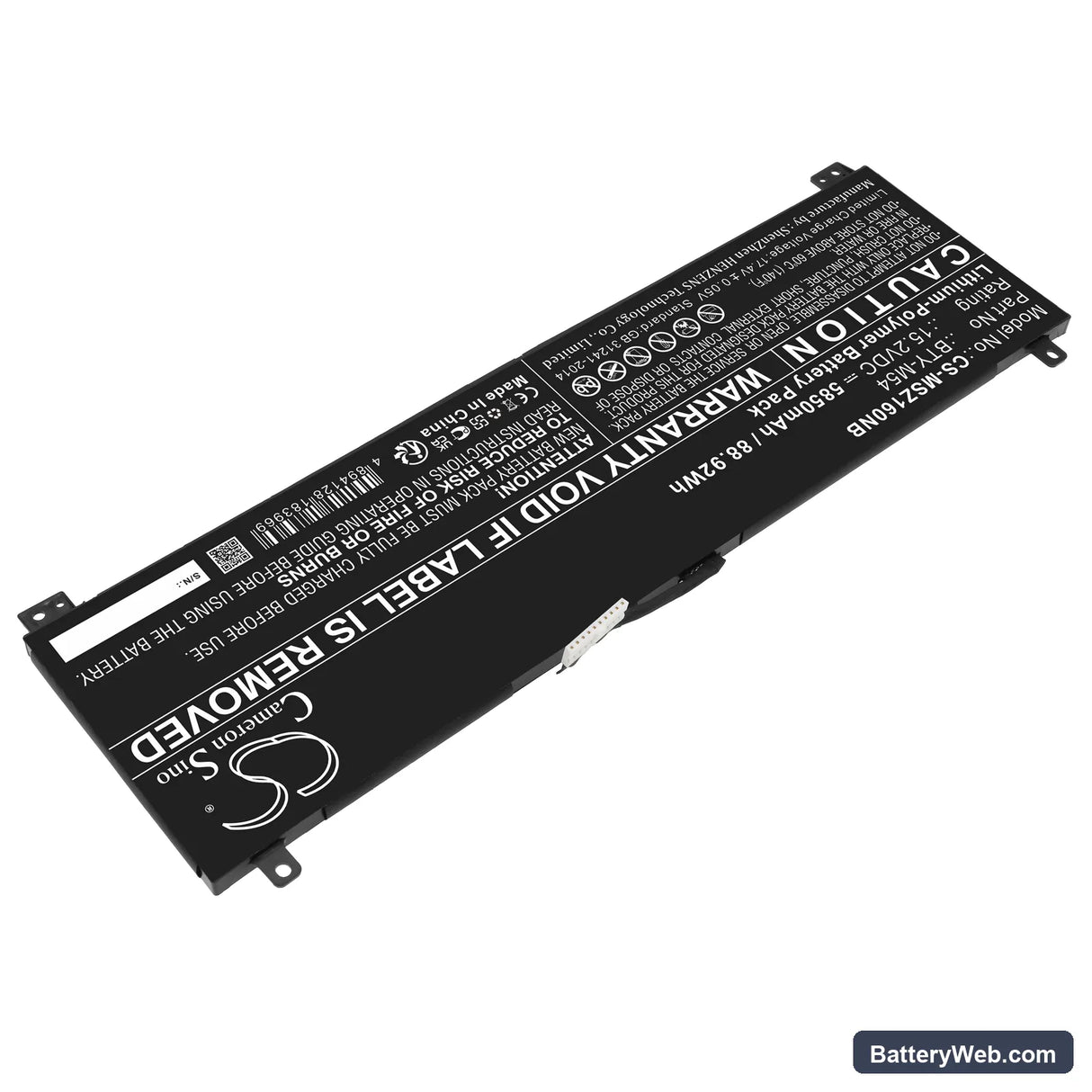

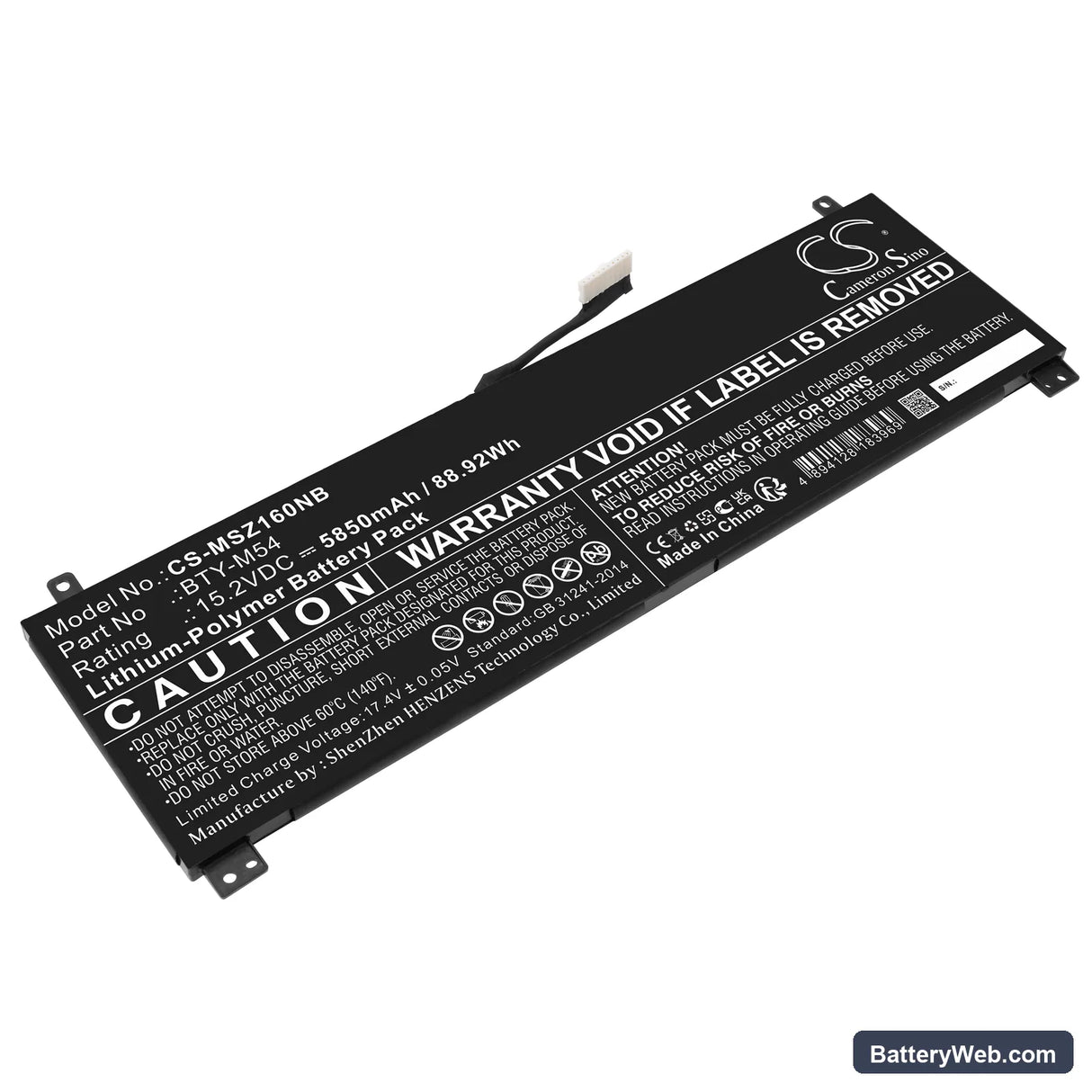

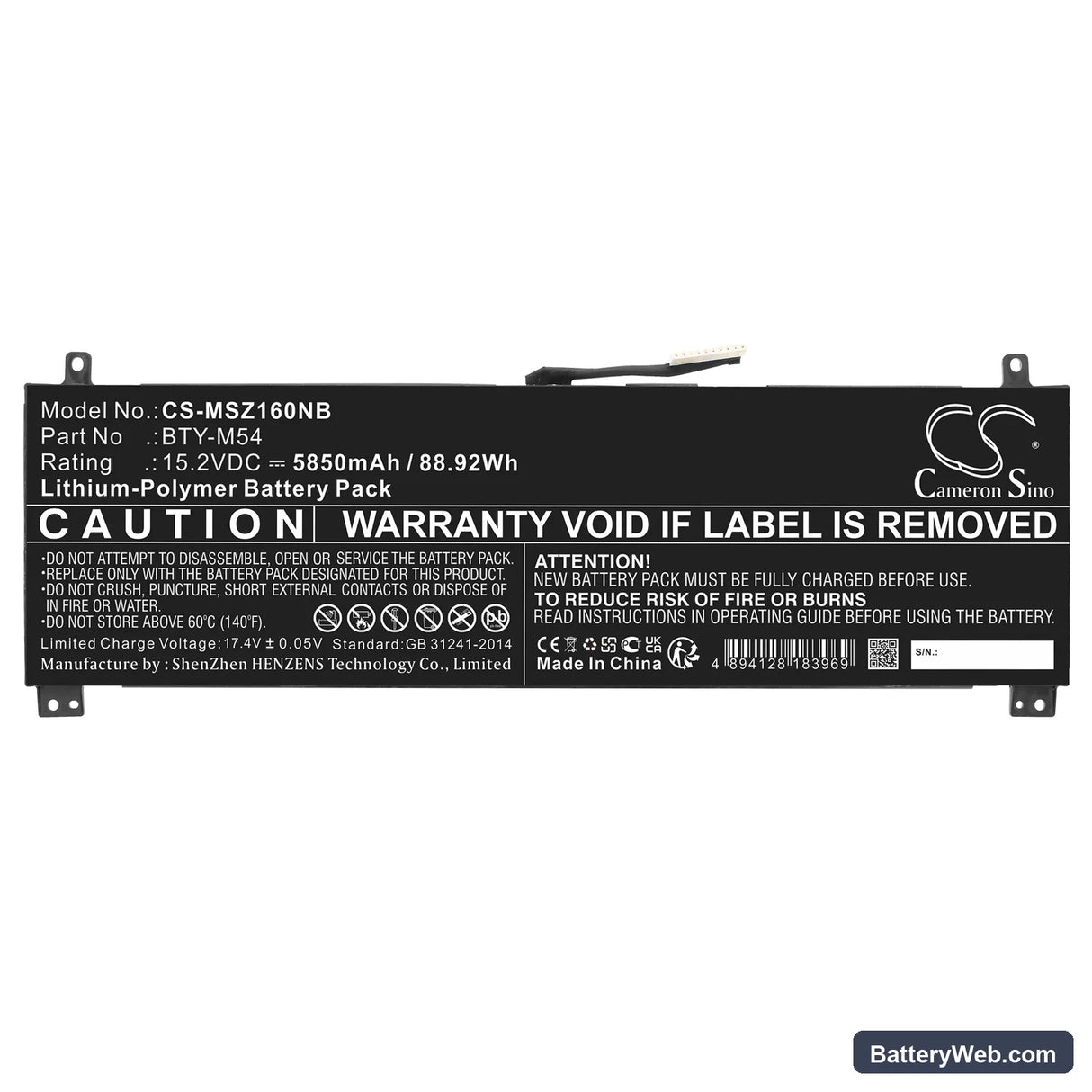

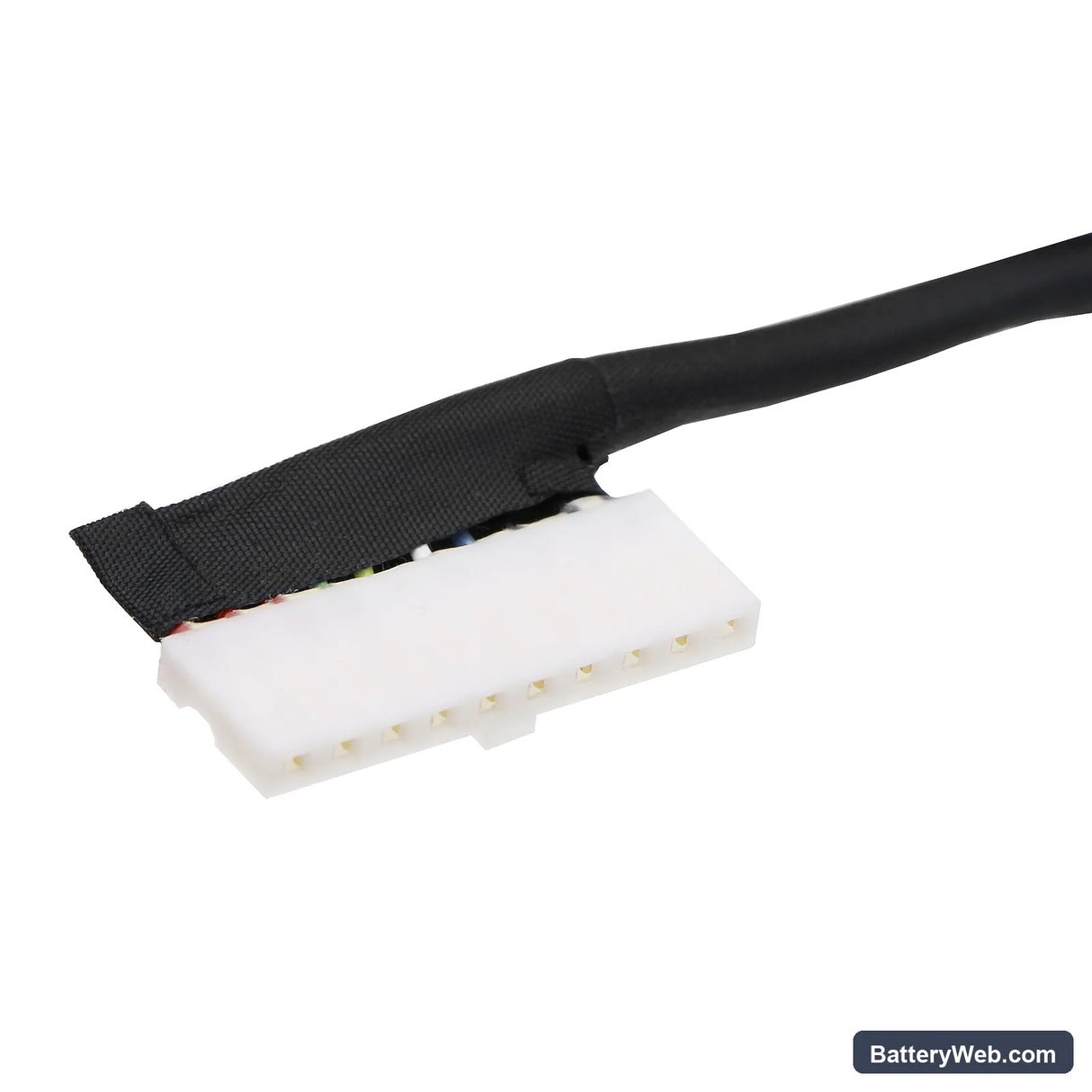

This is a 15.2V, 5850mAh (88.92Wh) Li-Polymer replacement battery carrying OEM part number BTY-M54. It fits the MSI Creator Z16 line, including the A11UET-031UK, A11UE-088XES, A11UE-019ES, A11UET-065IT, and over 57 additional Creator Z16 variants. The connector, cell count, and BMS communication protocol match the original MSI specification.
- Creator Z16 A11U platform fit: All A11U-suffix Creator Z16 models share the same 4-cell 15.2V bus, BTY-M54 connector pinout, and BMS handshake sequence. The fuel gauge IC talks to the EC over SMBus — the cell chemistry and rated voltage have to match exactly or the EC rejects the pack.
- Bench tested on actual hardware: We ran this pack on a Creator Z16 A11UET under a combined CPU-render and display load. The BMS held the 15.2V rail without dropping into low-voltage cutoff, and the EC accepted the pack without triggering an unknown-battery warning on first boot.
- First-cycle conditioning on the Z16: After installing, run one full discharge down to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning the EC logs automatically after every cell swap.
BIOS reporting poor battery health immediately after installing a new BTY-M54
The MSI Creator Z16 EC reads health data from EEPROM registers stored in the old cell's BMS chip. When you swap the pack, those registers are gone and the EC logs a "degraded" or "poor health" status by default — it has no baseline for the new cell yet. This is a firmware behaviour, not a fault with the replacement cell. Running one complete discharge-to-hibernate followed by an uninterrupted charge to 100% gives the EC enough data to write fresh EEPROM values. After two to three full cycles the reported health percentage will stabilise at a normal figure.
Creator Z16 shutting down abruptly at 20–30% charge shown
This happens when the fuel gauge IC's state-of-charge map still reflects the old cell's discharge curve. Under full CPU-plus-display load the actual cell voltage drops faster than the cached curve predicts, and the EC hits its low-voltage cutoff before the displayed percentage reaches zero. It is a calibration gap, not a defective cell. Run two full discharge cycles — letting the laptop reach hibernate naturally each time — so the fuel gauge IC can remap the voltage cliff against the new cell's actual chemistry. After those cycles the shutdown will track the displayed percentage accurately down to the low single digits.
Compatible Models
Replaces Part Numbers
Technical Specifications
Product Highlights
- Brand: MSI
- Manufacturer: CS
- Series: Standard
- Color: Black
- Product Type: Li-Polymer
- Battery Type: Li-Polymer
- Warranty: 12 Months
- Bulk Orders: sales@batteryweb.com
Frequently Asked Questions
My MSI Creator Z16 shows the BTY-M54 battery as "0% available (plugged in, not charging)" right after I installed it — what's wrong?
The EC lost the SMBus authentication handshake from the old cell's BMS chip and is holding the charge circuit open as a safety response. Power the laptop fully off, remove the AC adapter for 30 seconds, then reconnect AC before pressing the power button — this forces the EC to re-poll the new pack's BMS on a cold start. If the issue persists, enter MSI Dragon Center or BIOS and check whether a charge-limit mode (such as the 80% battery saver setting) is active and blocking charge acceptance entirely.
Windows is showing this battery's capacity as a completely different Wh figure than the 88.92Wh listed on the cell — is the battery faulty?
No. Windows reads the Wh rating from the EEPROM registers the BMS chip reports, and a freshly installed cell reports its rated design capacity rather than a value calibrated to the laptop's EC. The figure shown in Windows Battery Report or HWiNFO will drift toward the correct number as the fuel gauge IC accumulates discharge data over two to three full cycles. Check the reported value again after three complete charge-discharge cycles and it will align with the 88.92Wh specification.
The Creator Z16 cuts out instantly under heavy render loads even though the charge indicator reads above 50% — is this the battery or the laptop?
This is a voltage-sag issue at the cell level during peak current draw. The Creator Z16's CPU and discrete GPU can spike current demand sharply during render workloads, pulling the 15.2V rail below the EC's cutoff threshold faster than the fuel gauge IC can track. Run two full discharge cycles to hibernate cutoff so the fuel gauge IC recalibrates its internal resistance model against the new cell. If cutouts continue after calibration, check that MSI Dragon Center is not running a performance preset that allows uncapped CPU TDP on battery — dropping to Balanced mode reduces the peak current spike to a level the cell can sustain.
