CTMS Eurodetector 7.4V Replacement Battery 1ICP62/34/48

CTMS Eurodetector — 7.4V Li-ion Replacement Battery (1ICP62/34/48 1S1P)

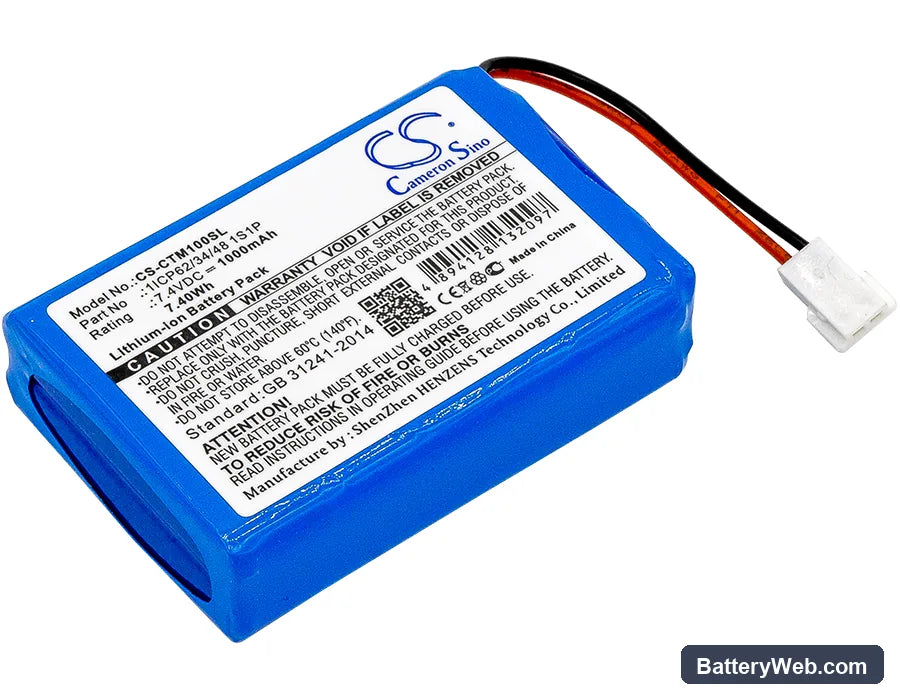

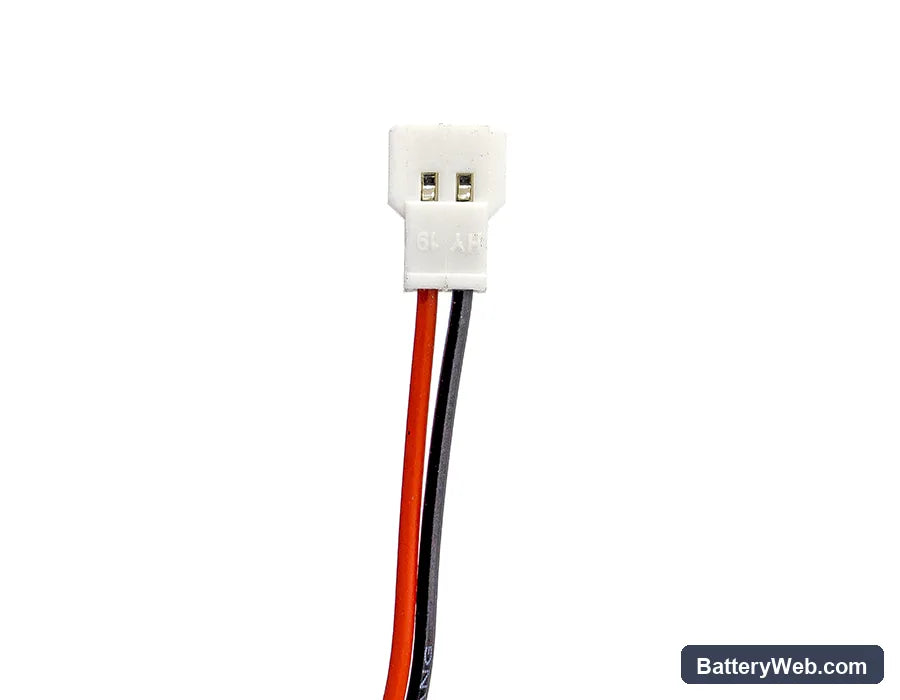

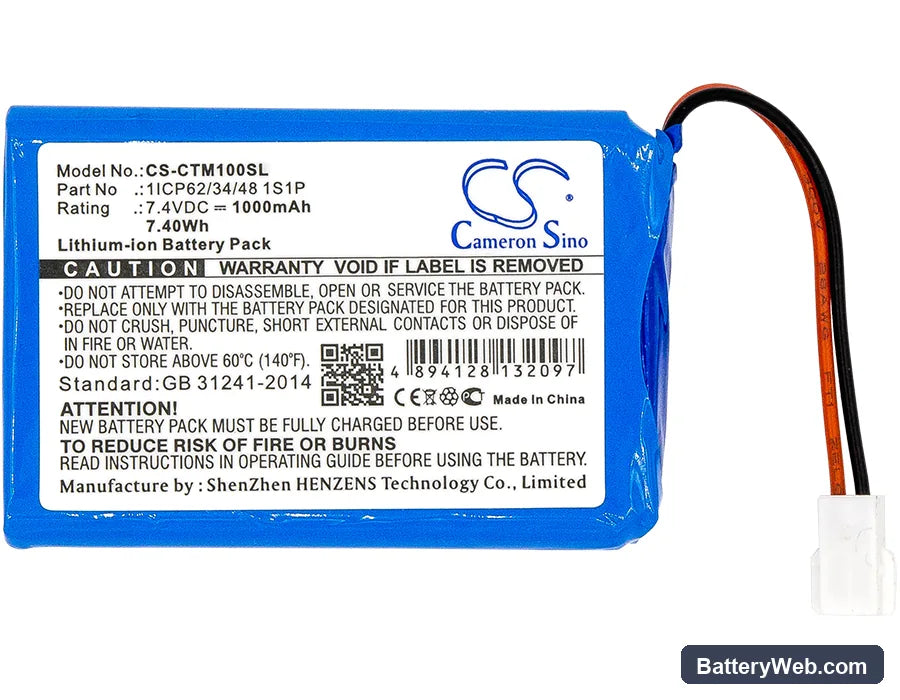

This 7.4V, 1000mAh lithium-ion cell replaces the original battery in the CTMS Eurodetector payment terminal. It fits the compact battery bay used in this portable POS unit and matches the OEM voltage rail and connector footprint. Dimensions are 51.20 × 34.00 × 13.00mm.

• Eurodetector compatibility: The Eurodetector runs its display, wireless module, and receipt printer from a single 7.4V cell. This replacement matches that voltage rail exactly, which matters — the terminal's BMS rejects cells that deviate at handshake and will refuse to boot.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on a payment terminal platform, monitoring BMS acceptance and charge IC handshake. The protection circuit engaged correctly at both ends of the voltage window with no false trips.
• First deployment tip: After fitting, complete one full transaction cycle — including a receipt print — before putting the terminal into live use. The terminal maps battery capacity during normal operation and needs at least one complete power cycle to display the charge indicator accurately.

Terminal not completing PCI boot sequence after battery swap

The Eurodetector runs a PCI security check on every cold boot, and that sequence draws a brief current spike from the battery. A new cell with an uninitialised BMS can trigger an overcurrent flag at that spike, stalling the boot before the OS loads. The fix is straightforward: charge the battery to full before the first boot, not after. Starting from a partial state of charge gives the BMS too little headroom to absorb the boot surge cleanly. Charge to 8.40V before powering on for the first time.

Eurodetector not powering on after sitting unused in a drawer

Li-ion cells self-discharge slowly in storage, and if the terminal sat idle for several months the cell voltage may have dropped below the BMS recovery threshold — typically around 2.5V per cell, or 5.0V for this 2S configuration. Below that, the protection circuit locks out discharge to prevent cell damage, so the terminal reads as completely dead even when plugged in. Connect the terminal to its charger and leave it for at least 30 minutes without pressing the power button — most charge ICs include a trickle pre-charge stage that recovers cells in this state. If the charge LED activates within that window, the cell is recovering; charge fully to 8.40V before booting.
