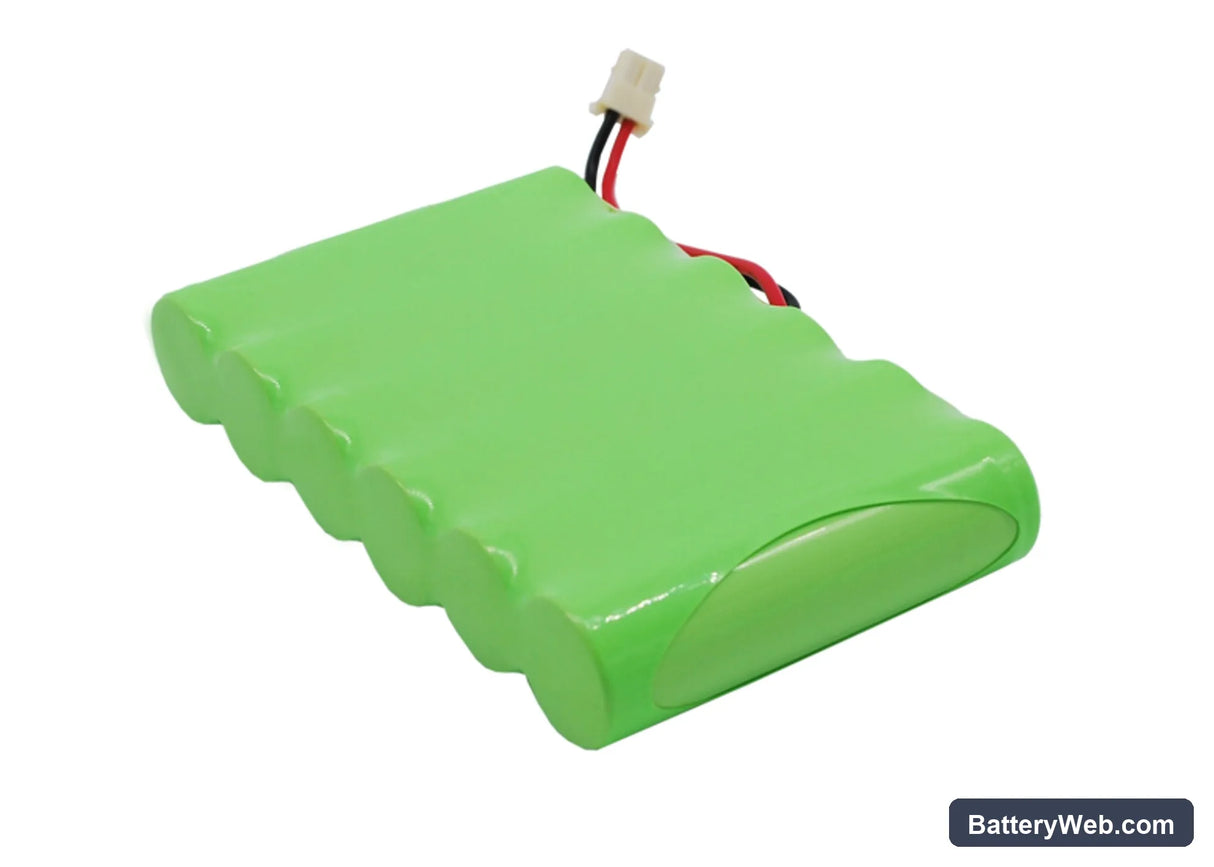

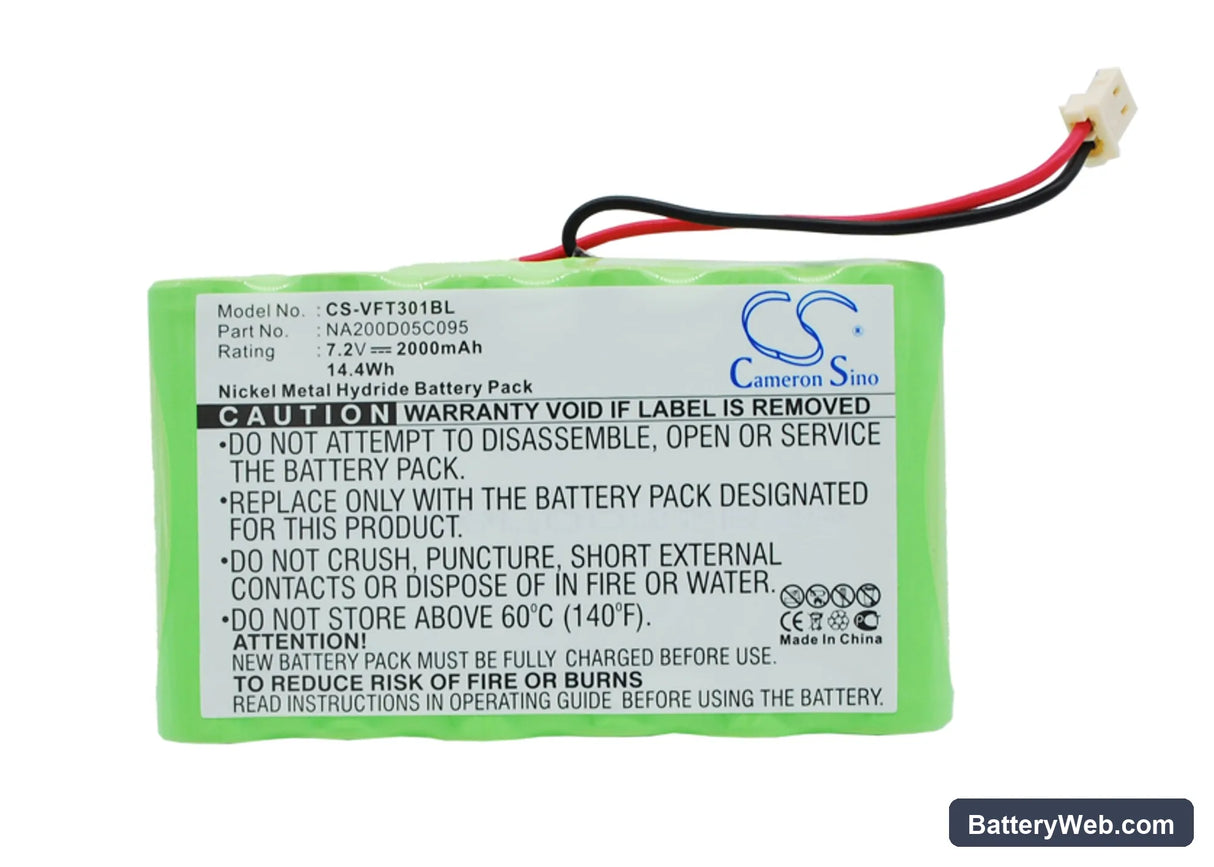

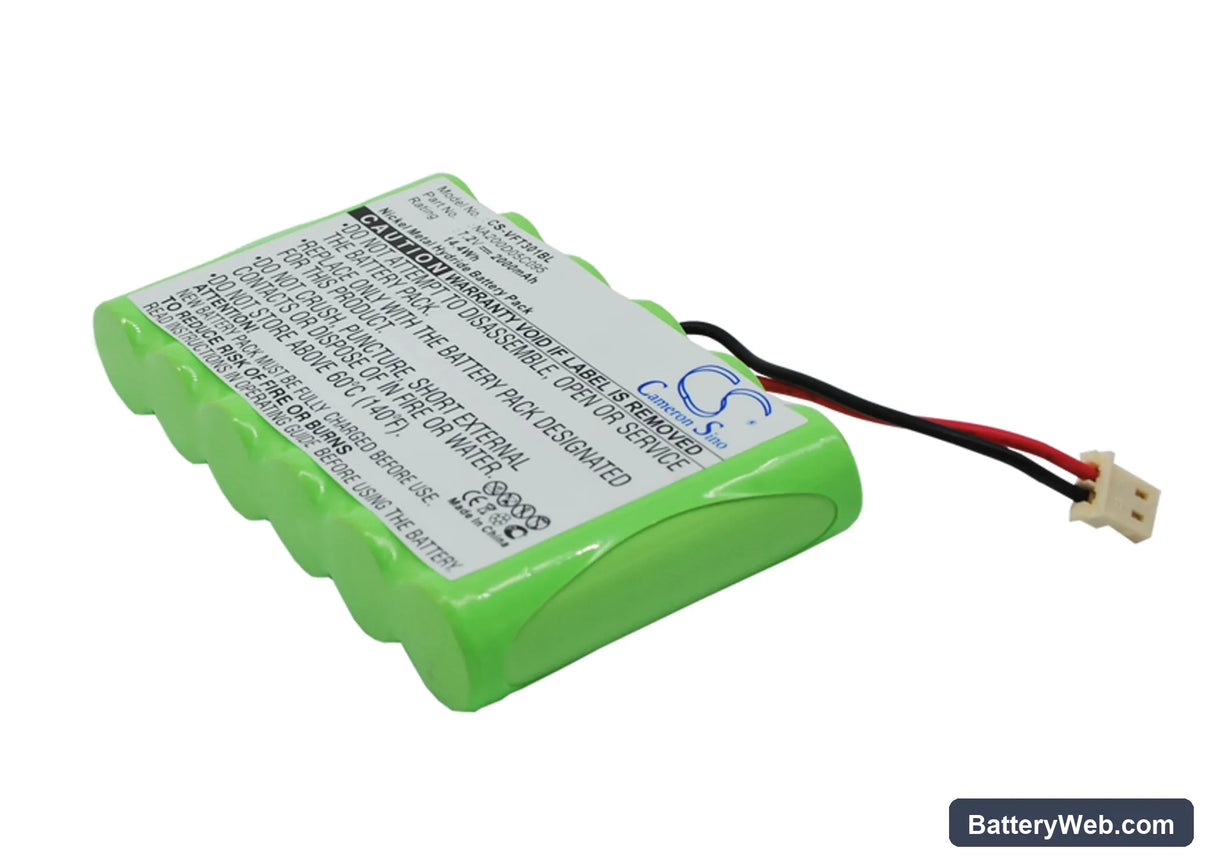

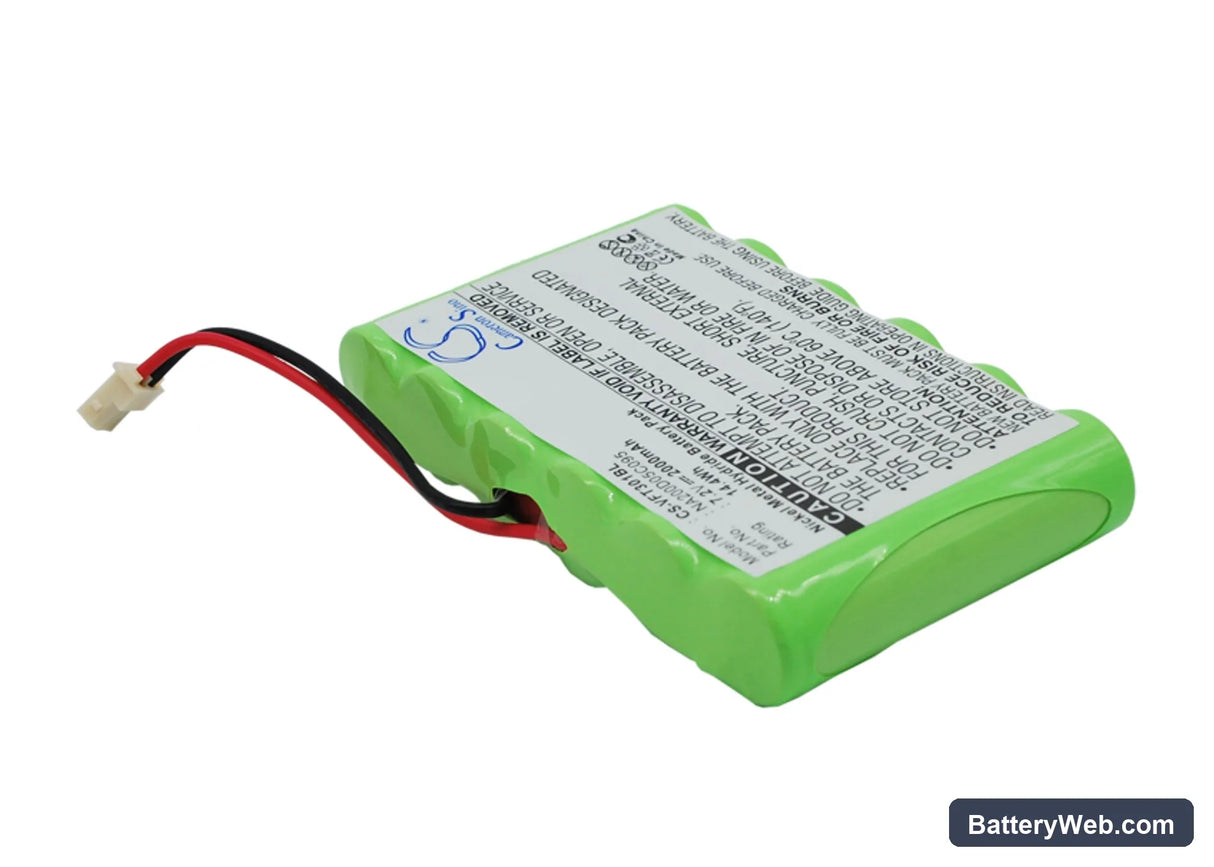

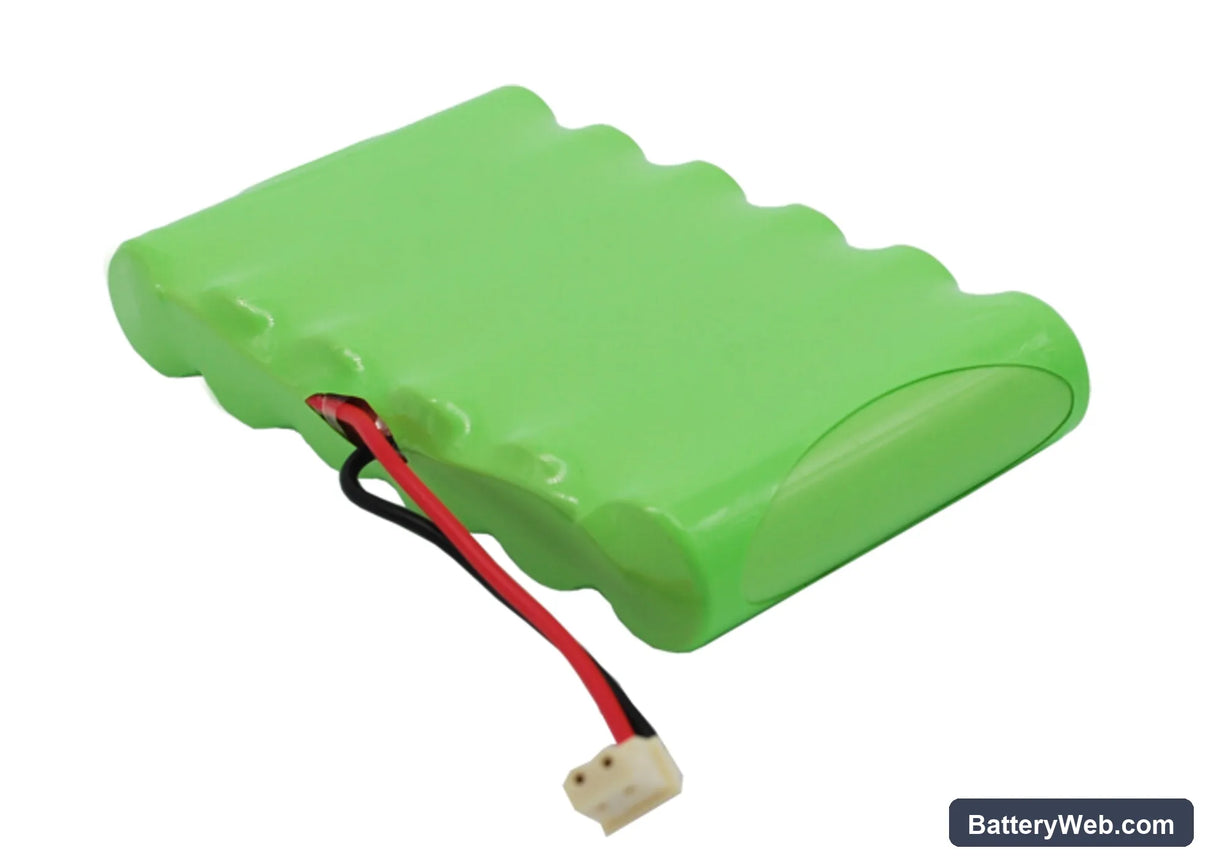

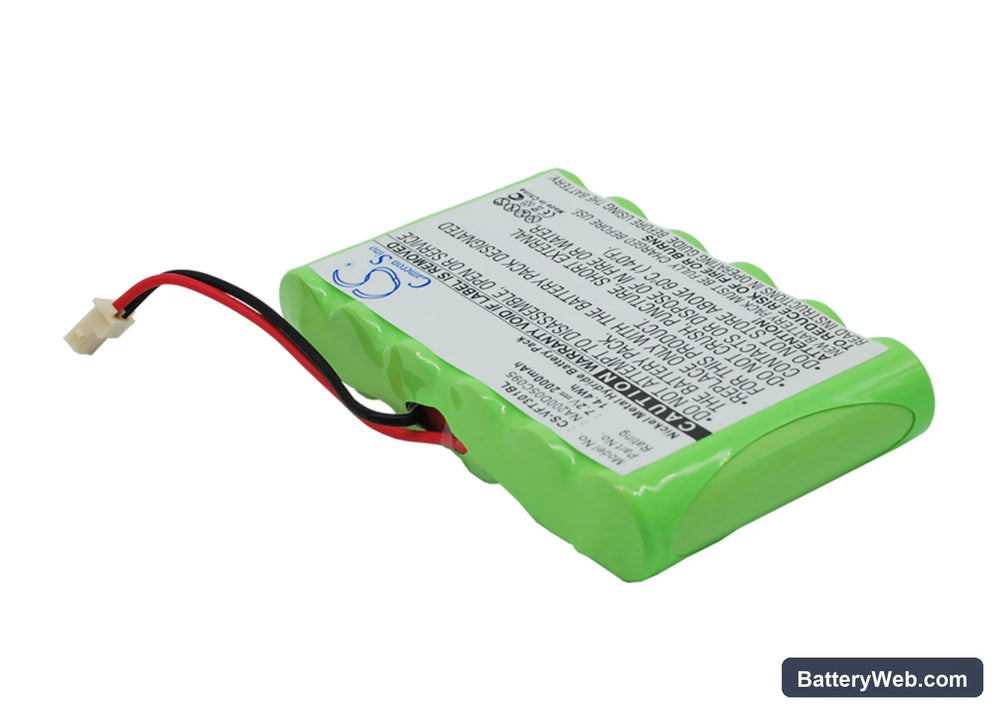

VeriFone Nurit 3010 Replacement Battery 7.2V 2000mAh

VeriFone Nurit 3010 — 7.2V Ni-MH Replacement Battery (NA200D05C095)

This is a 7.2V, 2000mAh Ni-MH replacement battery for the VeriFone Nurit 3010 portable payment terminal. It matches the original NA200D05C095 specification and fits the Nurit 3010 directly. Capacity is 14.4Wh — identical to the factory cell.

• Nurit 3010 compatibility: The Nurit 3010 uses a dedicated battery bay with a fixed connector orientation and a charge circuit tuned to Ni-MH voltage curves. This cell matches the 7.2V nominal rail and the physical footprint at 86.80 × 52.07 × 14.56mm — no adapter or modification needed.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the Nurit 3010 platform. The terminal's charge IC accepted the cell without fault codes, and the BMS held stable through receipt-print and card-read current spikes.
• First-use calibration on the Nurit 3010: After fitting this battery, complete one full transaction cycle before deploying the terminal in a live environment. The Nurit 3010 maps battery capacity during normal operation and requires at least one complete power cycle to calibrate the charge indicator correctly.

Receipt printer causing voltage sag on the Nurit 3010

The Nurit 3010's thermal printer draws a sharp current spike each time it feeds paper — this is one of the highest instantaneous loads the battery sees during normal use. On a degraded original cell, that spike causes the terminal voltage to sag below the BMS threshold, triggering a soft reset mid-transaction. A fresh 2000mAh cell at full charge handles the printer draw without dropping below the 6.0V cutoff. If the terminal resets only during printing, the battery is the first thing to replace, not the printer hardware.

Terminal not powering on after sitting unused in a drawer

Ni-MH cells self-discharge at roughly 1–2% per day at room temperature. A Nurit 3010 left unused for several months can have a cell voltage too low for the BMS to start the boot sequence. Connect the terminal to its dock or charger and leave it for at least 20 minutes before pressing the power button — the charge IC needs to raise the cell above approximately 5.5V before it will permit startup. If the terminal still shows no response after a 20-minute trickle, leave it on charge for a full two-hour cycle, then retry.
