Samsung Watch 5 40mm EB-BR900ABY Replacement Battery 3.88V 270mAh

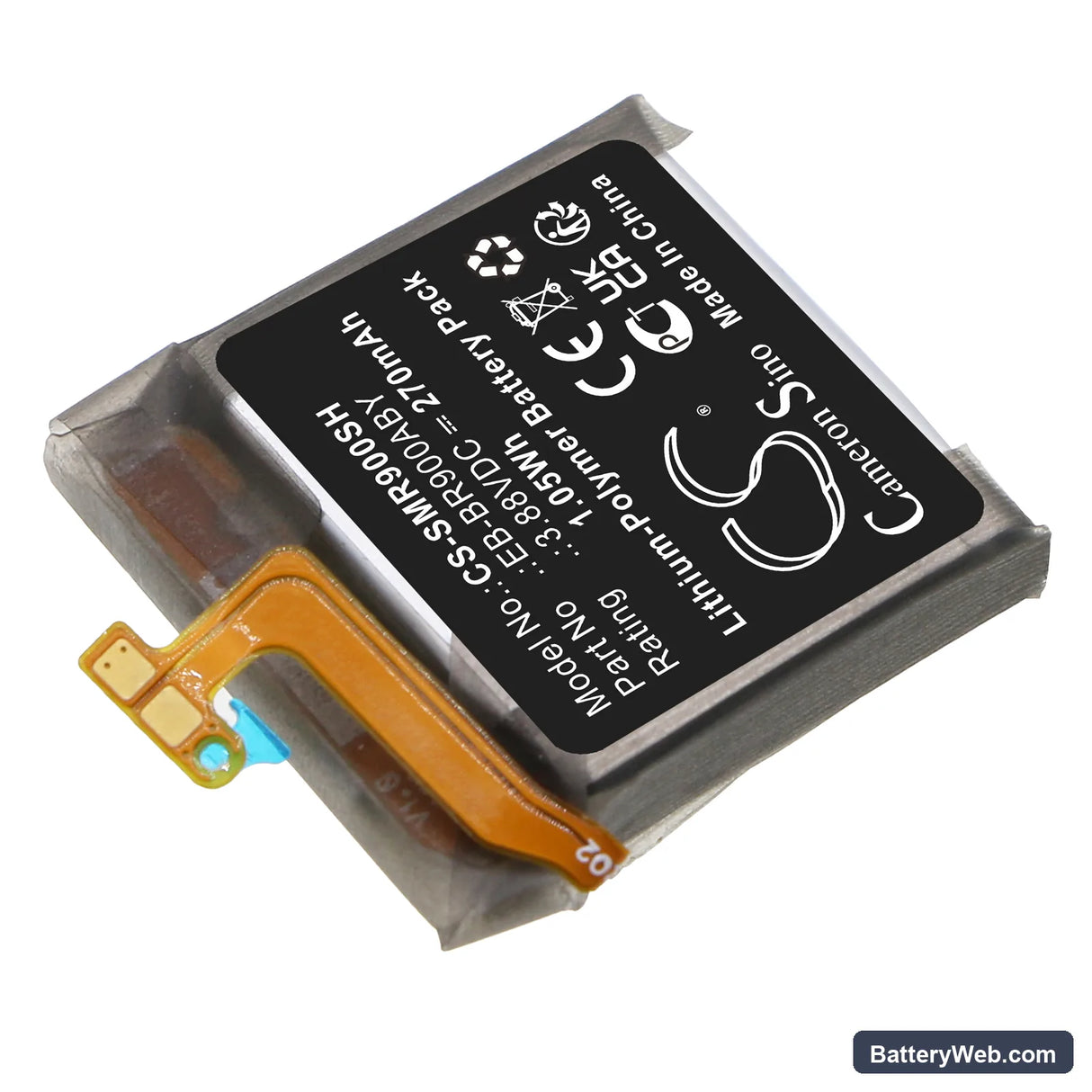

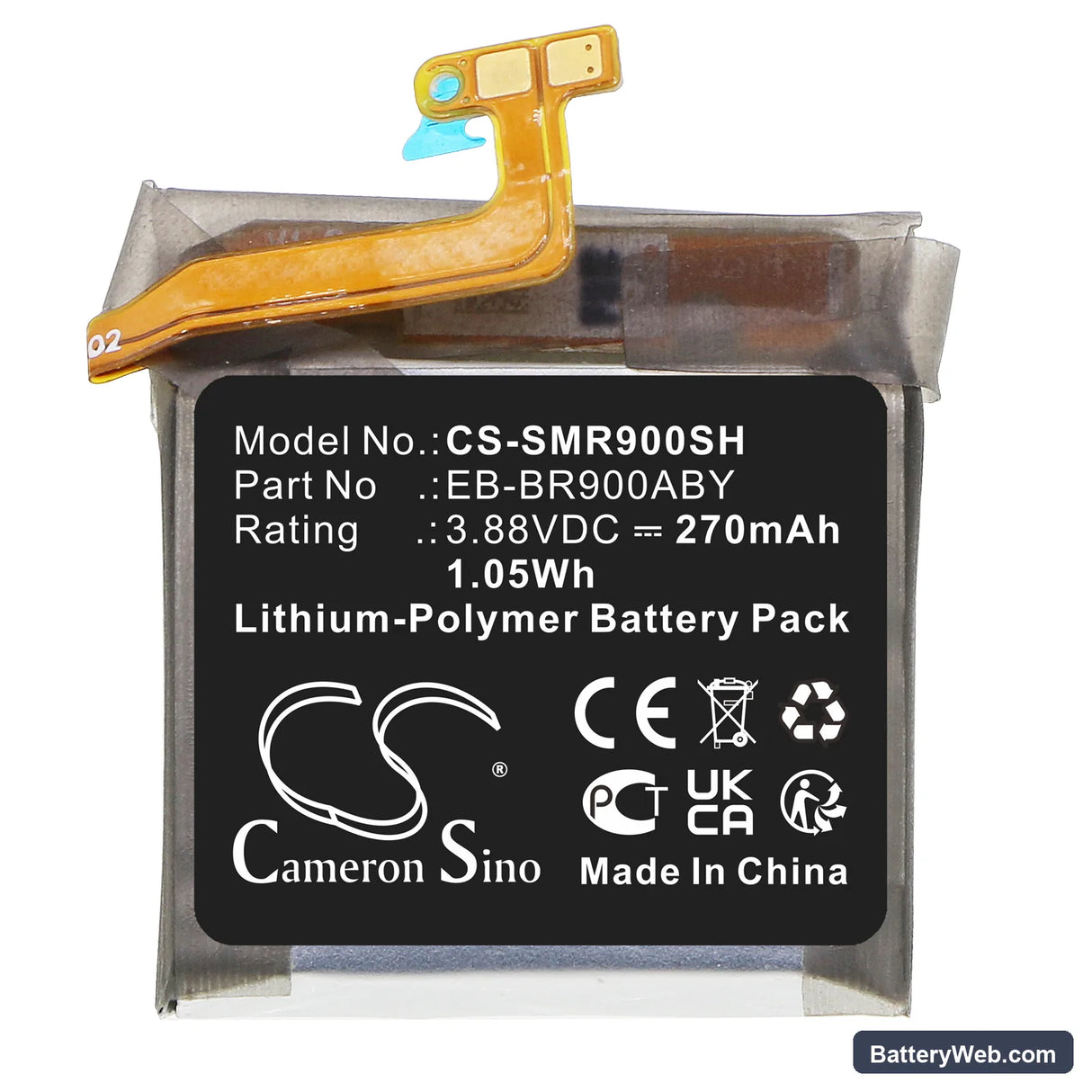

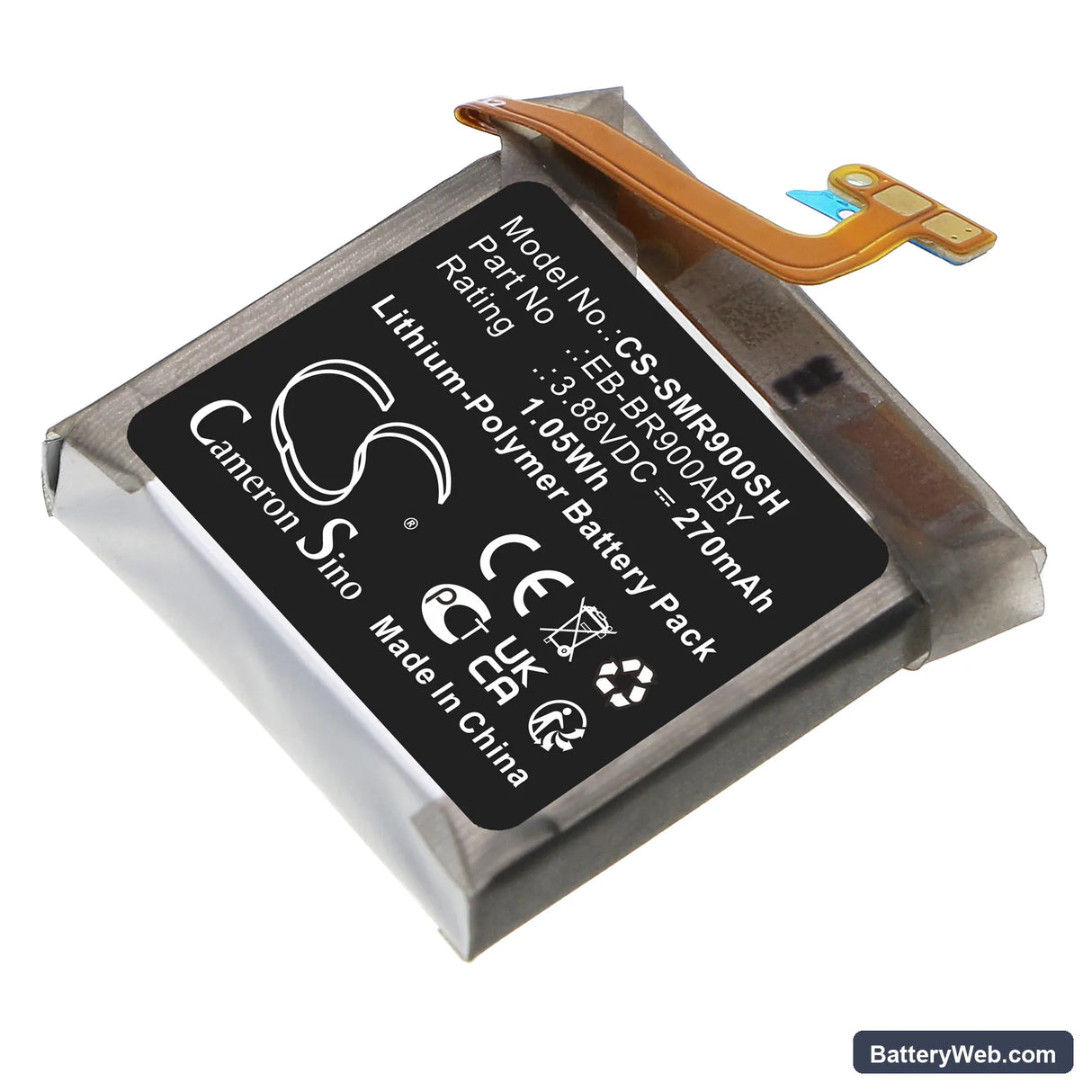

Samsung Watch 5 40mm — 3.88V Li-Polymer Replacement Battery (EB-BR900ABY)

This is a 3.88V, 270mAh Li-Polymer cell that replaces the original battery in the Samsung Watch 5 40mm smartwatch. It fits SM-R900 and SM-R905 variants. Swap it in when the original cell degrades, fails to hold charge, or can no longer power the watch through a normal day.

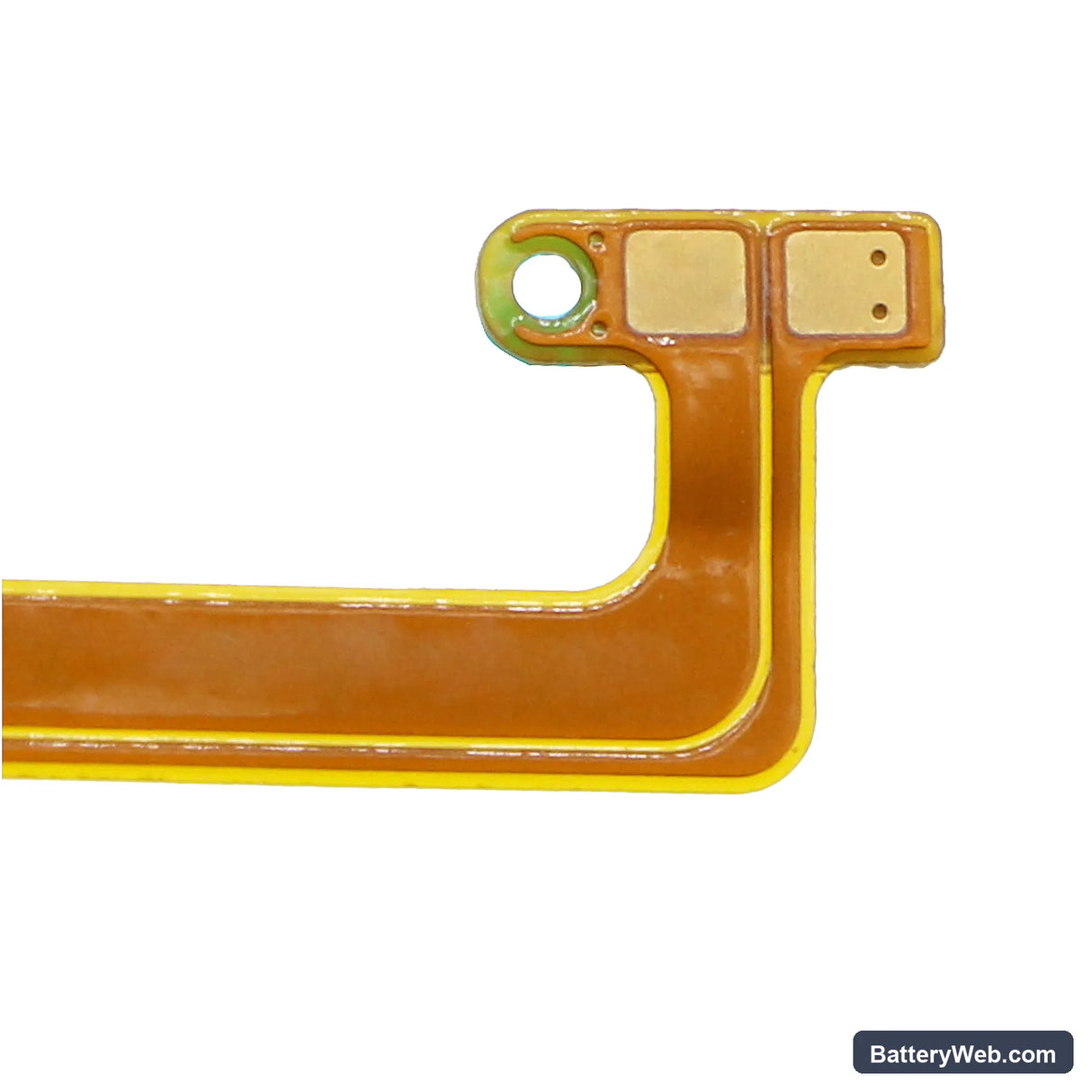

• SM-R900 and SM-R905 fit: Both variants share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The 21.50 x 19.80 x 5.10mm cell geometry matches the chassis cavity exactly, so the flex connector seats without force.
• Bench tested on actual hardware: We ran the cell through charge acceptance and BMS communication checks on SM-R900 hardware. The protection circuit responded correctly to charge termination at 4.35V and tripped low-voltage cutoff at the expected threshold.
• Fuel gauge reset after swap: After fitting this cell, place the watch on its magnetic charger immediately and charge it to 100% before wearing it. The MAX77729 fuel gauge IC loses its reference point when the cell is disconnected — it cannot re-calibrate without a full charge cycle from near-zero following a cell swap. Skipping this step causes the percentage to read incorrectly for days.

Why the Watch 5 40mm battery degrades faster with always-on display and continuous HR monitoring active

The Watch 5 40mm packs a 270mAh cell into a small chassis, leaving little headroom for high-draw feature combinations. Always-on display keeps the AMOLED panel energised continuously, pulling a steady load the cell was not sized to absorb all day. Add continuous heart rate monitoring — which fires the PPG sensor every second — and the combined draw accelerates capacity fade in the original cell within 12 to 18 months of daily use. A fresh cell restores baseline capacity, but the same feature load applies from day one.

Watch not pairing with phone after battery replacement

Removing the battery cuts power to the BLE stack entirely, which terminates the active pairing session stored in the watch's non-volatile memory. The phone retains its side of the bond record, but the watch no longer recognises it as a trusted device after the power interruption. Open the Galaxy Wearable app on the phone, go to Watch Settings, and select "Disconnect and remove watch" to clear the stale bond. Re-pair from scratch — the process takes under two minutes and restores full connectivity.
