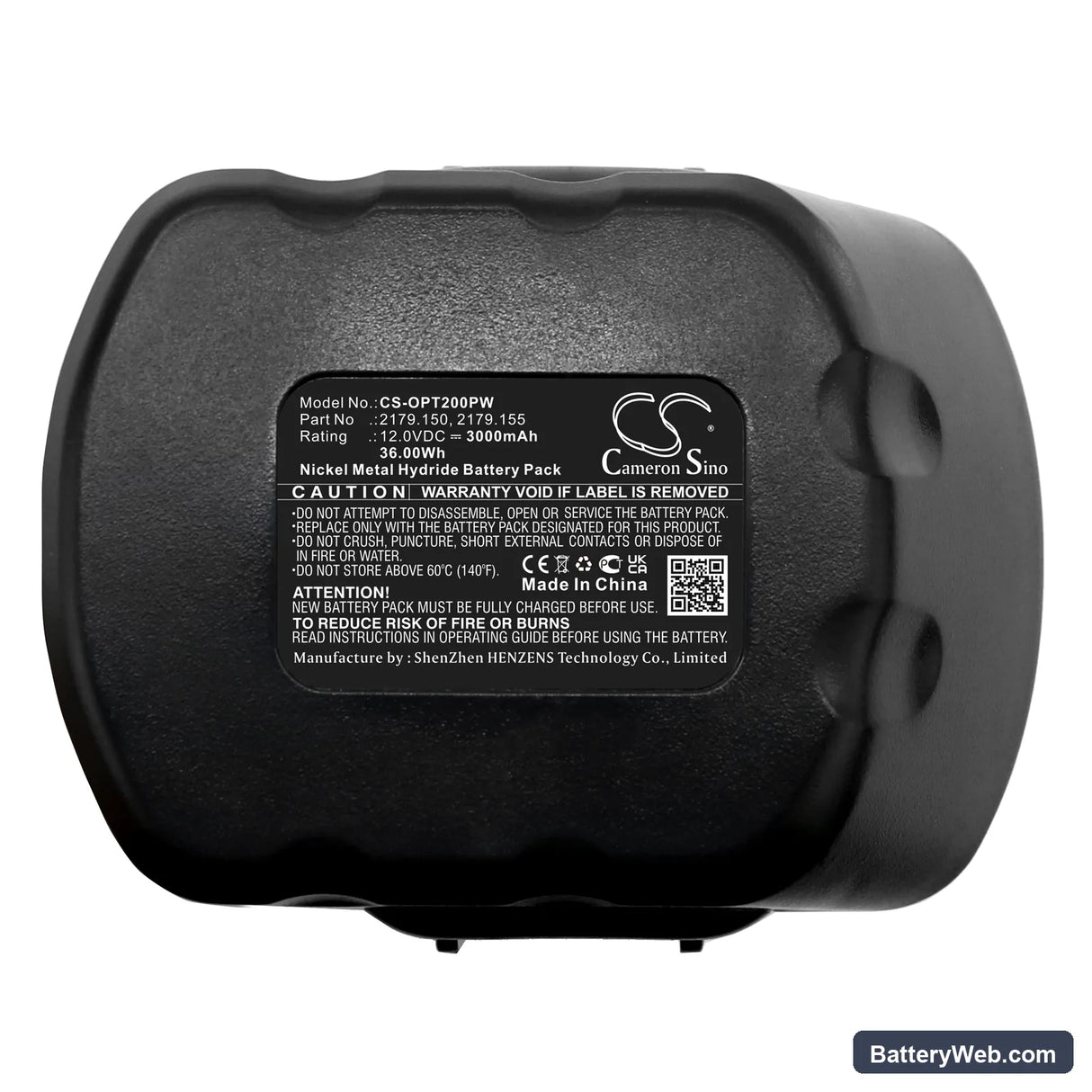

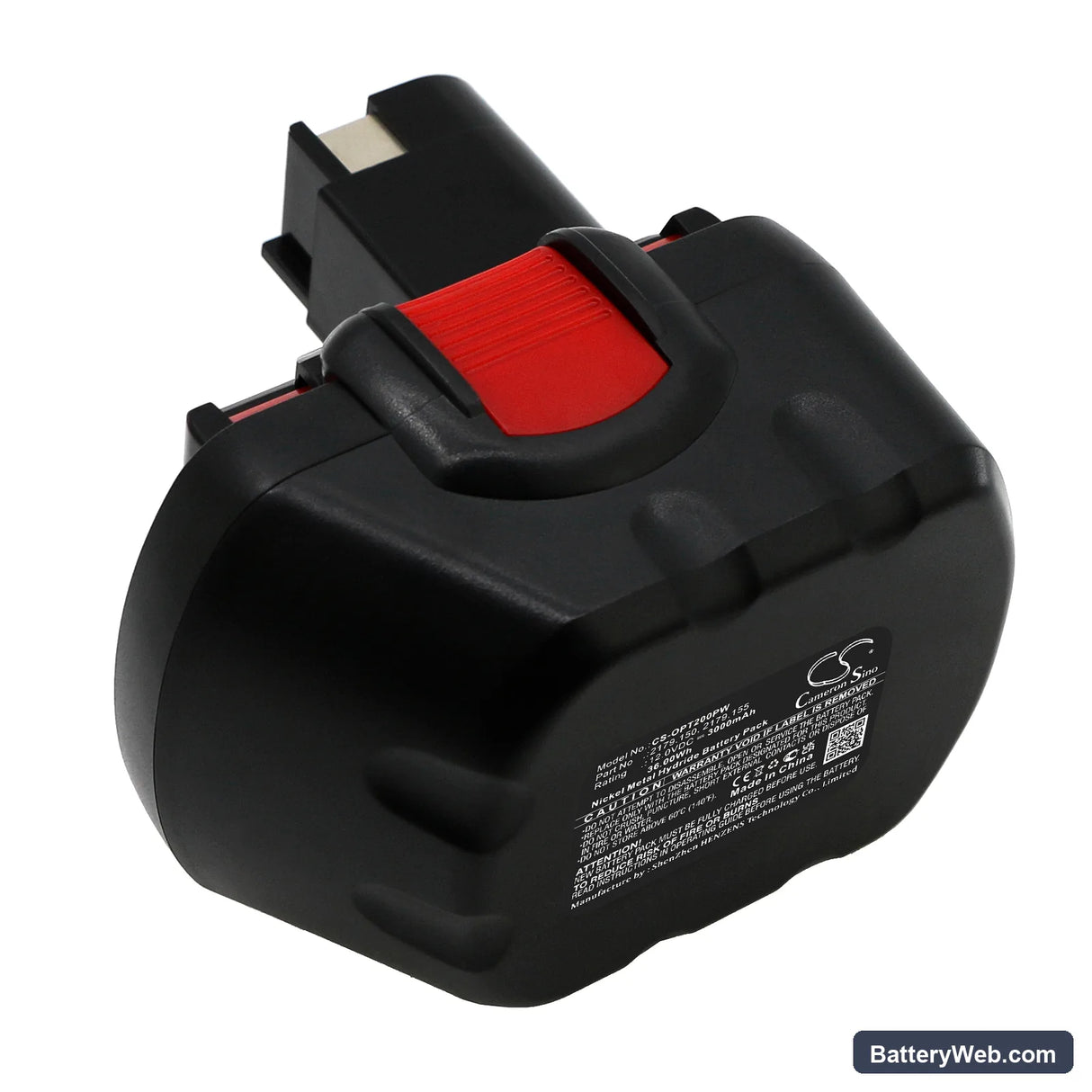

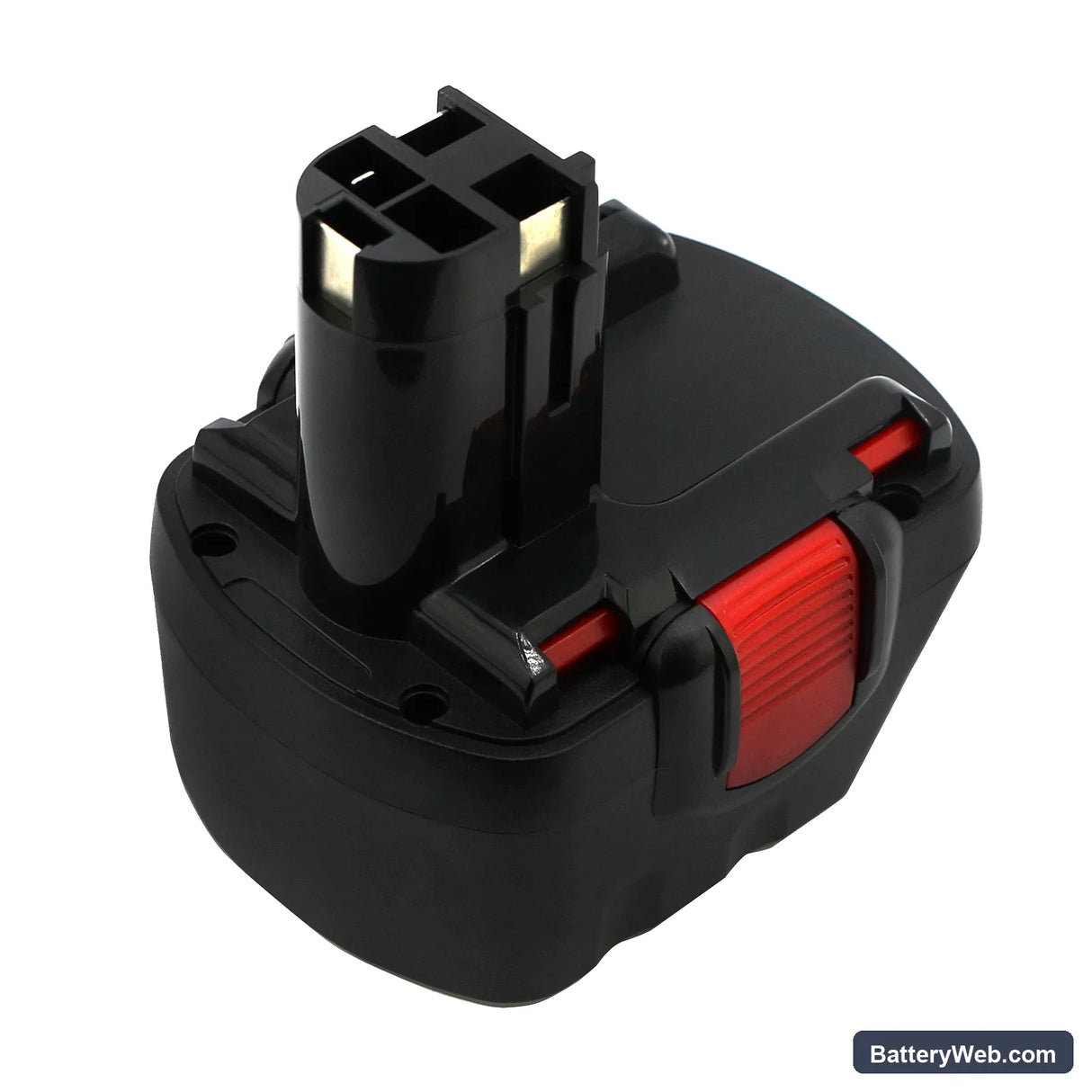

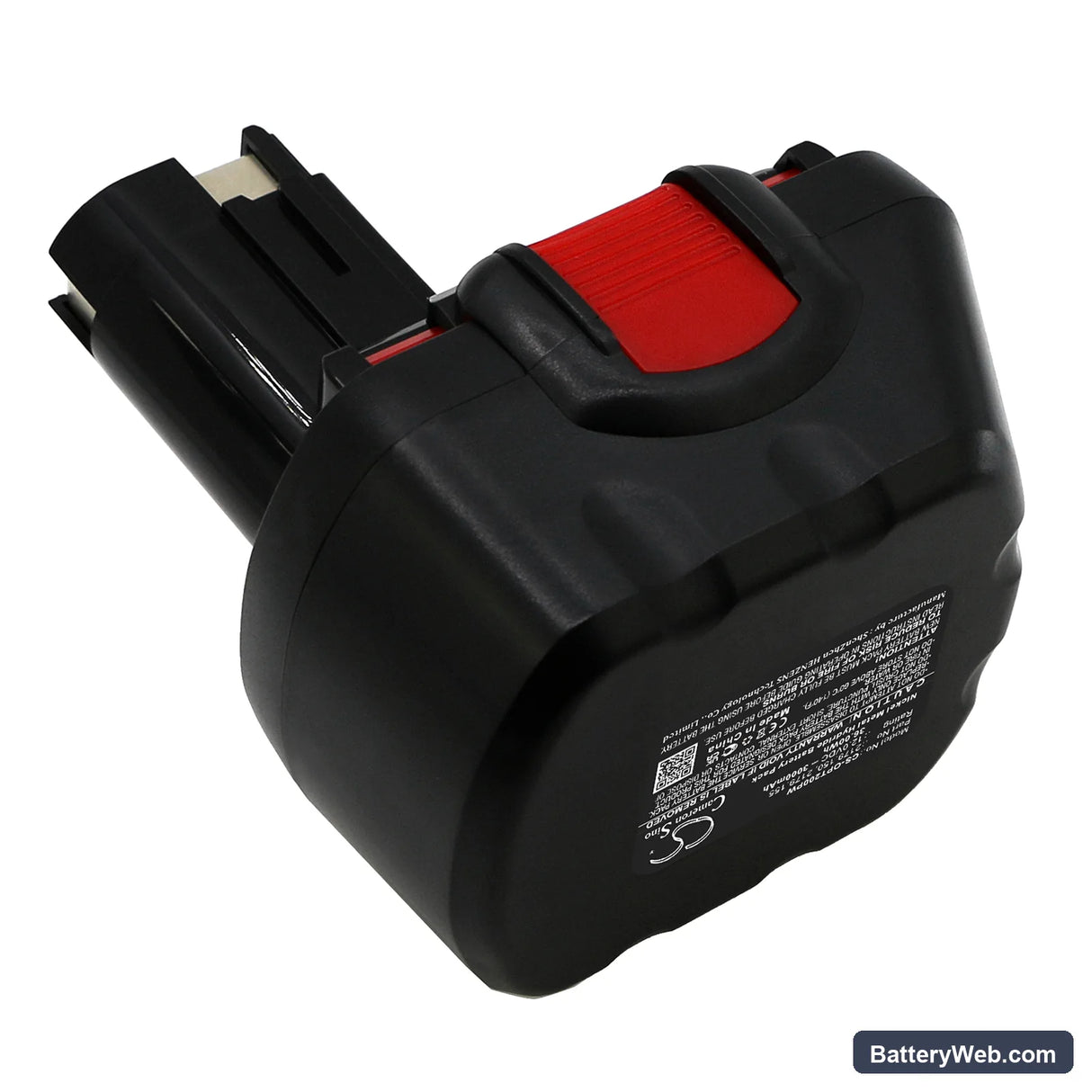

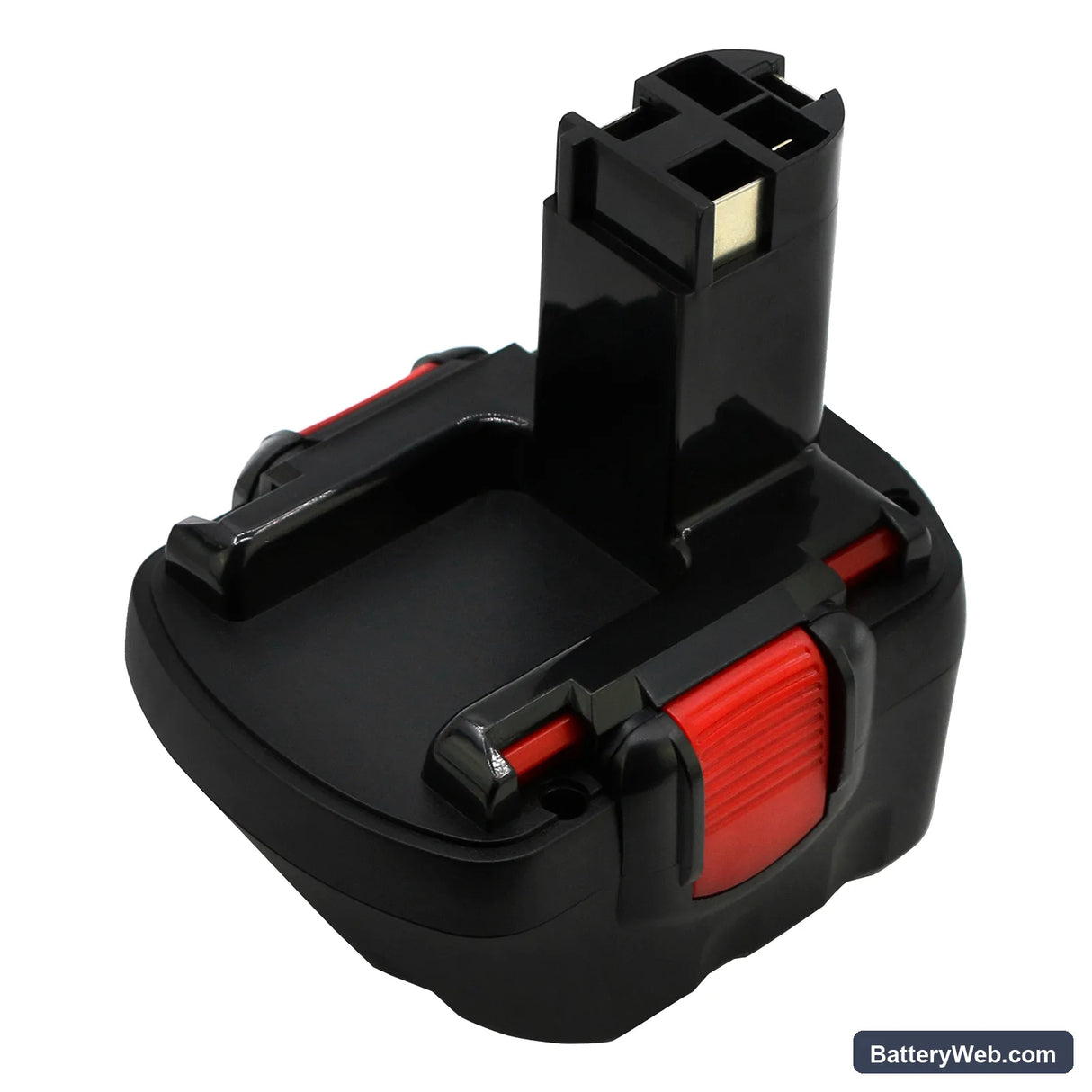

Signode BXT10 Ni-MH Replacement Battery 12V 3000mAh

Signode BXT10 / BXT13 — 12V Ni-MH Replacement Battery

This is a 12V 3000mAh Ni-MH replacement battery for the Signode BXT10 and BXT13 portable electric strapping tools. These machines are used in warehouse and logistics environments to tension and seal plastic or steel strapping on packages and pallets. This pack restores the full operating voltage the motor needs to complete tensioning cycles at rated force.

• BXT10 and BXT13 compatibility: Both models run the same 12V motor platform and use the same battery connector and physical footprint. The BMS on each tool expects the same charge profile, so a single Ni-MH pack covers both machines without modification.
• Bench tested on actual hardware: We cycled this pack through repeated tensioning loads, monitoring voltage under the sharp current spike the motor draws at peak tension. The cells held above the BMS cutoff threshold consistently across the test sequence, and the pack recovered charge normally after each discharge.
• Cold warehouse use: If the tool operates in a freezer aisle or unheated dock below 10°C, warm the battery above that threshold before starting work. A cold Ni-MH cell has higher internal resistance, and the motor's current spike at maximum tension can trip the BMS on a pack that would otherwise perform normally at room temperature.

BMS cutoff mid-tensioning cycle on the BXT10

The BXT10 motor draws current in a sharp spike at the final moment of tensioning — this is the highest load point in the whole strapping cycle. If the battery's state of charge is low or the cells are cold, internal resistance rises enough that voltage drops below the BMS protection threshold at that exact moment, cutting the tool off before the strap is sealed. This is not a tool fault. Recharge the pack fully and confirm the battery surface temperature is above 10°C before restarting. A fully charged, room-temperature pack should hold above 10V under peak load.

Charger showing a fault light on a new or long-stored pack

A Ni-MH pack stored for several months can drop below the voltage the charger uses to confirm a valid battery is connected — typically around 8–9V for a 12V pack. The charger reads this as a fault and refuses to start the charge cycle. To recover the pack, check cell voltage with a multimeter across the battery terminals. If it reads above 7V, the cells are likely recoverable — use a charger with a conditioning or recovery mode, or apply a short trickle charge at 100mA until the pack climbs above the acceptance threshold, then switch to normal charging.
