Toshiba Excite 10 Replacement Battery PA5053U-1BRS 3.7V 6600mAh

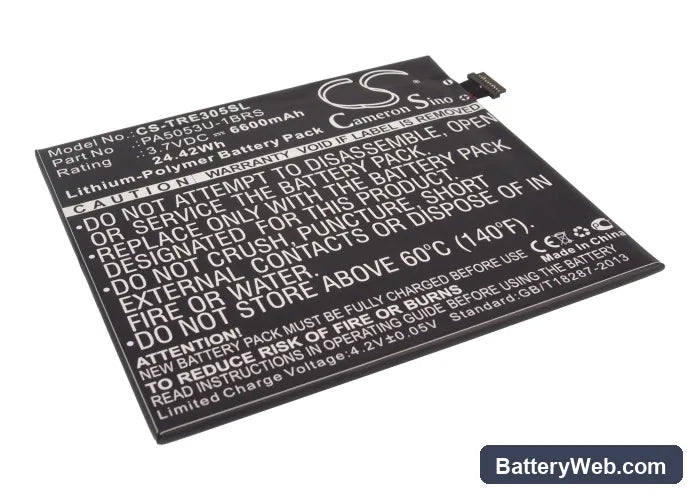

Toshiba Excite 10 / AT305 — 3.7V Li-Polymer Replacement Battery (PA5053U-1BRS)

This is a 3.7V, 6600mAh lithium-polymer battery for the Toshiba Excite 10 and Excite 10LE Android tablets. It replaces OEM part PA5053U-1BRS and also fits the AT305 and AT205. The Excite 10 is a 10-inch tablet used for media, browsing, and light productivity work.

• Excite 10, 10LE, AT305, AT205 compatibility: These models share the same battery bay dimensions, 3.7V power rail, and connector pinout. The BMS communication protocol is identical across the AT-series lineup, so one cell revision covers all four variants without any hardware modification.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on an AT305 unit. The BMS accepted the charge handshake on the first cycle, voltage held steady through a full discharge, and no thermal events or cutoff trips occurred.
• Fuel gauge reset after installation: After fitting this battery, run one full discharge to automatic shutoff, then charge uninterrupted to 100% before using the tablet again. This recalibrates the fuel gauge IC against the new cell. Skipping this step causes the percentage display to drift and can trigger premature shutdowns.

Toshiba Excite 10 shutting down between 15–25% remaining

The Excite 10 combines a bright IPS display with active WiFi and background app processes. Under that combined load, the cell voltage drops faster than the fuel gauge predicts. When voltage crosses the hardware cutoff threshold — typically around 3.2V — the tablet shuts down even though the OS still shows charge remaining. A fresh replacement cell makes this worse initially, because the fuel gauge IC is still calibrated to the old cell's discharge curve. Run one full cycle: discharge to automatic shutoff, then charge uninterrupted to 100%. That single cycle re-maps the cutoff curve and resolves premature shutdown.

Percentage jumping or dropping fast immediately after battery swap

After a battery replacement, the Excite 10's fuel gauge IC still holds the learned capacity data from the old, degraded cell. It uses that stale data to calculate percentage, so readings are inaccurate from the first boot. You may see the percentage jump up or down by 10–20 points, or watch it fall unusually fast from a full charge. This is a calibration issue, not a faulty battery. Discharge the tablet fully to automatic shutoff, then charge uninterrupted to 100% — after that single cycle the gauge re-anchors to the new cell's actual 3.7V nominal curve and readings stabilise.
