Dreame RLS5-BL1 Replacement Battery 14.4V 5200mAh

Dreame RLS5-BL1 / Bot L10 Series — 14.4V Li-ion Replacement Battery (P2008-4S2P-MMBK)

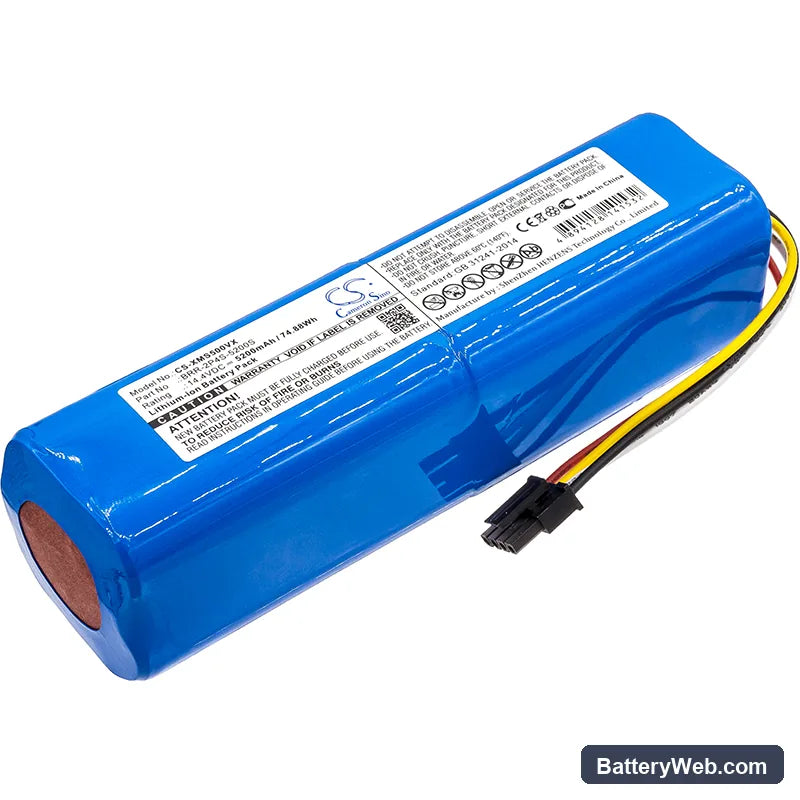

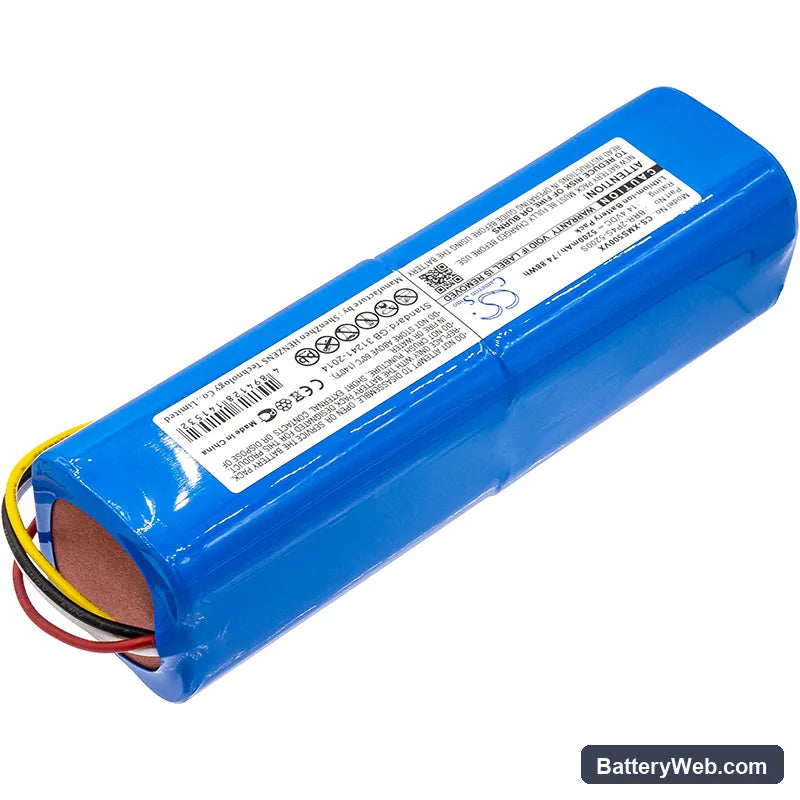

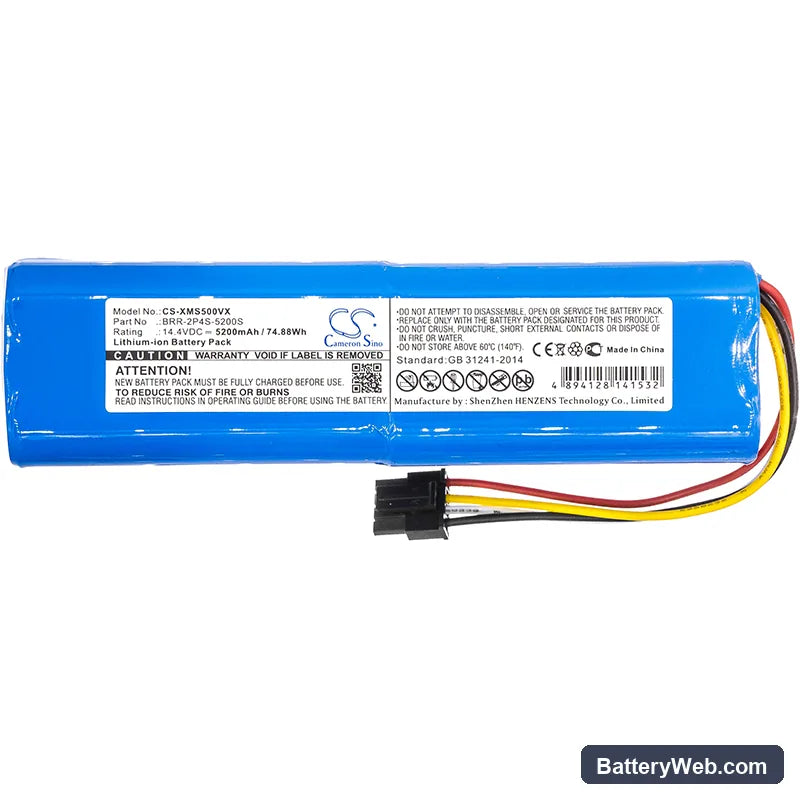

This is a 14.4V, 5200mAh Li-ion battery pack for the Dreame RLS5-BL1 cordless stick vacuum and the Bot D9 Max, Bot L10 Pro, and Bot L10 Ultra robot vacuums. It replaces OEM part numbers P2008-4S2P-MMBK, P2026-4S1P-MMBK, P2150-4S2P-MMBK, P2150-4S2P-XWDLS, and R2228-4S2P-MMBK. The pack slots directly into the same battery bay and connects to the same BMS handshake the vacuum's motor controller expects.

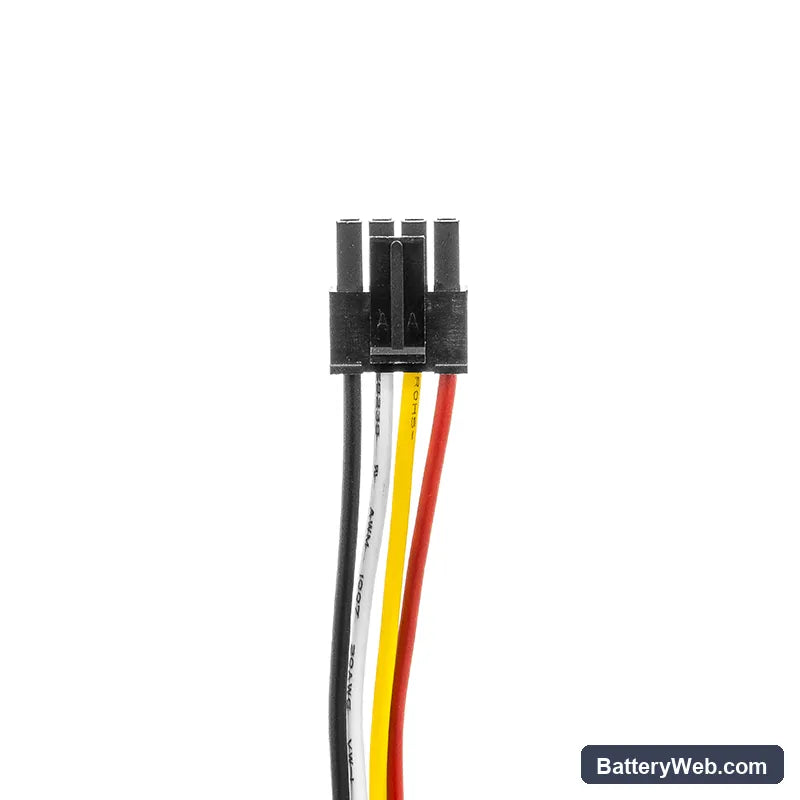

• RLS5-BL1 and Bot L10 platform fit: These models share a common 14.4V 4S cell configuration and the same physical connector and BMS communication protocol — that is why one pack covers all of them. A mismatch in either would prevent the motor controller from releasing power.
• Bench tested on actual hardware: We ran this pack through full discharge cycles on the RLS5-BL1 motor platform. The BMS held overcurrent cutoff at the rated threshold, recovered correctly after trip events, and balanced cells across all four series positions without intervention.
• Dock charging habit for stick vacuum models: Do not leave the RLS5-BL1 sitting on its charging base between every use. Continuous trickle charge from the dock degrades cell capacity faster than normal cycle use. Charge the pack to full, then remove it from the dock until the next clean.

Suction dropping before the battery indicator reaches low

This happens when the motor draws more current than the BMS is comfortable sustaining — usually triggered by a partially blocked filter or a tangled brush roll, not a failing battery. The BMS reads the voltage sag from the increased load and throttles output to protect the cells, which the vacuum interprets as a low-power condition. The indicator hasn't caught up because it reads state-of-charge, not instantaneous load. Clean the filter, clear the brush roll, then recheck — suction should stabilise at full power with a charged pack.

Motor cutting out mid-clean then recovering on its own

This is a BMS overcurrent trip, not a dead battery. When sustained suction restriction — clogged filter, jammed brush roll, or a blocked inlet — forces the motor to pull beyond the pack's continuous current limit, the BMS opens the discharge circuit to protect the cells. The vacuum goes silent for a few seconds while the BMS cools and resets, then restores power. The fix is to address the restriction before restarting. If the cutout repeats immediately after cleaning the filter, verify the inlet tube is fully clear and the brush roll spins freely before assuming the pack is at fault.
