Rowenta RR7 Replacement Battery 14.8V 3400mAh RS-2230002091

Rowenta RR7 Series — 14.8V Li-ion Replacement Battery (RS-2230002091)

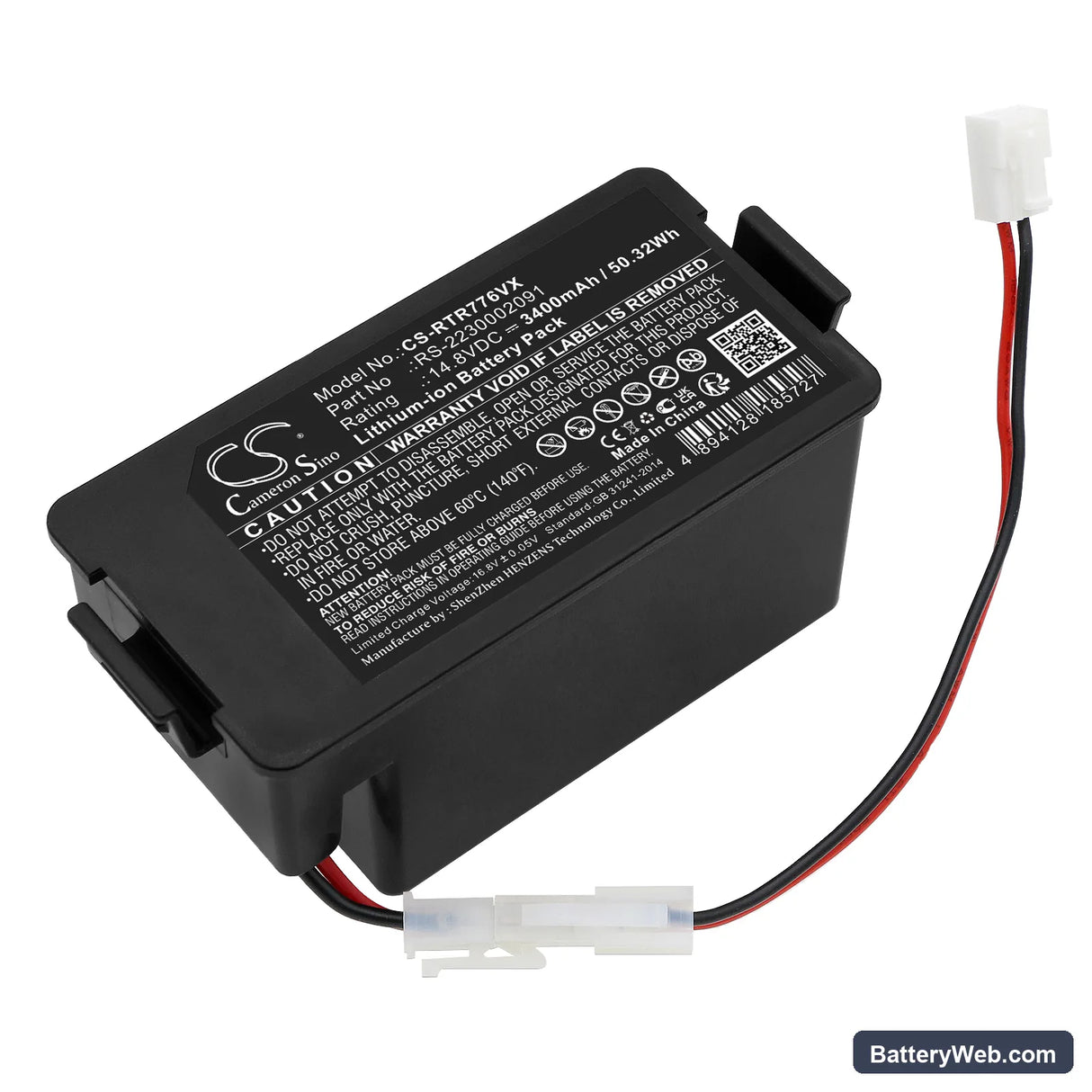

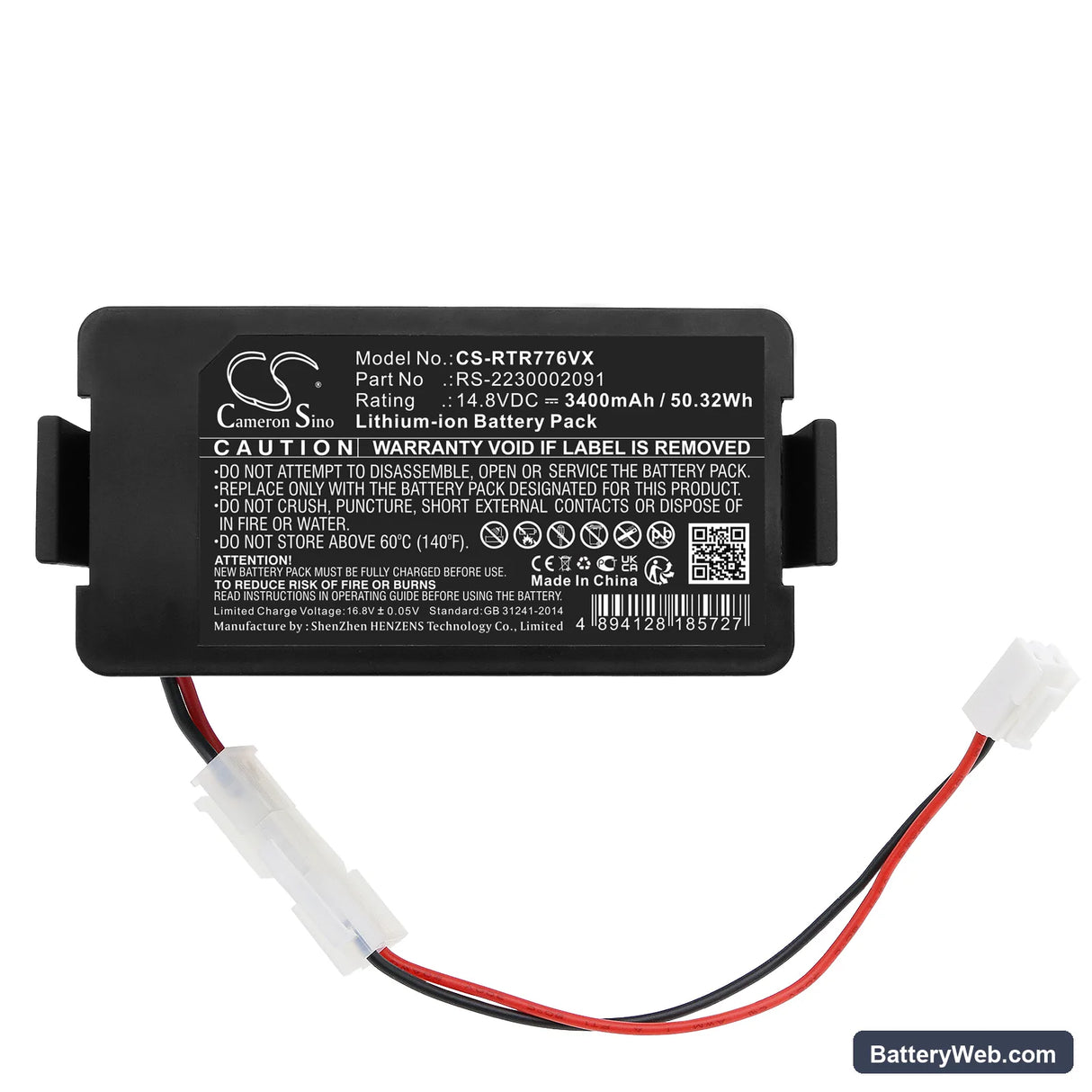

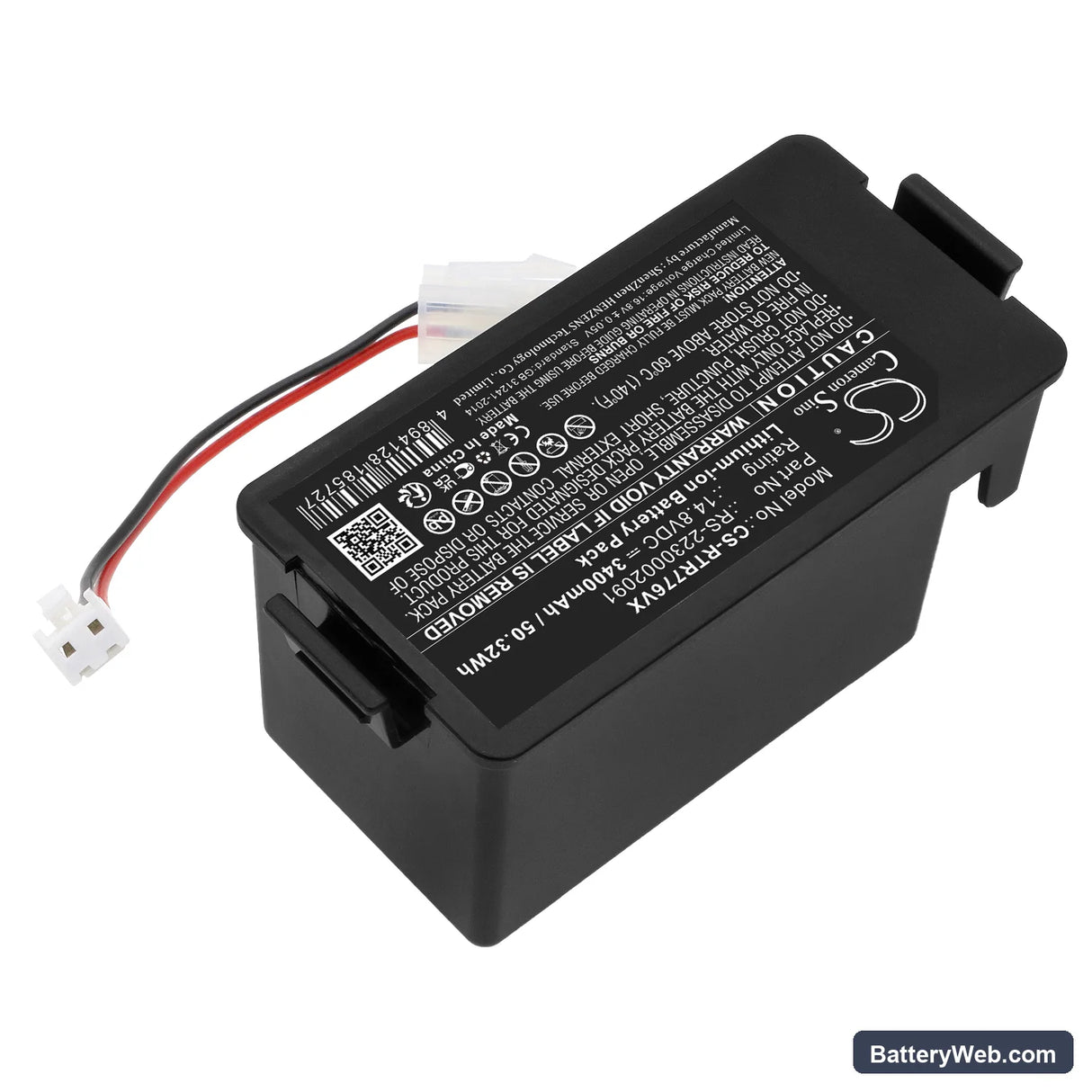

This 14.8V, 3400mAh Li-ion battery replaces the original power pack in the Rowenta RR7 robotic vacuum range, including the RR 7747 WH 4Q0 and RR 7755 WH 4Q0. It fits the same battery bay and connects to the same BMS interface as the factory cell. When the original no longer holds a full charge, floor coverage shortens and the robot returns to dock earlier than it should.

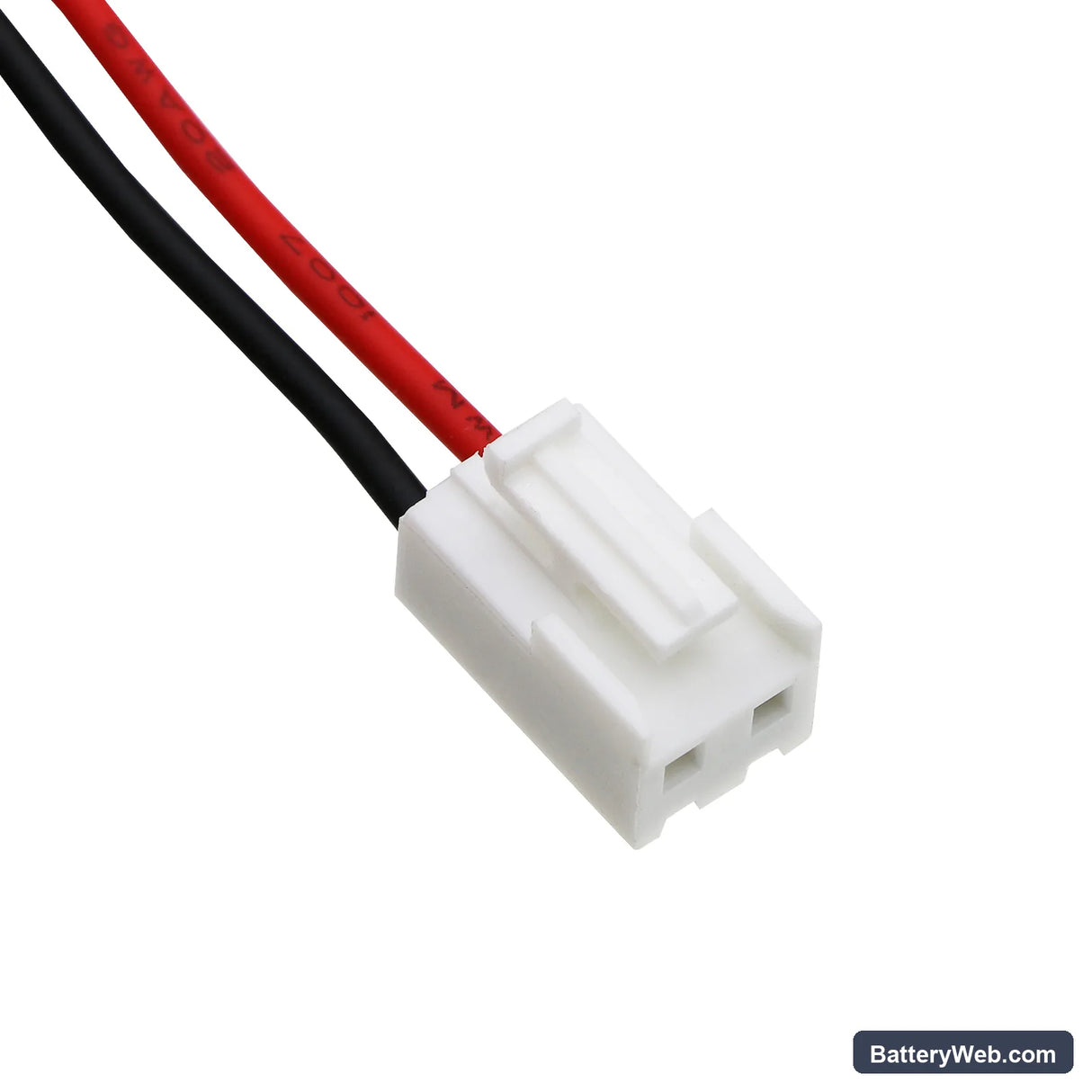

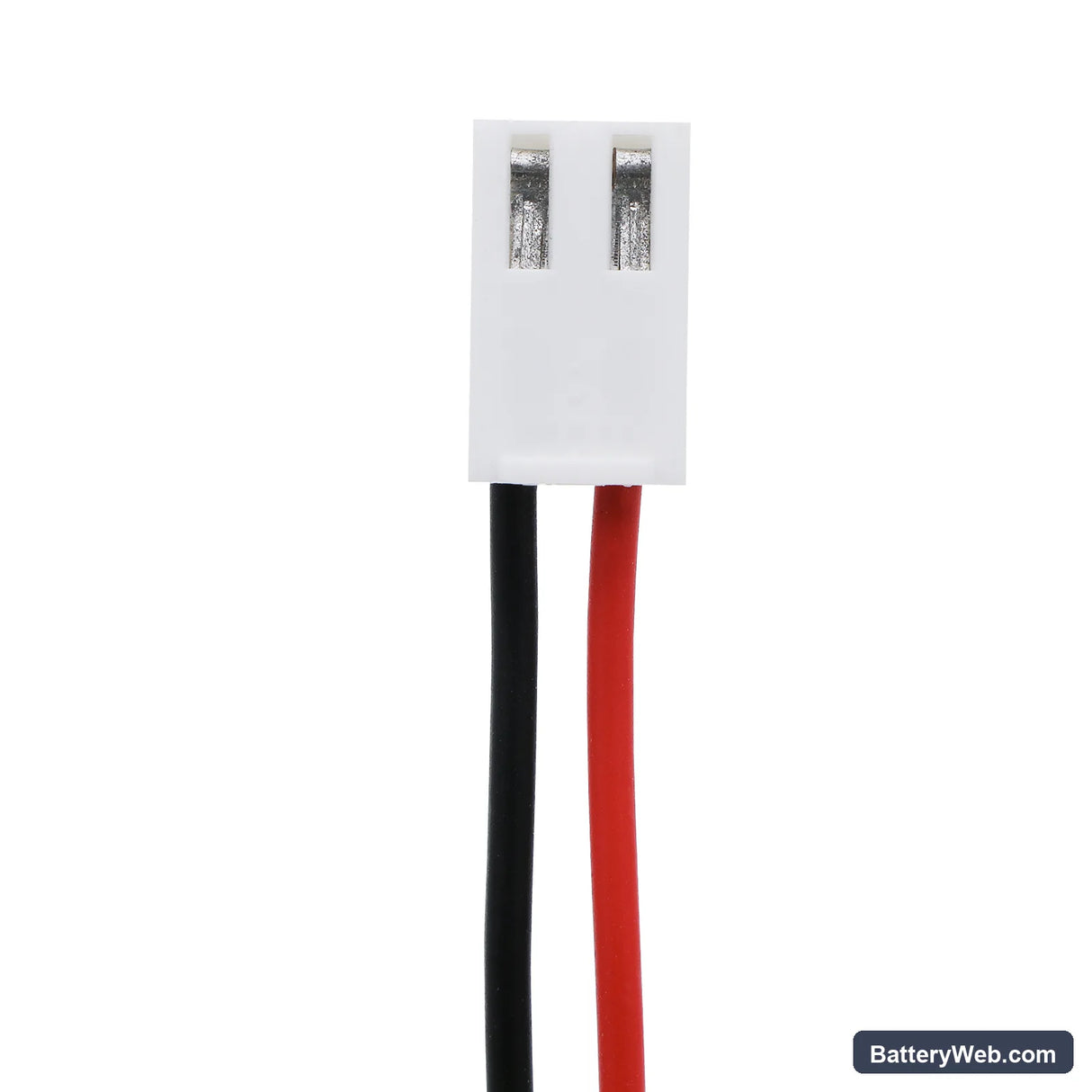

• RR7 platform fitment: The RR7 range shares a common 14.8V four-cell architecture across its variants. That common voltage rail and matching connector geometry means one battery cell covers the full RR 7747 and RR 7755 lineup without modification.
• Bench tested on actual hardware: We cycled this cell through full discharge and recharge on the RR7 platform. The BMS accepted the handshake from the first charge cycle, registered state-of-charge correctly, and held voltage above the motor cut-off threshold throughout the cleaning cycle.
• Dock charging discipline on the RR7: Do not leave the robot sitting on the dock between cleaning days. The RR7 dock delivers a trickle charge once full, and sustained low-current charging degrades cell capacity faster than normal cycling. Charge to full, then remove from dock or run a cleaning cycle before redocking.

Suction dropping before the battery indicator reaches low on the RR7

This happens when a restricted filter forces the motor to draw more current than rated, pulling cell voltage down earlier than the BMS would normally trigger. The indicator reads remaining charge, not actual voltage under load — so it can still show mid-range while the motor is already starving. On carpet passes with a partially blocked filter, the voltage sag under that elevated draw hits the motor's minimum operating threshold before the indicator catches up. Clean or replace the filter first; if the symptom persists on a clear filter, the cell has lost capacity and needs replacing.

RR7 motor cuts out mid-cycle and then restarts after a pause

This is a BMS overcurrent trip, not a motor fault. When sustained suction restriction — from a clogged filter, tangled brush roll, or blocked inlet — forces the motor to draw above the cell's rated continuous output, the BMS disconnects the load to protect the cells. The pause lets the BMS reset and the motor restarts. Clear any blockage and check that the brush roll spins freely. If trips continue with a fully clear airpath, measure resting voltage after a full charge — it should read 16.8V; anything below 15.5V after a full cycle points to a degraded cell.
