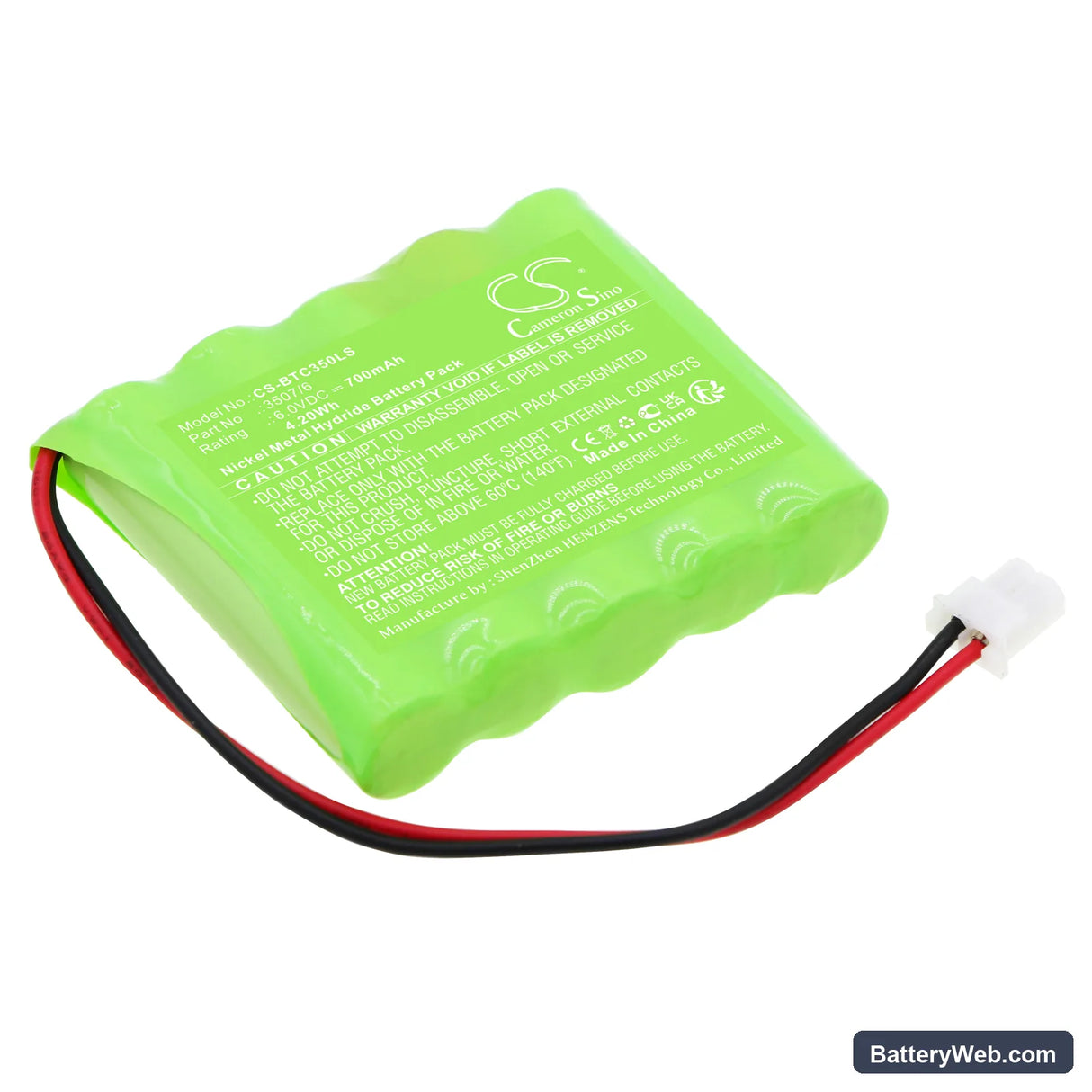

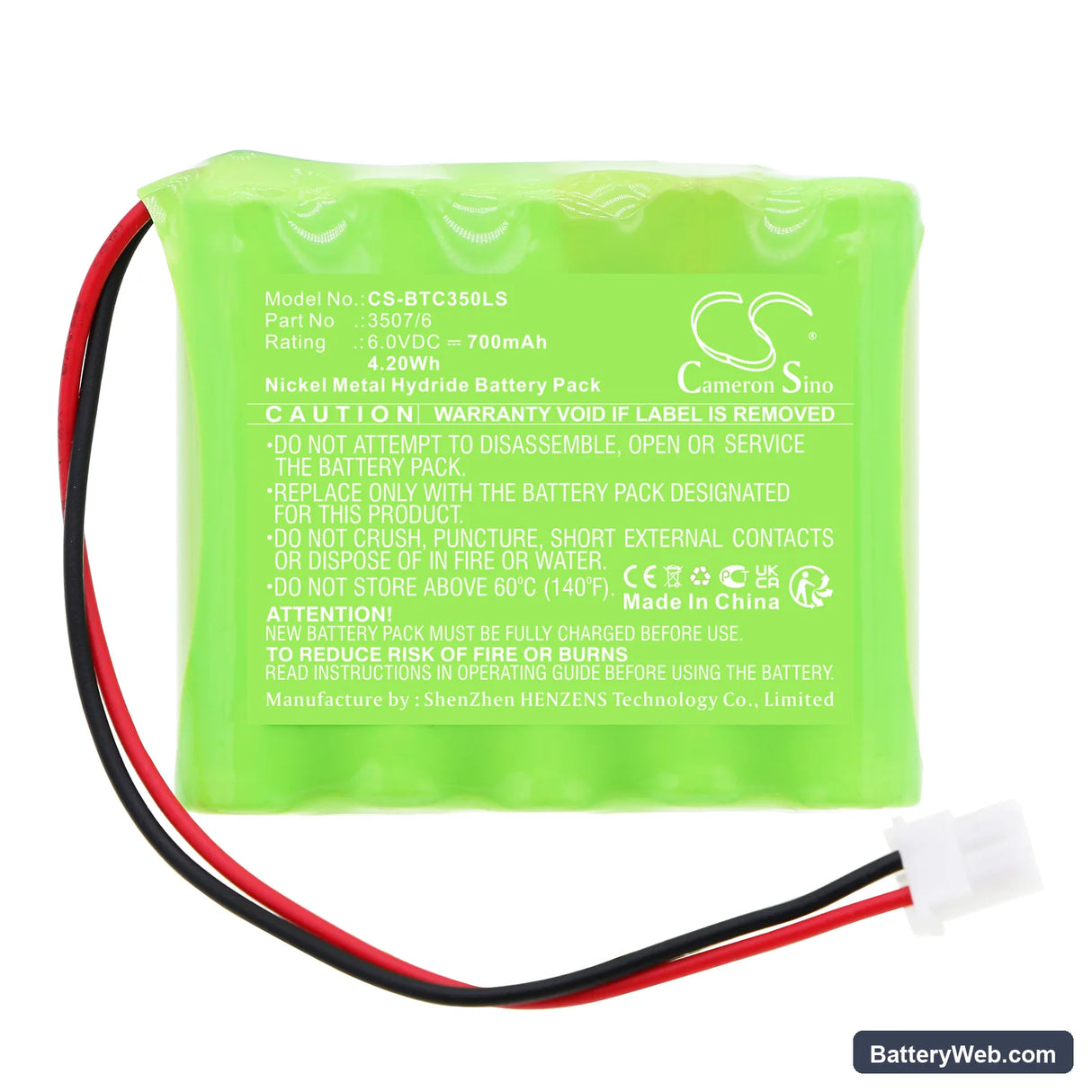

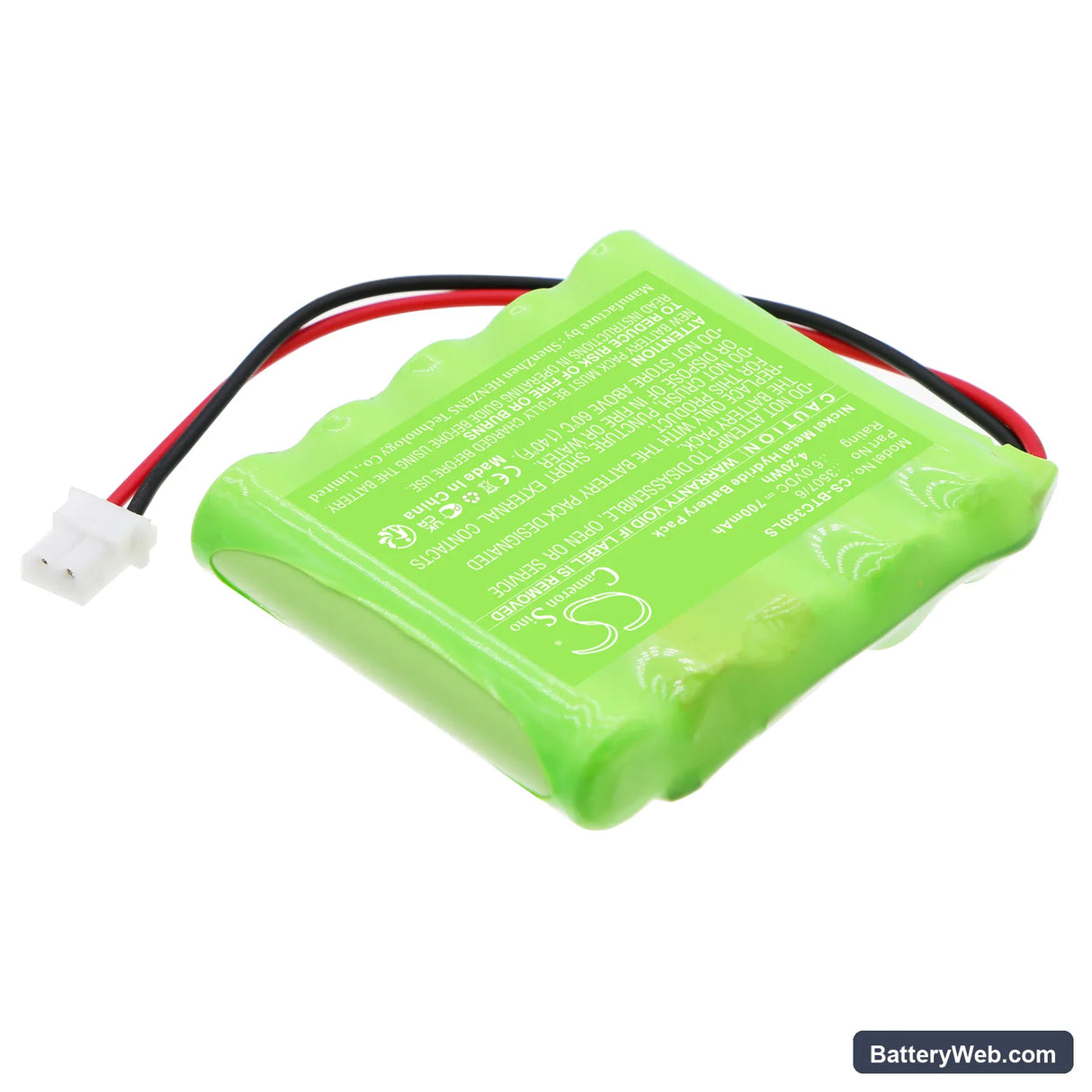

Bticino 3507/6 Replacement Battery 6V 700mAh Ni-MH

Bticino 3507/6 Alarm Panel — 6V 700mAh Ni-MH Replacement Battery (3507/6, LD02430AA)

This is a 6V 700mAh Ni-MH backup battery for Bticino intruder alarm control panels. It fits the 3507/6, N/NT/L4070, 3486, and 4070 series panels, among others. When mains power fails, this cell keeps the panel running — sensor monitoring, zone status, and alert output all depend on it.

• Multi-model fit across 3507 and 4070 series: These panels share the same 6V backup rail, connector footprint, and charge management circuit. The BMS on each model draws float charge at the same rate, so one cell covers all listed variants without modification.
• Bench tested on actual hardware: We ran this cell through a full charge cycle on a 3507/6 panel. The BMS accepted the cell immediately, moved to float charge within the expected window, and held the correct voltage under simulated mains-loss conditions. No fault codes triggered.
• Post-installation conditioning on alarm panels: Do not run a zone or diagnostic test immediately after fitting this cell. Allow 24–48 hours on float charge first. Panels tested before the cell reaches full charge will often flag a low battery fault — this is a reporting threshold issue, not a cell defect.

Alarm panel showing low battery hours after installing a new cell

Bticino panels measure backup battery voltage against a threshold set by the control board firmware. A freshly installed Ni-MH cell sitting at resting voltage — even if undamaged — can read below that threshold until the float charge cycle completes. The panel is not reporting a fault with the cell itself; it is reporting that the backup reserve has not yet reached the minimum accepted voltage for full standby operation. Leave the panel powered on for 24–48 hours. The fault should clear once the cell stabilises at or above 6.0V under float conditions.

Siren not sounding on test after backup battery swap

Some Bticino panels impose a 30–60 second charge-stabilisation delay on the siren output after a battery change or power interruption. During this window, the siren circuit is intentionally suppressed while the panel verifies that the backup cell has reached a stable voltage. Triggering a test during this delay produces no output, which is often mistaken for a wiring fault or a dead cell. Wait at least 60 seconds after the panel completes its startup sequence, then re-run the siren test. If the output remains absent after that window, check the siren zone wiring rather than the battery.
