CAT S42 Replacement Battery 3.85V 4100mAh 596266

CATERPILLAR CAT S42 / S32 — 3.85V Li-Polymer Replacement Battery (596266)

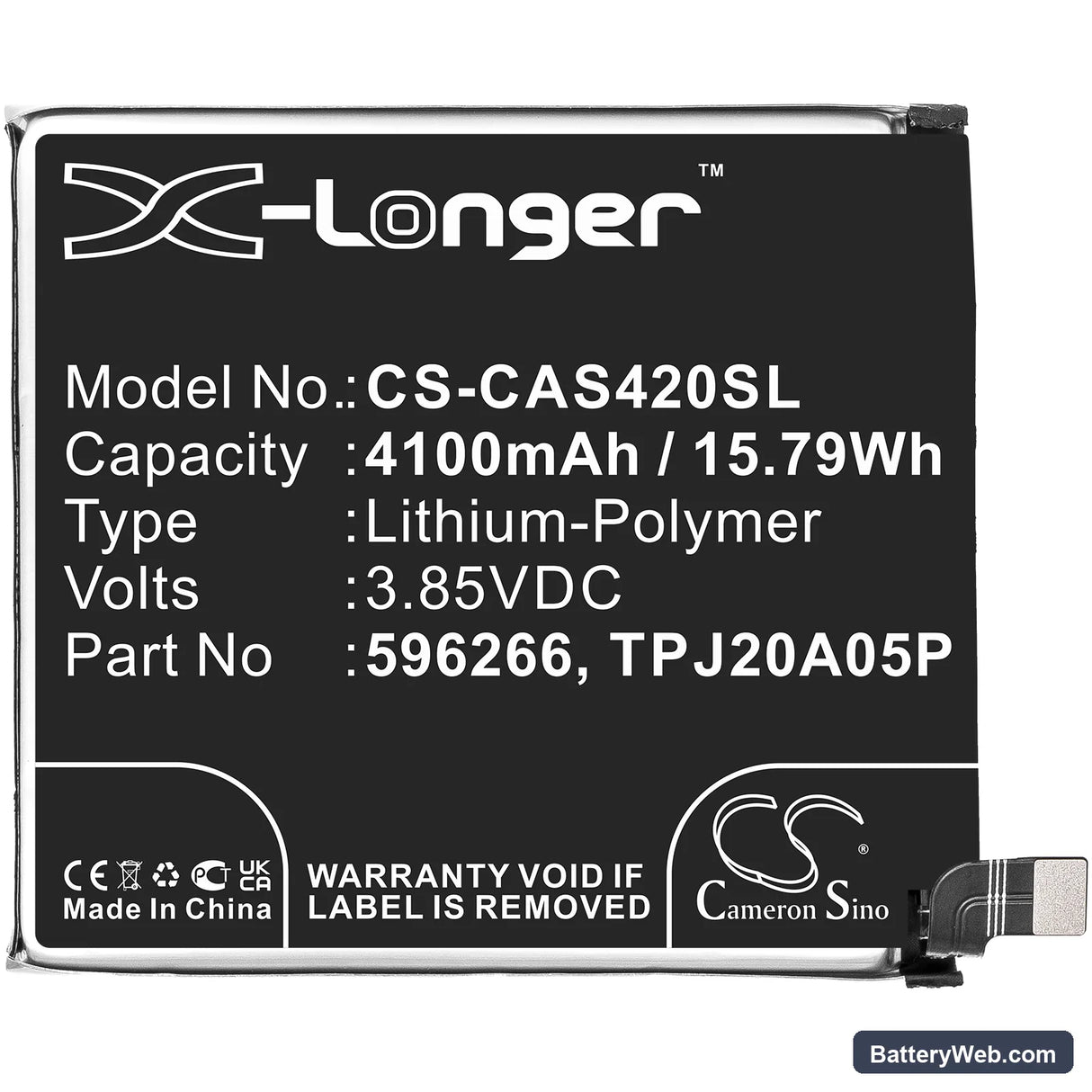

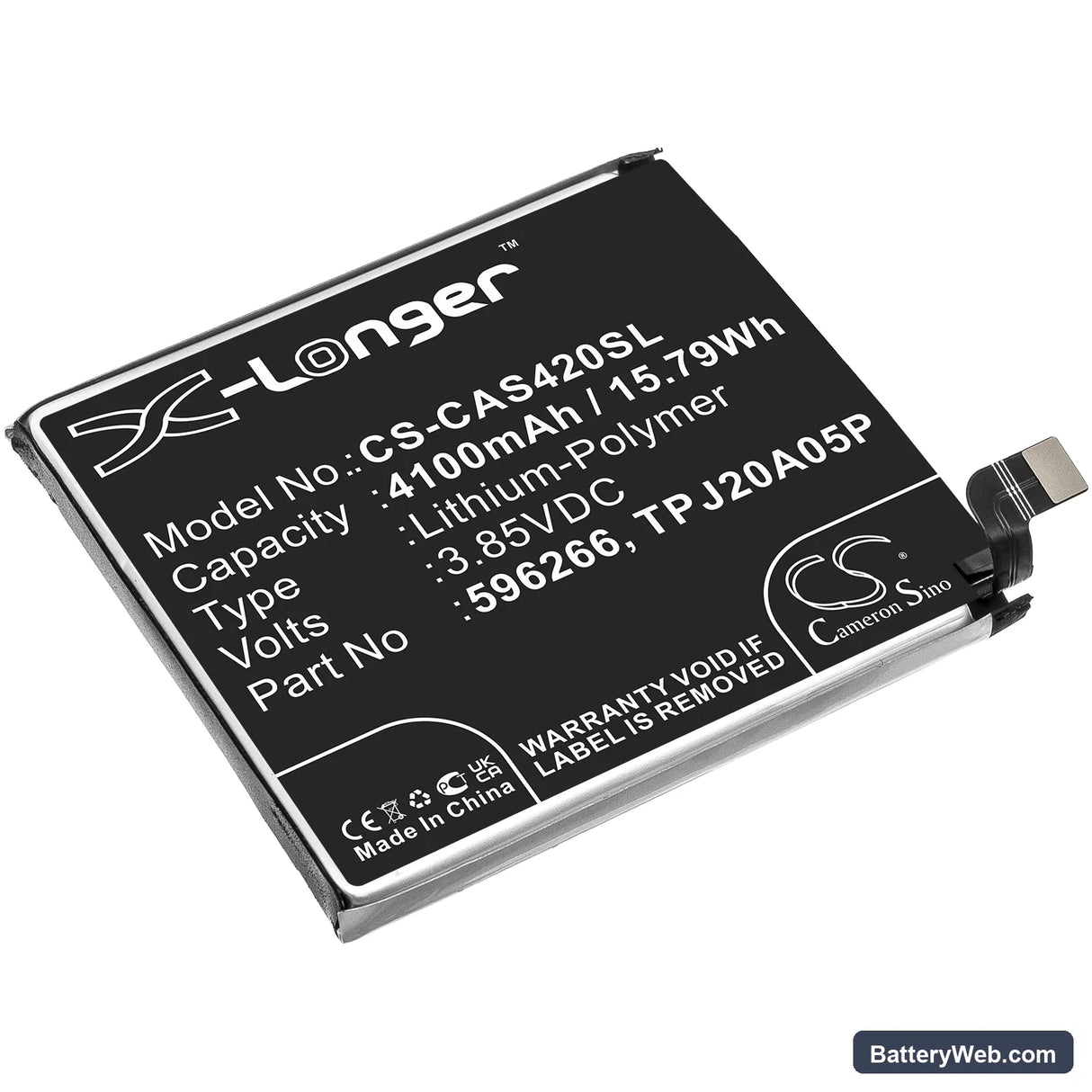

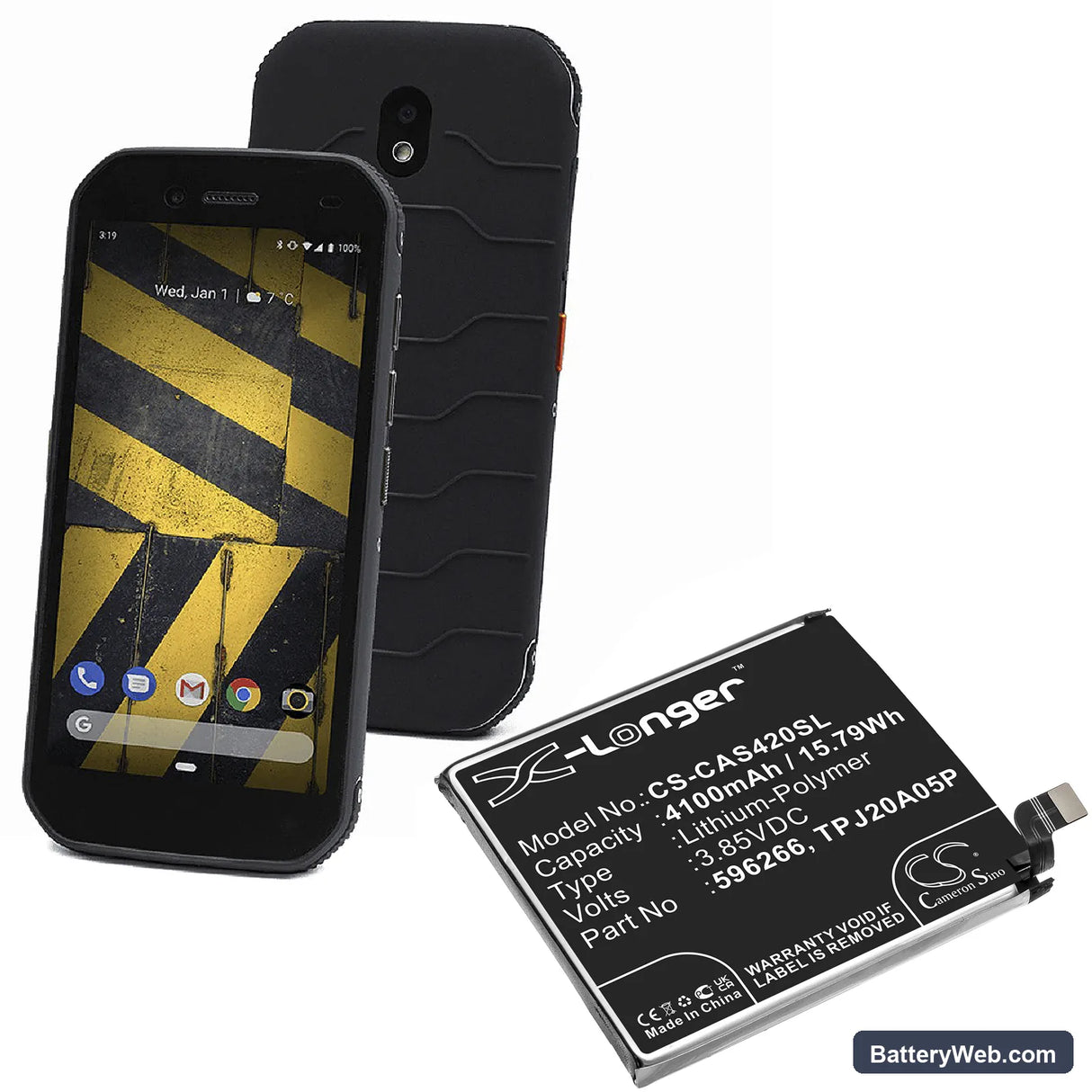

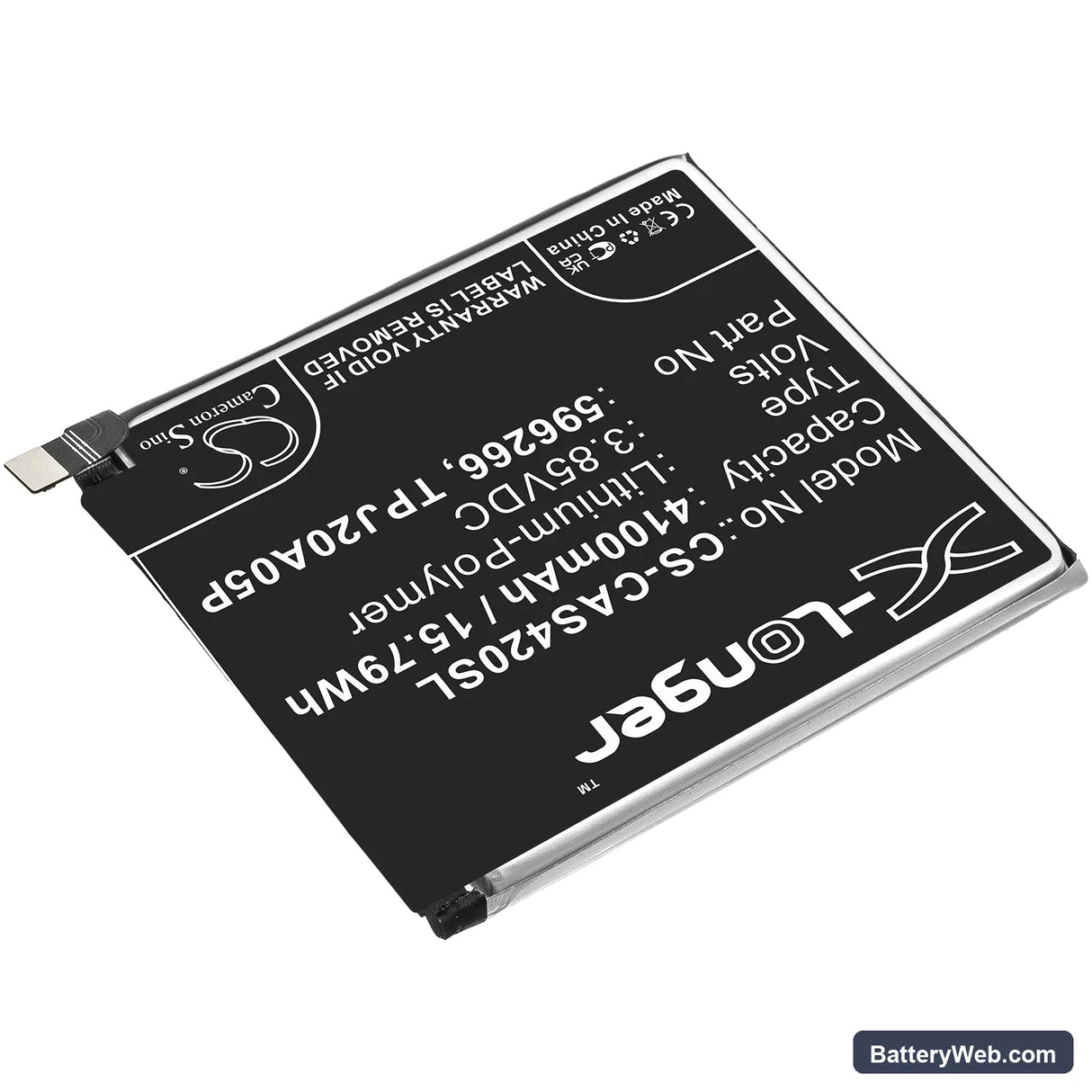

This 3.85V, 4100mAh Li-Polymer cell replaces the original battery in the CAT S42 and CAT S32 rugged smartphones. OEM part numbers 596266 and TPJ20A05P both cross-reference to this cell. Capacity figure is 15.79Wh at the rated voltage.

• CAT S42 and S32 platform fit: Both models share the same battery bay dimensions, connector pinout, and BMS handshake protocol — 68.50 × 61.80 × 6.00mm cell footprint with a matched voltage rail. One cell services either device without modification.
• Bench tested on actual hardware: We ran this cell through the S42's charge IC and verified BMS communication established correctly on first contact. The protection circuit responded to over-current and cutoff events within expected thresholds — no ghost readings or charge refusal on initial cycle.
• Fuel gauge recalibration on first use: After fitting this cell, disable fast charging and run one full discharge down to automatic shutdown, then charge to 100% on standard charge. This gives the S42's fuel gauge IC one complete cycle to map the new cell's discharge curve before high-current charging is applied to an uncalibrated cell.

Sudden shutdown at 20–30% on the CAT S42 after a cell swap

The CAT S42's fuel gauge IC retains the discharge curve from the old cell in non-volatile memory. When the new cell's voltage drops under modem transmit or screen load, the coulomb counter hits a voltage cliff the IC wasn't expecting — the phone cuts power before the reported percentage reaches zero. This is not a faulty cell. One full discharge-to-shutdown cycle followed by a complete charge forces the IC to rewrite its reference curve against the new cell's actual behaviour. After that single calibration cycle, the reported percentage tracks correctly under load.

Phone will not power on after the replacement cell sat in storage

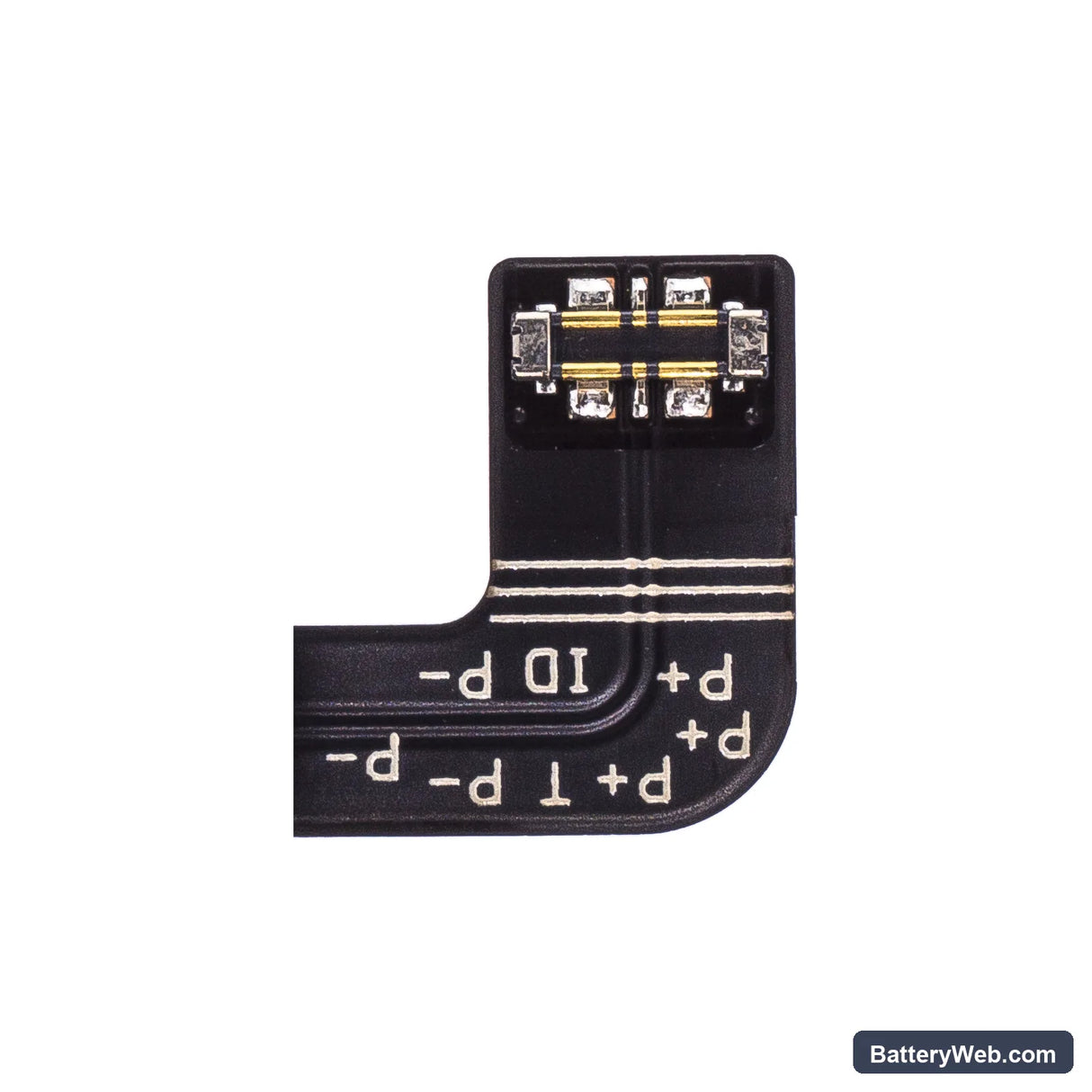

Li-Polymer cells self-discharge in storage, and if the cell voltage drops below approximately 2.5V per cell, the BMS enters lockout mode to prevent damage — the phone shows no response to the power button and no charge indicator. Connect the phone to a wall adapter and leave it for 15–20 minutes before attempting to power on; the charge IC needs time to trickle current into the cell above the BMS re-initialisation threshold. If the charge indicator appears during that window, the BMS has unlocked and normal charging will resume. If no indicator appears after 30 minutes, check that the connector is fully seated on the battery flex cable.
