ComSonics QAM Sniffer 7.4V Li-ion Replacement Battery 101606-001

ComSonics QAM Sniffer — 7.4V Li-ion Replacement Battery (101606-001)

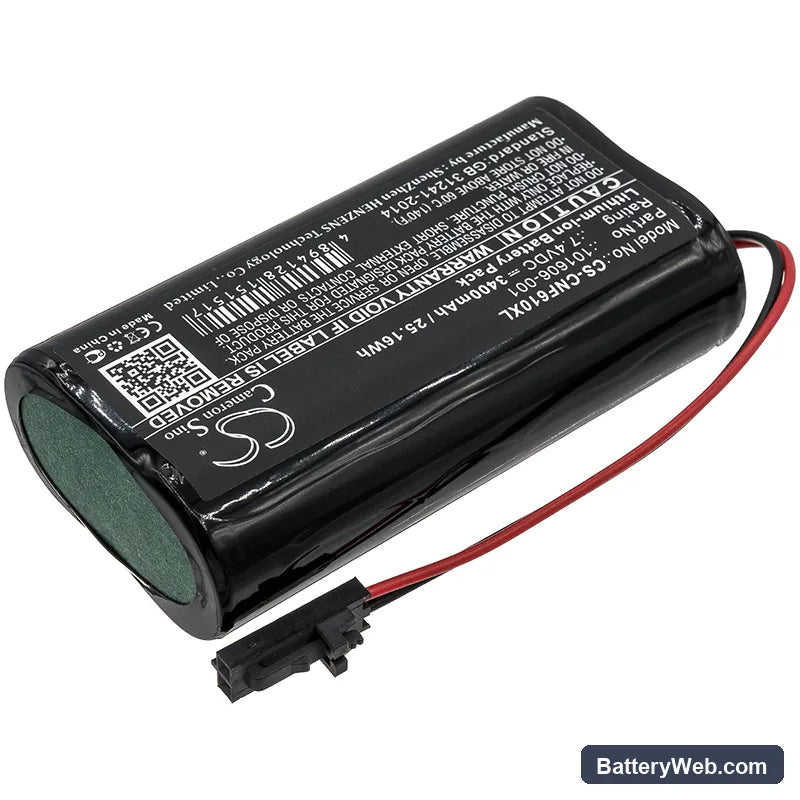

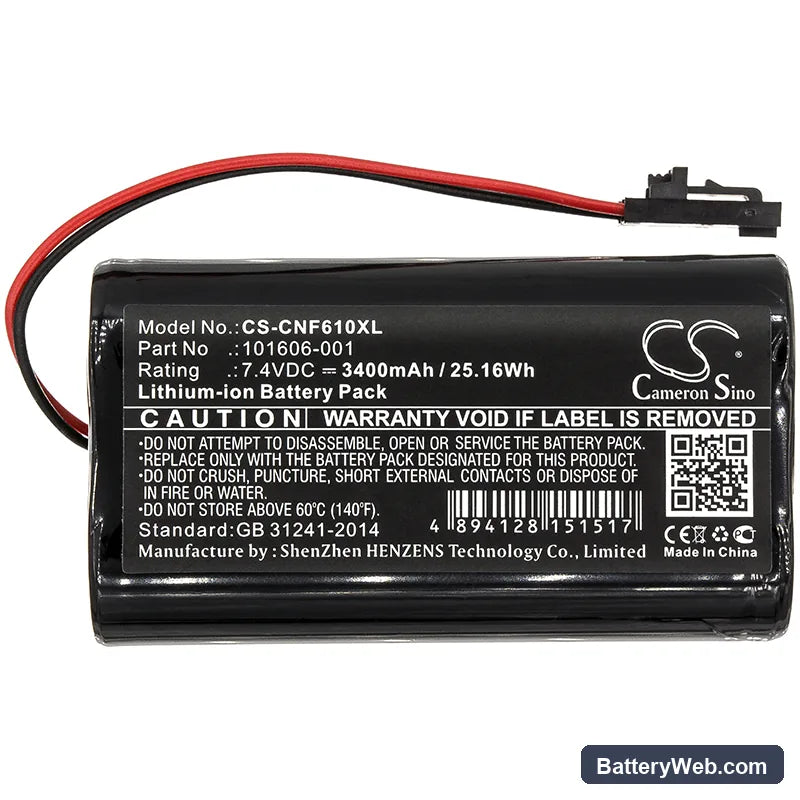

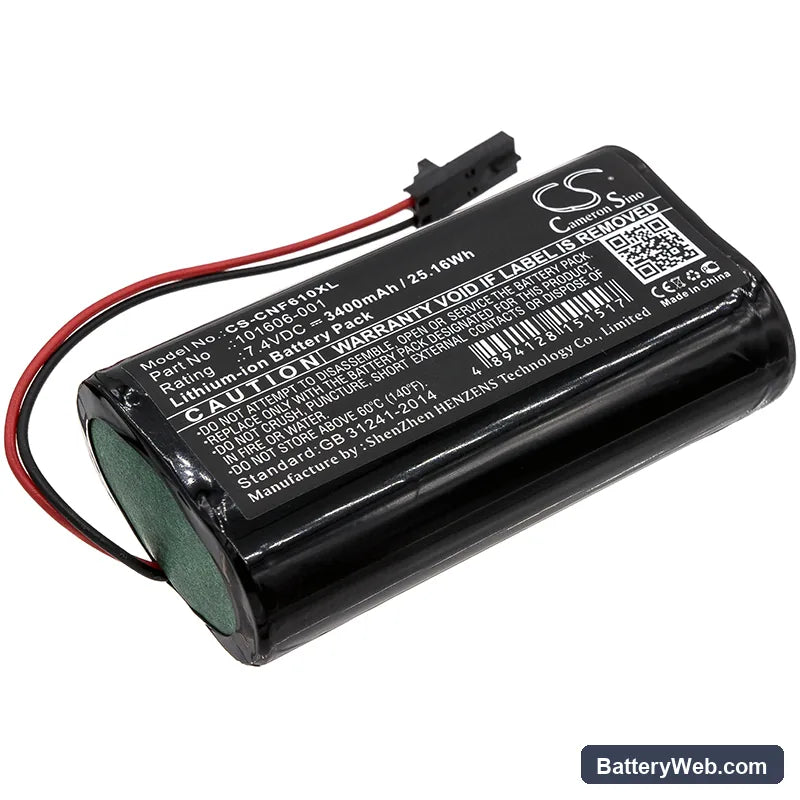

This 7.4V 3400mAh Li-ion battery replaces OEM part 101606-001 in the ComSonics QAM Sniffer (model 101610-DF). The QAM Sniffer is a cable television network analyser used by field technicians to measure signal quality and QAM channel performance on live cable systems. Voltage and cell count match the original pack exactly.

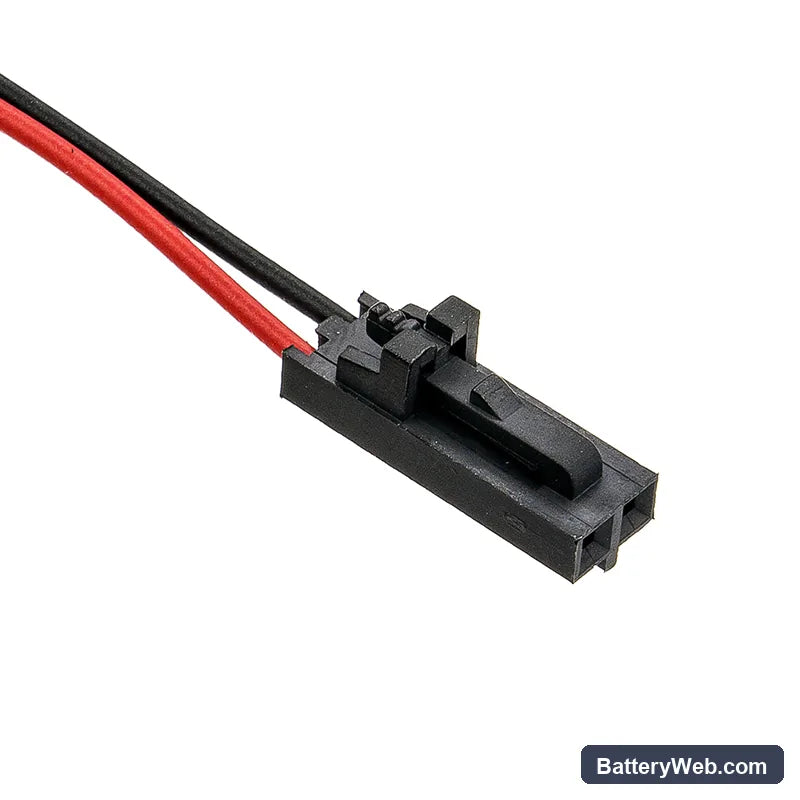

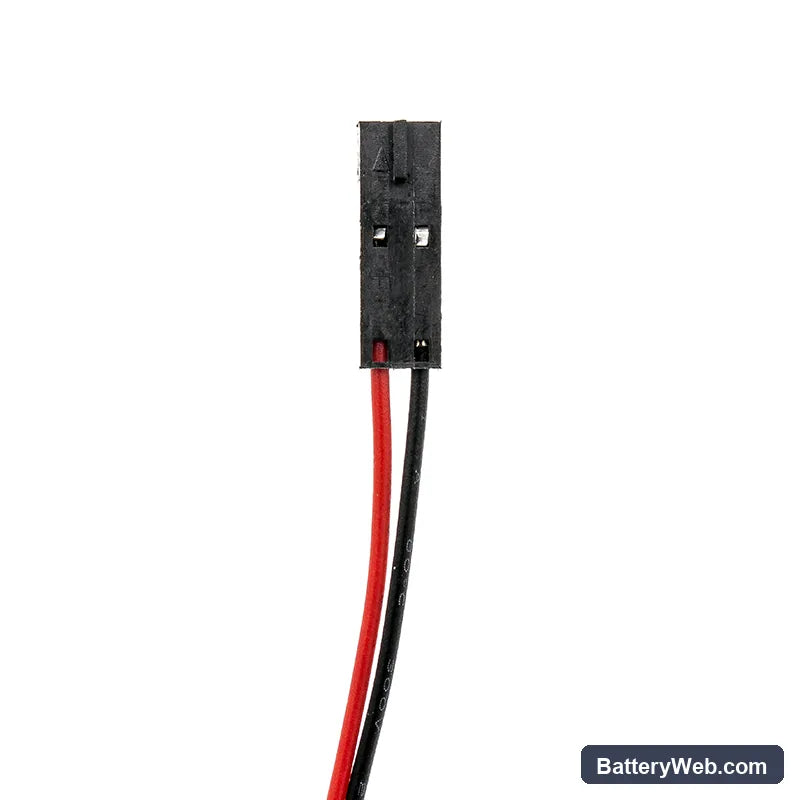

• QAM Sniffer and 101610-DF compatibility: Both the QAM Sniffer and 101610-DF share the same 7.4V two-cell Li-ion architecture, connector pinout, and BMS communication protocol — one battery fits both without modification.
• Bench tested on actual hardware: We cycled this pack through the QAM Sniffer's power-on sequence and RF front-end initialisation. The BMS held stable under the current spike at signal acquisition startup and did not trip a protection cutoff during sustained scanning load.
• First deployment tip for the QAM Sniffer: After fitting this battery, run a full calibration cycle from the instrument's diagnostic menu before heading into the field. The QAM Sniffer maps battery state during calibration — skipping this step causes premature low-battery warnings to appear before the pack is anywhere near depleted.

BMS cutoff during RF channel scan on the QAM Sniffer

When the QAM Sniffer locks onto a channel and fires up its tuner and demodulator simultaneously, the combined current draw spikes sharply for roughly 200–400ms. On a worn or cold cell, this spike crosses the BMS overcurrent threshold and the pack cuts out — even if the displayed charge level looks healthy. This replacement pack uses cells rated for a higher continuous discharge current than the original, which gives the BMS more headroom during that initialisation surge. If the instrument keeps cutting out at the moment of channel lock, check that the battery contacts are clean and fully seated before assuming a fault with the pack itself.

QAM Sniffer won't charge after sitting unused for several months

Li-ion cells that self-discharge below approximately 2.5V per cell (5.0V across the pack) trigger a BMS sleep state — the charger sees no response and stops attempting to charge. Connect the battery to the QAM Sniffer's cradle charger and leave it undisturbed for 20–30 minutes; the charger's trickle stage will attempt to bring cell voltage up to the recovery threshold. If the charge LED remains dark after 30 minutes, check the pack voltage directly across the connector — a reading below 4.8V on a fully discharged two-cell pack means the cells have dropped into deep discharge and recovery is unlikely.
