ComSonics QAM Sniffer — 7.4V Li-ion Replacement Battery (101606-001)

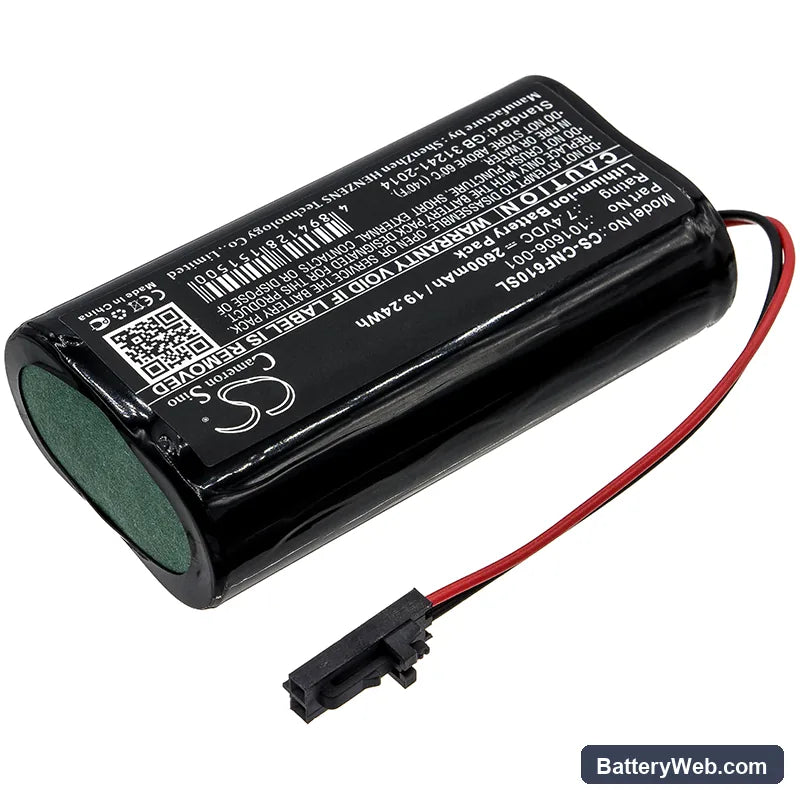

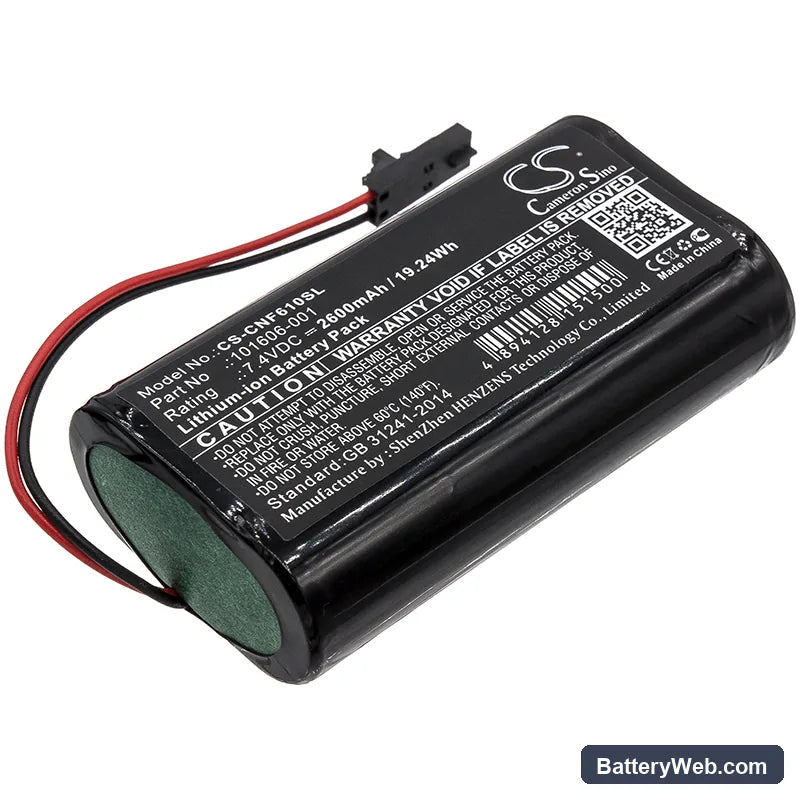

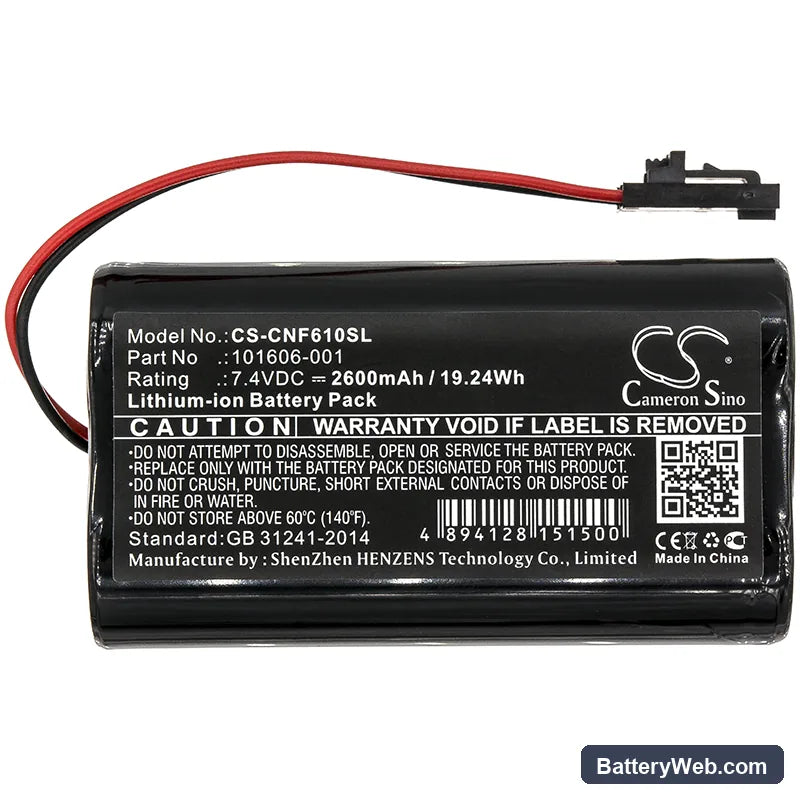

This is a 7.4V, 2600mAh Li-ion battery pack for the ComSonics QAM Sniffer cable network diagnostic instrument. It fits the QAM Sniffer and the 101610-DF variant. Technicians use this device in the field to measure QAM signal quality on live cable systems, so a functioning pack is critical to completing a survey without interruption.

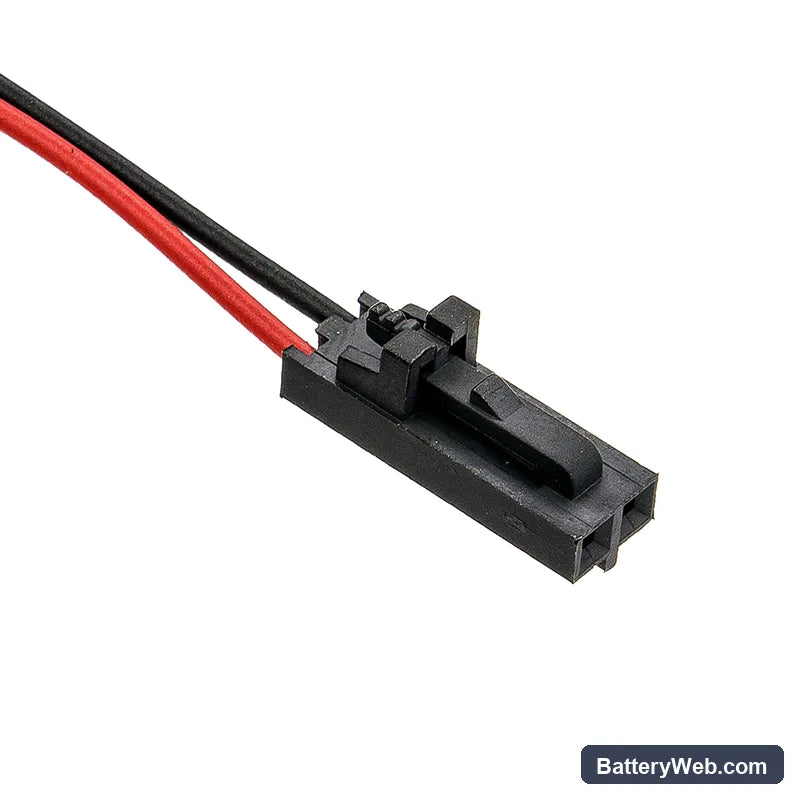

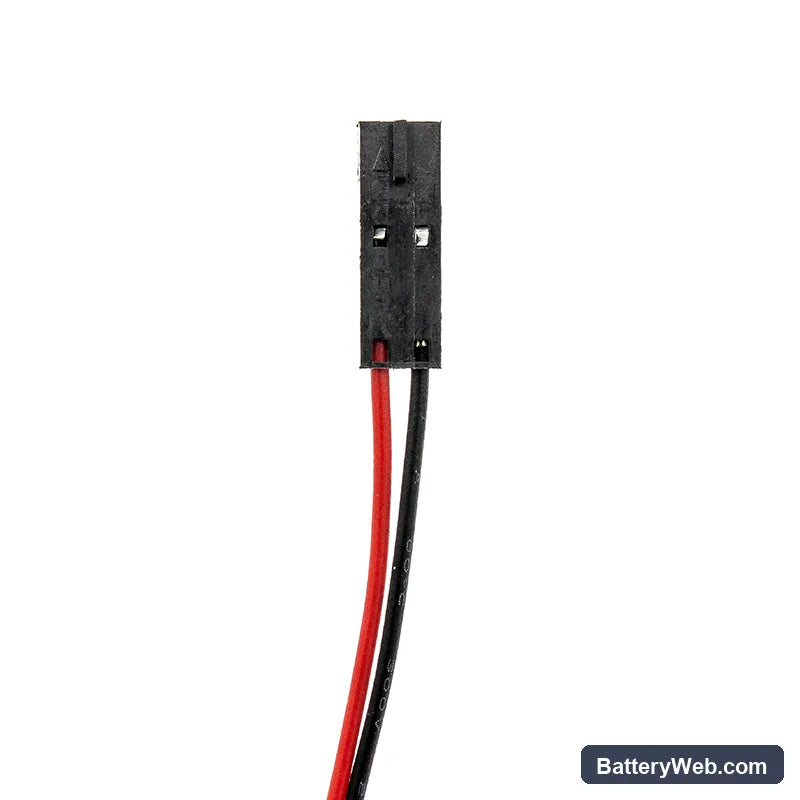

• QAM Sniffer and 101610-DF compatibility: Both units run the same 7.4V power rail and share the identical physical connector and BMS handshake protocol. The same pack services either unit without modification.
• Bench tested on actual hardware: We ran this pack under sustained signal-scanning load and cycled the BMS through charge, discharge, and protection trips. The BMS held cutoff thresholds within spec and recovered cleanly after a simulated deep-discharge event.
• Post-install calibration cycle: After fitting this pack, run a full calibration cycle through the QAM Sniffer's instrument menu before heading into the field. The instrument maps battery state during that process — skipping it causes the low-battery warning to trigger early on the first measurement session, before the pack is actually low.

QAM Sniffer shutting down mid-measurement with a charged pack

The QAM Sniffer draws a short current spike each time it initialises its RF front-end or switches measurement modes. If the BMS sees that spike as an over-current event, it trips the protection circuit and cuts output — even if the pack is at 80% charge. A new pack with a freshly calibrated BMS threshold handles this better than an aged cell whose internal resistance has climbed. If shutdowns happen immediately after mode switching, check that the pack contacts are clean and seated fully before suspecting the pack itself.

Pack will not charge after the instrument sat unused for months

Li-ion cells left unused in a carry case slowly self-discharge. If the pack drops below roughly 2.5V per cell, the BMS enters a sleep state and blocks the charge circuit — the charger sees no load and does nothing. To recover, apply a low-current trickle charge of around 0.1C for 15–20 minutes to bring the cell voltage above the BMS wake threshold, then connect the standard charger. If the pack does not respond above 3.0V per cell after trickle recovery, the cells have passed the point of safe recovery and the pack should be replaced.
