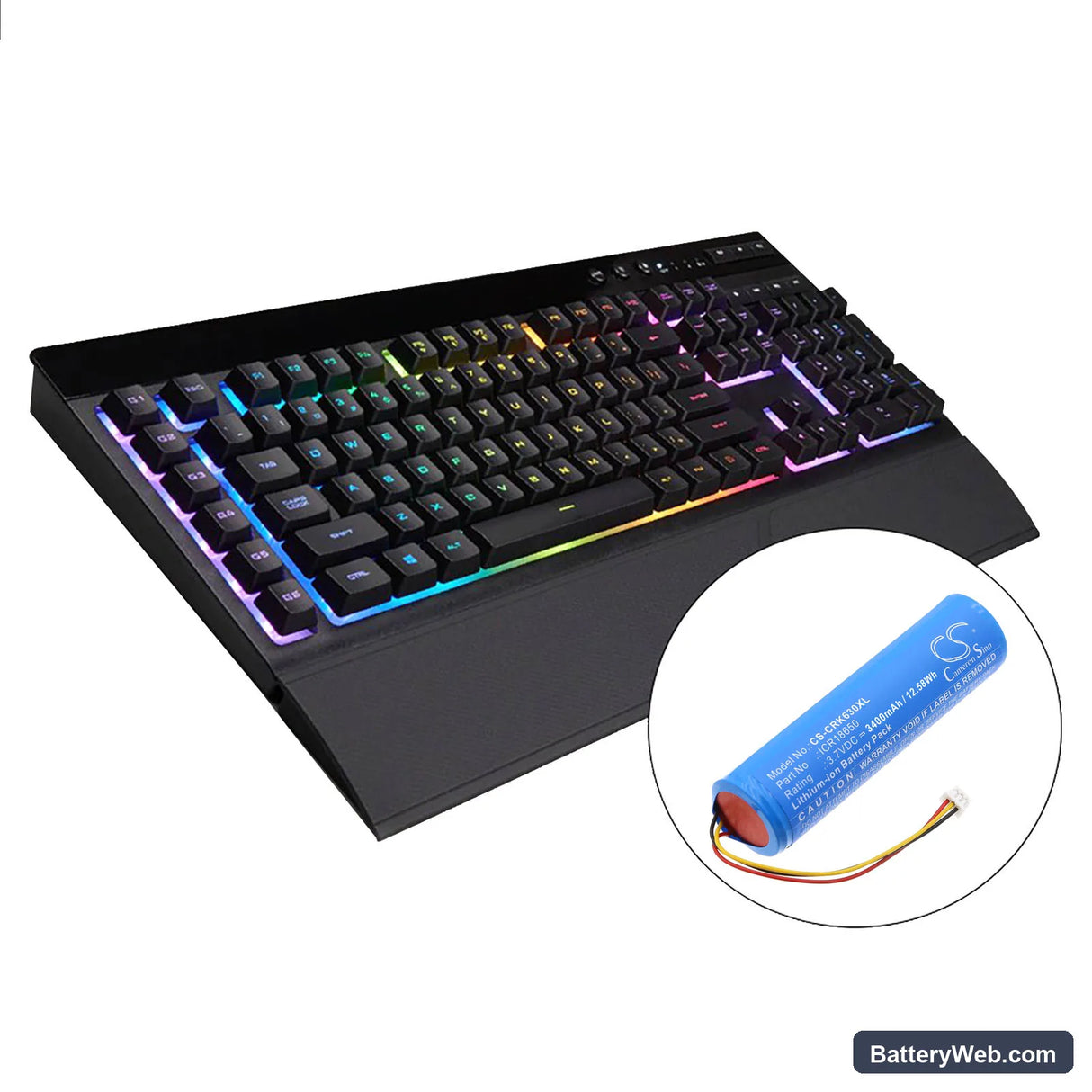

Corsair K63 Wireless Replacement Battery 3.7V 3400mAh

Corsair K63 Wireless Mechanical Gaming Keyboard — 3.7V Li-ion Replacement Battery (ICR18650)

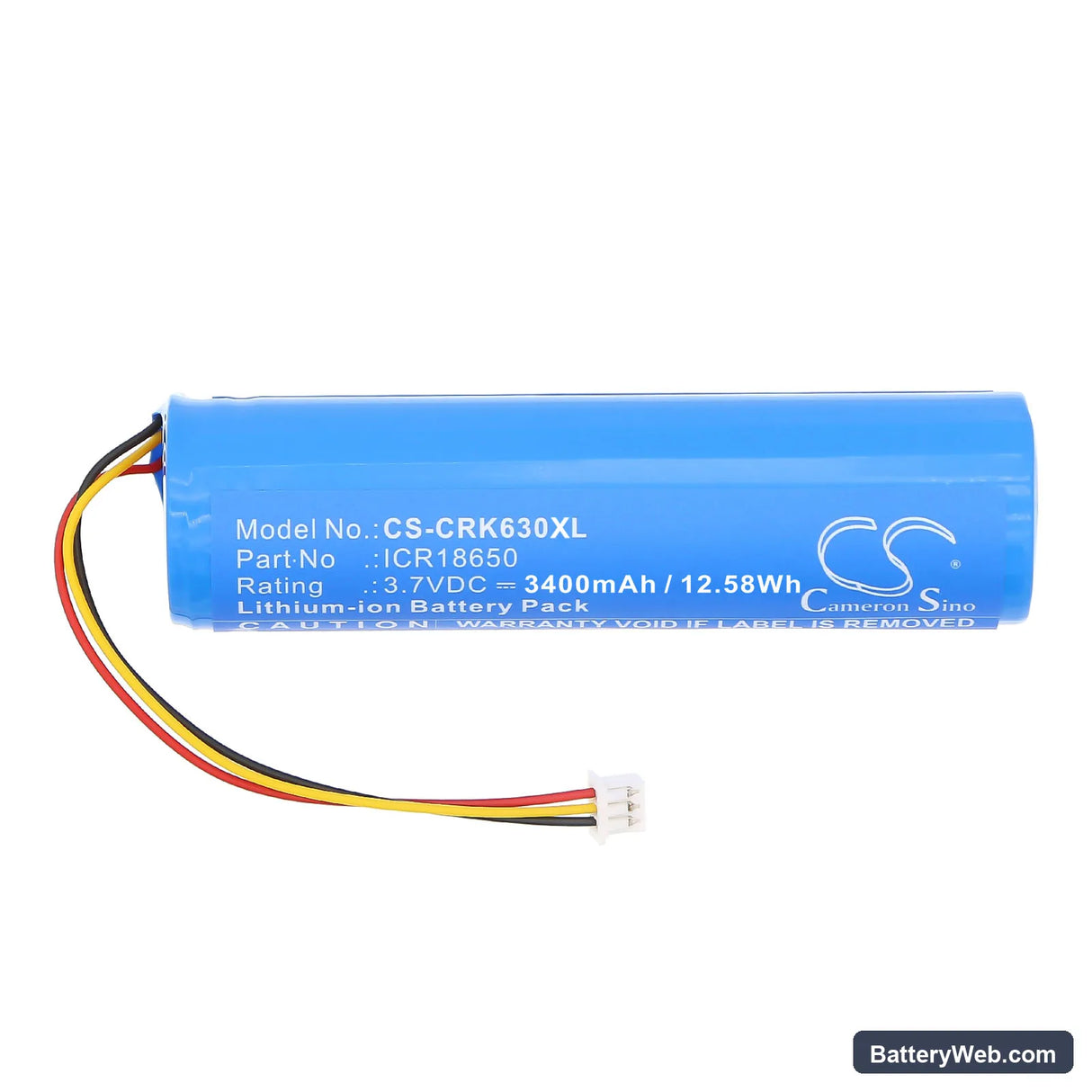

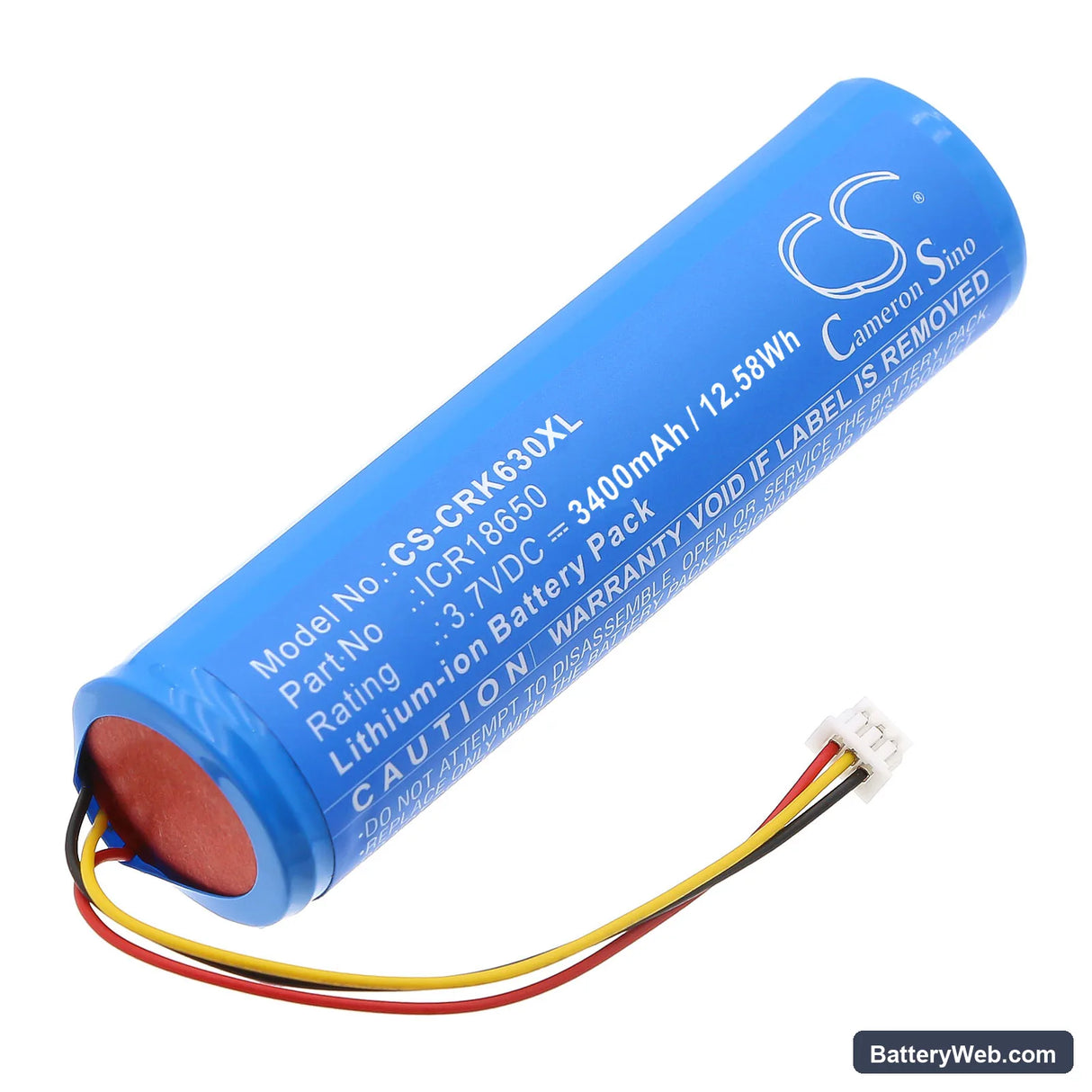

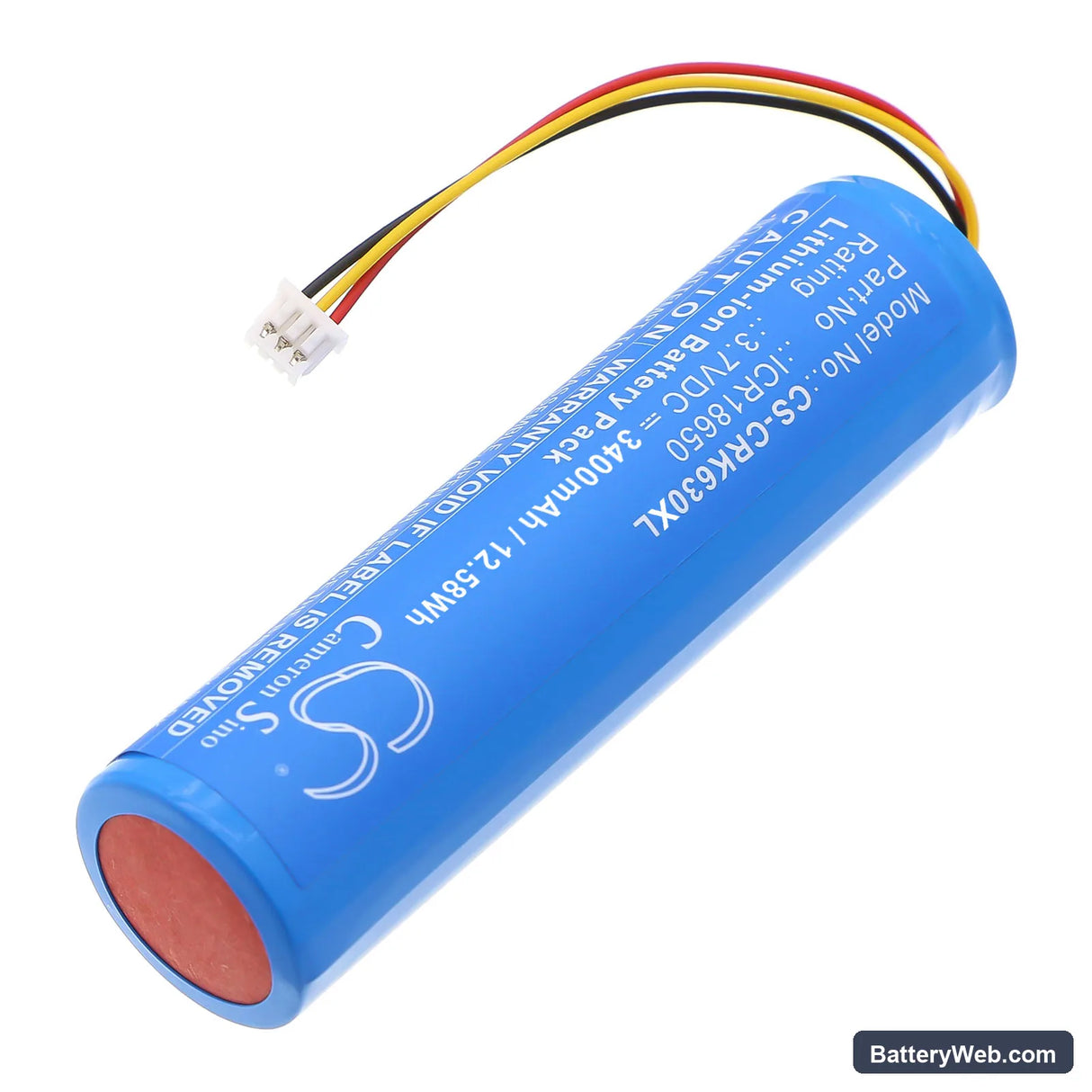

This is a 3.7V 3400mAh Li-ion ICR18650 cell for the Corsair K63 Wireless Mechanical Gaming Keyboard. It replaces the internal rechargeable cell when capacity has dropped and the keyboard no longer holds a useful charge between sessions. At 12.58Wh, it matches the original cell specification for the K63 platform.

• K63 Wireless platform fit: The K63 Wireless uses a single ICR18650 cell housed in an internal battery bay. The BMS on the K63 communicates with this standard 18650 format directly — no proprietary connector or authentication handshake is required, so the swap is straightforward once the back panel is removed.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the K63 platform and confirmed the BMS accepted the cell without flagging a fault. Charging terminated correctly at 4.2V and the protection circuit triggered at the expected low-voltage cutoff.
• RGB lighting draw on the K63: Per-key RGB backlighting runs continuously during active use and draws significantly more current than non-lit wireless keyboards. Reducing brightness or switching to a static lighting profile reduces current draw and extends time between charges noticeably.

Keyboard pairing lost after battery swap on the K63 Wireless

When the K63 Wireless loses power completely — including during a cell swap — the keyboard can drop its pairing with the USB receiver. The receiver stores the pairing on its end, but the keyboard side resets to an unpaired state after a full power interruption. To re-pair, plug the USB receiver into the same port it was previously on, then hold the pairing button on the underside of the K63 for three seconds until the backlight flashes. The keyboard should reconnect within ten seconds.

K63 Wireless battery draining faster than expected after a few months

Li-ion cells in wireless gaming keyboards degrade faster when they are regularly discharged below 3.0V before recharging — a pattern common with keyboards left idle until the low-battery warning appears. Each deep discharge cycle accelerates capacity fade in ICR-chemistry cells. The K63 does not display a battery percentage by default, so the first visible sign is often a noticeably shorter charge interval rather than a sudden failure. Recharge when the low-battery indicator first activates rather than waiting for the keyboard to shut off — this keeps the cell cycling above 3.2V and slows capacity loss.
