Dell ALWA51M Alienware Replacement Battery 11.4V 7850mAh

Dell Alienware Area 51m ALWA51M Series — 11.4V Li-Polymer Replacement Battery (07PWXV)

This is an 11.4V Li-Polymer replacement battery rated at 7850mAh (89.49Wh) for the Dell Alienware Area 51m. It fits the ALWA51M-D1746B, ALWA51M-D1968B, ALWA51M-D1766B, ALWA51M-D1748DB, and over 30 additional ALWA51M variants. OEM part numbers 07PWXV, 7PWKV, and DT9XG all cross-reference to this cell.

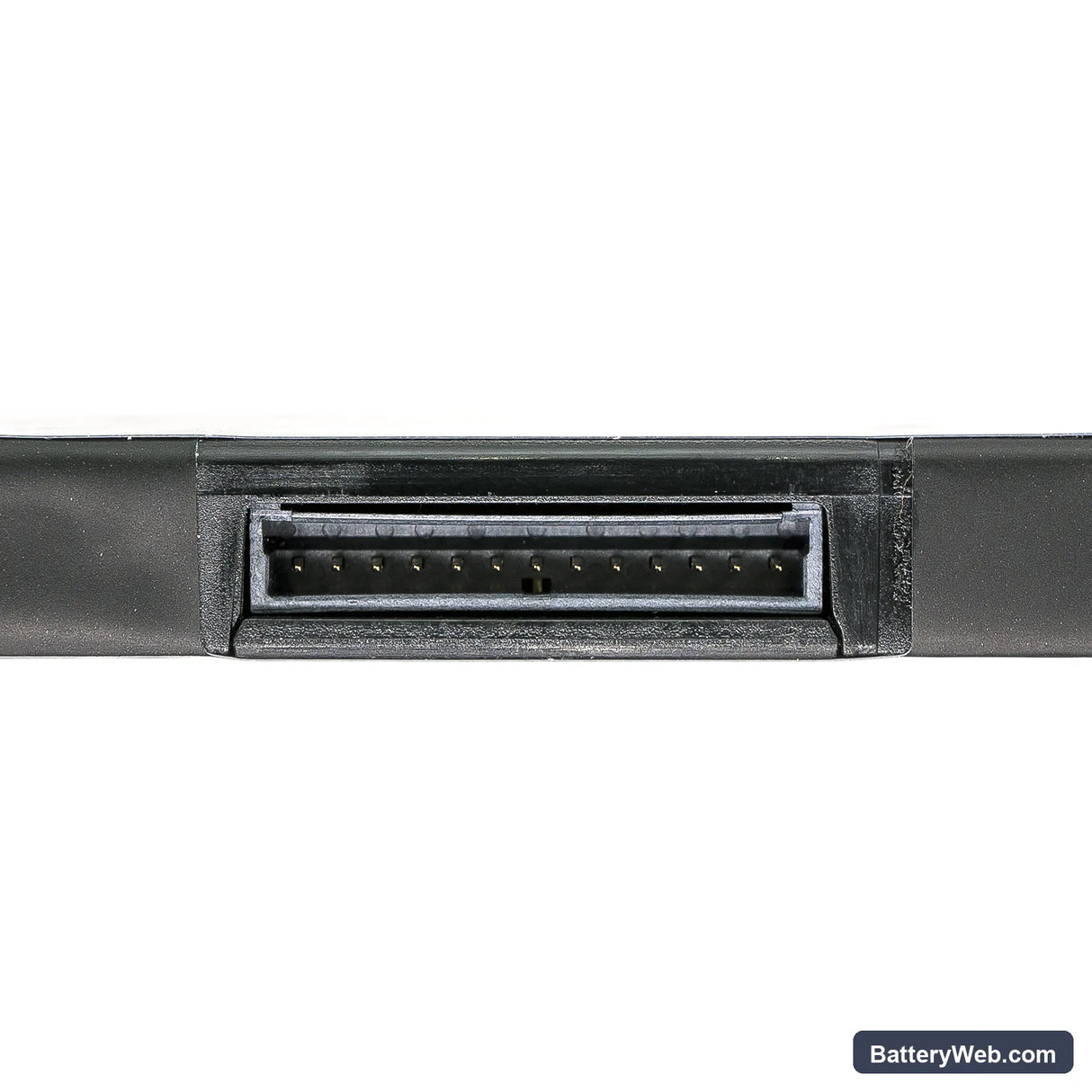

• ALWA51M platform compatibility: All Area 51m units in this series share the same 11.4V three-cell architecture, connector pinout, and BMS handshake protocol. The firmware on every ALWA51M variant expects the same EEPROM identifiers that this cell carries — swapping in a mismatched battery triggers an immediate BMS rejection.
• Bench tested on actual hardware: We cycled this cell under sustained CPU and GPU load on an ALWA51M chassis. The BMS held the charge rail steady through repeated high-draw spikes and completed full charge cycles without tripping protection flags.
• Post-install calibration on the Area 51m: After fitting this cell, run the laptop down to hibernate cutoff on battery power alone, then charge uninterrupted to 100%. This single discharge-charge cycle resets the BIOS battery learn cycle and clears the false "poor health" warning that appears in Dell's battery diagnostics after every cell swap.

Why the ALWA51M shuts down at 20–30% after a battery swap

The Area 51m's fuel gauge IC builds a discharge model around the original cell's impedance curve. After a swap, that model no longer matches the new cell's actual voltage behavior under load. When the CPU and dual-GPU rail spike simultaneously, the battery voltage drops sharply — faster than the old model predicts. The BIOS interprets this voltage cliff as a critically low state and forces an emergency shutdown even though the displayed percentage reads well above zero. Running two full calibration cycles syncs the fuel gauge to the new cell and moves that cutoff point back to where it belongs.

BIOS showing wrong Wh rating after fitting a replacement cell

Dell's battery health report pulls watt-hour data directly from the cell's EEPROM rather than measuring the chemistry live. If the EEPROM-stored value differs from what the BIOS expects — a common occurrence when the replacement cell carries updated firmware — the reported Wh will not match the sticker spec. This is a data mismatch, not a capacity fault. Complete the calibration cycle described above; after a full charge the BIOS re-reads the EEPROM and most units update to the correct 89.49Wh figure automatically.
