Dirt Devil BD30025 Replacement Battery 14.8V 2500mAh

Dirt Devil BD30025 Series — 14.8V Li-ion Replacement Battery (130438001)

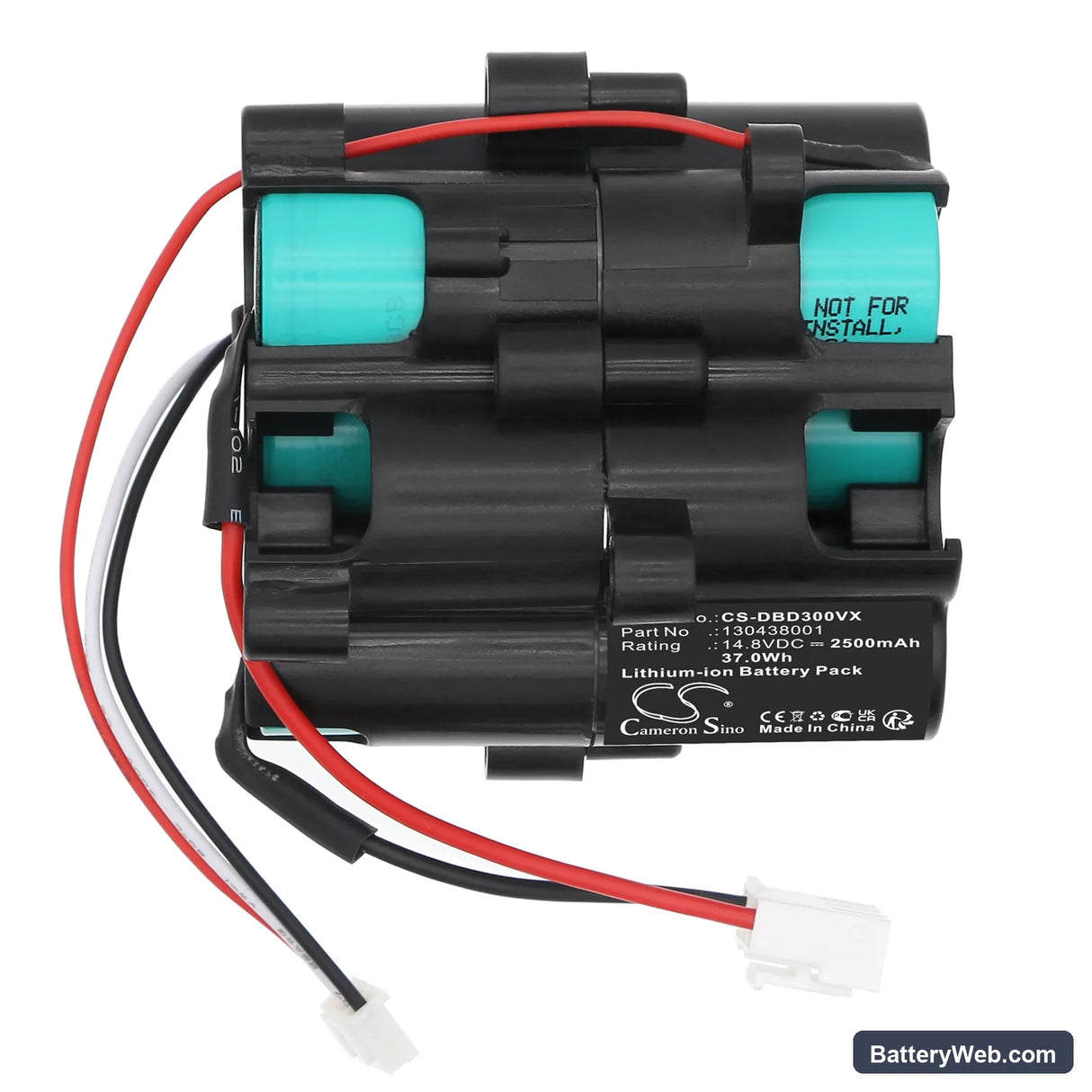

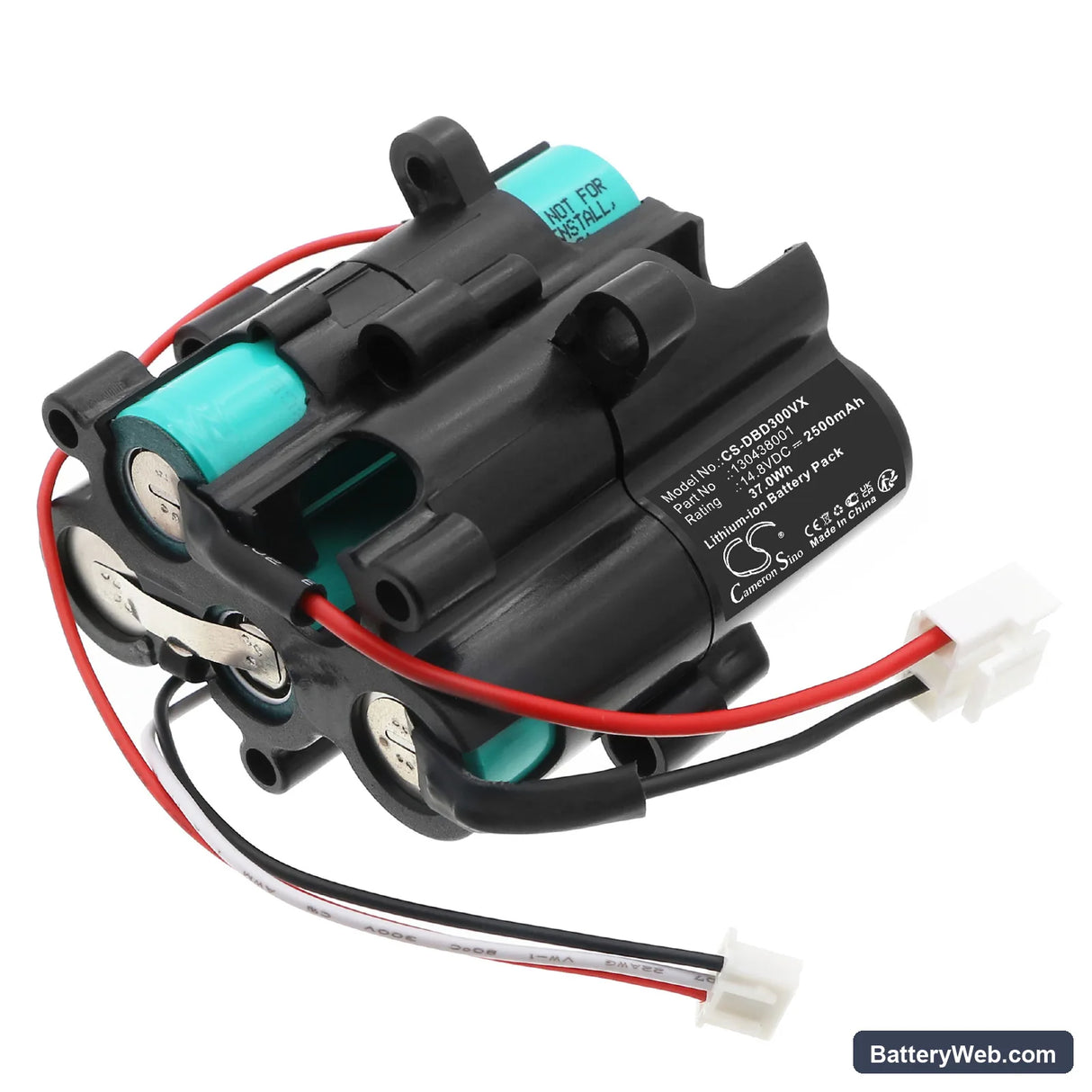

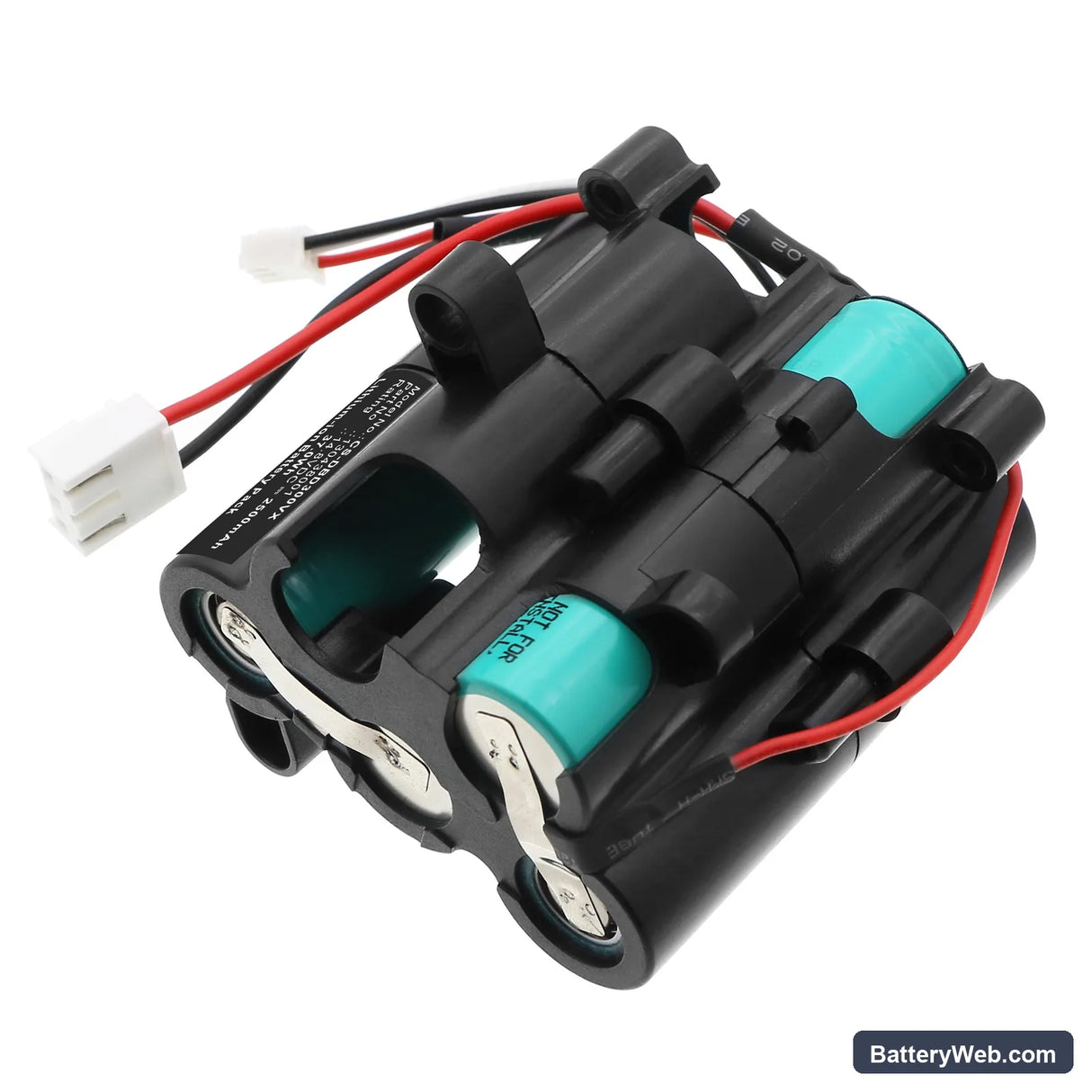

This is a 14.8V, 2500mAh Li-ion battery pack for the Dirt Devil BD30025, BD30025B, BD30225, and Quick Flip Plus Cordless 16V Lithium Ion Bagless Handheld Vacuum. It slots directly into the same housing as the original pack and uses the same BMS communication the charger expects. Capacity is rated at 37Wh.

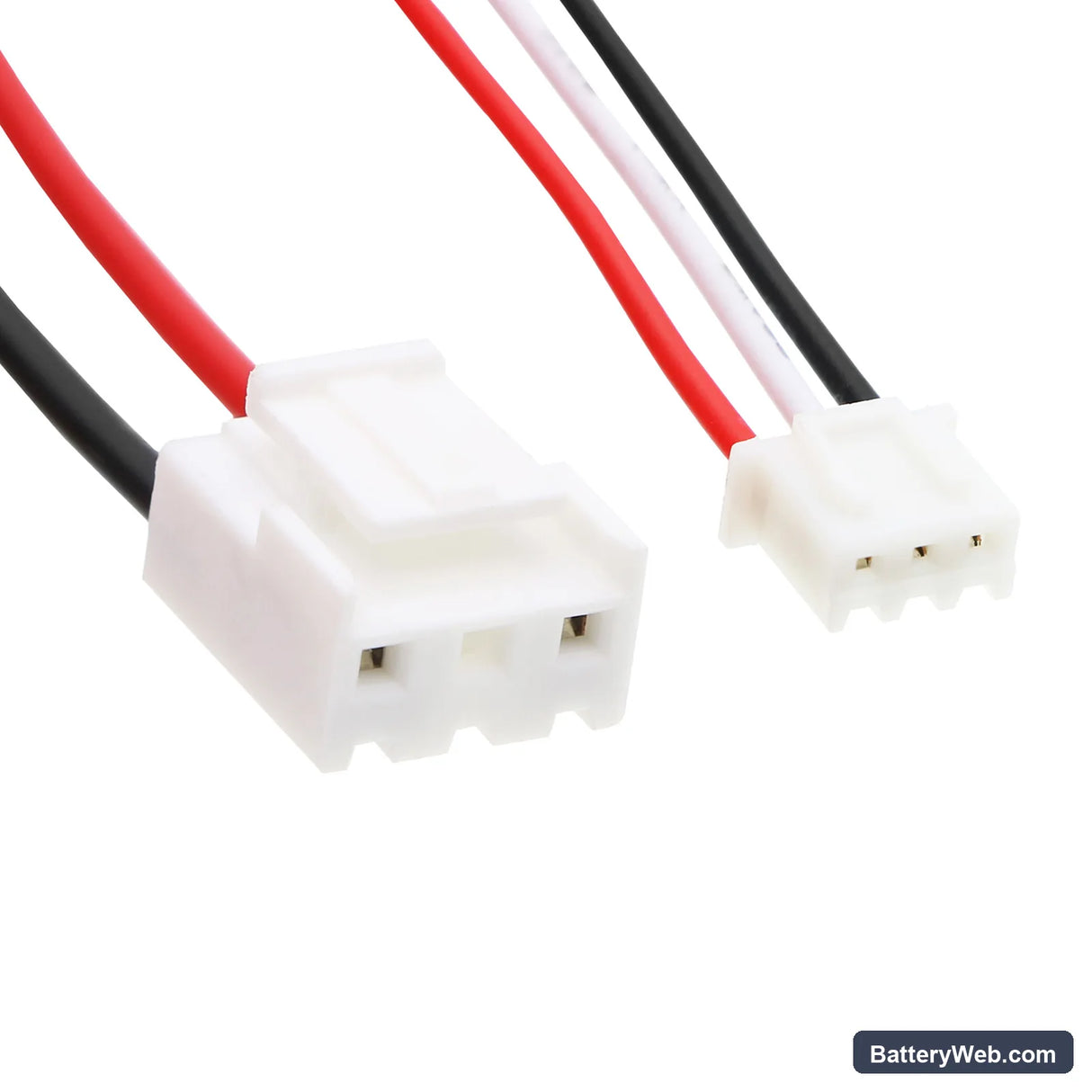

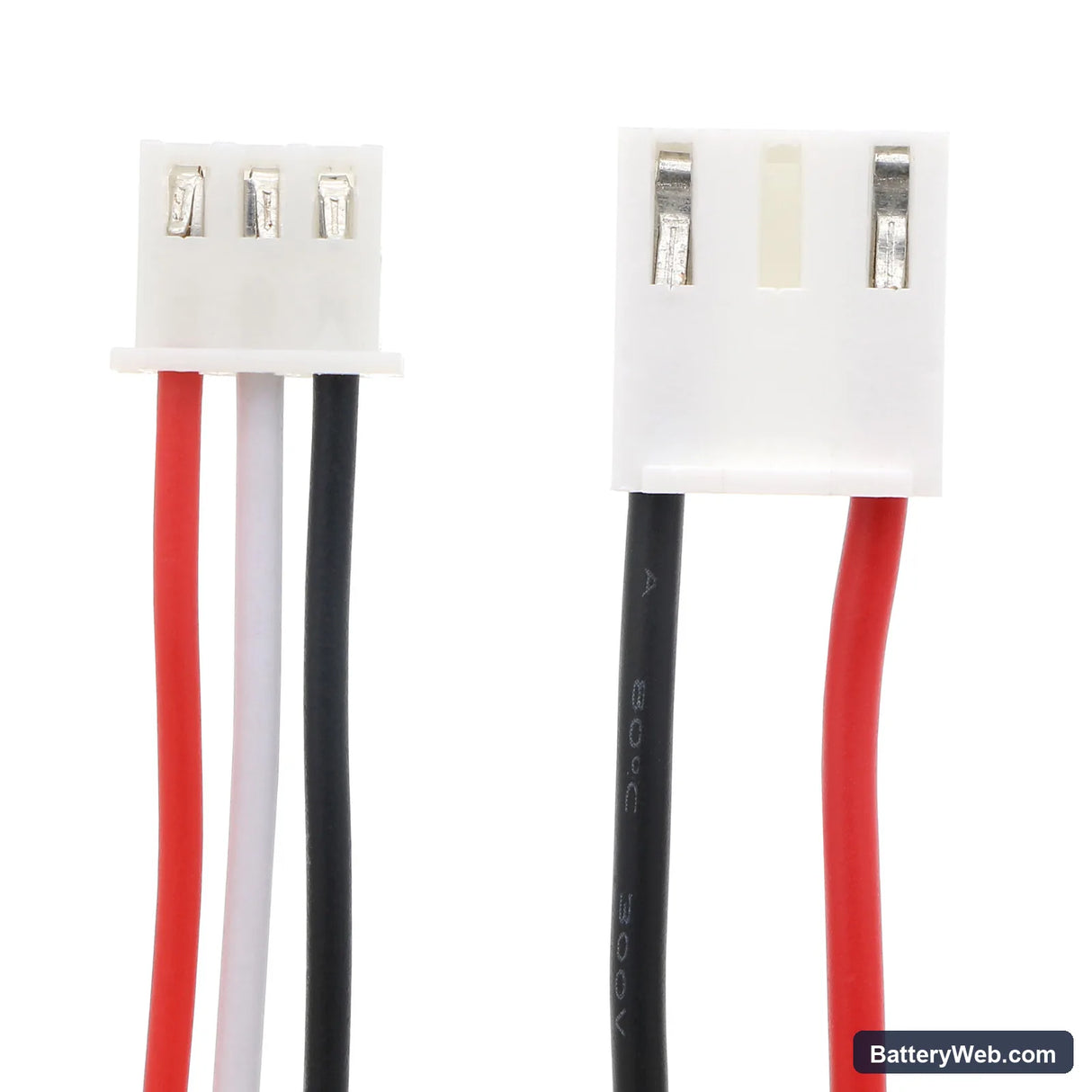

• BD30025 and BD30225 compatibility: Both models share the same 14.8V nominal voltage rail, physical battery housing, and connector pinout. The BMS handshake protocol is identical across the range, so one cell pack covers the full BD300-series lineup.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on BD30025 hardware. The BMS responded correctly to the charger's authentication signal, held voltage above 13.5V under sustained motor load, and tripped appropriately when current exceeded safe draw limits.
• Dock charging on the Quick Flip Plus: Do not leave this vacuum on the charging dock continuously. Constant trickle charge compresses cell capacity over time. Charge to full, then remove the unit from the dock until the next use.

Cordless vacuum losing suction before the battery indicator reaches low

On the BD30025, suction can drop noticeably while the battery indicator still shows a mid or high charge level. This happens when the motor draws higher-than-rated current through a partially blocked filter or a restricted airpath — voltage sags under the elevated load even though cell capacity is not exhausted. The BMS reads the voltage sag as a low-power condition and reduces output to protect the cells. Clear the filter and check the inlet before concluding the battery is the fault.

Motor cuts out mid-clean and then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When airflow is restricted — most often a clogged foam filter or a blockage at the floor nozzle — the motor works harder and draws a current spike above the BMS threshold. The BMS shuts the pack down to prevent cell damage, and after a short cooling period it resets automatically. Remove the filter, rinse it, and let it dry fully before reinserting. If the cutout repeats immediately after cleaning the filter, check the inlet tube for a blockage before testing with a fresh battery.
