Dreame H10 Cordless Vacuum Replacement Battery VWV8 21.6V 4000mAh

Up to 19% off
New arrival
From $91.99 USD $113.99
Shipping calculated at checkout.
Fits Dreame H10, H11, H12 Max, H12s and related models; replaces OEM part numbers VWV8, HHR24A, SZ2101.
This 21.6V 4000mAh pack delivers 86.4Wh — enough capacity to maintain motor voltage under sustained suction load on carpet.

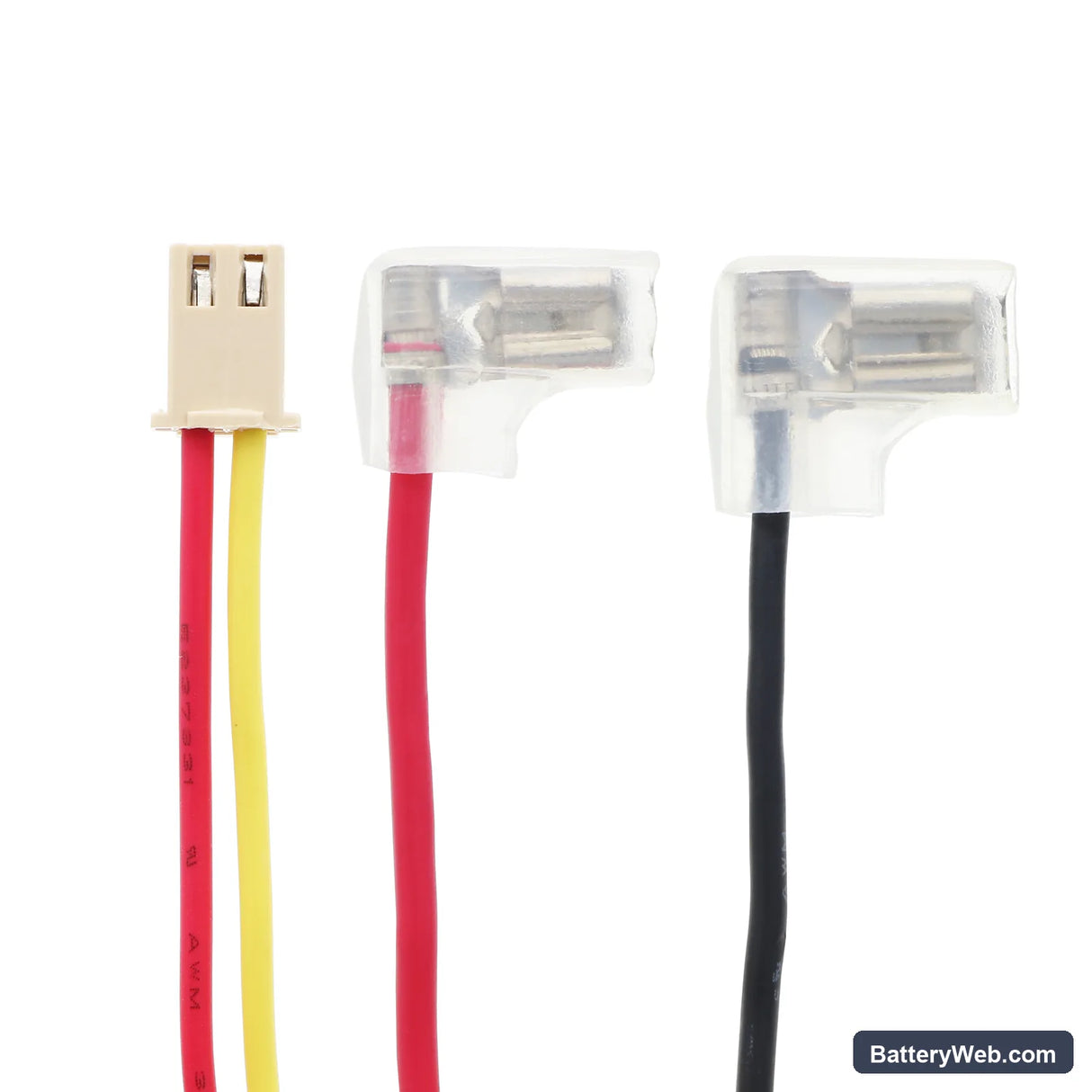

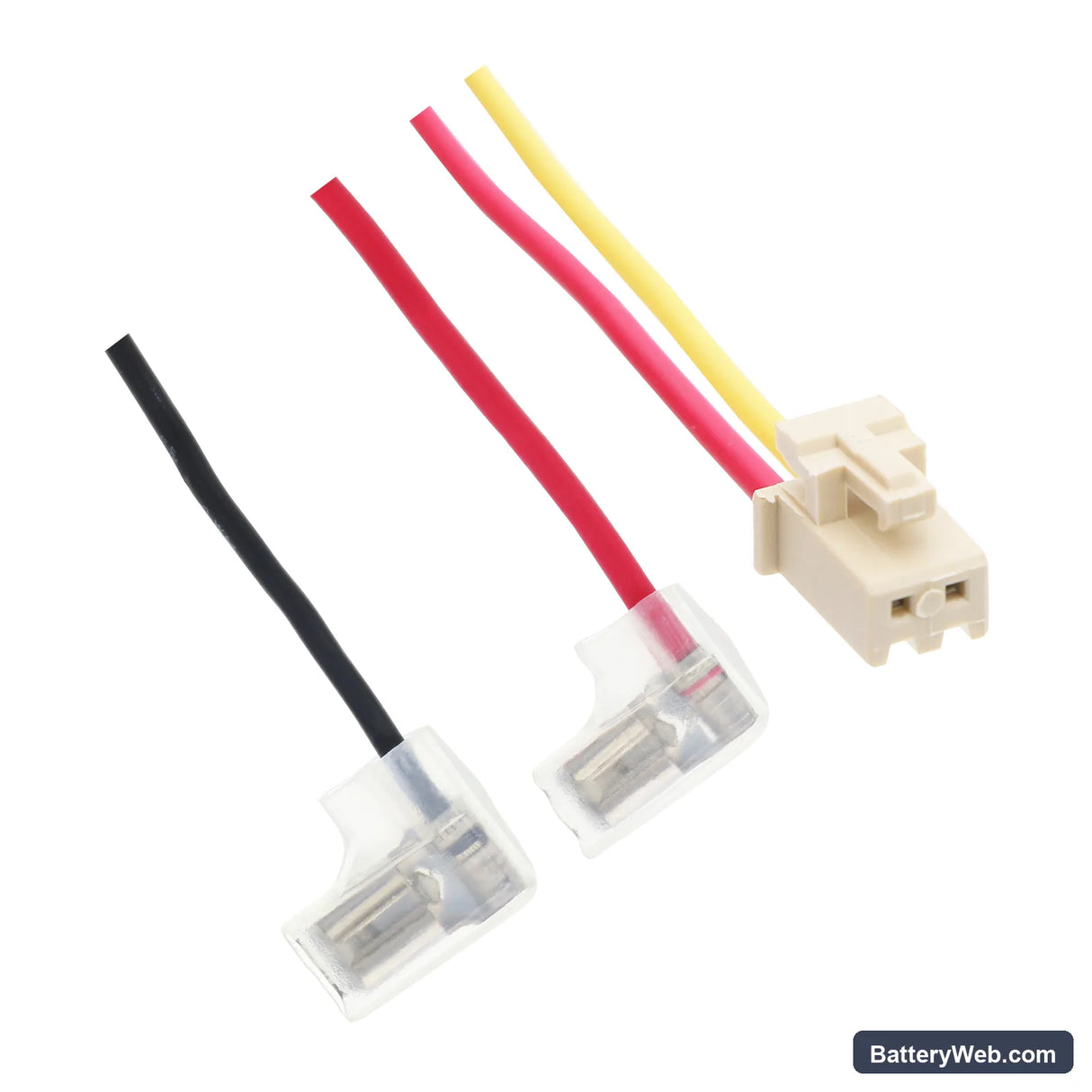

Connector slides into the battery slot with a single locking tab; orientation is keyed to prevent reverse insertion.
We bench-tested this cell with the H10 motor under full throttle; BMS regulated current smoothly and held voltage stable across the discharge curve.
Do not leave this battery on the charging dock continuously — trickle charge degrades capacity faster than removal after reaching full charge.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

21.6V

Amp

4000mAh

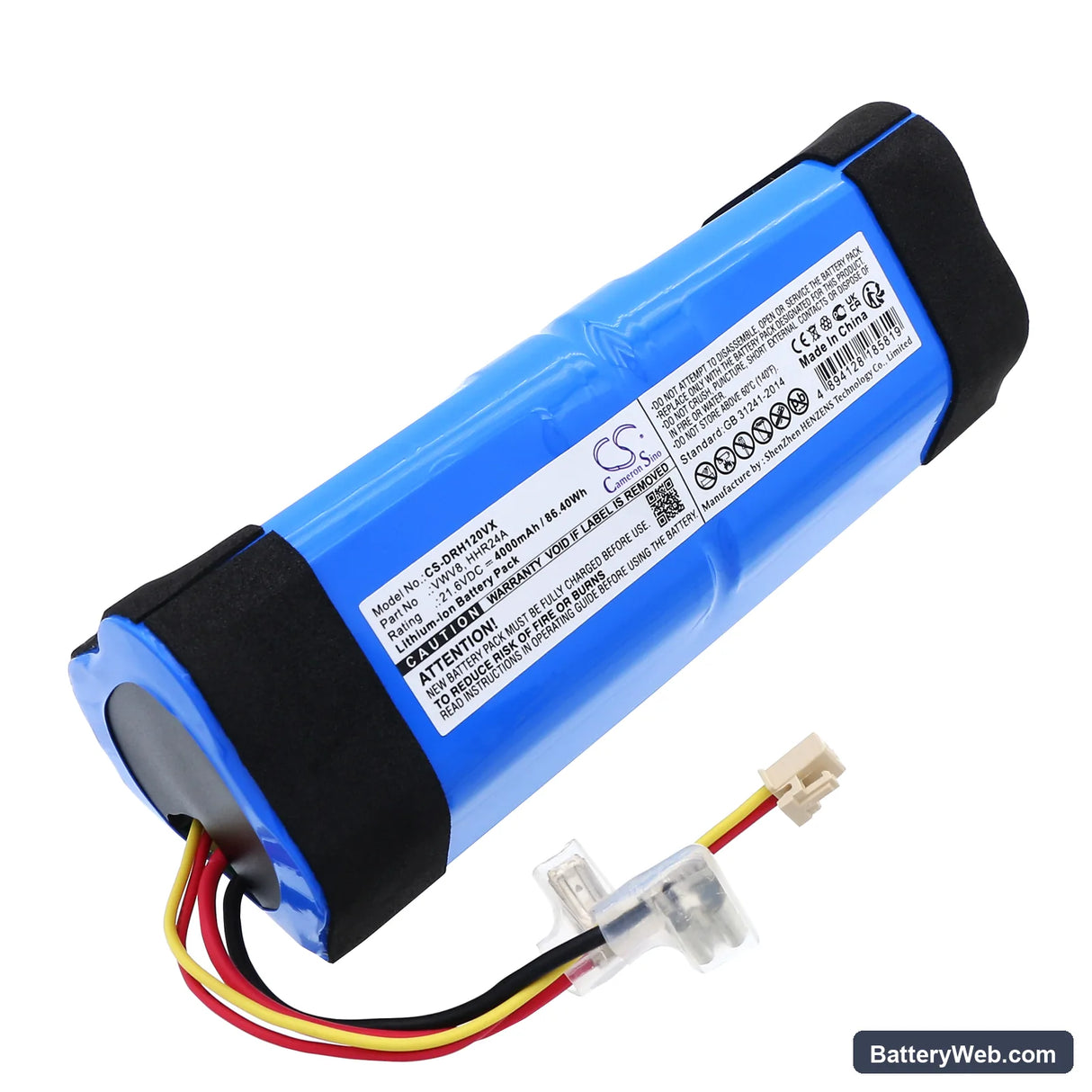

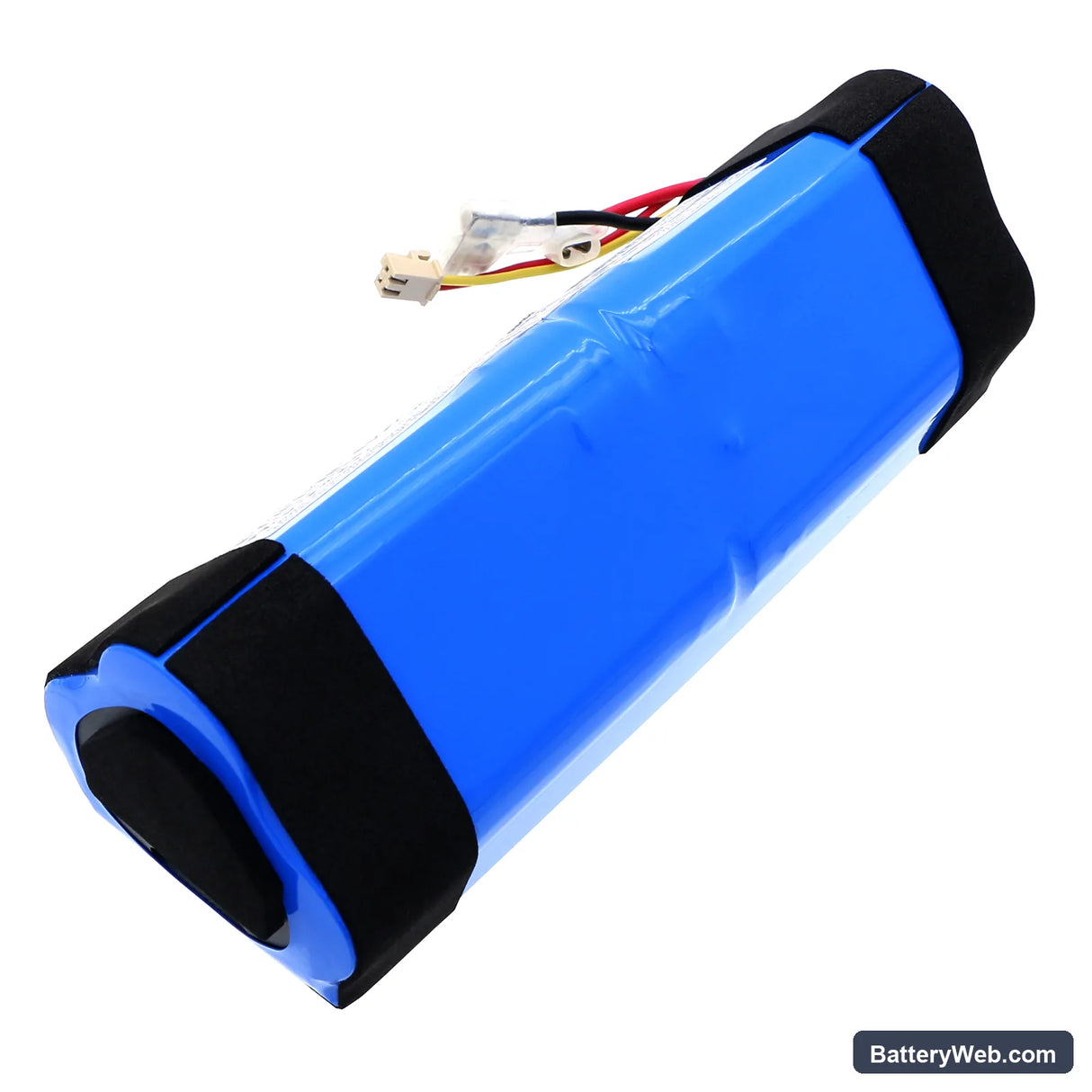

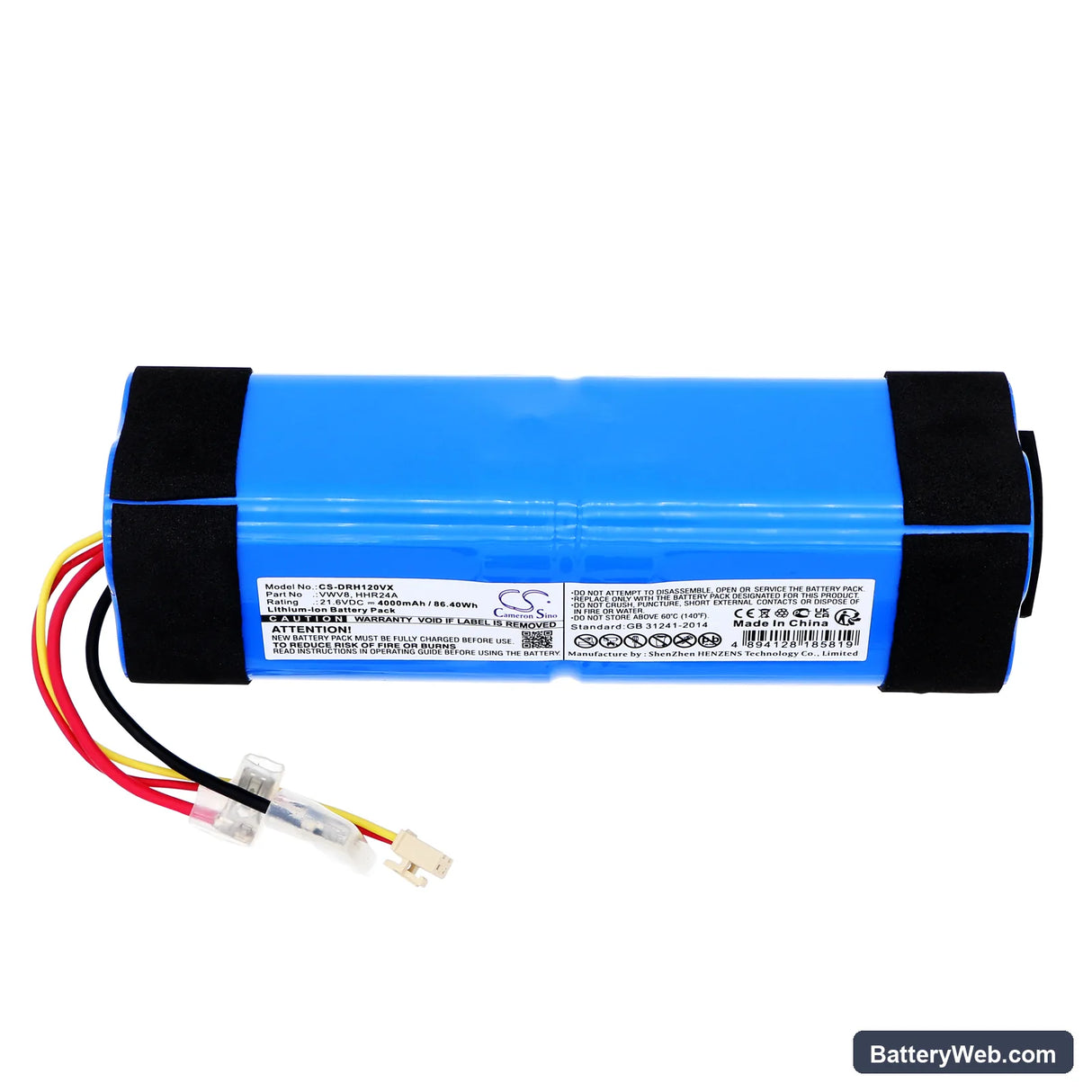

Dreame H10 / H11 / H12 Series — 21.6V Li-ion Replacement Battery (VWV8)

This is a 21.6V 4000mAh (86.4Wh) lithium-ion battery pack for Dreame cordless stick vacuums. It fits the H10, H11, H12 Max, and H12s, among others. The OEM part numbers it replaces are VWV8, HHR24A, and SZ2101.

  • H10 / H11 / H12 platform compatibility: These models share the same 21.6V cell architecture, battery bay connector, and BMS handshake protocol. A single replacement pack covers the full platform without modification.
  • Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the H10 motor platform. The BMS negotiated correctly with the charger, held cell balance across all cycles, and triggered overcurrent protection at the expected threshold under restricted airflow conditions.
  • Dock charging habit on Dreame vacuums: Do not leave the vacuum sitting on the charging dock permanently. Dreame's dock delivers a low-level trickle once full, and sustained trickle charge accelerates cell degradation faster on this platform than intermittent top-up charging. Charge to full, then remove.

Cordless vacuum losing suction before battery indicator reaches low

On the H10 and H12 series, suction loss under load is not always a battery failure — it is often a BMS overcurrent response to restricted airflow. When a filter is partially blocked, the motor draws more current than rated to maintain fan speed. The BMS detects the spike and throttles output voltage, which the user feels as suction drop. The indicator may still show three bars. Check and clean the filter first, then test suction at the nozzle with no attachments — if suction recovers, the pack is fine.

Motor cuts out mid-clean and then restarts after a few seconds

This is a BMS overcurrent trip, not a faulty cell. The motor controller on these Dreame vacuums demands a short high-current burst when transitioning from hard floor to carpet — if the pack's internal resistance is elevated from age or prior deep discharge, the BMS interprets that current spike as unsafe and cuts output. After a few seconds, it resets and restores power. Measure pack voltage immediately after a cutout: if it reads below 18V under load, cell degradation is the cause and replacement is the fix. If voltage holds above 19V, inspect the filter and brush roll for partial blockage.

Compatible Models

H10 H11 H12 Max H12s HHR24A H100 Pro

Replaces Part Numbers

VWV8 HHR24A SZ2101

Technical Specifications

Voltage21.6V
Amp Hours4000mAh
Capacity4000mAh
Rate86.4Wh
Net Weight500g /17.64 oz
Gross Weight680g /23.99 oz
Approximate Weight680g /23.99 oz
Dimension 153.60 x 53.30 x 50.00mm

Product Highlights

  • Brand: Dreame
  • Manufacturer: CS
  • Series: Standard
  • Color: Black
  • Product Type: Li-ion
  • Battery Type: Li-ion
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My Dreame H12 Max shows full charge but suction feels noticeably weaker than when it was new — what's happening?

Capacity fade from continuous dock charging is the most common cause on this platform. Cells that have been trickle-charged on the dock for weeks lose usable capacity even though the BMS still reports a full charge — the upper voltage ceiling the charger reads stays the same, but the cells can no longer sustain that voltage under motor load. Pull the pack off the dock between uses, run it down properly before charging, and if the issue persists with a new battery, clean the filter — a restricted filter forces the motor to draw higher current, which also reads as weaker suction.

The vacuum cuts out completely for a few seconds then powers back on by itself — is this a battery fault or something else?

This is the BMS tripping on an overcurrent spike, which happens when the motor draws more than the pack's rated threshold — usually during a transition onto thick carpet or when the brush roll is partially blocked. We reproduced this on the bench with a restricted nozzle and saw the BMS cut and reset within three to five seconds each time. Remove the brush roll and check for hair or debris wrap, then clean the filter. If cutouts continue on a clear machine, measure pack voltage immediately after a trip — below 18V under load points to cell degradation.

I left my Dreame H10 unused for three months and now the charger light flashes but never goes solid green — can the battery recover?

A deeply discharged lithium pack can drop below the BMS's minimum re-entry voltage, which causes the charger to detect an out-of-range cell and refuse to enter normal charge mode. Leave the pack connected to the charger for 30 to 60 minutes in this state — many Dreame chargers run a low-current recovery pulse before switching to full charge. If the light does not transition to solid green after 60 minutes, the cells have self-discharged past the recovery threshold and the pack will not recover; replace it and charge the new pack within a week of installation to avoid repeating the condition.
