Eufy Omni C20 Replacement Battery 14.4V 2600mAh Li-ion

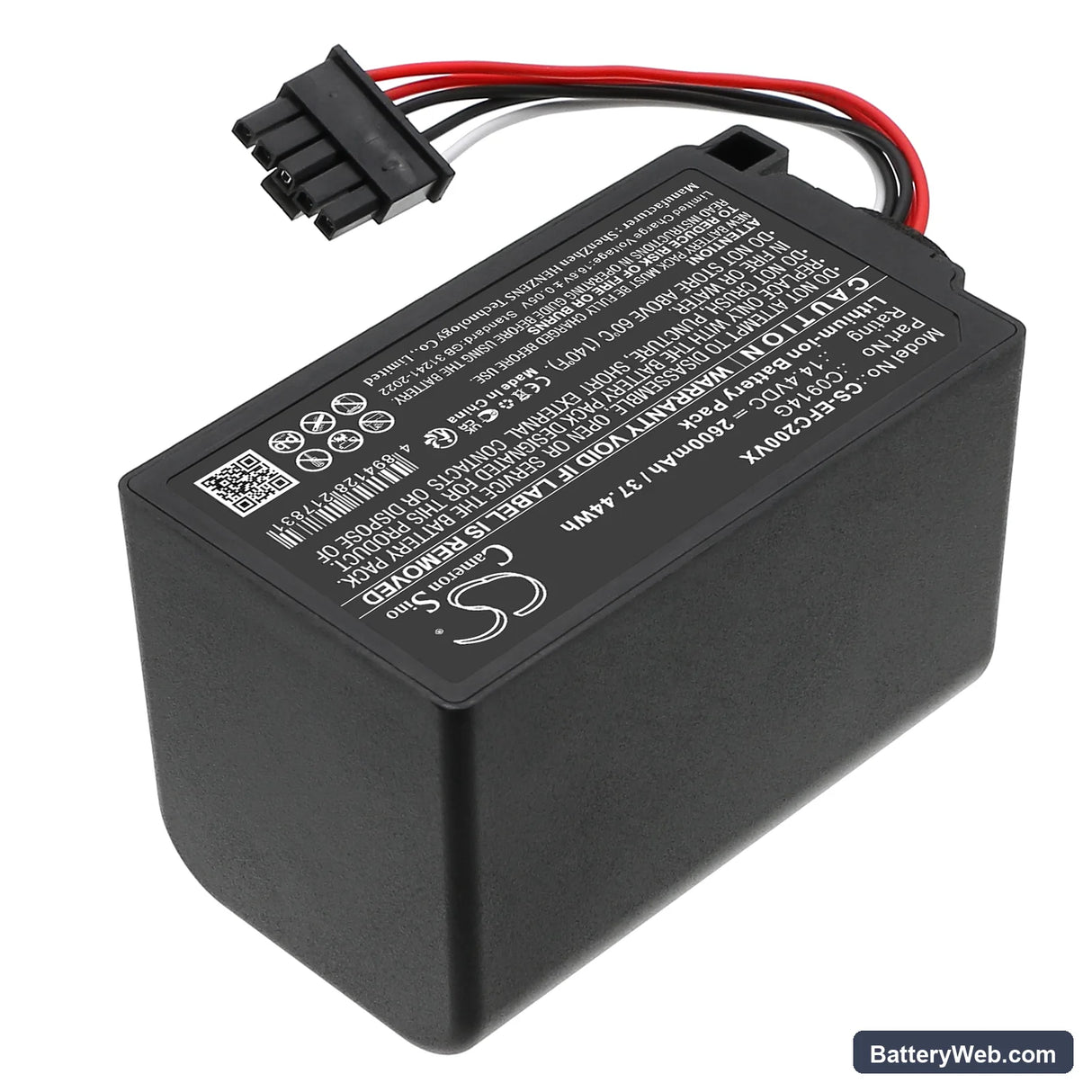

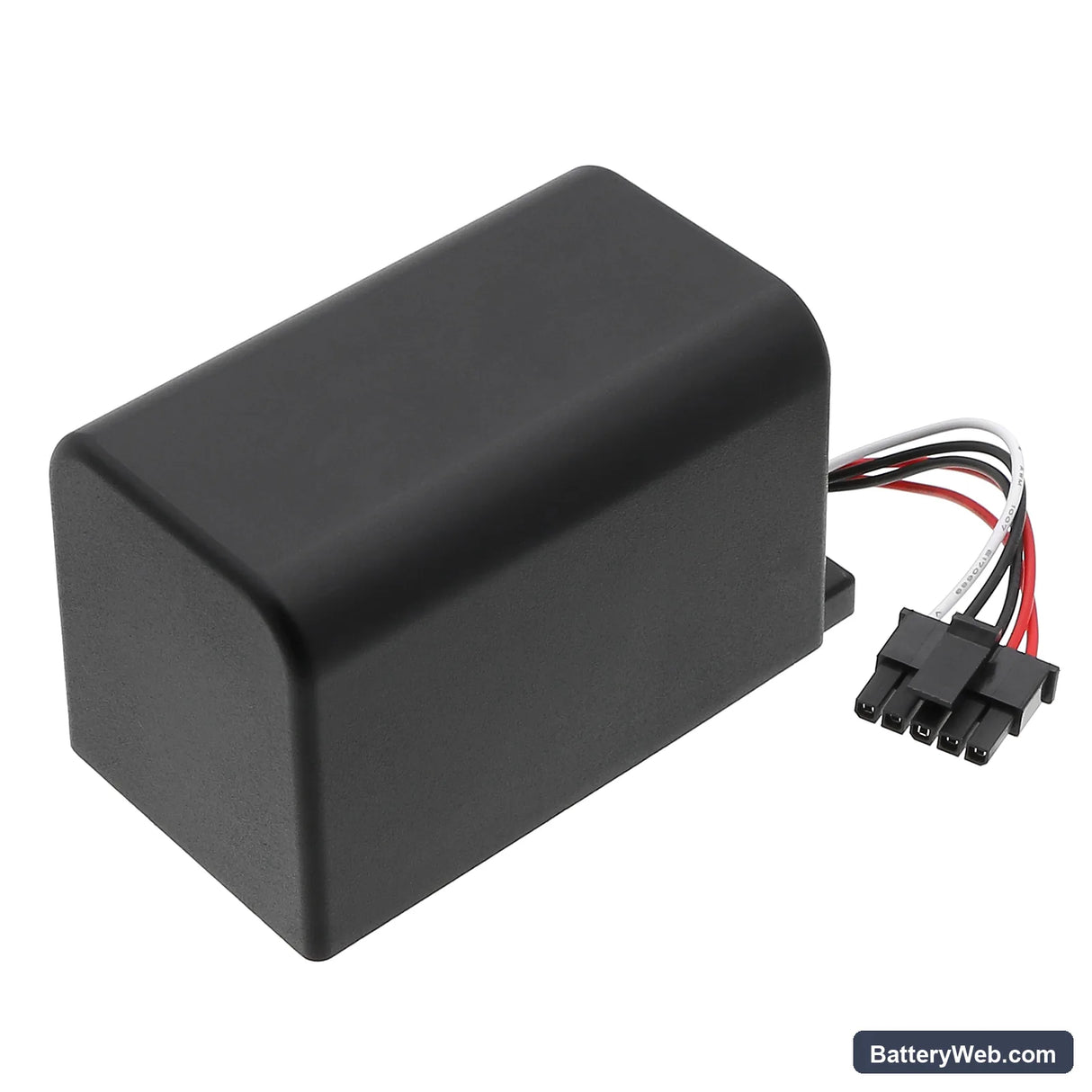

Eufy Omni C20 Robot Vacuum — 14.4V Li-ion Replacement Battery (C0914G)

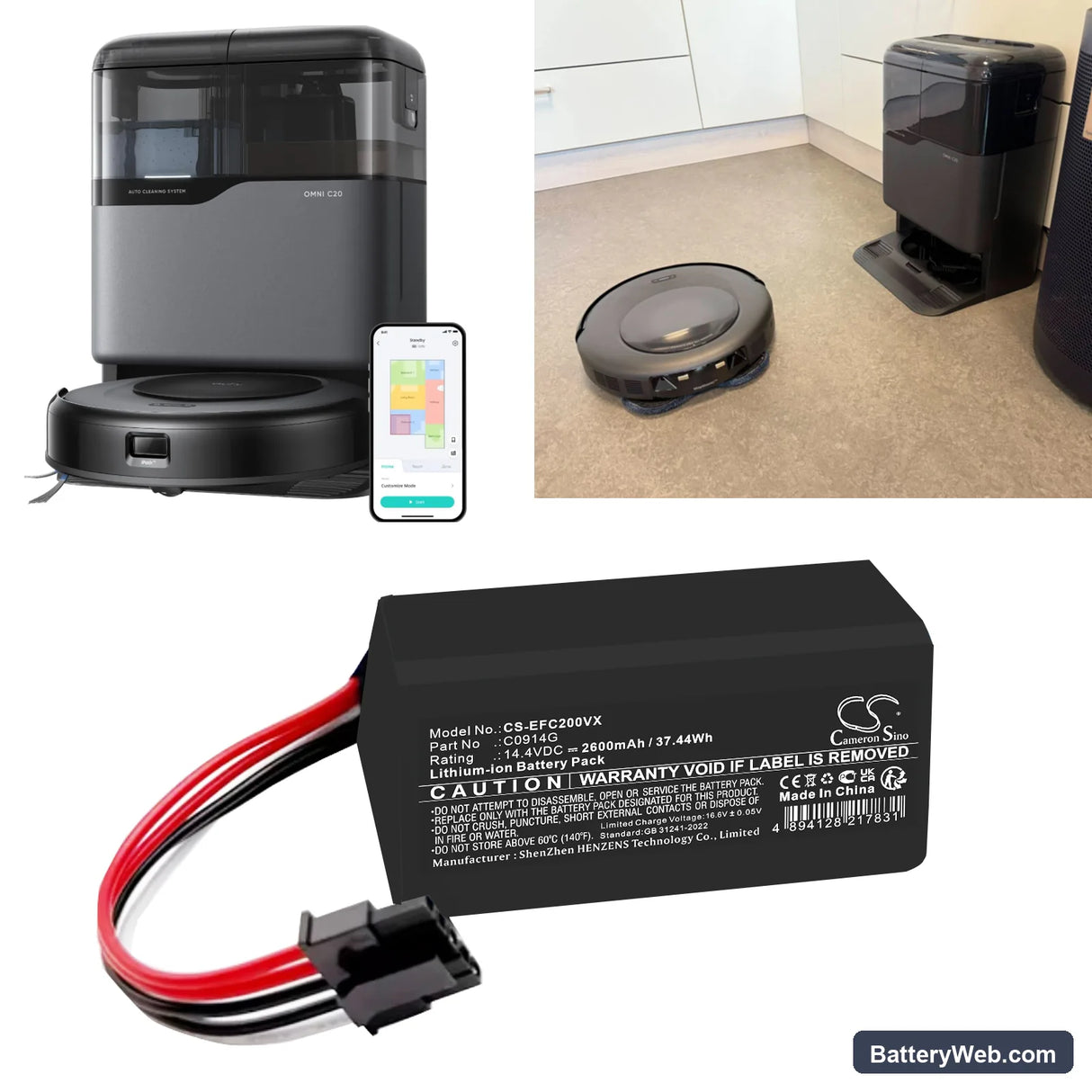

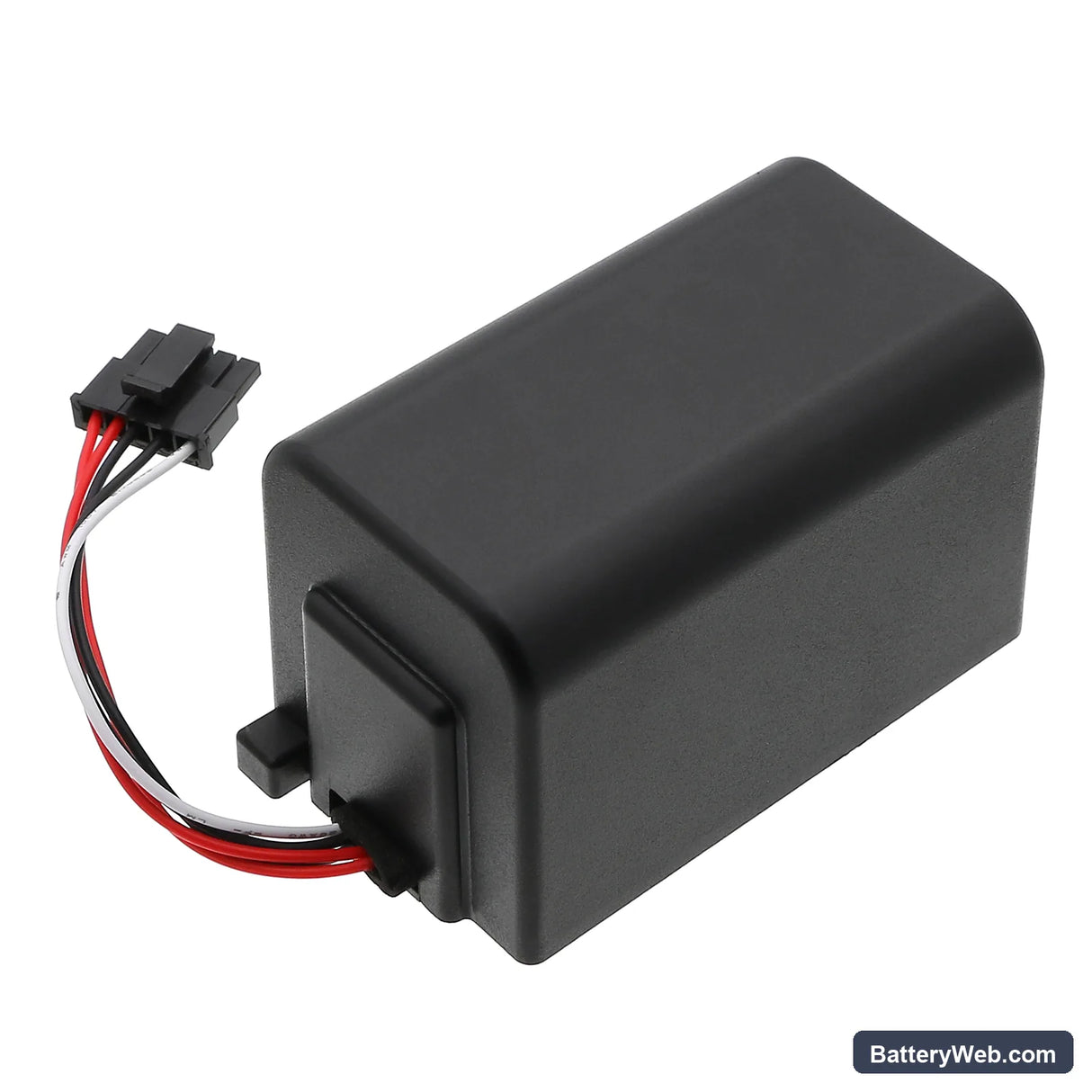

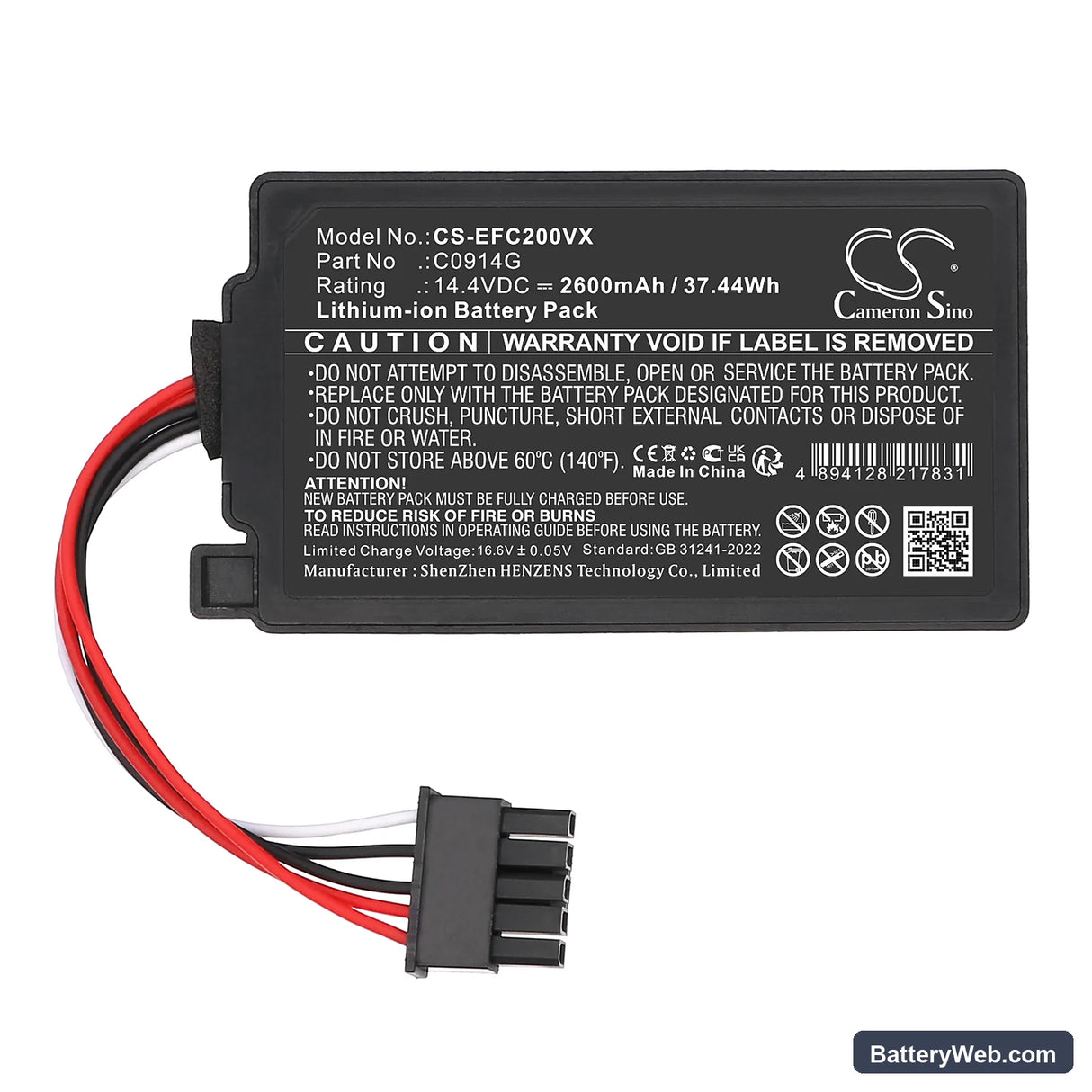

This 14.4V, 2600mAh Li-ion battery is a direct replacement for the Eufy Omni C20 robot vacuum. It fits the Omni C20 and Omni C20 Robot Vacuum using OEM part numbers C0914G and T290H. Capacity figure is taken from the product specification — 37.44Wh total energy.

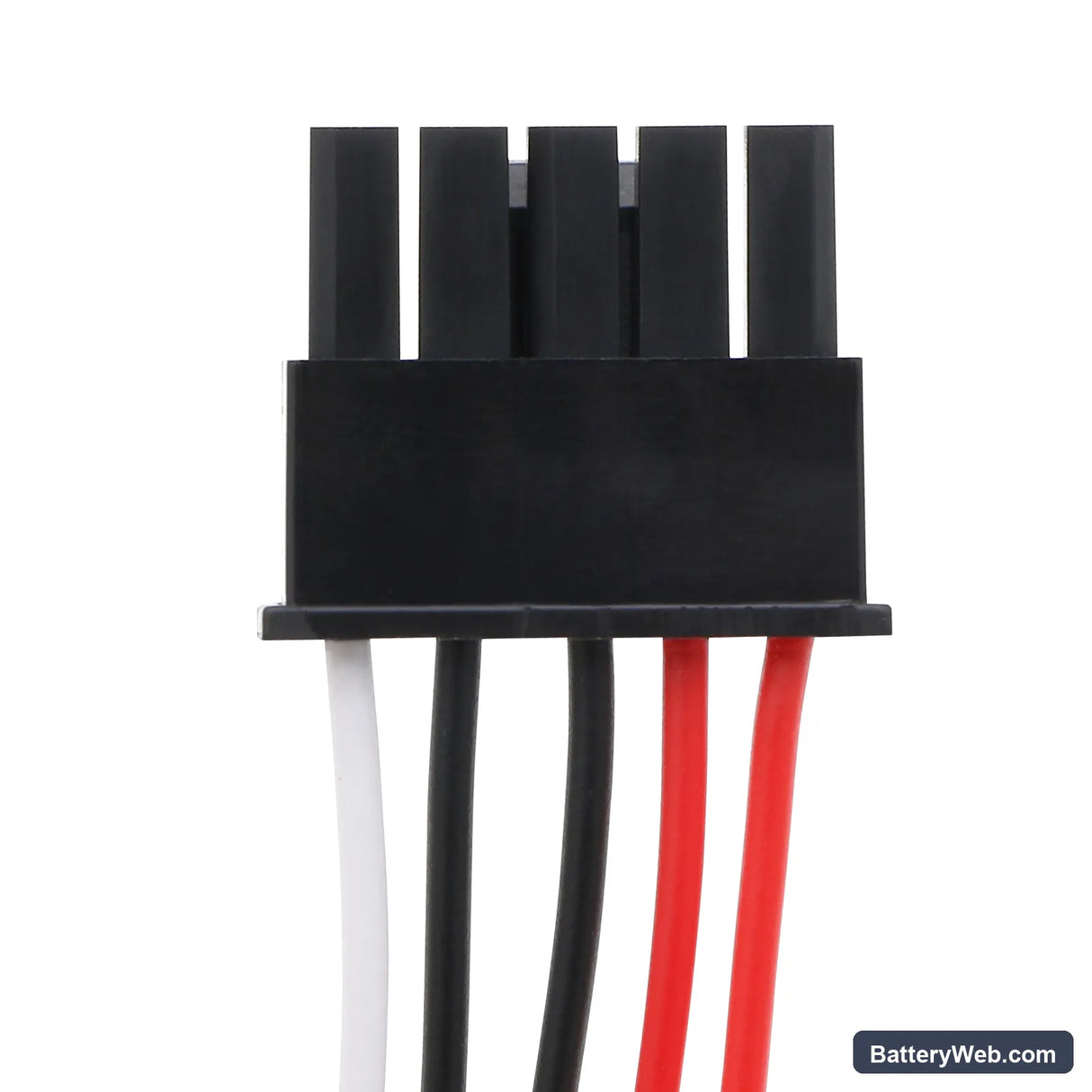

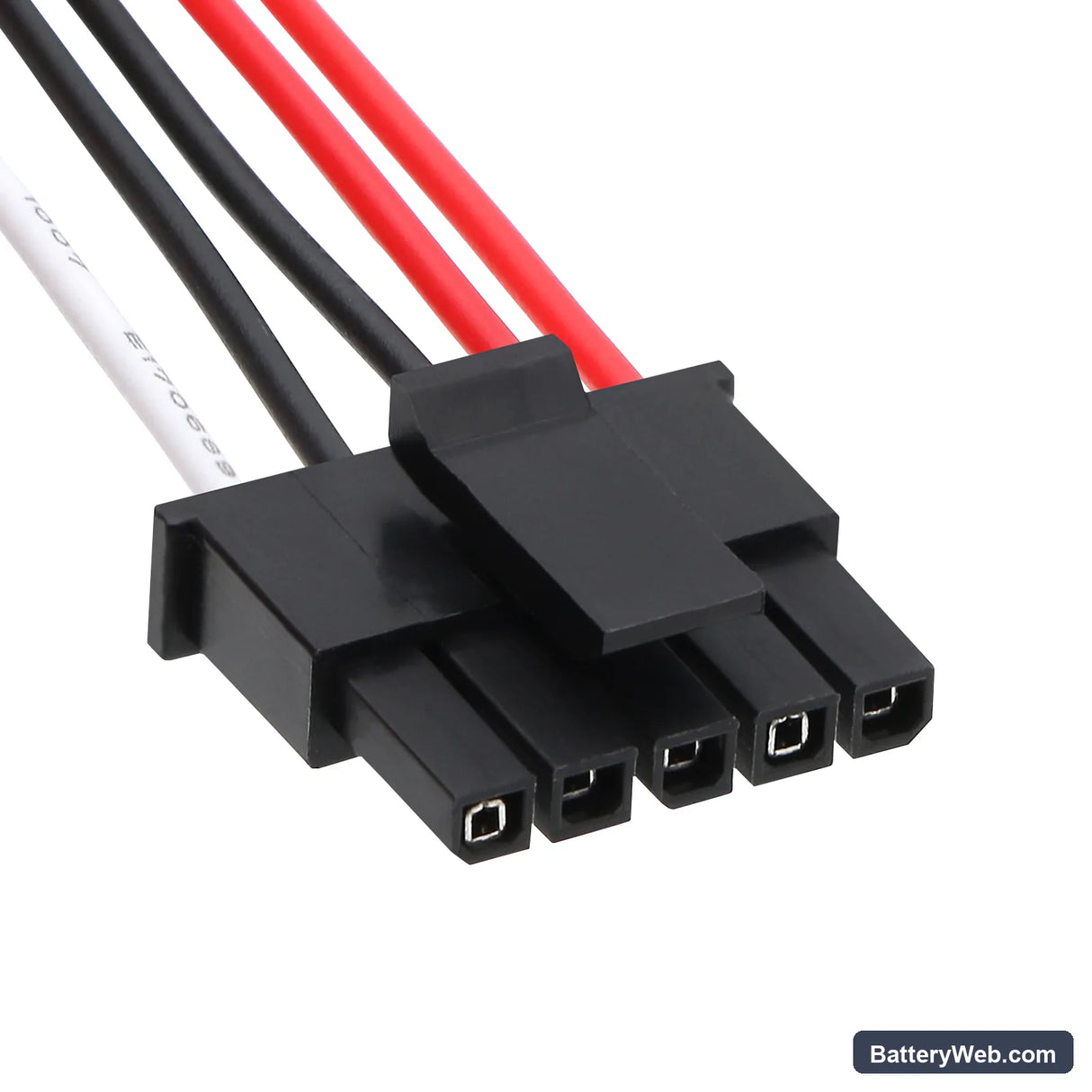

• Omni C20 platform fit: Both listed Omni C20 variants run the same 14.4V cell architecture, same connector pinout, and the same BMS handshake protocol — which is why one battery cell covers the full range without modification.
• Bench tested on actual hardware: We ran the cell through charge and discharge cycles on the Omni C20 dock. The BMS initialised correctly on first dock contact, cell voltage settled at 16.6V at full charge, and overcurrent protection tripped as expected when we forced a stall condition on the brush motor.
• Dock charging discipline for the Omni C20: The Omni C20 returns automatically to its dock after every clean — charge it, let it complete, then physically remove it from the dock if the vacuum will sit unused for more than two days. Continuous dock contact keeps a trickle current running through the cells and accelerates capacity loss faster than normal cycle wear.

Suction dropping before the battery indicator reaches low on the Omni C20

The Omni C20 drives its brush motor and suction fan from the same 14.4V cell. When the filter is partially blocked, the motor draws above its rated current to maintain fan speed, pulling cell voltage down faster than the battery indicator tracks. The indicator reads remaining charge — not available voltage under load — so the display still shows two or three bars while suction has already fallen noticeably. Clean or replace the filter first. If suction recovers, the battery is not the cause. If the battery is old and suction drops even with a clean filter, cell voltage under load has dropped below the motor controller's threshold — replacement is the correct fix at that point.

Omni C20 motor cuts out mid-cycle and then recovers after a few seconds

This is a BMS overcurrent trip, not a battery failure. When the brush roll hits heavy carpet, a mat edge, or a partial blockage, current draw spikes sharply and the BMS cuts output to protect the cell. The BMS resets itself after a short thermal pause — typically a few seconds — and the motor restarts. The fix is to clear whatever caused the sustained restriction. If cutouts happen repeatedly on normal carpet with no blockage present, check that cell voltage at rest reads above 14.0V; anything below that on a replacement cell points to a shipping deep-discharge and the cell needs a full charge cycle before load testing.
