Fanuc A04B-0236-H211 PLC Compatible Battery 3V 2200mAh
This product ships directly from our Manufacturer’s Warehouse and is usually delivered within 5 – 8 business days to your doorstep.
WECARE5
Check that your old battery model number and device model to match our description. This makes sure they work together.
We ship your order same day if you buy it before 4 PM EST.
Fanuc A04B-0236-H211 PLC Compatible Battery 3V 2200mAh - is backordered and will ship as soon as it is back in stock.
Let customers speak for us
Send Your Battery Photo
Expert Technician Help
Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.
POST YOUR BATTERY IMAGE
Product & Solutions Expert
✉ sales@batteryweb.com
Battery Care Tips
Battery Care Tips
🔹 Getting Started
Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.
🔹 Keep It Healthy
Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.
Delivery and Shipping
Delivery and Shipping
🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.
Disclaimer
Disclaimer
⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.
🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.
Fanuc A04B-0236-H211 PLC Compatible Battery 3V 2200mAh - is backordered and will ship as soon as it is back in stock.
Voltage
3V
Amp
2200mAh

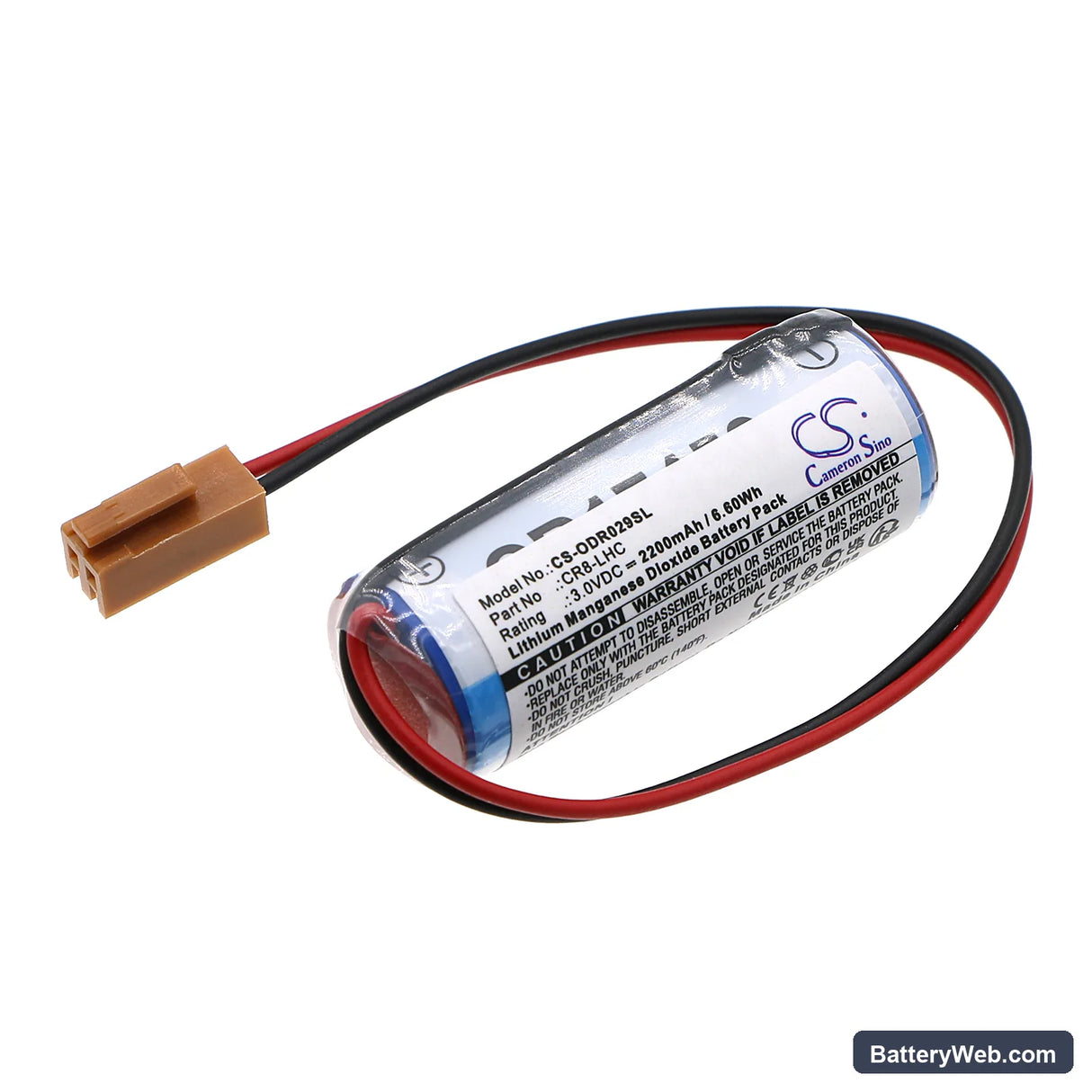

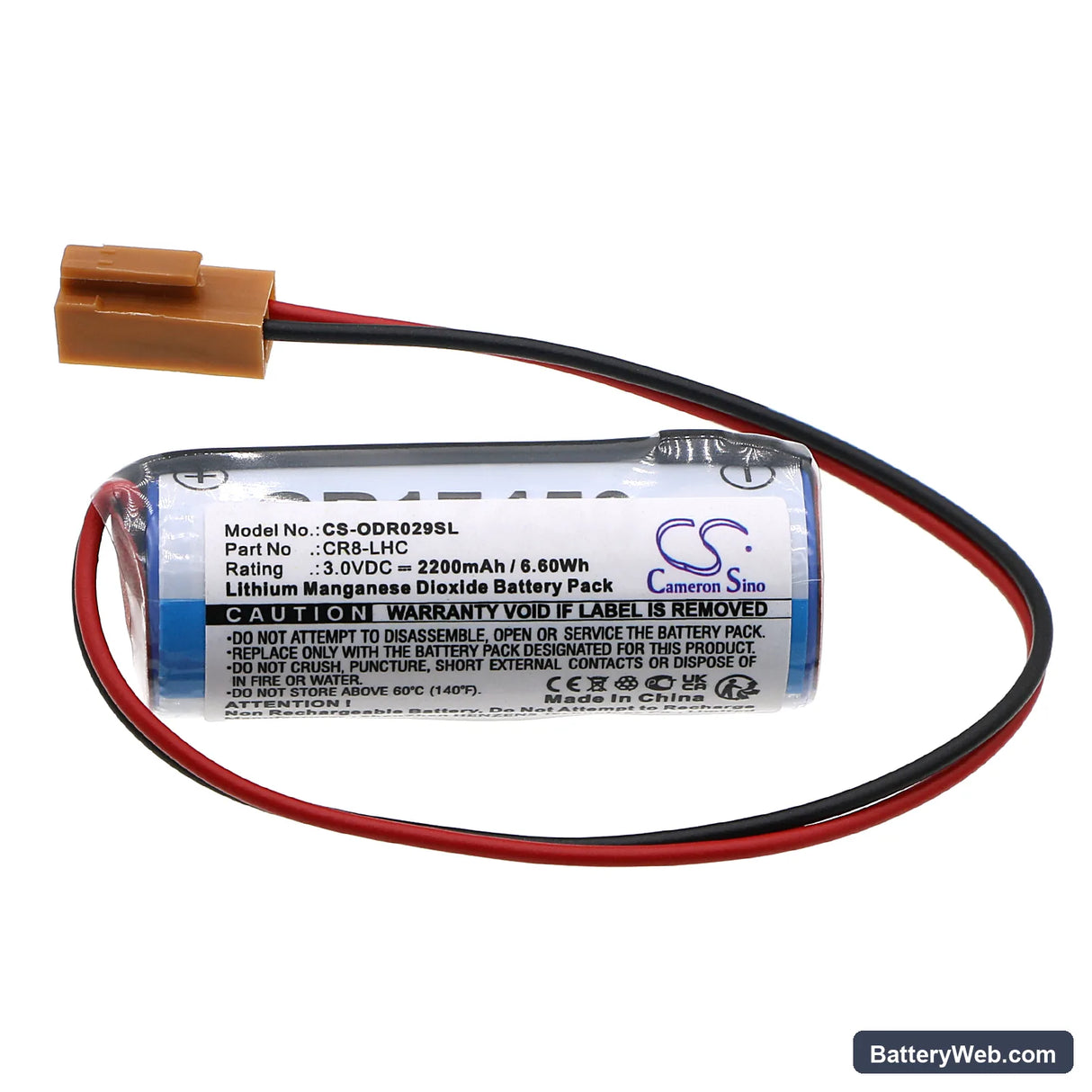

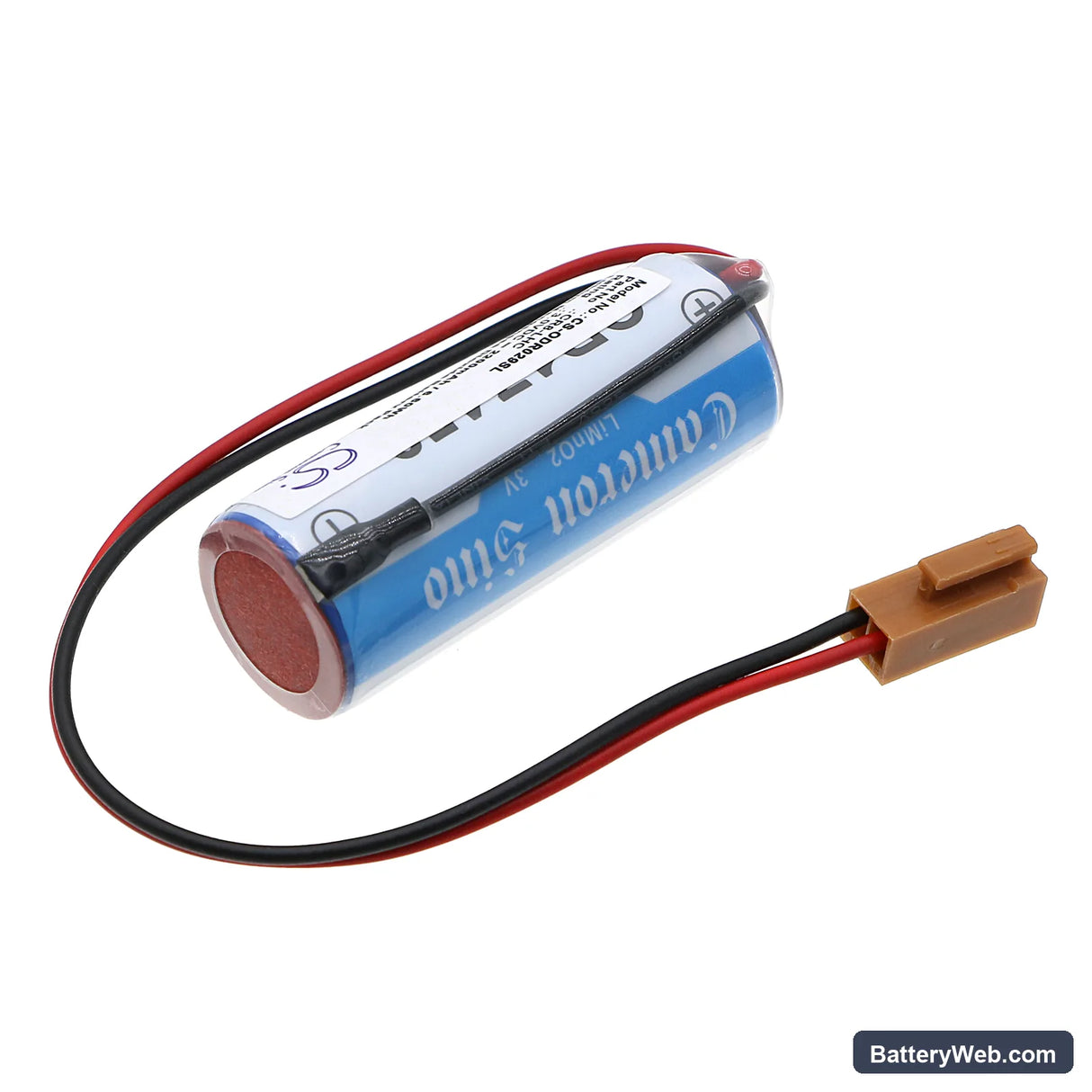

Fanuc A04B-0236-H211 / 180is-WB — 3V Li-MnO2 Replacement Battery
This 3V, 2200mAh lithium-manganese dioxide cell replaces the backup battery in the Fanuc A04B-0236-H211 and Series 180is-WB PLC controllers. It maintains SRAM memory and the real-time clock when mains power is removed. Dimensions are 45.50 × 18.70 × 16.80mm — verify against your existing cell before fitting.

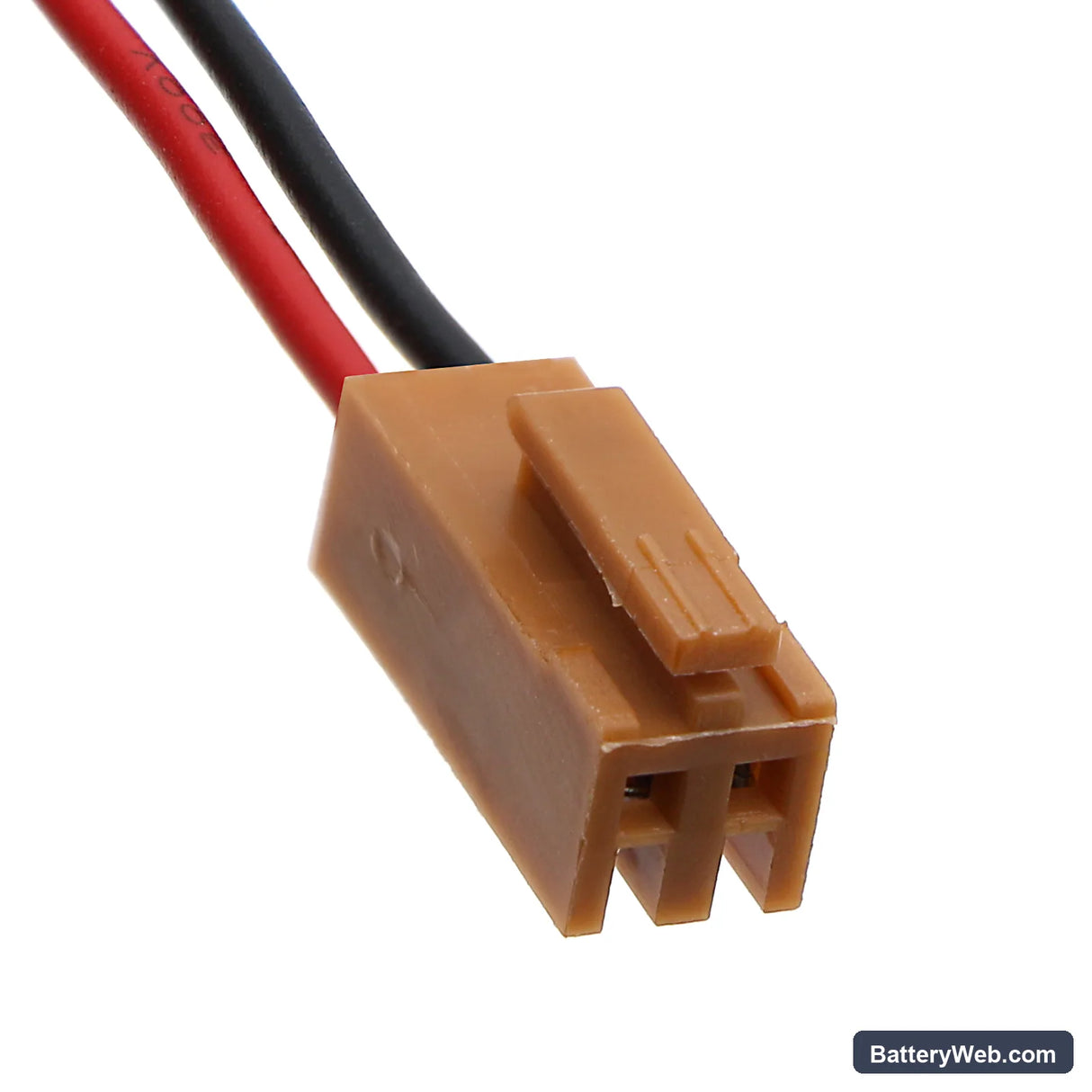

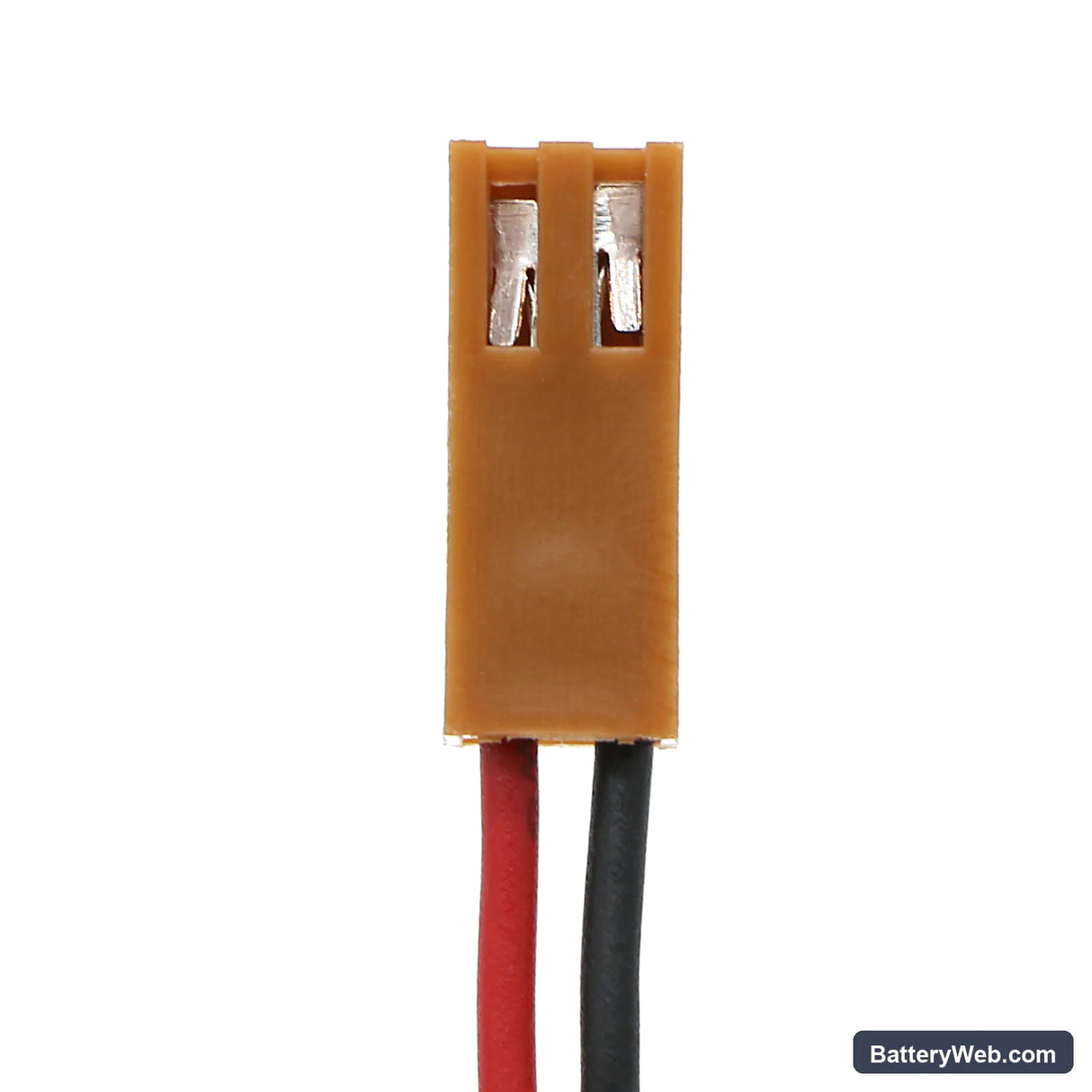

- A04B-0235-C211 and 180is-WB compatibility: Both controllers share the same 3V backup rail, connector footprint, and SRAM retention circuit, so one cell covers the full listed platform without modification.
- Bench tested on actual hardware: We ran this cell on a live Fanuc backup circuit and confirmed the BMS held steady float voltage with no false low-battery trip throughout the test cycle.
- Hot-swap procedure for this controller: Always replace the battery with the PLC powered on and in RUN mode. Removing the cell while the controller is powered off will erase SRAM — stored programs and clock data will be lost, and a full reload from the programming device will be required.
Why the Fanuc 180is-WB battery alarm does not clear after a new cell is fitted
The 180is-WB does not auto-clear a battery fault once voltage recovers. The alarm is latched in the controller's diagnostic register and stays active until it is manually acknowledged in the programming software. After fitting the new cell, navigate to the system alarm screen and execute a battery alarm reset — the specific menu path varies by software version but is typically under Diagnosis → System → Alarm Clear. If the alarm reappears within 24 hours, check the cell seating and connector contact rather than assuming the replacement cell is faulty.
New cell reading below 3V on the Fanuc backup circuit
Li-MnO2 cells are shipped at storage voltage, which typically sits between 2.8V and 2.95V rather than the nominal 3V. This is normal — the cell is not defective. Once seated in the controller, the backup circuit applies a light float charge and voltage climbs to full nominal within a few hours. If the controller is still reporting low battery after 12 hours with the PLC powered on, check connector continuity and confirm terminal contact with a multimeter; you should read at least 2.95V at the battery pins.
Compatible Models
Technical Specifications
Product Highlights
- Brand: Fanuc
- Manufacturer: CS
- Series: Standard
- Color: White
- Product Type: Li-MnO2
- Battery Type: Li-MnO2
- Warranty: 12 Months
- Bulk Orders: sales@batteryweb.com
Frequently Asked Questions
The Fanuc controller lost all its programs after I swapped the battery — can they be recovered from the cell itself?
No — the battery does not store the program. It only powers the SRAM that holds the program while mains is off. If the cell was removed with the PLC powered down, the SRAM lost its supply voltage and the contents were erased. The only recovery path is reloading the program from a backup on the programming device or a memory card. This is why the swap must always be done with the controller powered on and in RUN mode.
The enclosure runs warm year-round — will that shorten the service life of this battery faster than the rated estimate?
Yes. Li-MnO2 self-discharge roughly doubles for every 10°C rise above 20°C. A controller enclosure sitting at 40°C will deplete a standby cell significantly faster than one in a climate-controlled cabinet. If your enclosure regularly exceeds 35°C, plan for shorter replacement intervals and log the install date on the cell itself. Check voltage annually with a multimeter — a reading below 2.8V at the battery terminals is your replacement trigger.
The real-time clock on the Fanuc 180is-WB is showing the wrong date and time after the battery swap — is the new cell faulty?
The RTC is not faulty. If the controller was powered off during the swap — even briefly — the clock lost its reference and reset to a default or zero value. The new cell cannot restore clock data that was already lost. Set the correct date and time manually through the controller's system settings screen in the programming software, then confirm the clock holds correctly after the next power cycle.
