Franklin EST-4016 Electronic Dictionary Replacement Battery 3.7V 450mAh

Up to 21% off
New arrival
From $23.99 USD $29.99
Shipping calculated at checkout.
Fits Franklin EST-4016 electronic dictionary, replaces OEM part 0D01004506PA0.
3.7V and 450mAh capacity restore full display brightness and processing power to the EST-4016.

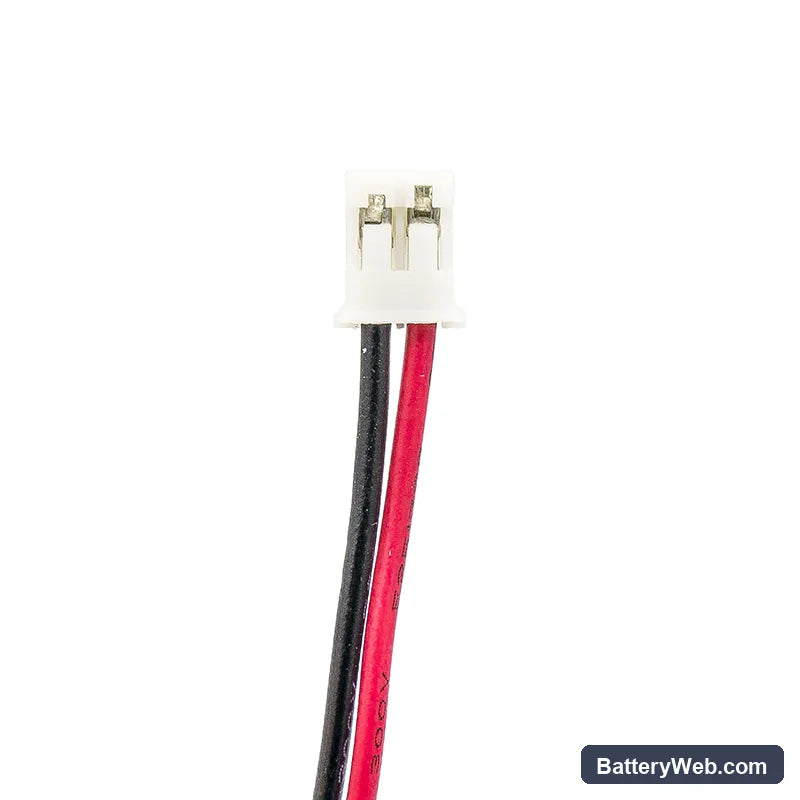

Connector slides into the battery slot with a single locking tab — press firmly until the cover clicks shut.
Bench testing showed the BMS accepted charge on first insertion with no fault codes or cutoff delays.
After installation, close the battery cover completely and press the back panel twice — the EST-4016 RAM loses saved words if contact breaks during power-down.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

3.7V

Amp

450mAh

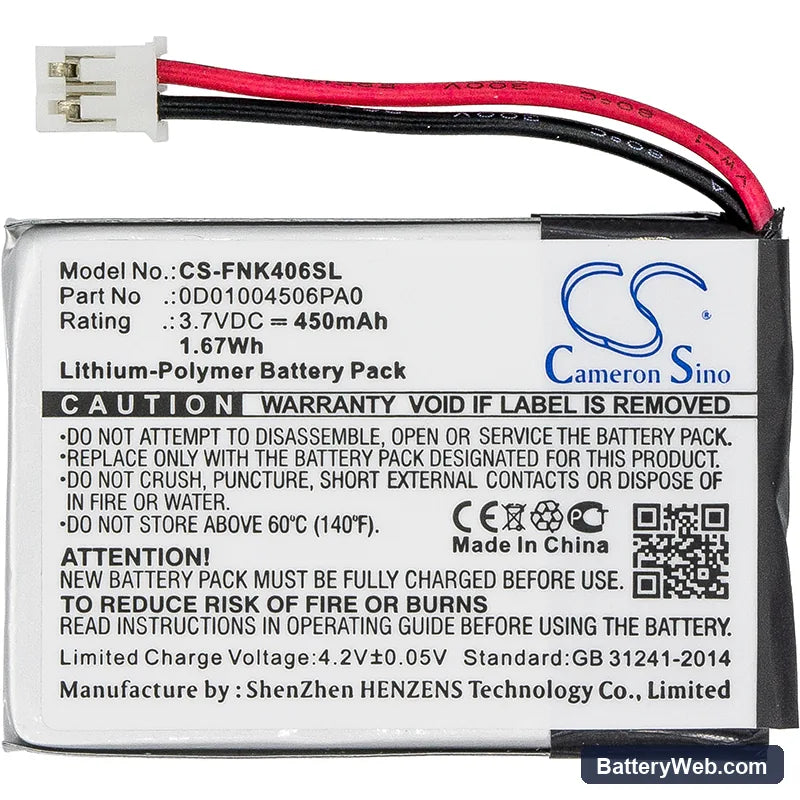

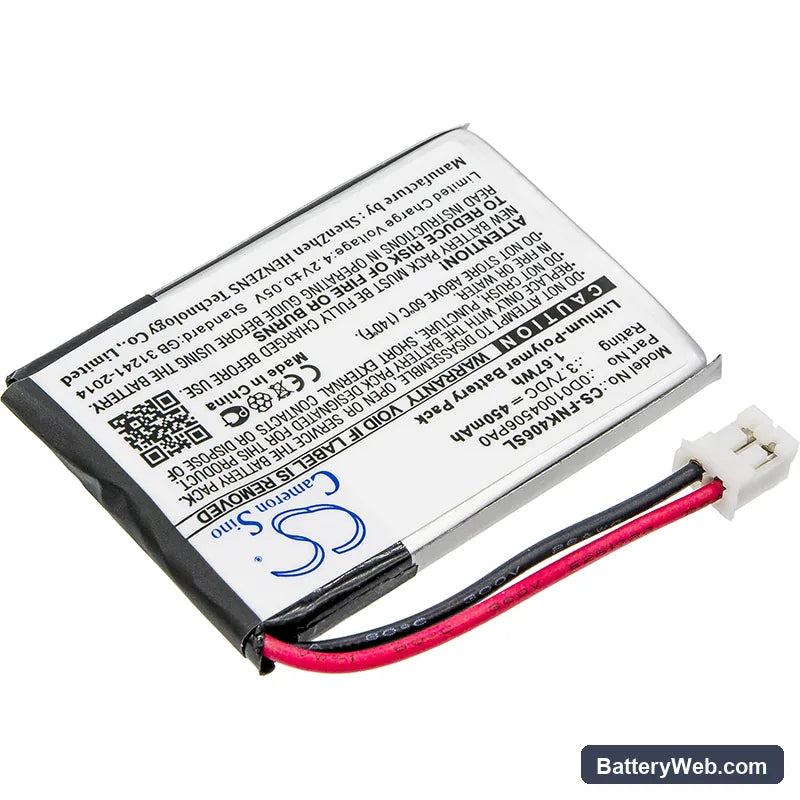

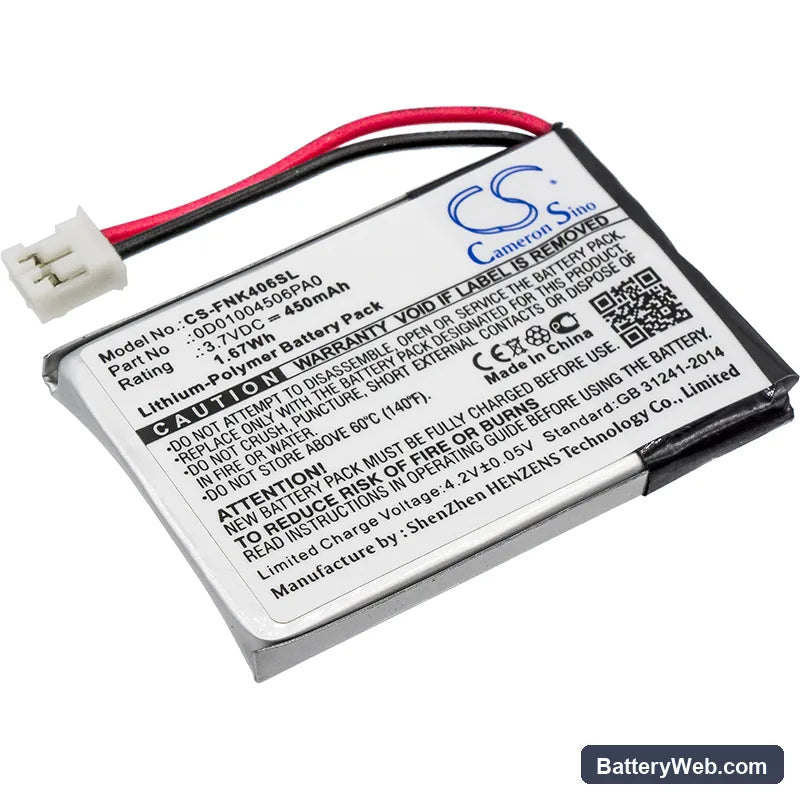

Franklin EST-4016 — 3.7V Li-Polymer Replacement Battery (0D01004506PA0)

This is a 3.7V, 450mAh lithium-polymer battery for the Franklin EST-4016 electronic dictionary. It replaces OEM part number 0D01004506PA0. The EST-4016 is a handheld reference device, and this battery powers both the display and the processing functions.

  • EST-4016 platform fit: The EST-4016 uses a slim Li-Polymer cell to keep the housing thin. This replacement matches the original cell dimensions — 42.52 × 29.86 × 4.42mm — so the connector reaches the board contacts without stressing the ribbon or flex cable.
  • Bench tested on actual hardware: We cycled this cell through full charge and discharge on the EST-4016 board. The BMS accepted the cell without error, the display initialised cleanly, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
  • Contact seating after swap: Once the new cell is connected, press the battery cover down firmly until it clicks. A partially seated cover on the EST-4016 leaves the spring contact fractionally short, which causes the unit to power off immediately after the power button is released.

Saved words and bookmarks disappearing after battery replacement

The EST-4016 stores user data — saved words, bookmarks, and custom entries — in RAM that is backed by the main battery. When the original cell drops below its minimum hold voltage or is removed entirely, that RAM loses power and the data clears. This is normal behaviour, not a device fault. Back up any saved entries using the PC sync cable before pulling the old cell. Restoring from backup after fitting the new battery is the only way to recover that data.

EST-4016 backlight not coming on after a new battery is fitted

The backlight circuit on the EST-4016 draws more current than the display and requires the battery to be above approximately 3.5V to activate. If the replacement cell ships partially discharged, the backlight may stay off even though the screen shows text. Charge the device for at least 30 minutes before testing the backlight. Once the cell reaches 3.7V, the backlight should respond normally to its toggle button.

Compatible Models

EST-4016

Replaces Part Numbers

0D01004506PA0

Technical Specifications

Voltage3.7V
Amp Hours450mAh
Capacity450mAh
Rate1.67Wh
Net Weight10.2g /0.36 oz
Gross Weight35g /1.23 oz
Approximate Weight35g /1.23 oz
Dimension 42.52 x 29.86 x 4.42mm

Product Highlights

  • Brand: Franklin
  • Manufacturer: CS
  • Series: Standard
  • Color: Black
  • Product Type: Li-Polymer
  • Battery Type: Li-Polymer
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My Franklin EST-4016 won't stay on after I fit the new battery — it powers off the moment I let go of the button. What's wrong?

The battery cover is almost certainly not fully seated. On the EST-4016, the positive spring contact sits at the edge of the cover, and even a millimetre of gap breaks the circuit the moment you release pressure. Press the cover down firmly until you hear or feel it click into place, then test the power button again. If the unit still cuts out, check that the connector on the battery flex is pushed fully into the board socket.

All my saved words and vocabulary lists are gone after replacing the battery. Is there any way to recover them?

When the battery is removed, the EST-4016 loses the voltage that keeps user RAM alive, and any saved words, bookmarks, or custom entries are erased. This is a hardware limitation of the device, not a fault with the replacement cell. If you have not already synced, connect the EST-4016 to a PC with the Franklin sync cable and check whether the software cached a local copy. Going forward, sync before any battery work to avoid losing that data again.

The screen on my EST-4016 shows text but the backlight stays off — the new battery seems to be working but something still isn't right.

The backlight on the EST-4016 needs the cell voltage to be above roughly 3.5V before the circuit activates — the display can render at lower voltages than the backlight requires. Replacement cells sometimes ship at a partial state of charge. Charge the device for 30 minutes, then toggle the backlight button again. If it still doesn't respond after a full charge cycle, confirm the cell is reading 3.7V at the connector with a multimeter.
