Gateway DMP-X20 MP3 Player Replacement Battery 3.7V 750mAh

Gateway DMP-X20 MP3 Player — 3.7V Li-ion Replacement Battery (DMP-X20)

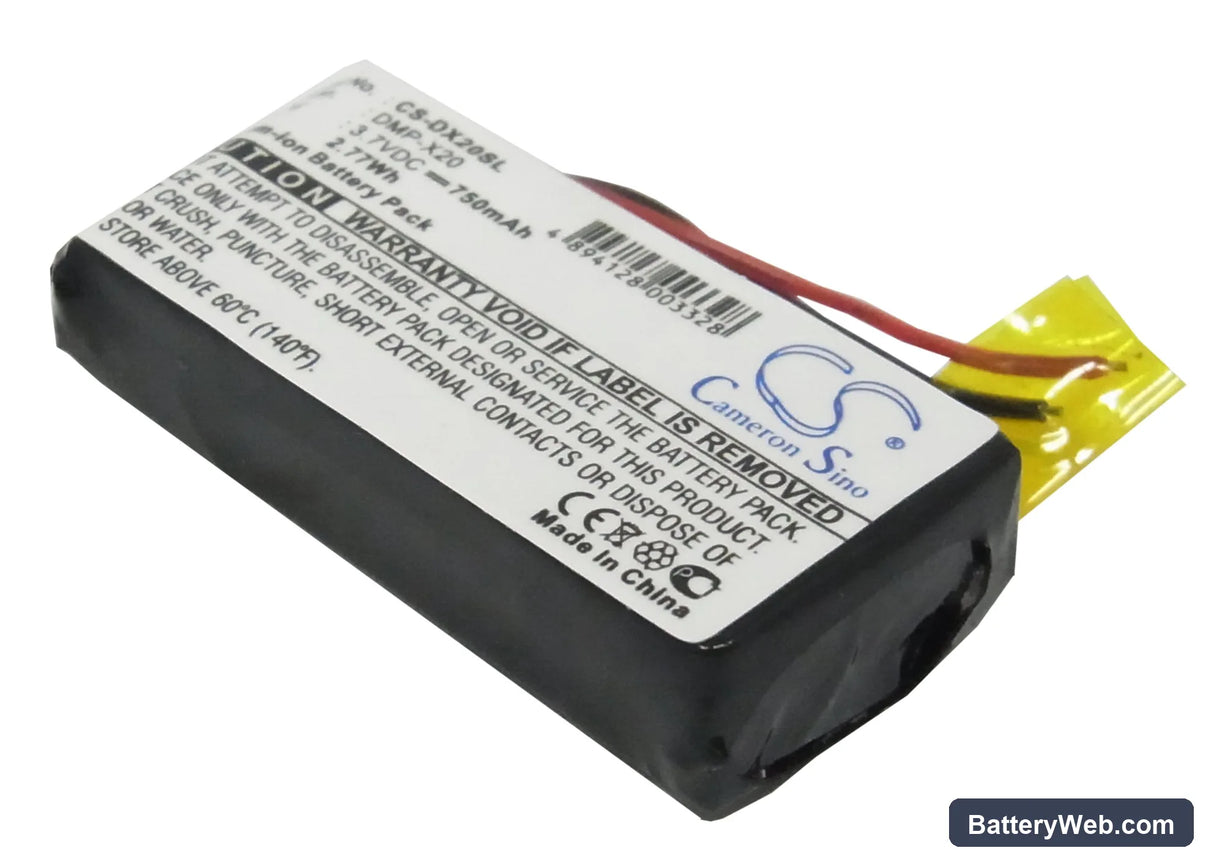

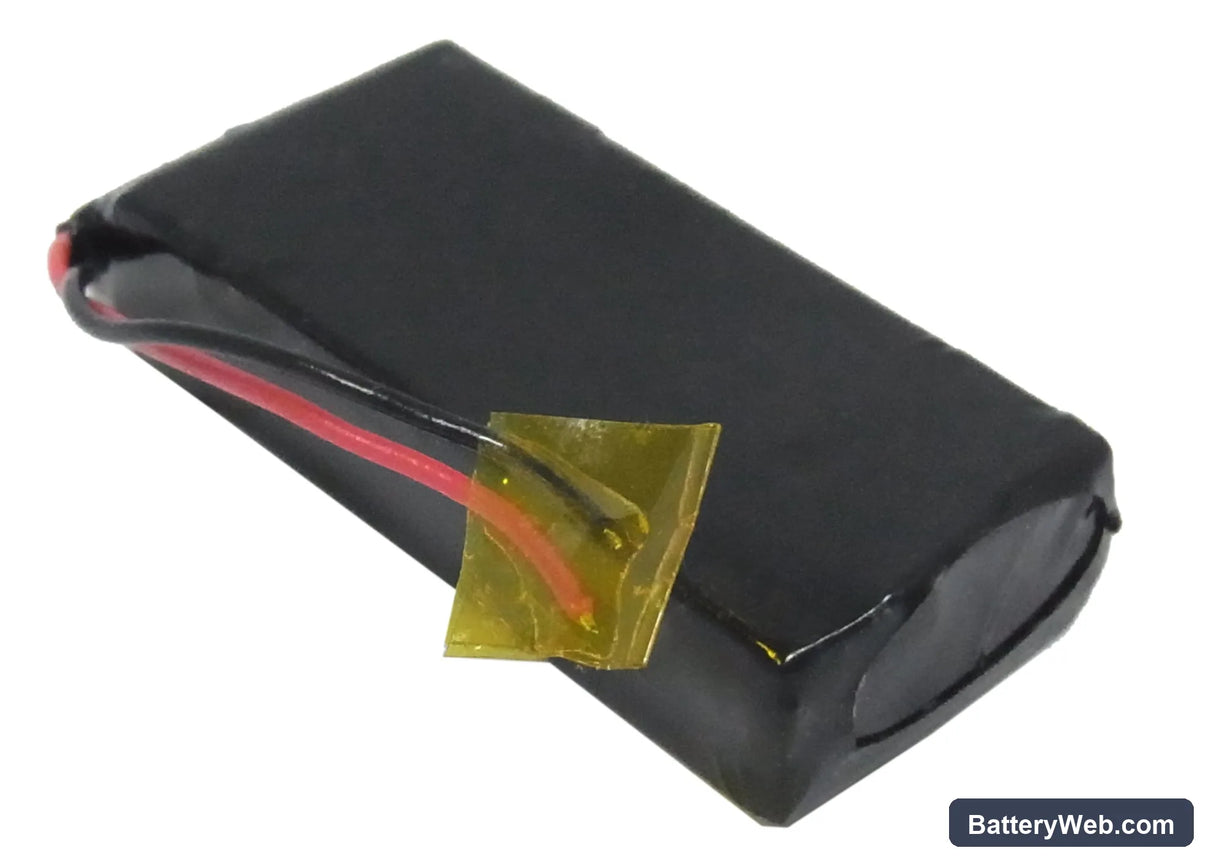

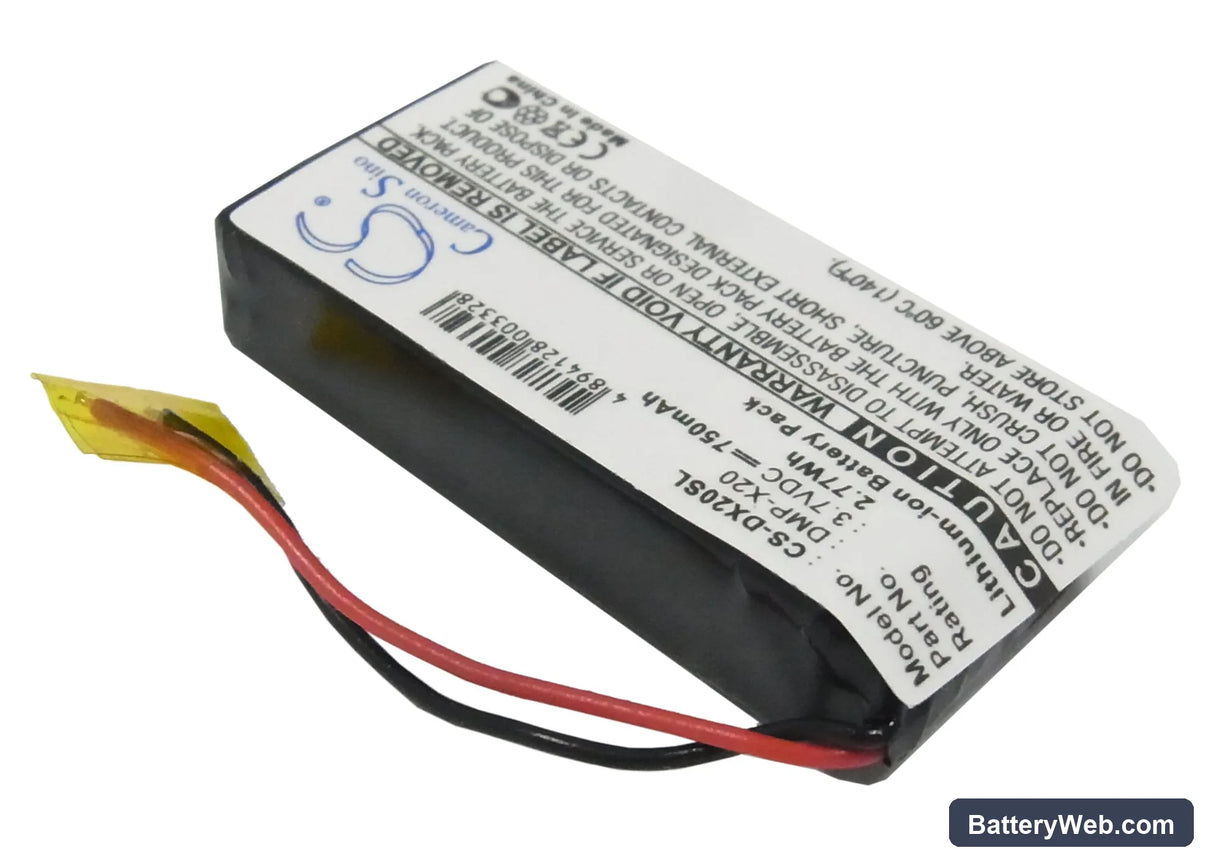

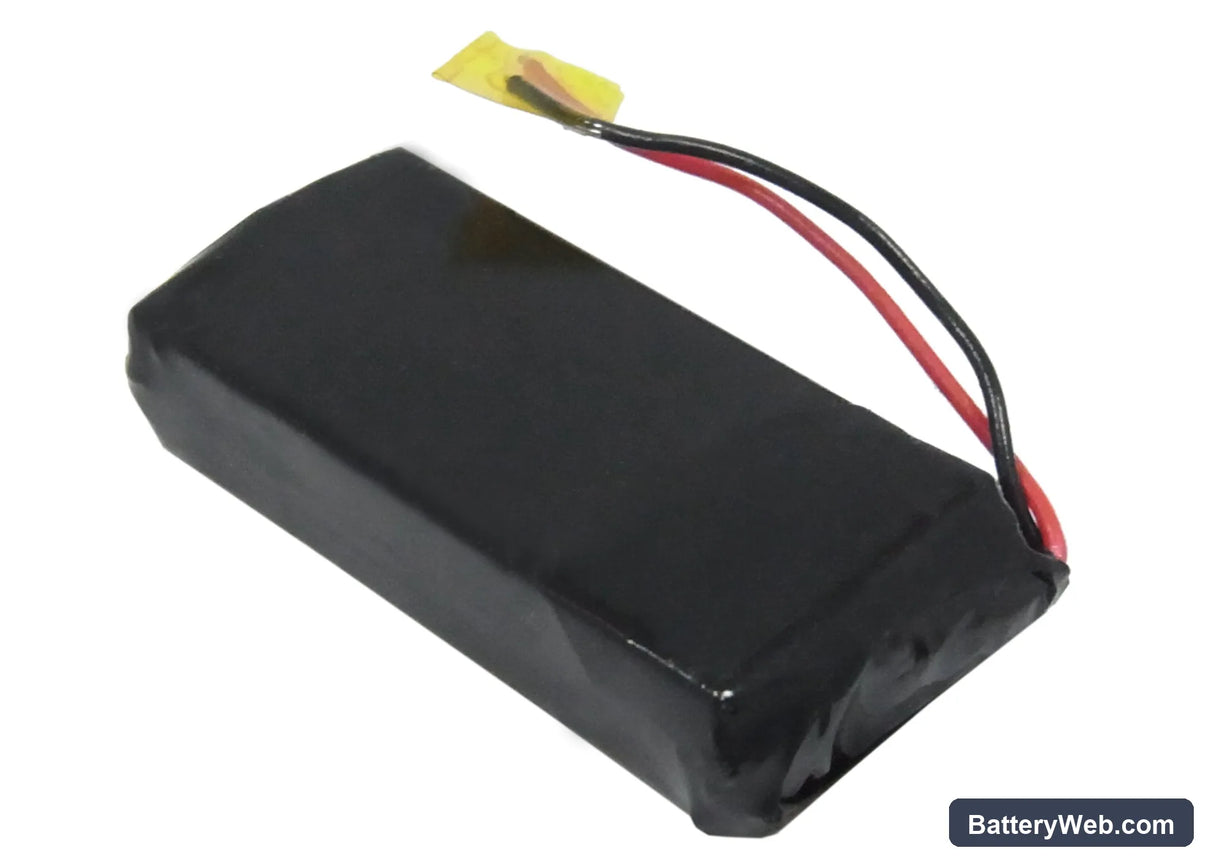

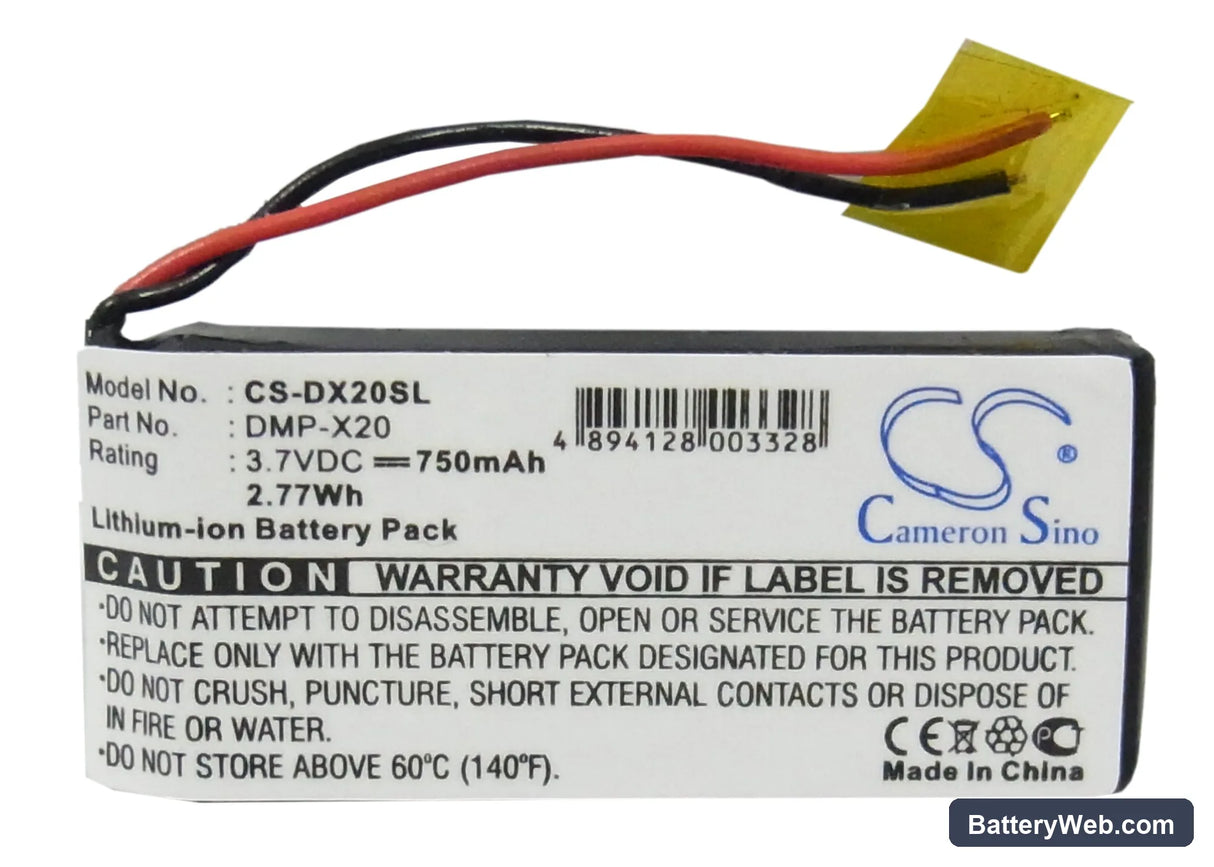

This 3.7V, 750mAh Li-ion battery replaces the original cell in the Gateway DMP-X20 portable media player. It fits the DMP-X20 directly, restoring audio playback when the original cell no longer holds charge. Dimensions are 44.13 × 19.80 × 9.54mm — confirm against your existing cell before fitting.

• DMP-X20 platform fit: The DMP-X20 runs a 3.7V single-cell architecture with a straightforward connector. This replacement matches that voltage rail and physical footprint, so no adapter or wiring modification is needed.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on a media player test rig. The BMS engaged cutoff cleanly at both ends — no false low-battery shutdowns and no overcharge pass-through detected.
• First charge after fitting: Connect the DMP-X20 to its charger immediately after swapping the cell. Media players that have sat discharged for weeks enter deep-discharge protection; a slow trickle charge re-enables the BMS before the device accepts normal charging current.

Battery percentage jumping after cell swap on the DMP-X20

The DMP-X20 stores voltage-to-percentage calibration data tied to the original cell's discharge curve. After a cell swap, the firmware reads voltage correctly but maps it to the old curve, producing jumpy or inaccurate percentage readings. Run the player down until it shuts off automatically, then charge it uninterrupted to 100%. That full cycle resets the indicator's voltage thresholds. Most units stabilise within two full cycles.

Playback cutting out before the battery indicator shows empty

The audio amplifier in the DMP-X20 draws a brief current spike every time it drives the headphone output. Near the end of discharge, cell voltage sags under that load and dips below the BMS cutoff threshold — even though the indicator still shows remaining charge. This is a cell-chemistry behaviour, not a firmware fault. If cutout happens consistently early, the cell voltage at shutdown is likely dropping below 3.0V under load; a full recharge cycle and recalibration pass usually shifts the cutout point back toward the correct level.
