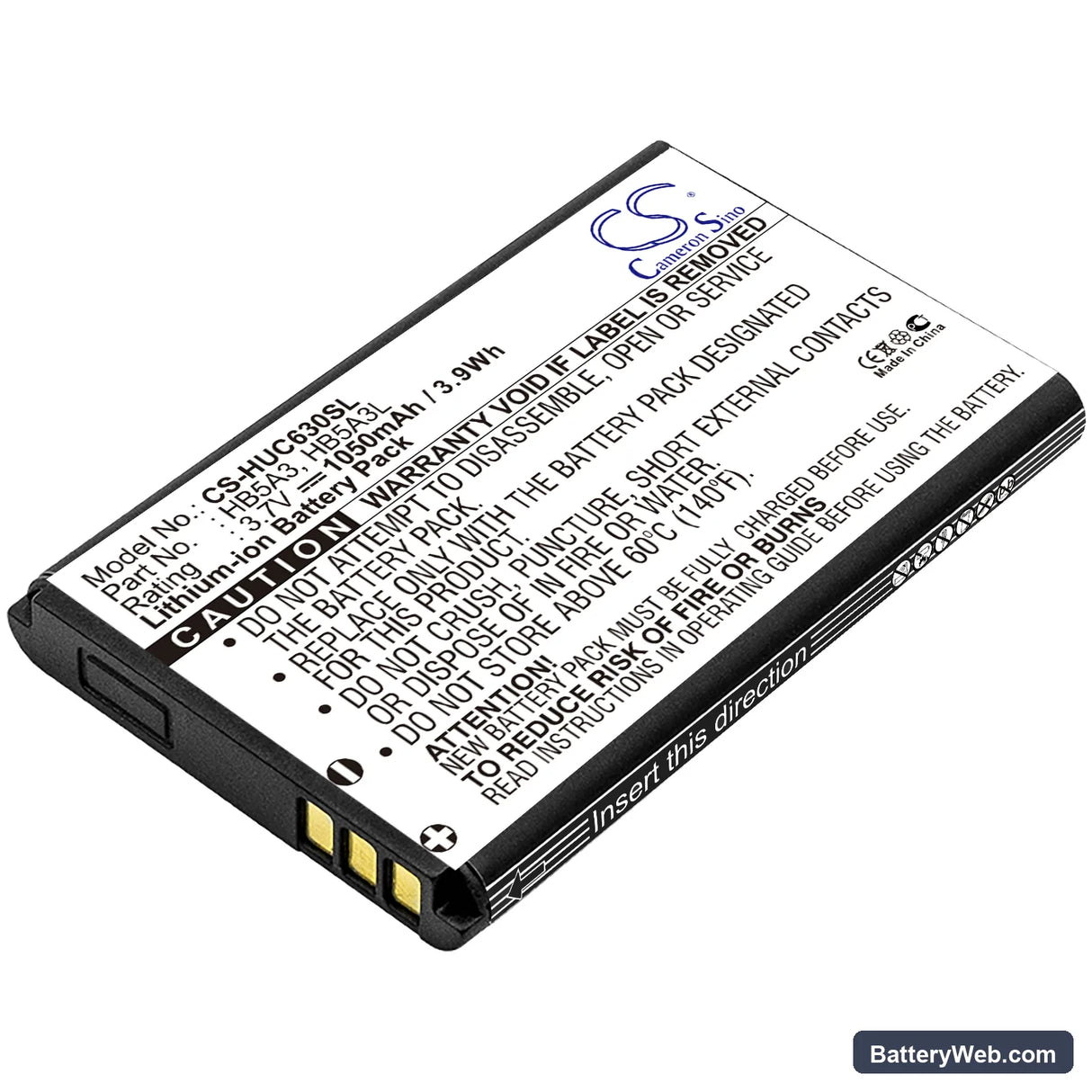

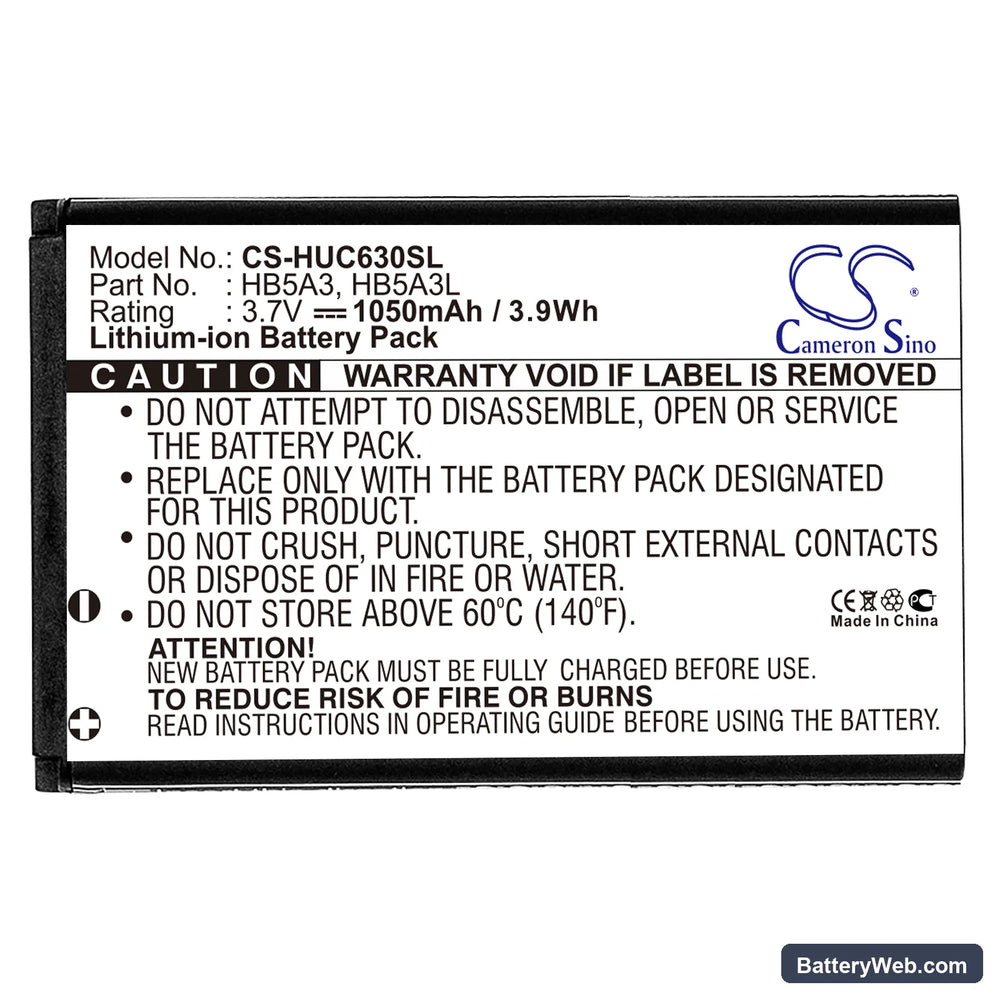

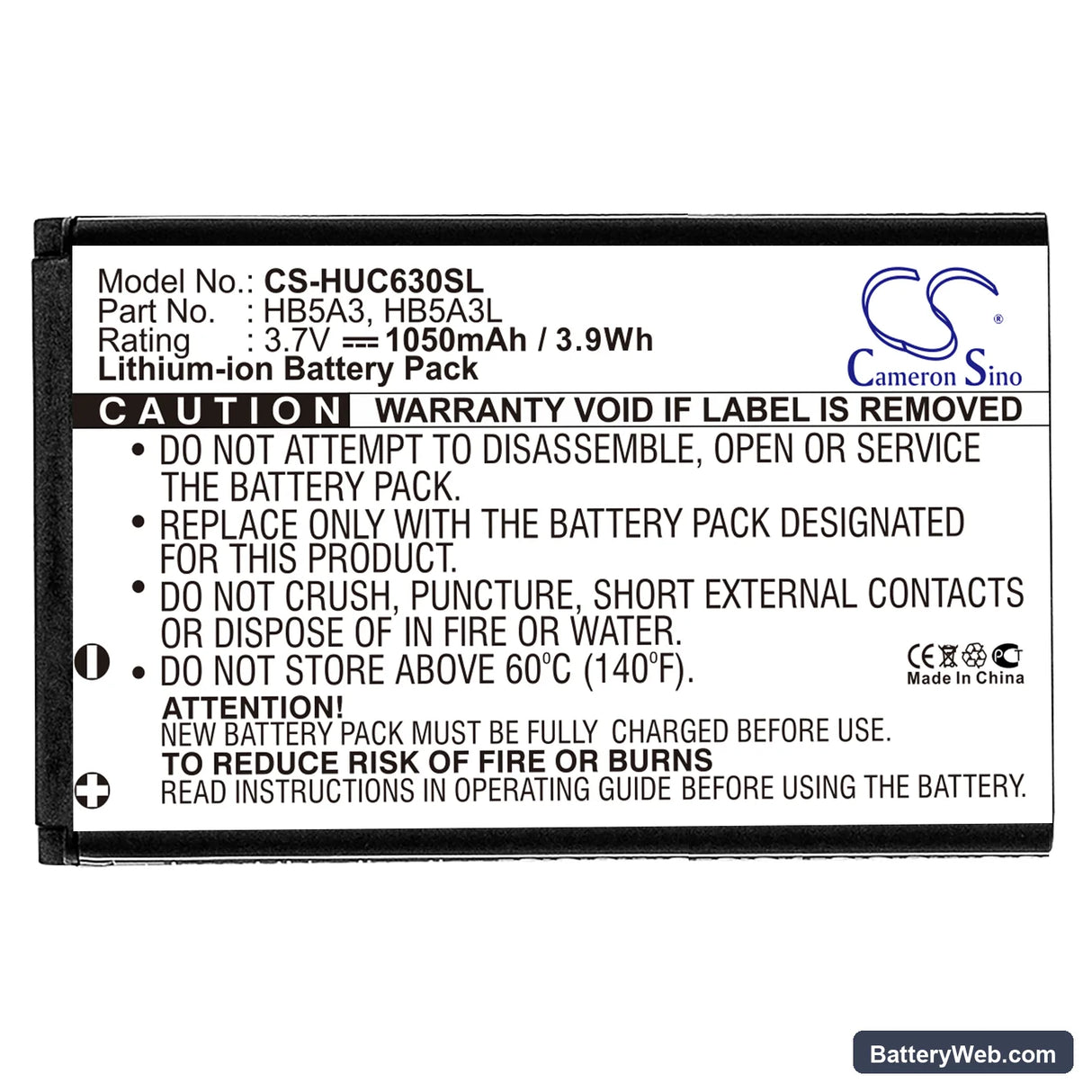

Huawei C6300 Replacement Battery HB5A3 3.7V 1050mAh

Huawei C6300 — 3.7V Li-ion Replacement Battery (HB5A3)

This is a 3.7V, 1050mAh Li-ion replacement battery for the Huawei C6300 smartphone. It fits directly in place of the original HB5A3 and HB5A3L cells. Use it to restore the phone when the original battery no longer holds a usable charge or fails to power on.

• C6300 compatibility: The C6300 uses a single-cell Li-ion pack at 3.7V nominal with a low-current BMS matched to its charge IC. Both OEM part numbers — HB5A3 and HB5A3L — share the same footprint, voltage rail, and connector, so this replacement seats and communicates correctly with the phone's charge controller.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on the bench, confirmed BMS handshake with the charge IC, and checked that protection cutoffs triggered correctly at low-voltage and over-current thresholds.
• Fuel gauge recalibration on first use: On first use after installation, disable any fast-charging mode and run one complete discharge-to-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before committing a calibration reference — skipping this step is the main cause of erratic percentage readings after a cell swap.

Why the C6300 shuts down suddenly at 20–30% after a cell swap

The C6300's fuel gauge IC holds a discharge curve calibrated to the original cell. A new cell has a steeper voltage drop under load — particularly during calls or screen-on bursts — so the IC underestimates remaining capacity. When the modem or display draws current and the cell voltage dips below the BMS cutoff threshold, the phone shuts off even though the gauge still shows charge. One full discharge-charge cycle rewrites the coulomb counter reference and brings reported percentage back in line with actual cell state.

Phone warm near the battery compartment during first charge

A new cell typically arrives with higher internal impedance than a broken-in cell. During the first charge cycle, the charge IC pushes current into a higher-resistance load, which generates more heat than normal. This is expected and settles after two or three cycles as the cell's impedance drops. If the phone stays warm beyond the third full charge, check that the back cover is seated flush — trapped heat with no airpath will sustain the temperature rise.
