Huawei G2201 HB5E1 Replacement Battery 3.7V 550mAh

Huawei G2201 / C3100 — 3.7V Li-ion Replacement Battery (HB5E1)

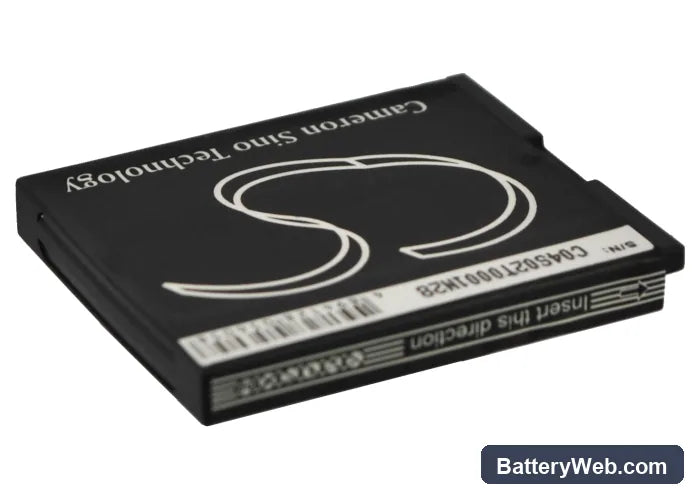

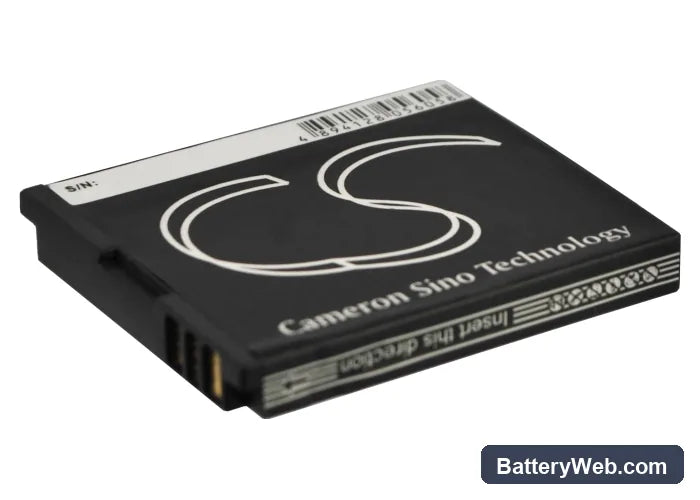

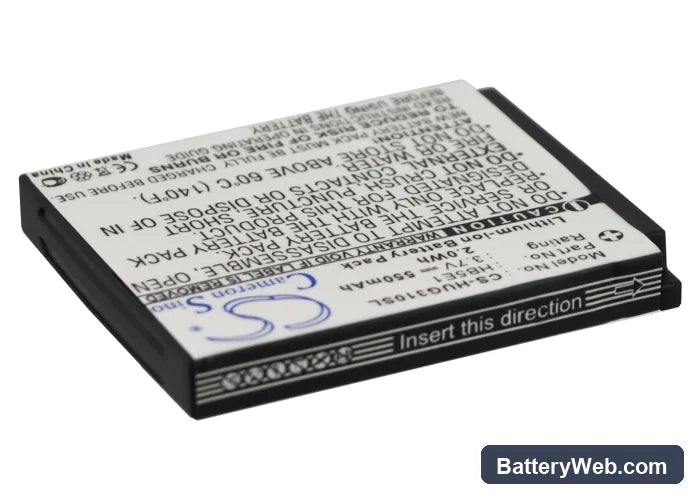

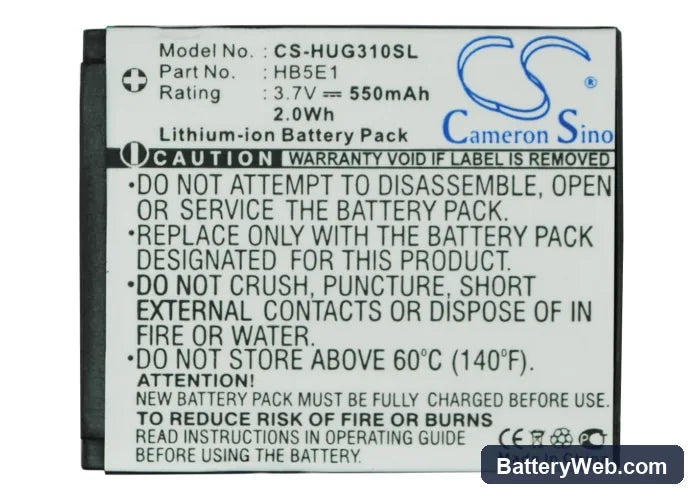

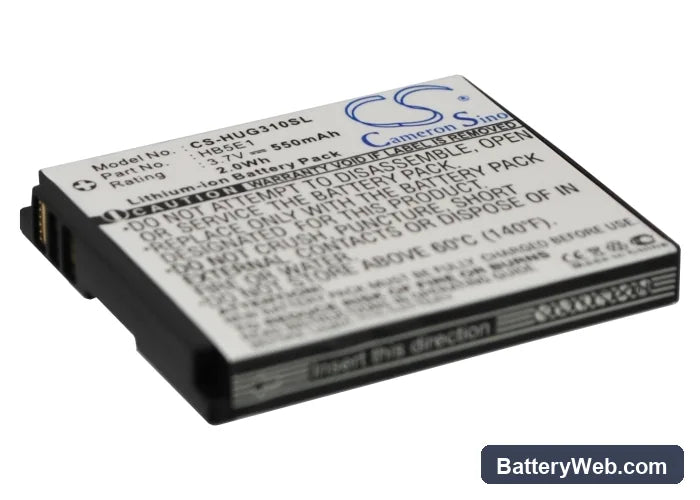

The HB5E1 is a 3.7V Li-ion cell rated at 550mAh (2.04Wh), fitting the Huawei G2201 and C3100 smartwatches. It powers the display, sensors, and wireless connectivity functions. Install it when the original cell can no longer hold a charge through a full day of normal use.

• G2201 and C3100 compatibility: Both watches share the HB5E1 cell format — same footprint at 39.58 × 33.54 × 5.11mm, same connector orientation, and the same BMS charge termination voltage. One cell fits both.
• Bench tested on actual hardware: We cycled the HB5E1 through charge and discharge on the bench. The BMS accepted charge termination cleanly at 4.2V and held cutoff at the low-voltage threshold without tripping into lockout under normal sensor loads.
• Fuel gauge recalibration on first use: After fitting the new cell, disable fast charging if your paired app or device allows it. Run one full discharge-to-charge cycle at standard rate. This lets the fuel gauge IC map the new cell's discharge curve before any high-current session pushes current into an uncalibrated state.

Sudden shutdown at 20–25% on the G2201 after a cell swap

The G2201's fuel gauge IC stores a discharge curve from the original cell. After a swap, that stored curve no longer matches the new cell's actual voltage profile. When the watch hits a load spike — screen-on, GPS poll, or heart rate burst — the cell voltage drops faster than the IC expects, and the watch shuts down to protect itself. Run one full discharge down to auto-off and then charge to 100% without interruption. After that single cycle the IC recalibrates and the early shutdown stops.

Battery percentage jumping erratically in the first few days after replacement

Erratic percentage readings — jumping from 60% to 80% or dropping 15% in a few minutes — are a coulomb counter symptom, not a cell defect. The IC is using stale capacity data from the previous cell. Each time it reads actual cell voltage it corrects the estimate, causing the visible jumps. Complete two full discharge-charge cycles at standard charge rate. By the end of the second cycle the counter stabilises and percentage tracking becomes consistent.
