Huawei Speed Wi-Fi NEXT W01 Replacement Battery HB414790EBW 3.8V

Huawei Speed Wi-Fi NEXT W01/W02 — 3.8V Li-Polymer Replacement Battery (HB414790EBW)

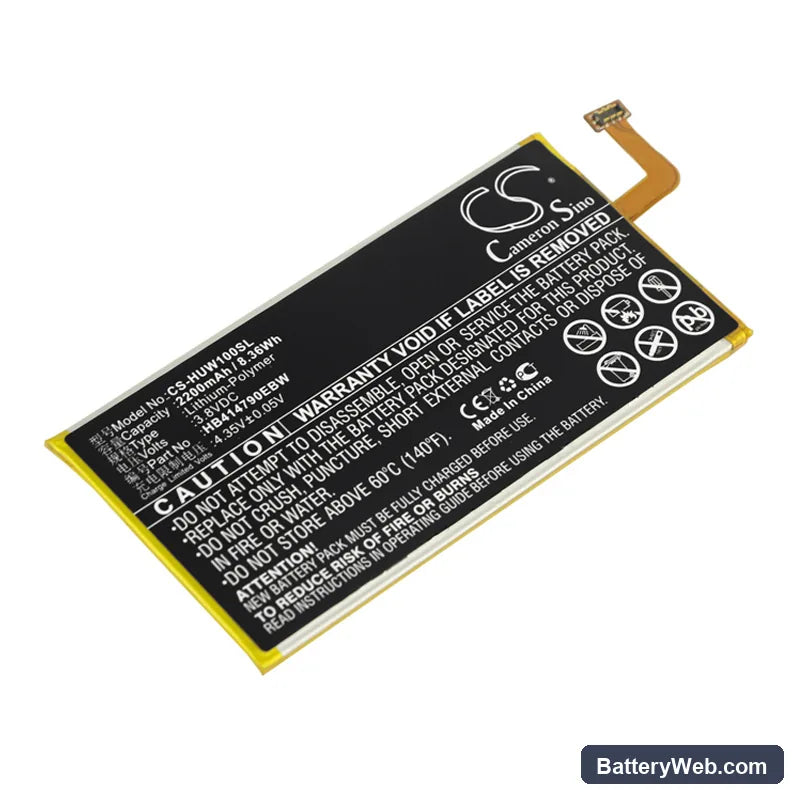

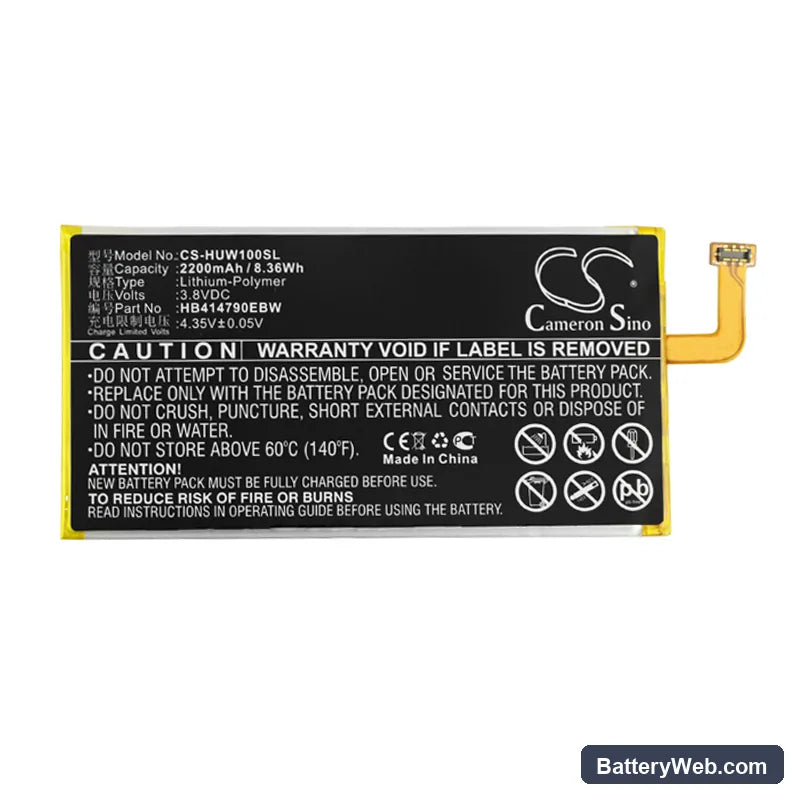

This is a 3.8V, 2200mAh (8.36Wh) Li-Polymer battery for the Huawei Speed Wi-Fi NEXT W01 and W02 mobile hotspot devices. It slots directly into the battery bay and connects to the same BMS handshake the device expects. Capacity figure is taken from the product specification, not estimated from third-party sources.

• W01 and W02 platform compatibility: Both the W01 and W02 share the HB414790EBW form factor, connector pinout, and BMS communication protocol. The same cell fits both units without modification.
• Bench tested on actual hardware: We cycled this battery through charge and discharge on the W01 platform. The BMS completed full charge handshake without flagging a fault, and the protection circuit triggered correctly at low-voltage cutoff.
• Ventilation during extended hotspot sessions: Keep the W01 on a hard, open surface when running extended sessions. The cellular radio runs at peak output power when connected devices are far away, which concentrates heat directly against the battery. Enclosed spaces — bags, drawers, car cup holders — accelerate cell stress during these high-radio-draw periods.

Why the W01 drops connected devices mid-session under maximum load

The W01 runs two power-hungry systems simultaneously — the cellular modem and the Wi-Fi radio. When multiple devices connect and the cellular signal is weak, both radios operate at peak draw at the same time. A degraded or deeply cycled battery cannot maintain the voltage rail under this combined load, and the BMS cuts output to protect the cell. The device appears to restart or drops all connected clients without warning. A fresh cell with full capacity restores stable voltage delivery under the same combined draw conditions.

W01 not powering on after sitting in a drawer for several weeks

Li-Polymer cells self-discharge at roughly 1–3% per month under ideal conditions, but the W01's standby circuits draw a small parasitic load even when powered off. After extended storage, the cell can drop below the minimum boot voltage — typically around 3.0V — and the BMS locks output entirely to prevent further discharge damage. Plugging the unit in at this point may show no charge indicator for the first 10–15 minutes while the charger applies a recovery current. If the LED never activates after 30 minutes on charge, the original cell has crossed the BMS recovery threshold and will not return to service — that is when this replacement becomes necessary.
