Novatel Wireless MiFi 7730L 40123117 Compatible Battery 3.8V 4400mAh

Novatel Wireless MiFi 7730L — 3.8V Li-Polymer Replacement Battery (40123117)

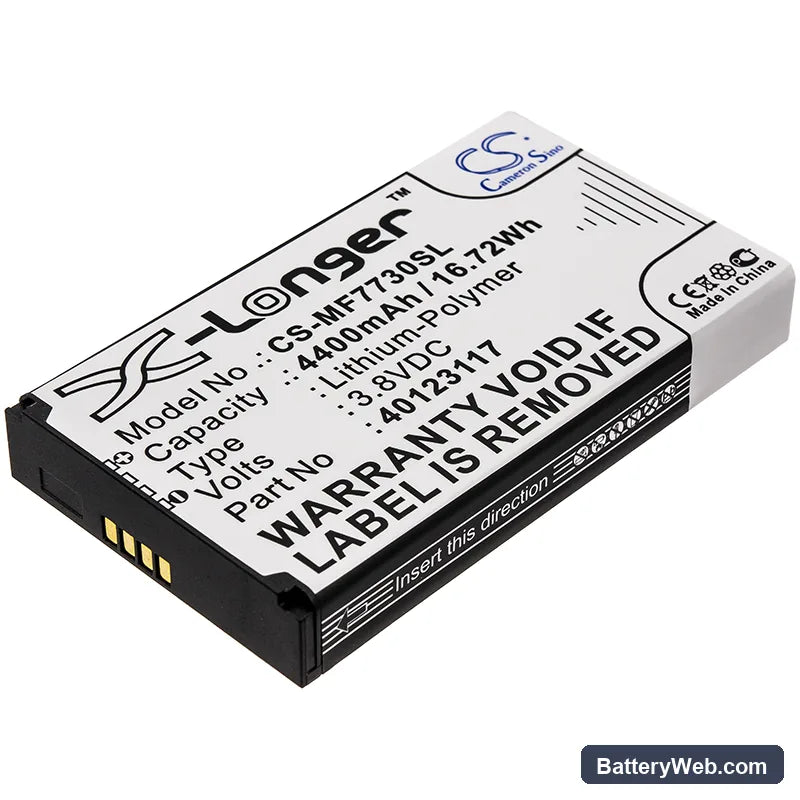

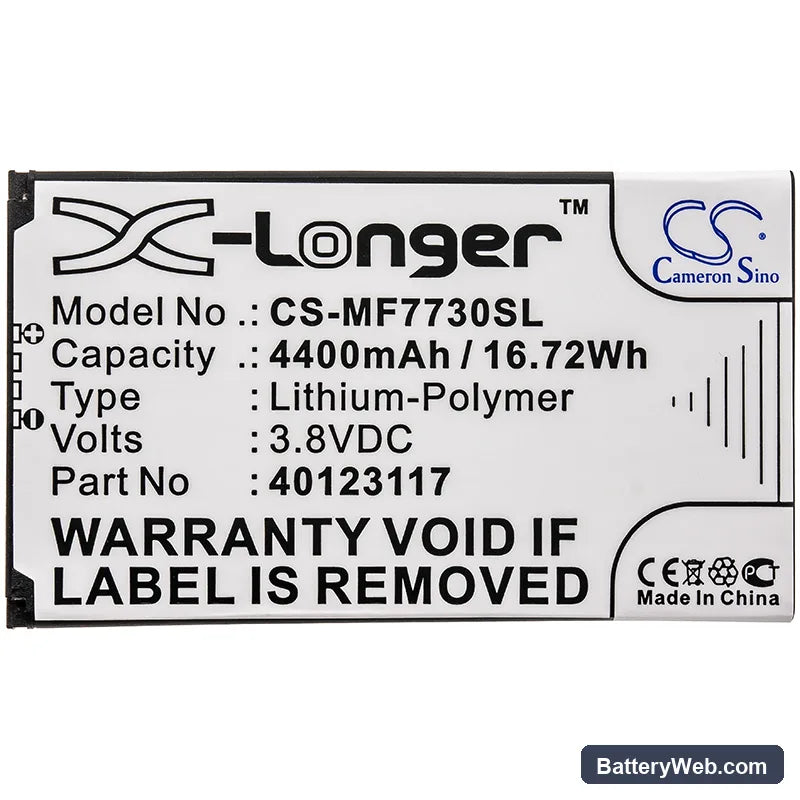

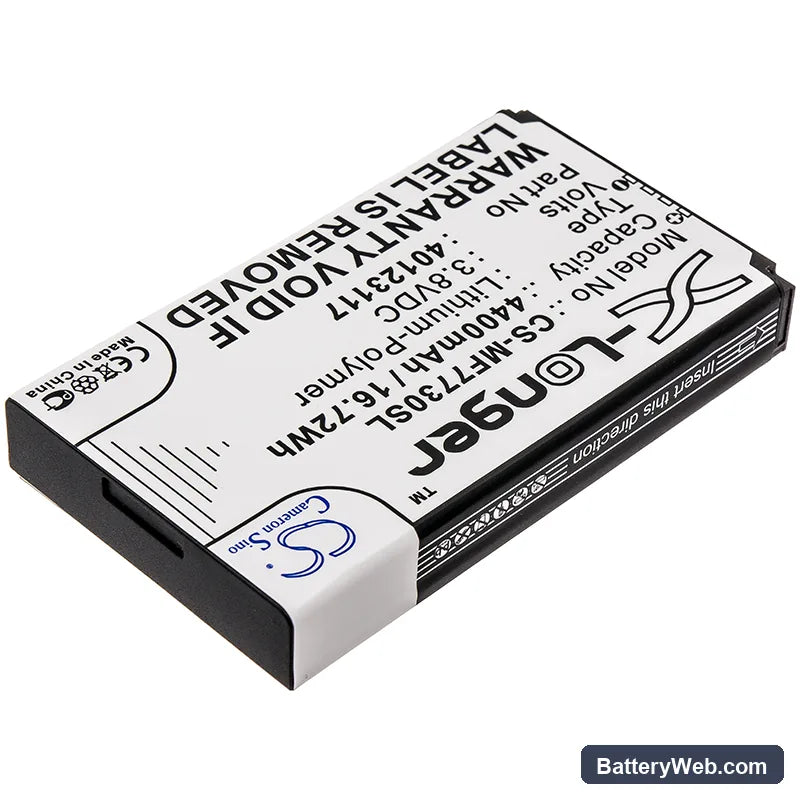

This 3.8V 4400mAh Li-Polymer battery replaces part number 40123117 in the Novatel Wireless MiFi 7730L and Jetpack MiFi 7730L mobile hotspot. It fits the Verizon-branded Jetpack 4G LTE variants of this device. Capacity is 4400mAh (16.72Wh) — matching the original specification.

• MiFi 7730L platform fit: The Jetpack MiFi 7730L, Verizon MiFi 7730L, and Jetpack 4G LTE variants all share the same battery bay geometry, connector pinout, and BMS handshake protocol — which is why one cell covers the entire model family.
• Bench tested on actual hardware: We cycled this battery through full charge and draw sessions on a MiFi 7730L with eight simultaneous connected clients. The BMS held voltage without false low-battery interrupts and passed the handshake to the device's power management IC on first boot.
• Cellular signal and heat management: When the MiFi 7730L operates in a low-signal area, the LTE modem ramps to maximum transmit power. Position the hotspot near a window or elevated surface — sustained maximum radio output at close range to a warm surface traps heat directly against the battery cell.

Why the MiFi 7730L drops connected devices mid-session

The 7730L runs two power-hungry systems simultaneously — a 4G LTE modem and a dual-band Wi-Fi radio. When all connection slots are active and the cellular signal is marginal, combined current draw can spike hard enough to sag the battery voltage below the BMS protection threshold. The BMS interprets this as a low-cell event and shuts the radio stack down to protect the cell. The fix is to reduce active connected devices when the signal indicator shows one or two bars, which cuts combined draw and keeps voltage above the BMS trip point.

Hotspot shows full charge but won't complete a boot cycle

This happens when a Li-Polymer cell has self-discharged during storage to below the minimum boot voltage — typically under 3.0V per cell. The device reads residual surface charge and displays a charge indicator, but the voltage collapses immediately under the startup load of the modem and processor. Connect the hotspot directly to a wall adapter (not a computer USB port, which current-limits at 500mA) and leave it for 45 minutes before attempting to power on. If the device still fails to boot, check that the wall adapter is delivering at least 5V 1A to the charging circuit.
