Minon DMP-3 Replacement Battery 3.7V 850mAh W10-VA0099

Minon DMP-3 — 3.7V Li-ion Replacement Battery (W10-VA0099)

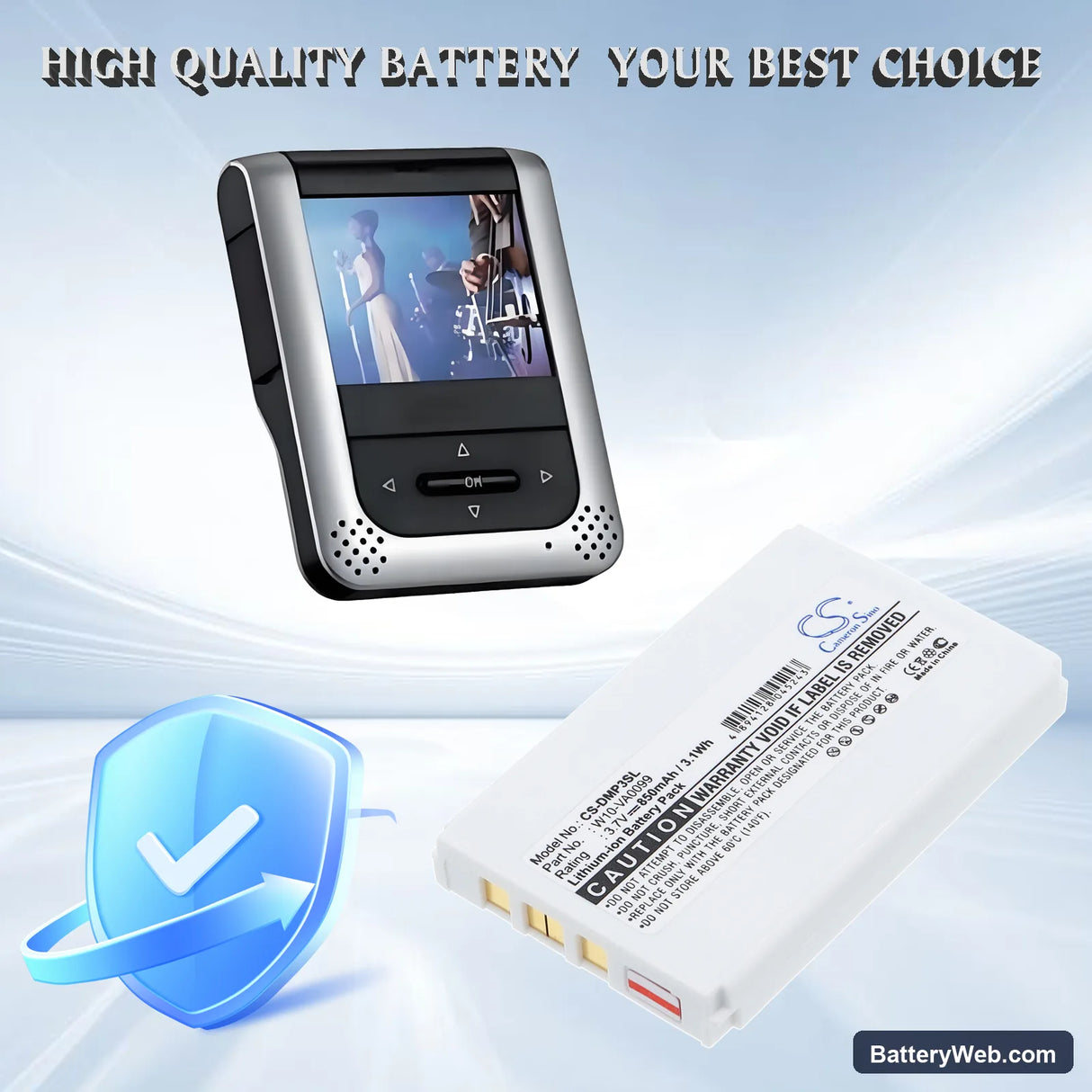

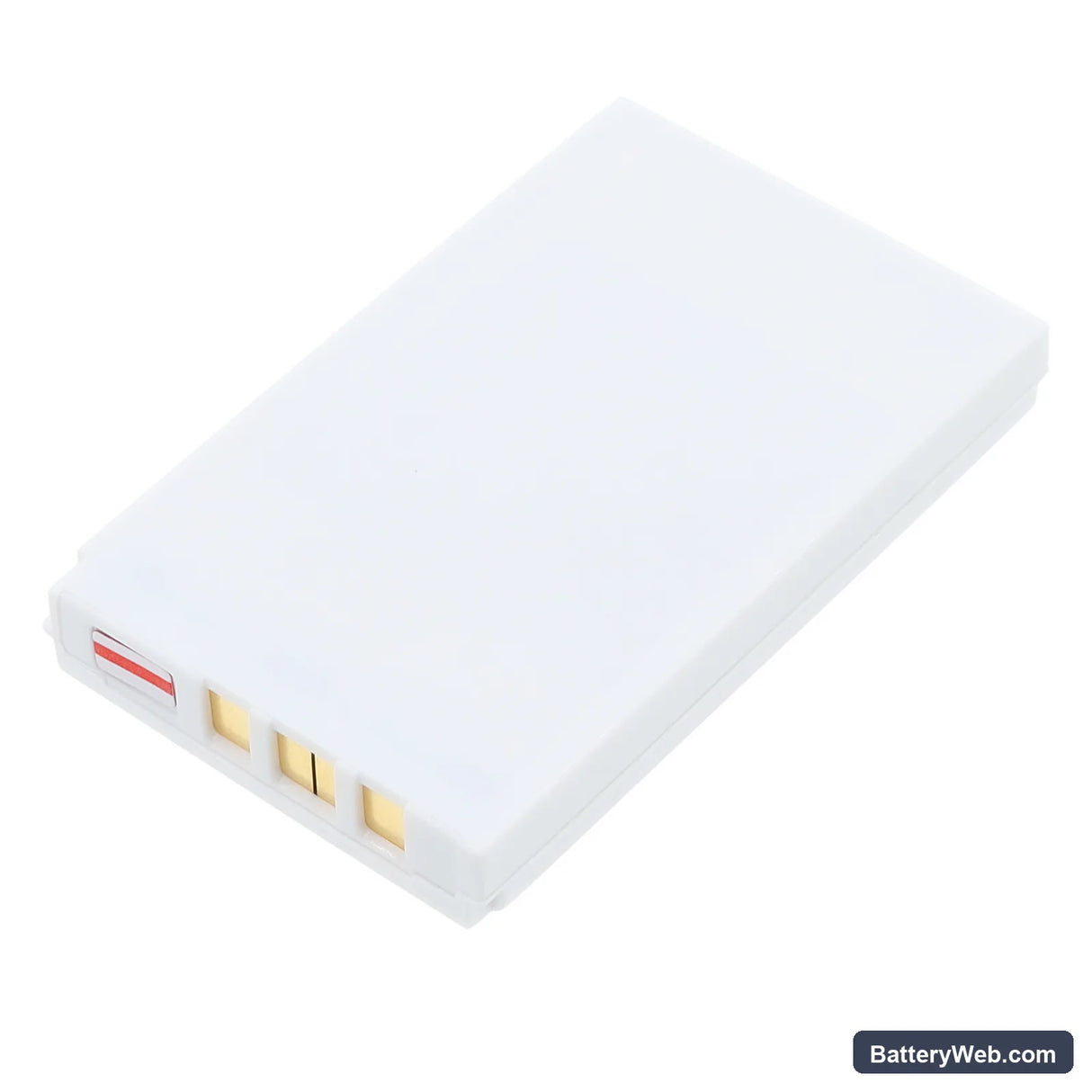

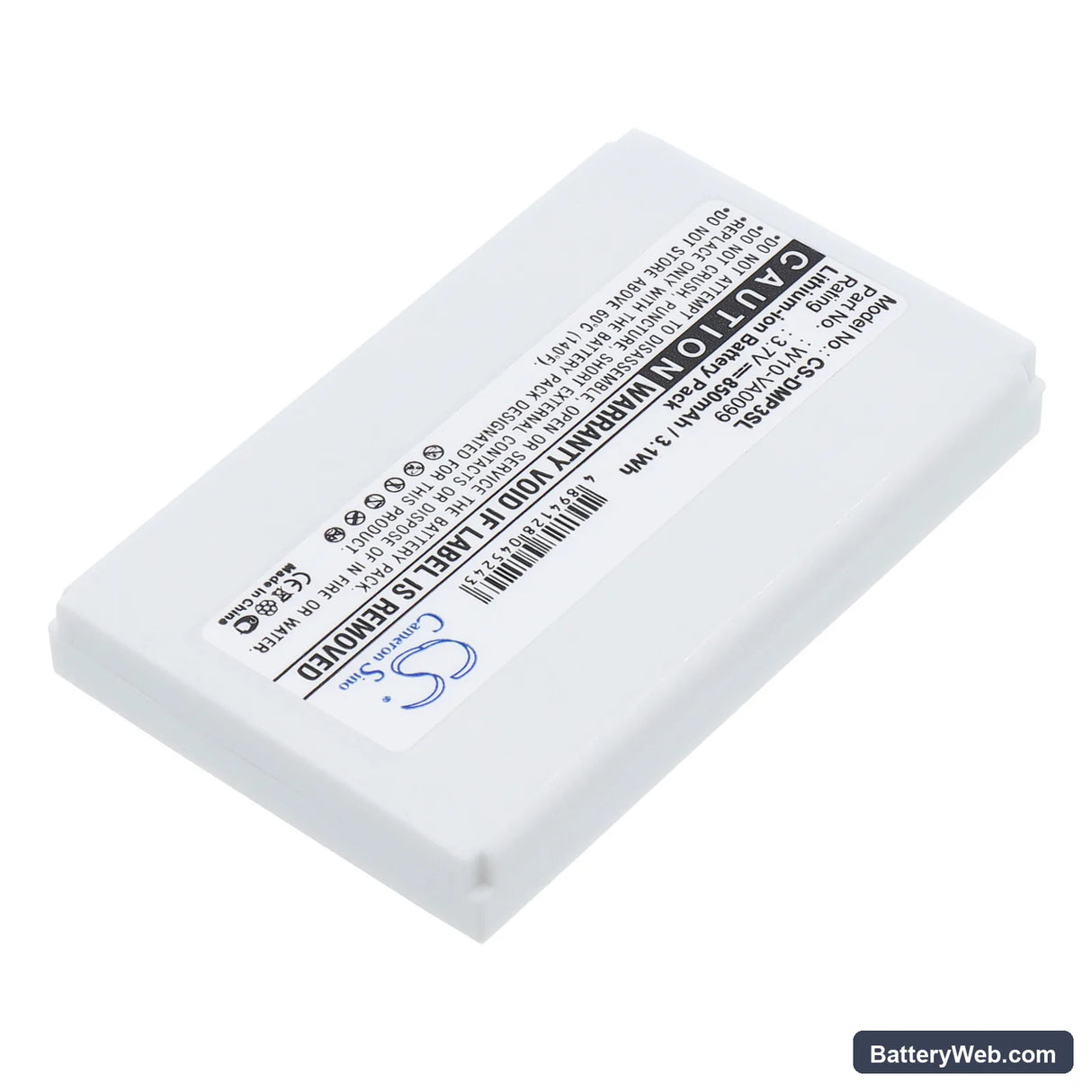

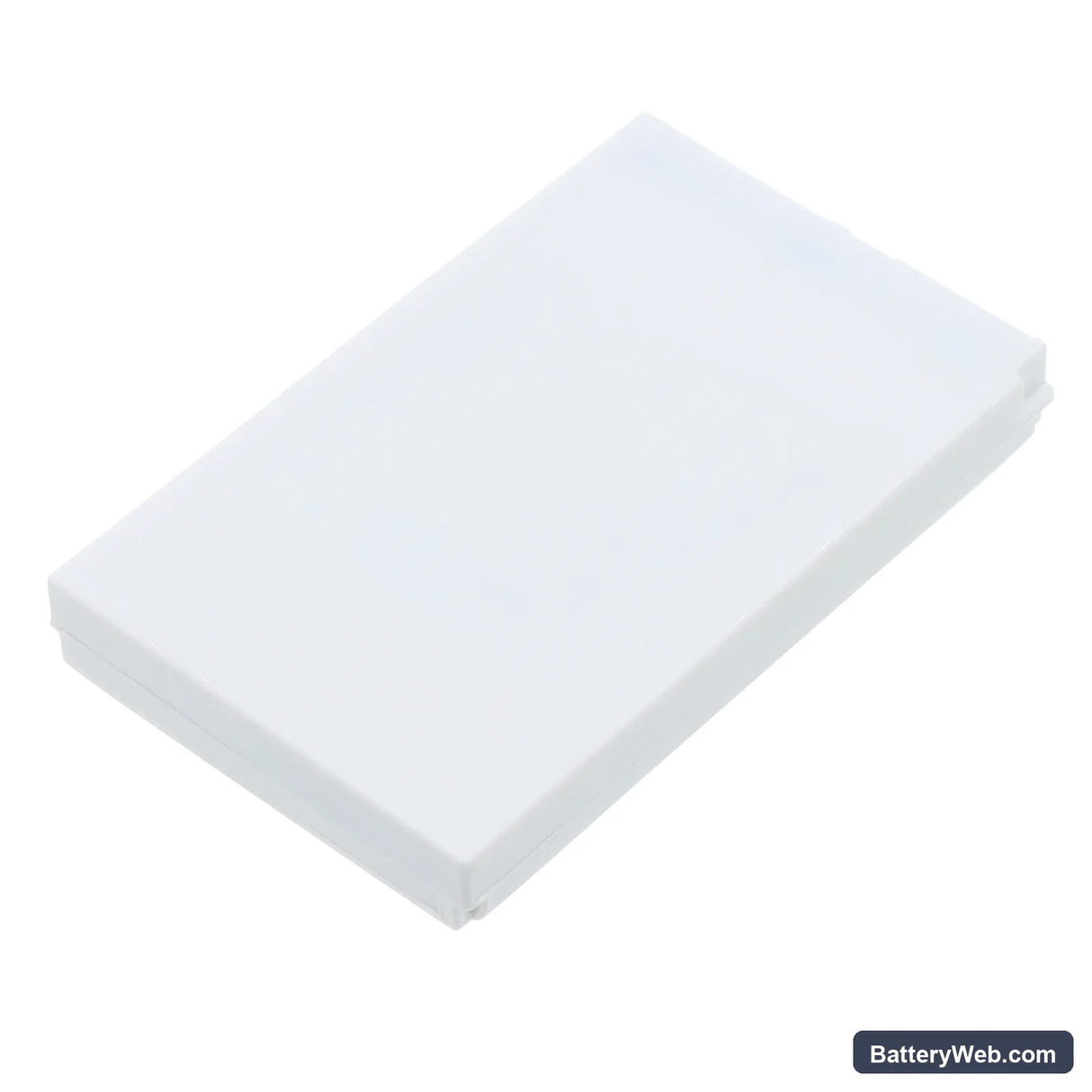

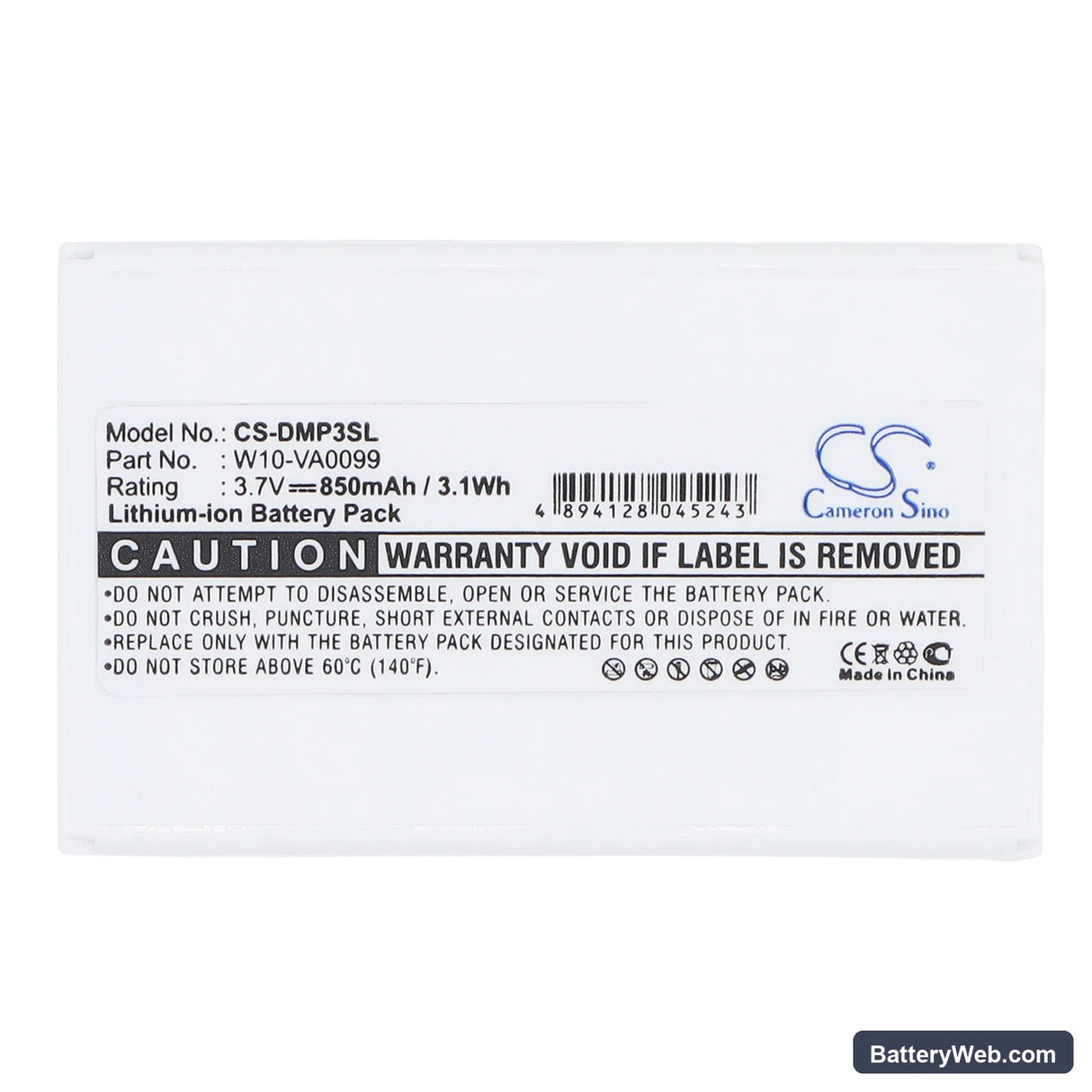

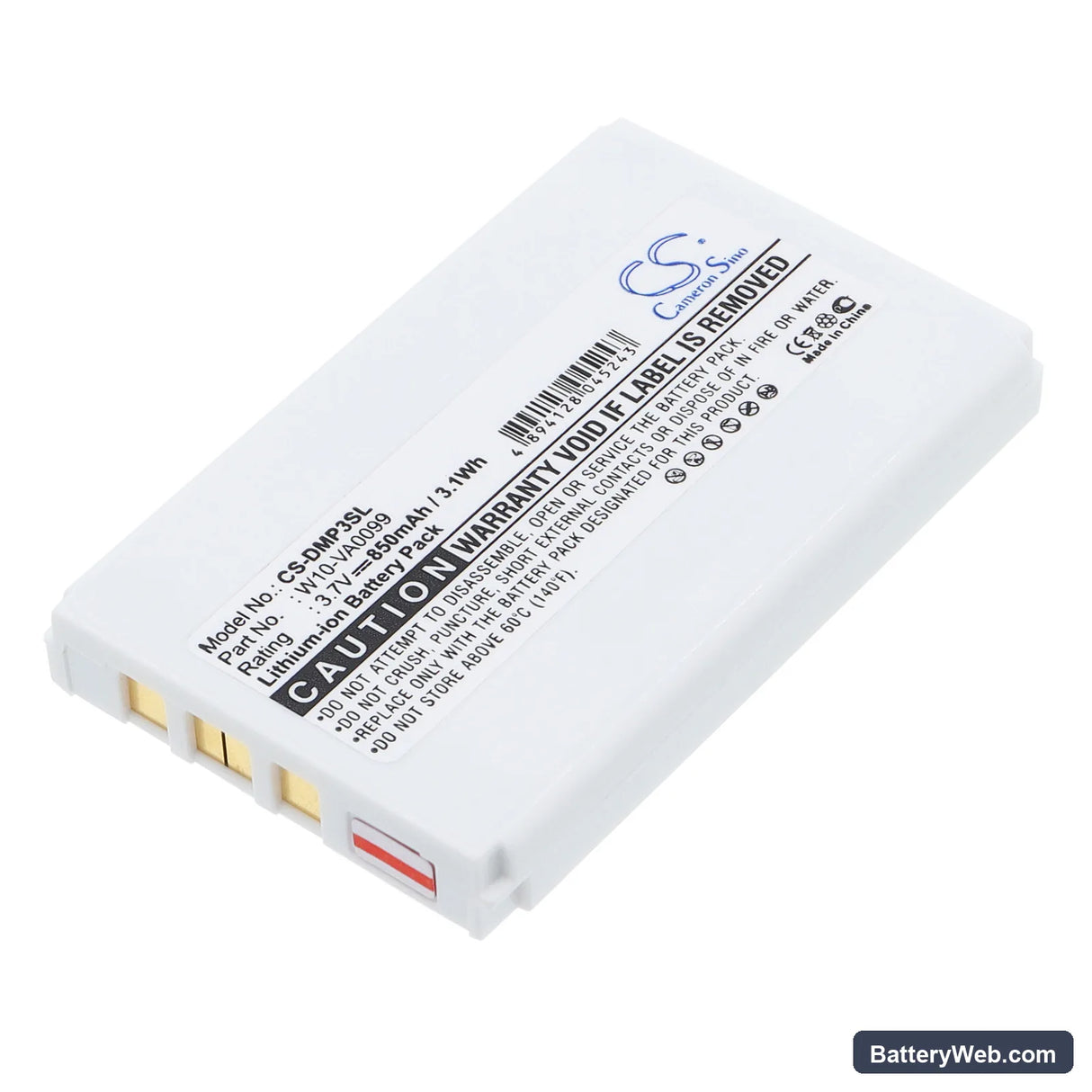

This is a 3.7V, 850mAh Li-ion battery for the Minon DMP-3 portable media player. It replaces part number W10-VA0099 and fits the compact cell bay on the DMP-3 directly. The original cell in these players degrades with shallow-cycle use over time, leaving the device unable to hold a charge.

• DMP-3 fit: The DMP-3 runs a single-cell 3.7V Li-ion configuration with a fixed connector and BMS handshake tied to cell voltage. This replacement matches the cell dimensions (52.96 × 33.03 × 7.17mm), voltage curve, and protection circuit the player expects.
• Bench tested on actual hardware: We ran the cell through charge and discharge cycles on the DMP-3 platform. The BMS accepted the cell without fault flags, and the protection circuit responded correctly at low-voltage cutoff — no false trips during normal audio playback draw.
• Post-swap charging on the DMP-3: After fitting a new cell, connect the DMP-3 to its charger before powering on. If the original battery discharged completely during storage, the player may sit in deep discharge protection and appear dead. Leave it on charge for at least 30 minutes before attempting to boot.

Battery percentage jumping after cell swap on the DMP-3

The DMP-3 tracks battery level using voltage thresholds mapped to the original cell's discharge curve. When a new cell is installed, the player's internal gauge has no reference point for the new cell's resting voltage. This causes the percentage display to jump — sometimes showing full, then dropping sharply after a few minutes of playback. Run two full charge-to-cutoff cycles and the gauge will recalibrate to the new cell's actual curve.

Playback cutting out before the battery indicator shows empty
