Nintendo Wii U GamePad WUP-003 Replacement Battery 3.7V 5000mAh

Nintendo Wii U GamePad — 3.7V Li-ion Replacement Battery (WUP-003)

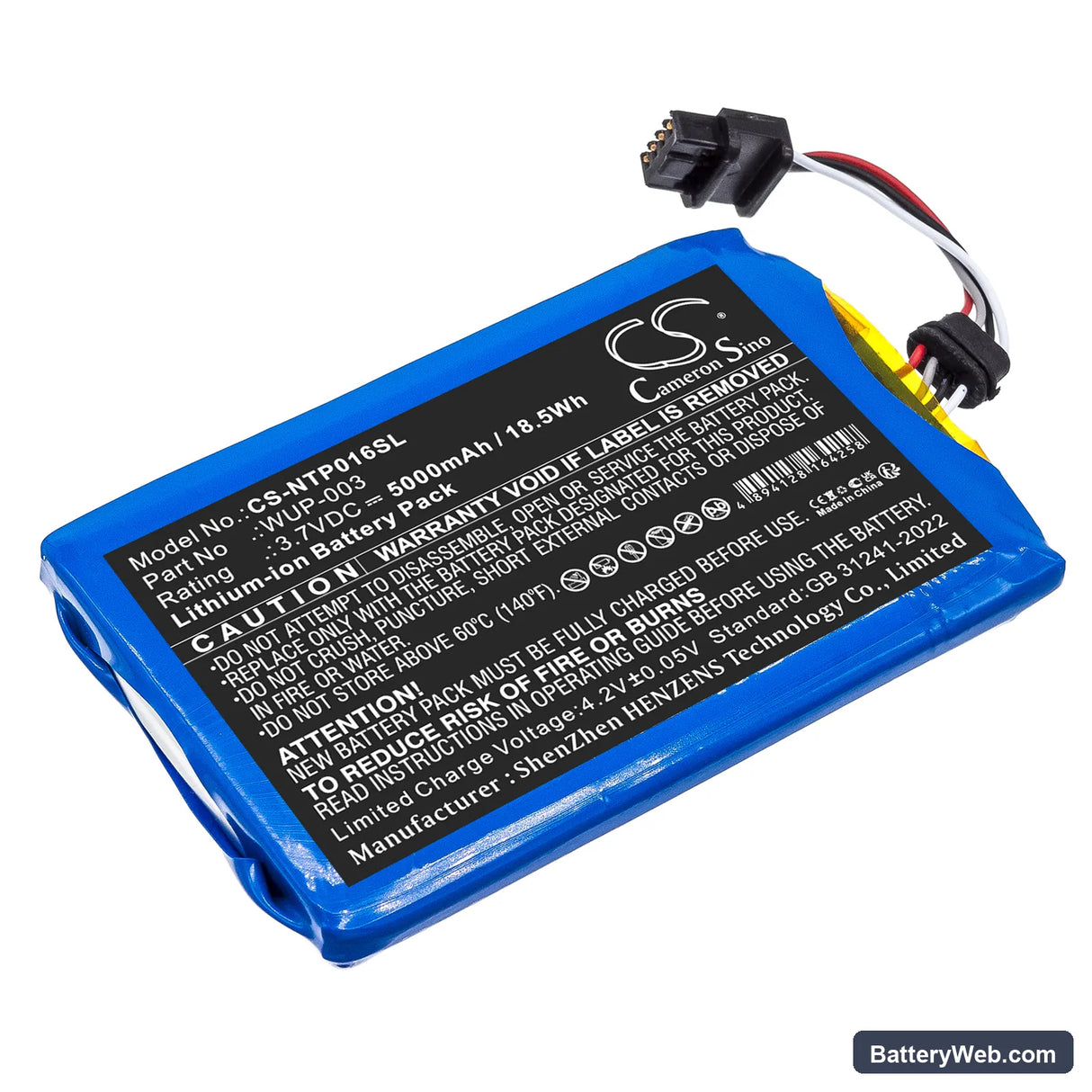

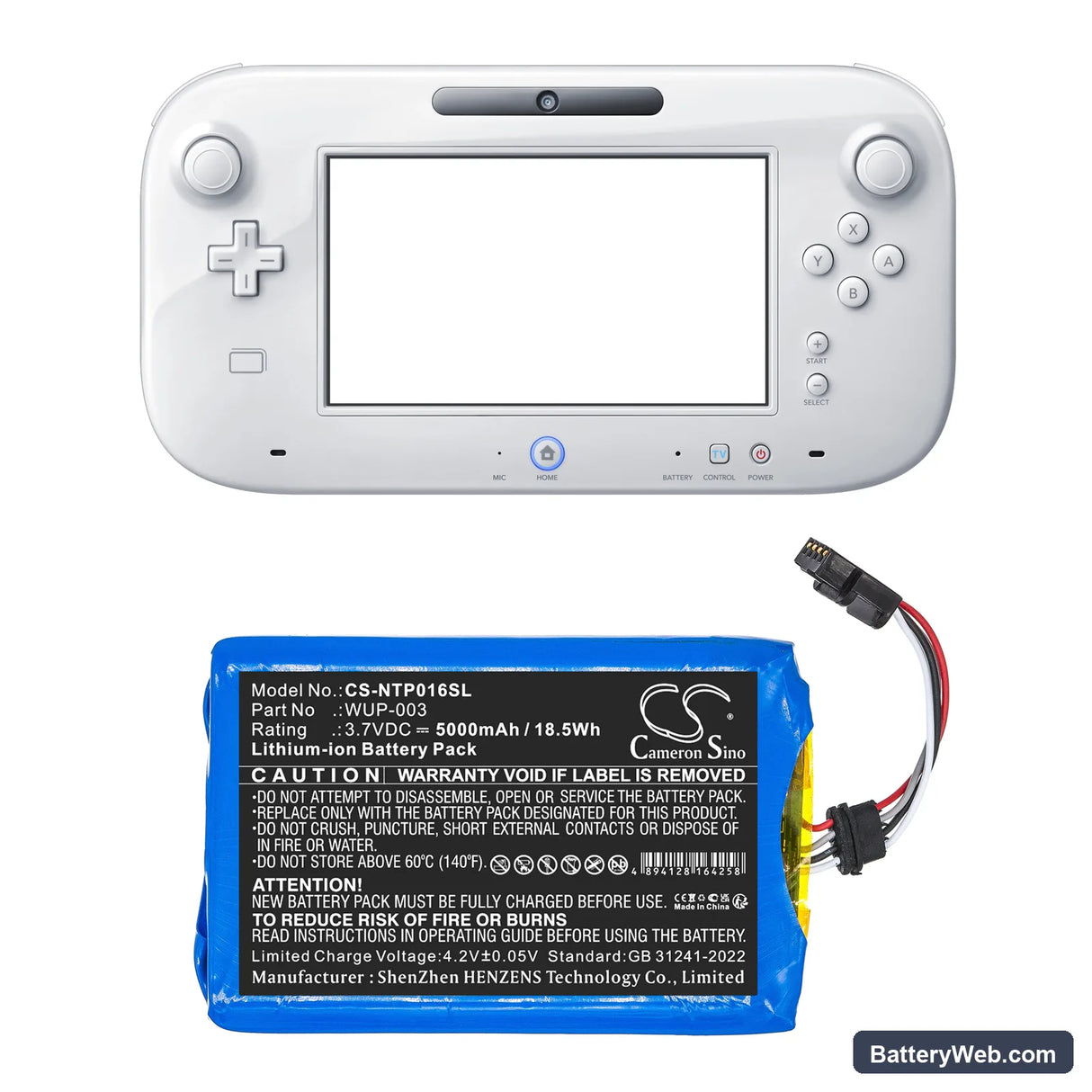

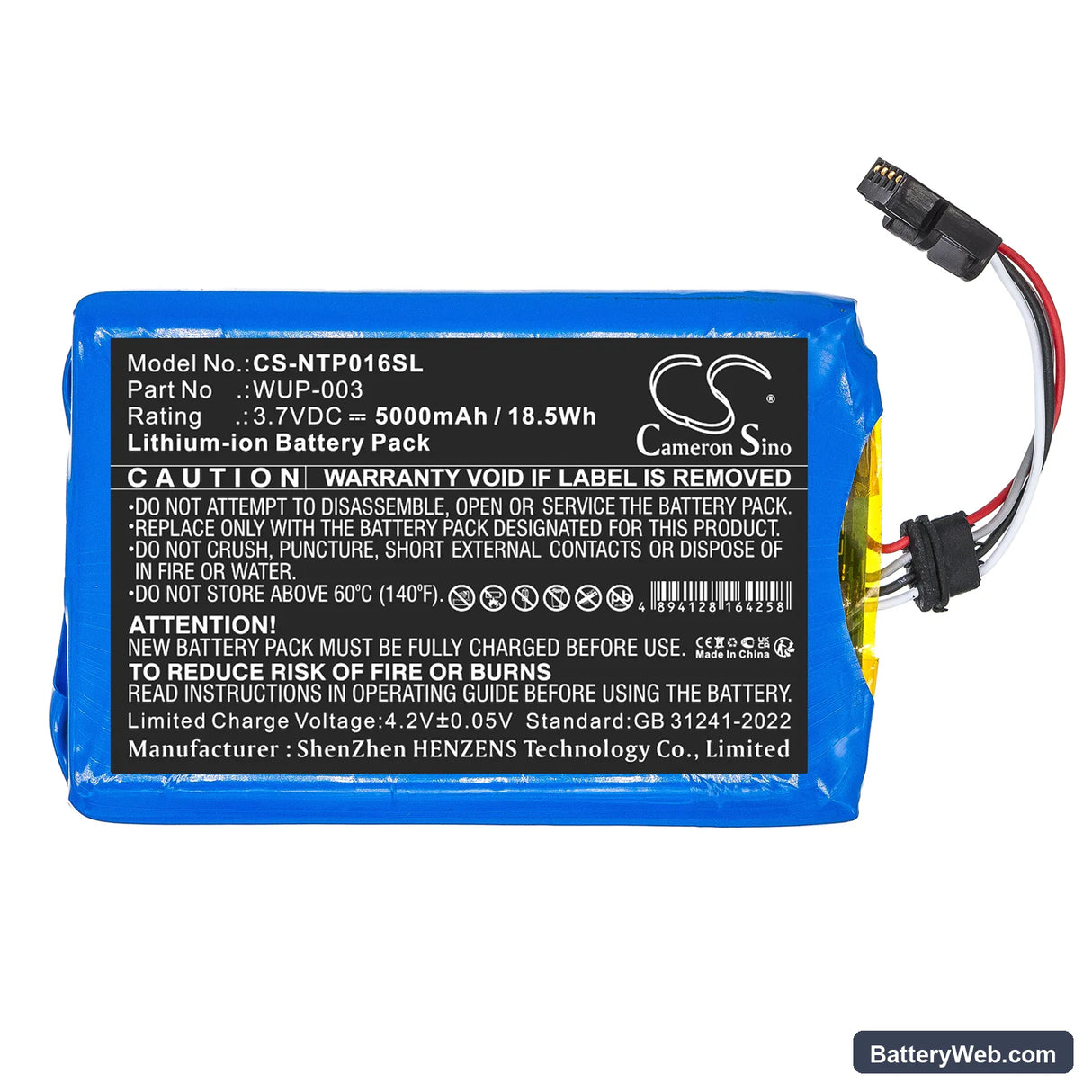

This 3.7V, 5000mAh Li-ion cell replaces the original battery in the Nintendo Wii U GamePad (WUP-003). The GamePad is the primary controller for the Wii U console, integrating a touchscreen display, wireless communication, and rumble hardware — all drawing from a single cell. Capacity is 18.5Wh, matching the original specification.

• Wii U GamePad WUP-003 fit: The GamePad uses a single prismatic Li-ion cell in a fixed battery bay with a proprietary three-contact connector. Voltage tolerance on the BMS input rail is tight — cells outside the 3.6–3.8V nominal band trigger charge refusal at the GamePad's charge IC.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on a WUP-003 unit. The BMS accepted the cell without fault codes, the charge IC stepped through CC/CV phases normally, and the touchscreen and wireless stack remained active through to low-battery cutoff.
• Fuel gauge calibration after cell swap: After installing this cell, run one complete wireless play session to automatic cutoff before recharging. The GamePad's fuel gauge IC sets its empty reference point against the first full discharge — skipping this step causes the battery indicator to read inaccurately for the first several sessions.

Why the Wii U GamePad drops connection before the battery indicator hits empty

The GamePad runs wireless communication, the touchscreen backlight, and rumble motors simultaneously — a combined load that can spike current draw sharply. When a degraded or newly installed cell has not yet conditioned to full capacity, voltage sags under that combined load before the fuel gauge reads critically low. The BMS interprets the voltage sag as an undervoltage event and cuts the wireless radio to protect the cell. After two to three full conditioning cycles, internal resistance drops and the sag under load reduces, eliminating the false disconnect.

Battery percentage jumping erratically after fitting a new cell

The Wii U GamePad uses a fuel gauge IC that tracks capacity against a stored discharge curve from the previous cell. When a new cell is installed, the IC's stored curve no longer matches the actual discharge behaviour of the fresh cell, so percentage readings jump or reset unexpectedly. The fix is one uninterrupted play session from full charge to automatic power-off, which allows the IC to record a new discharge curve against the 5000mAh cell. After that first calibration cycle, the percentage display stabilises and tracks within normal tolerance.
