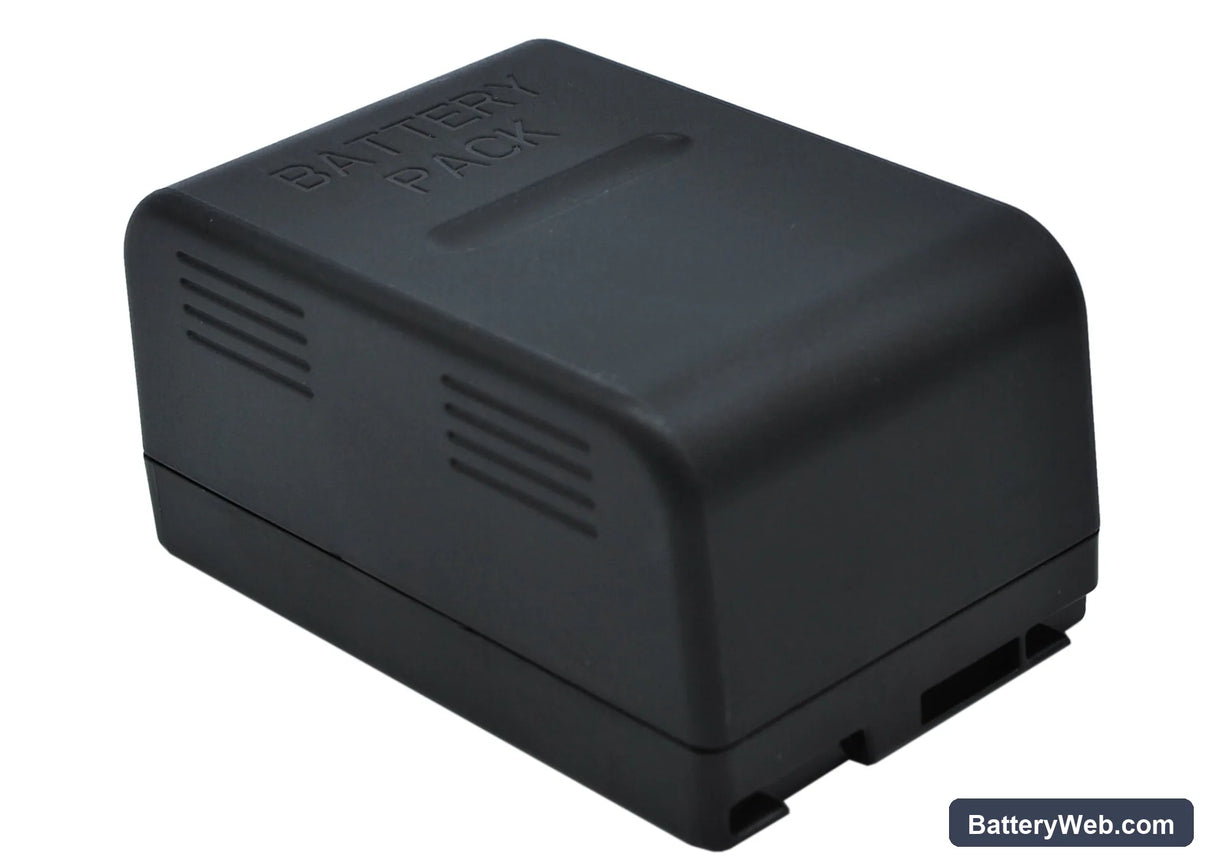

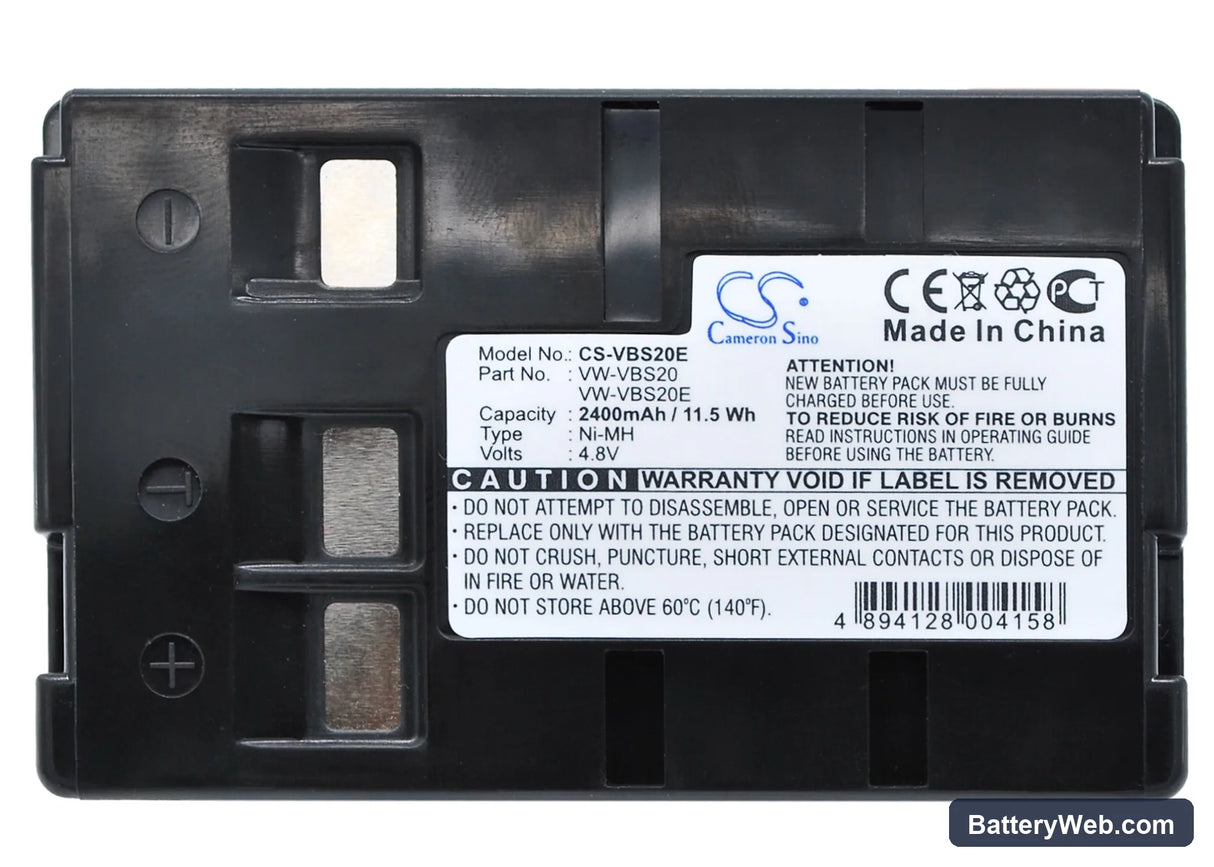

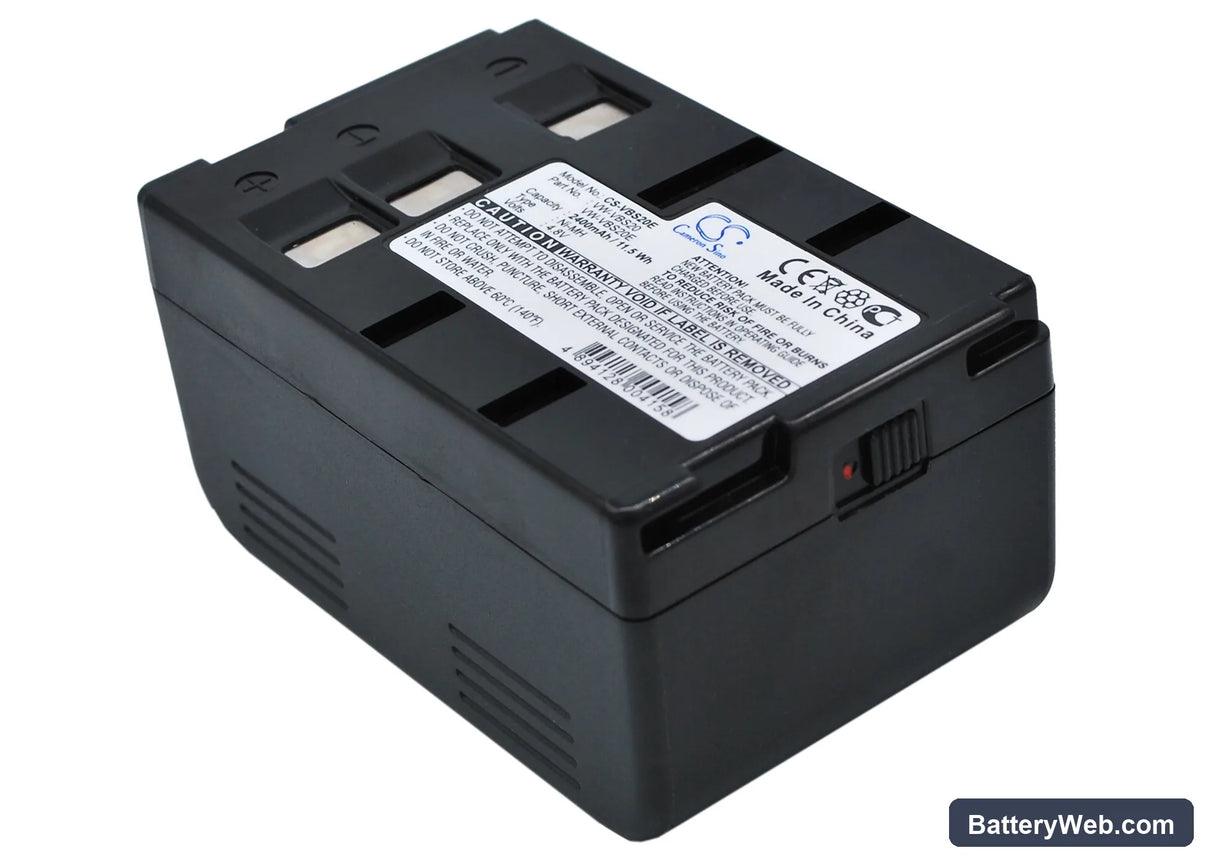

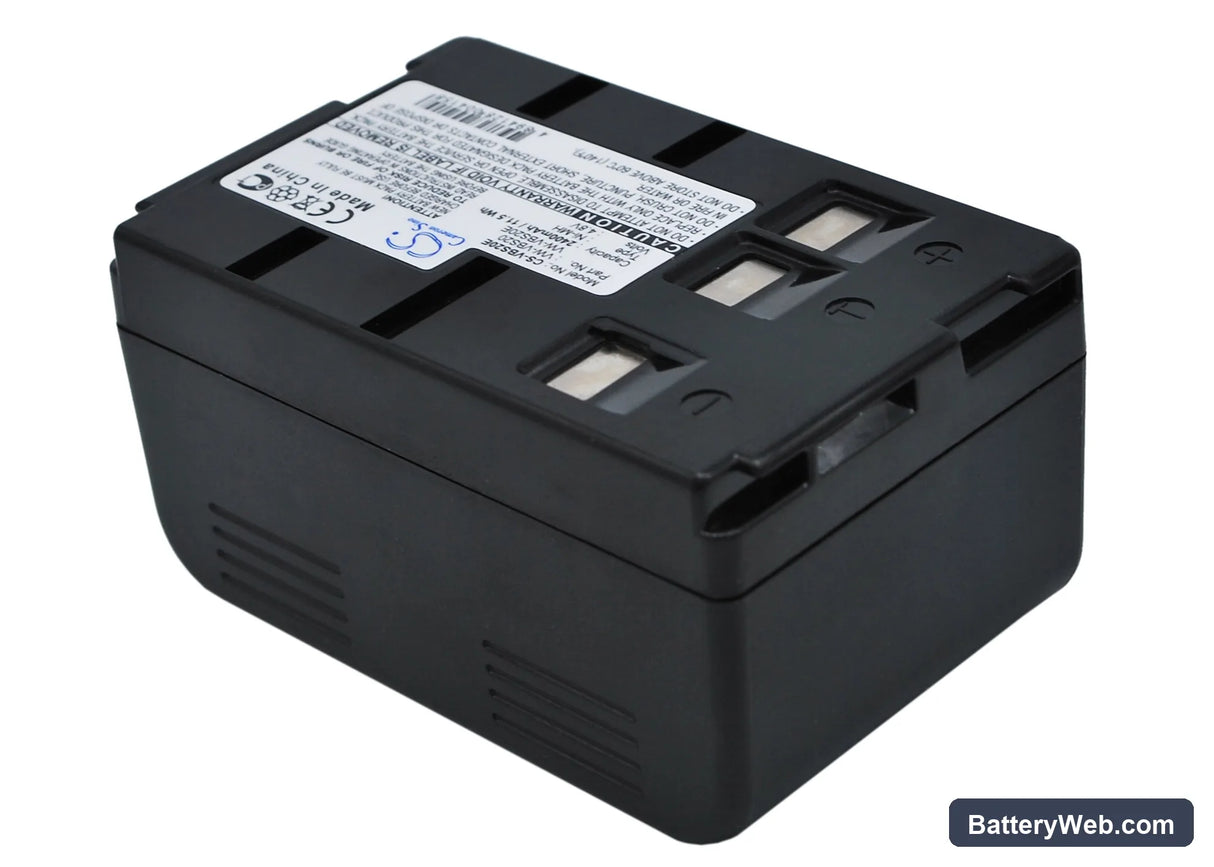

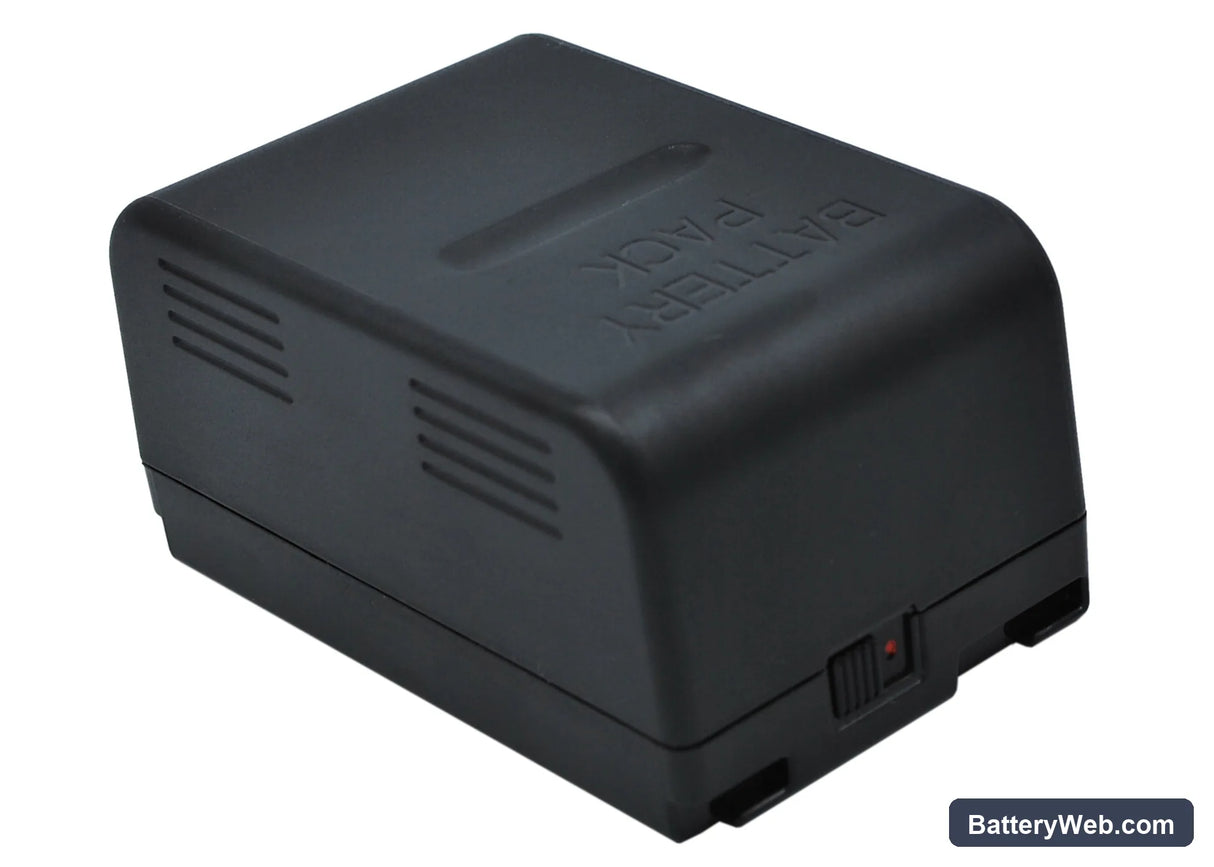

Panasonic VBS20E NV-A1 Replacement Battery 4.8V 2400mAh

Panasonic NV-A1 Series — 4.8V Ni-MH Replacement Battery (VBS20E)

This is a 4.8V, 2400mAh nickel-metal hydride replacement battery for the Panasonic NV-A1 series VHS camcorders. It fits the NV-A1, NV-A1EN, NV-ALEN, NV-CSLEN, and over a dozen related models from the same platform. Cross-references include HHR-V211, HHR-V212, P-V211, P-V212, VW-VBS10, VW-VBS20, and VSB-0190 among others.

• NV-A1 platform compatibility: These camcorder models share the same 4.8V battery bay, connector pinout, and charge-control circuit. The BMS in the camera body reads cell voltage through the same two-pin contact arrangement across the entire series, so one cell works across all listed variants.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on compatible hardware. The BMS accepted the cell without tripping, voltage held stable across the draw curve, and charge termination triggered correctly at capacity.
• First-charge protocol for NV-A1 camcorders: Charge this battery fully inside the OEM Panasonic charger or camera body before first use. The NV-A1's charge circuit uses delta-V termination — charging outside the OEM system on the first cycle can cause the camera to misread remaining capacity on subsequent uses.

Why the NV-A1 shows a dead battery indicator on a partially charged Ni-MH cell

Ni-MH cells have a flatter discharge curve than later lithium chemistries. The NV-A1's voltage-threshold indicator was calibrated to the original Panasonic cell's specific curve. A new replacement cell — even from the same chemistry — can sit at a voltage point the camera maps to "low" or "dead" before the cell is actually depleted. Running one full charge-discharge cycle through the OEM charger recalibrates how the camera reads that curve. After one conditioning cycle, the indicator typically tracks accurately again.

Battery percentage jumping erratically on the NV-A1 viewfinder display

This is a known behaviour when a new Ni-MH cell hasn't yet been cycled in the camera body. The camera's charge-state estimator maps voltage steps to percentage bands — a fresh cell's internal resistance differs slightly from a used one, causing voltage to spike or dip momentarily under load. The display reads those transient swings as large jumps in remaining charge. Run two full charge cycles through the OEM charger, keeping the cell above 4.6V at rest between cycles, and the display stabilises.
