Perel EWL23 Replacement Battery 4.8V 2200mAh Ni-MH

Perel EWL23 — 4.8V Ni-MH Replacement Battery (31065422)

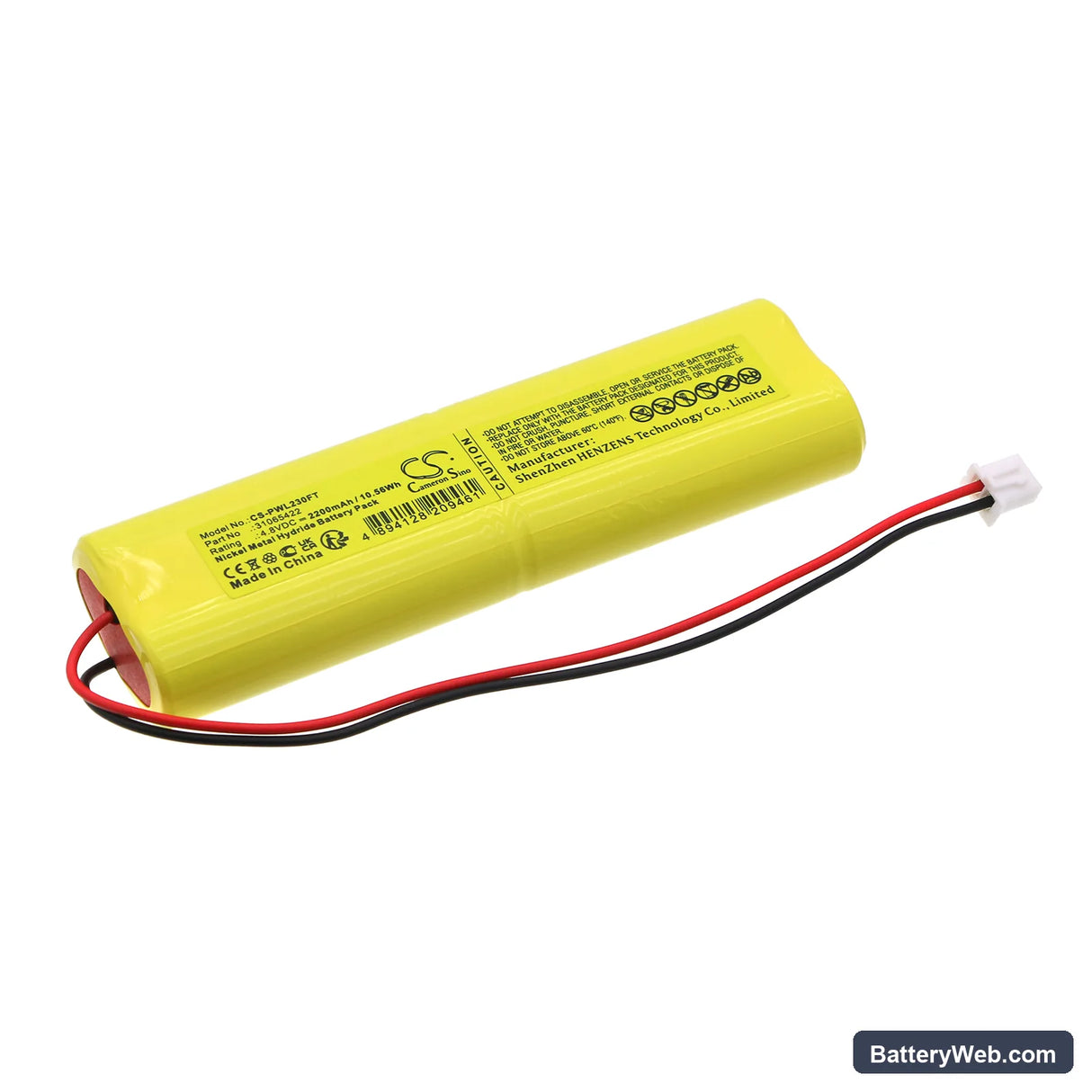

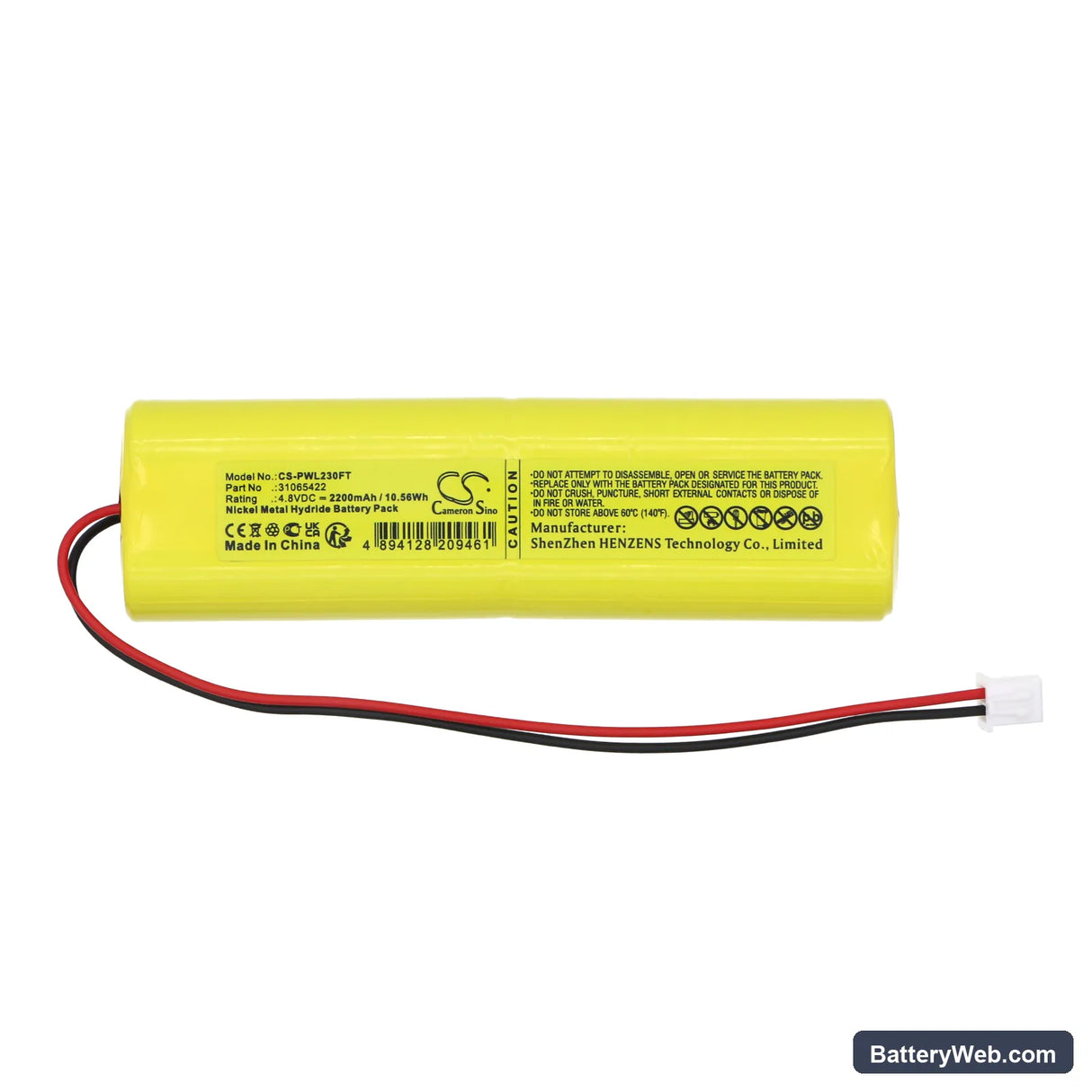

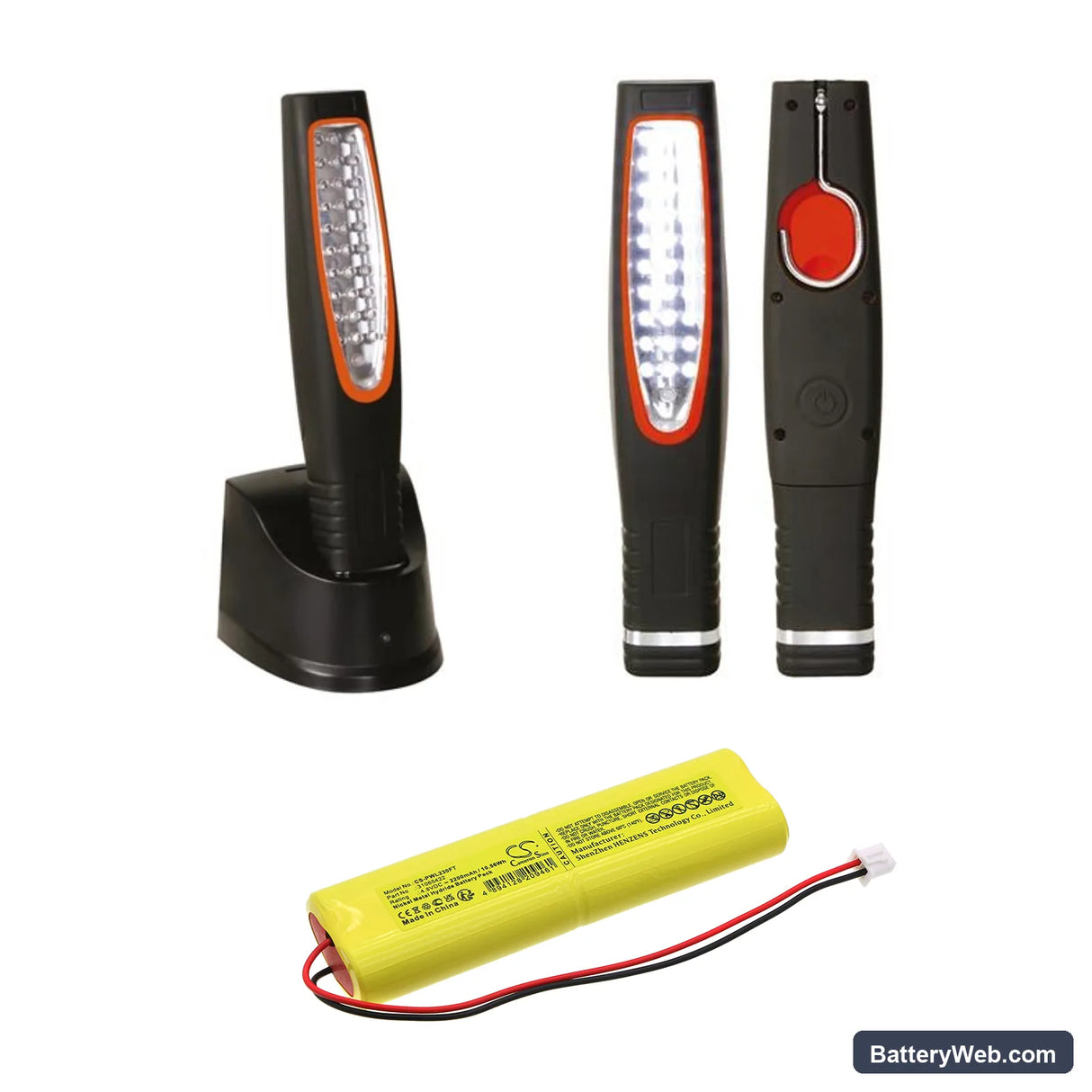

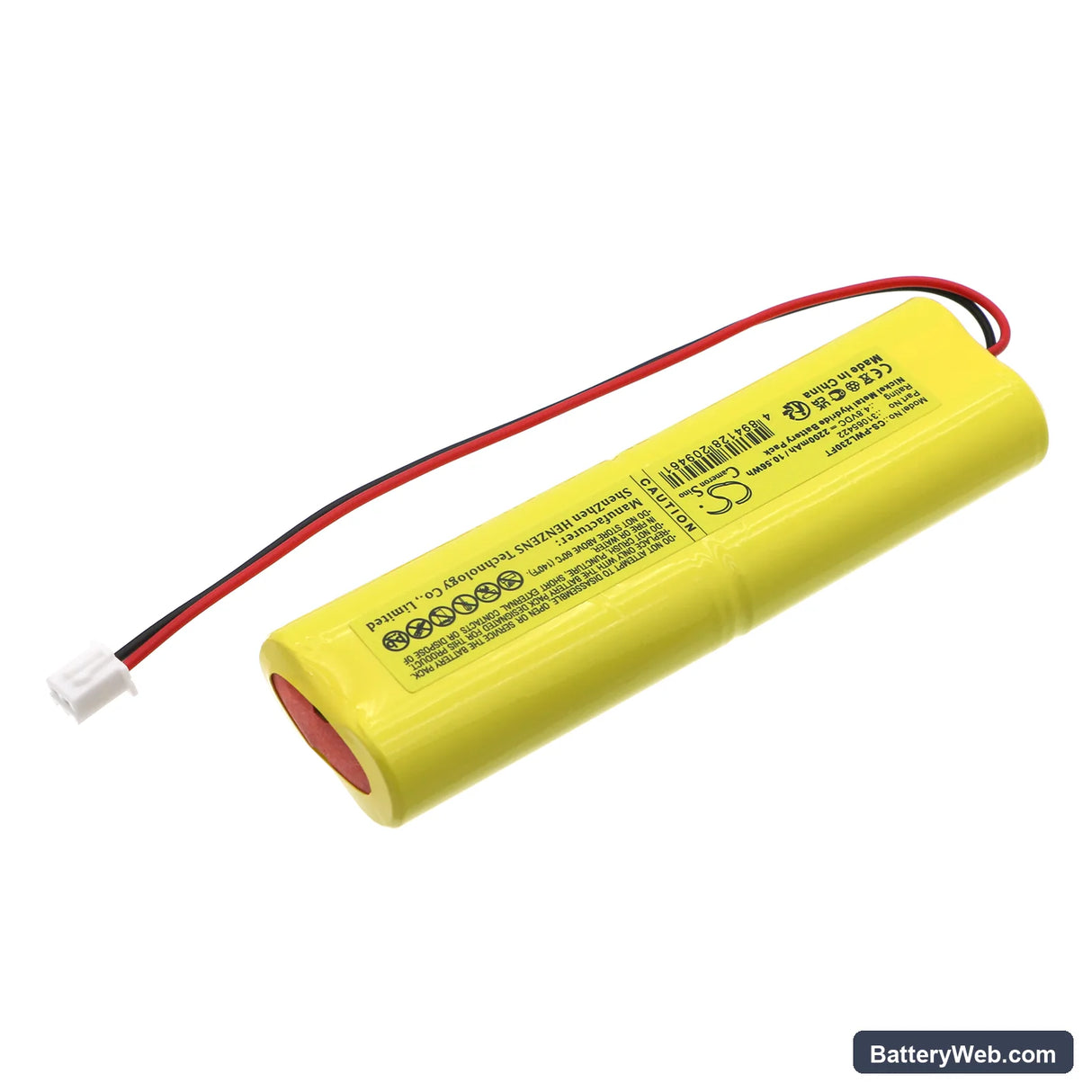

This is a 4.8V, 2200mAh Ni-MH replacement battery for the Perel EWL23 rechargeable flashlight. It matches the OEM part number 31065422 and slots directly into the original battery compartment. When original cells lose capacity after repeated charge cycles, this replacement restores full output to the light.

• EWL23 battery pack compatibility: The EWL23 uses a 4.8V Ni-MH pack — four cells in series driving the LED driver circuit at the voltage rail it expects. Swapping to a different voltage or chemistry causes the driver to behave unpredictably or not power on at all.
• Bench tested on actual hardware: We cycled this pack through charge and discharge on the EWL23 circuit. The BMS accepted charge normally and the driver held stable output across the discharge curve without stepping down prematurely.
• Multi-cell replacement rule for the EWL23: This pack contains four cells wired in series. Never supplement it by mixing one new cell with remaining old cells from a previous pack — the weakest cell sets the ceiling for the whole pack and will deplete first under high-current draw, accelerating its failure.

EWL23 driver stepping down output before the battery indicator trips

The EWL23 LED driver has a brownout protection threshold. When pack voltage drops close to that threshold under load, the driver reduces output to protect itself — even if the indicator has not yet signalled low. This is normal circuit behaviour, not a fault with the battery. A worn pack hits that threshold earlier in the discharge cycle, which is why the light dims sooner as cells age. A fresh 4.8V pack holds voltage above the threshold longer, keeping full output across more of the discharge curve.

EWL23 flashlight cycling through modes on its own near end of charge

If the EWL23 starts switching modes without input, the driver is detecting voltage instability at the pack terminals. This happens when cell capacity has dropped far enough that load current causes voltage to sag below the driver's stable operating window. The driver interprets the sag as a mode-change trigger. Switching to a lower output mode stops the cycling — or replace the pack, which should hold above 4.5V under moderate load when healthy.
