Philips Xenium X501 Compatible Battery 3.7V 1650mAh

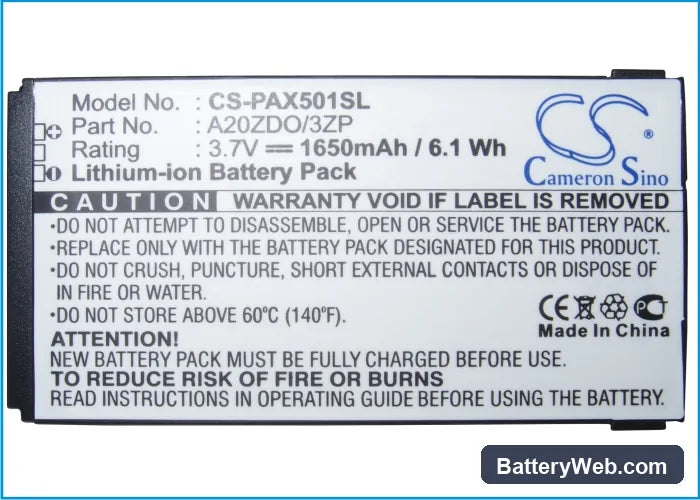

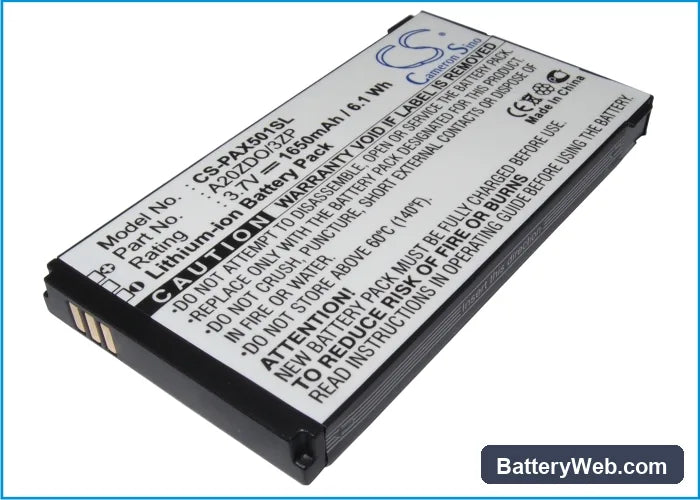

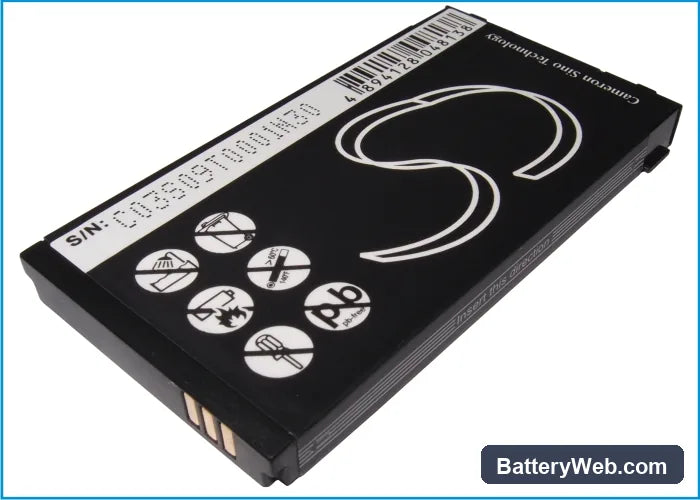

Philips Xenium X501 / X333 Champion — 3.7V Li-ion Replacement Battery (A20ZDO/3ZP)

This is a 3.7V, 1650mAh Li-ion cell built to fit the Philips Xenium X501 and a range of compatible Xenium handsets. It replaces the original battery when the phone no longer holds charge through a normal day of calls and messaging. Capacity is 1650mAh (6.11Wh) — matched to the OEM specification.

• Xenium X501, X333 Champion, X130, X513 and more: These Philips Xenium handsets share the same battery bay dimensions (72 × 38 × 6.50mm), connector pinout, and BMS handshake protocol — one cell fits across the entire group without modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the Xenium X501 and confirmed the BMS accepted the cell, reported state-of-charge correctly, and did not trigger a protection cutoff under normal screen-on and call load.
• First-use fuel gauge reset: On first use after installing this cell, disable fast charging and run one full discharge-to-charge cycle. The fuel gauge IC on the Xenium handsets calibrates its coulomb counter against the cell's actual discharge curve — skipping this step causes percentage readout errors for the first several cycles.

Why the Xenium X501 reports wrong battery percentage after a cell swap

The Xenium X501 uses a fuel gauge IC that tracks charge by counting coulombs against a stored discharge curve from the original cell. When a new cell goes in, that stored curve no longer matches the actual cell chemistry — so the IC interpolates badly and shows inflated or deflated percentages. One complete discharge from 100% down to automatic shutdown, followed by a full uninterrupted charge to 100%, forces the IC to rewrite its reference curve. After that single cycle, percentage readout stabilises.

Sudden shutdown at 20–30% on the replacement cell

This happens because the modem radio and display draw a surge of current that causes the cell voltage to sag sharply under load. If the cell's internal resistance is even slightly elevated — common in a new cell that hasn't completed its first calibration cycle — voltage can momentarily dip below the 3.0V protection threshold, and the BMS cuts power instantly. The phone interprets this as a dead battery even though the fuel gauge still showed charge. Run the first-use calibration cycle described above, and confirm the cell is sitting above 3.6V at rest before reassembly.
